The axial flow fan listed here carries 380V, power source Electric, documented exactly as the manufacturer publishes it. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: BT35-11 8#
- Power Source: Electric
- Power: 2.2(kw)
- Voltage: 380V
- Blade Material: Aluminium alloy vane
- Turbine Head Material: Aluminum alloy
Technical Specifications
| Voltage | 380V |
|---|---|
| Type | Explosion-Proof Axial Fan |
| Blade Material | Aluminium alloy vane |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | hongke fan |
| Model Number | BT35-11 8# |
| Model | BT35-11 8# |
| Fan Pressure | 208PA, |
| Performance | Low Noise Fan |
| Weight | 110KG |
| Scope Of Application | widely |
| Power | 2.2(kw) |
| Turbine Head Material | Aluminum alloy |
| Air Volume | 24739m3/h |
| Selling Units | Single item |
| Single Package Size | 50X50X60 cm |
| Single Gross Weight | 68.000 kg |
Product Details
Product information

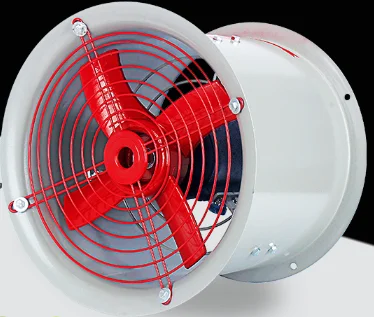

BT35-11 Low noise axial flow fan
Pure copper motor, with two functions of suction and exhaust,specially designed for industry
Large air volume, easy to install, safer
2. Pure copper motor
3. Strong wind
4. Safe and stable
The BT35-11 series axial fan is composed of impeller, casing, rectifier and motor. It is a new type of fan designed and improved on the basis of T30-11 in my country. It has reasonable results. The hub is round, which can reduce the flow loss. It is characterized by high strength, low noise, large air volume, high efficiency, wide range of parameters, and easy installation. It adopts advanced forward-swept blades and a low-noise inner rotor fan dedicated motor direct drive. This series of fans is suitable for conveying non-explosive, non-corrosive and non-obviously dusty gas. The ambient humidity should not exceed 60°, which is widely used in general projects, warehouses, offices, and residences. Internal ventilation or strong heating can also be installed in series in a longer exhaust pipe to increase the pressure in the pipe. It can also be used as a free fan when the casing is removed.

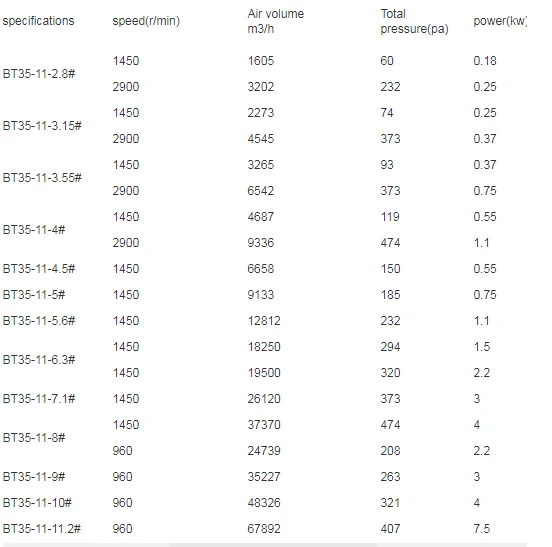

The following is the parameter table of each model of the fan, please be sure to check the parameters before buying. If you have any questions, please click Customer Service at the top of the page, and we will provide you with timely and professional answers.
model | Rotating speed(r/min) | Air volume(m3/h) | power(kw) | blade angle(°) | wind pressure(Pa) | A sound leveldB(A) |
8 | 1450 | 37370 | 4 | 30 | 474 | 86 |
8 | 960 | 24739 | 2.2 | 30 | 208 | 79 |
Details Images
The product has the advantages of reliable explosion-proof performance , large air flow, low noise,and low power consumption.
Those fans can be used for ventilation and strengthening heat dissipation in workshops and warehouses.
Company Profile
Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to “breathe” the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients. Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation. Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions. Hongke Fans unleash the full potential of wind!
Product packaging
Why Choose Us
Quality is our primary concern. We are well aware that high quality is essential to solve clients' problems and also the
reason why our clients choose us.We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services:
In this way , our clients can be provided with more efficient solutions.
reason why our clients choose us.We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services:
In this way , our clients can be provided with more efficient solutions.
Hongke Fans unleash the full potential of wind!
Certifications
FAQ
Q1: Wonder if you accept small orders?
A1: We accept small order. In order to let customers rest assured, we can accept small orders. We are confident that customers will give us large orders.
Q2: Can you send products to my country?
A1: We accept small order. In order to let customers rest assured, we can accept small orders. We are confident that customers will give us large orders.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give us your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production the balance should be paid. Finally we will ship the goods.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give us your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production the balance should be paid. Finally we will ship the goods.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $492.53 / piece
- 50–499 piece: US $482.53 / piece
- 500+ piece: US $472.53 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
