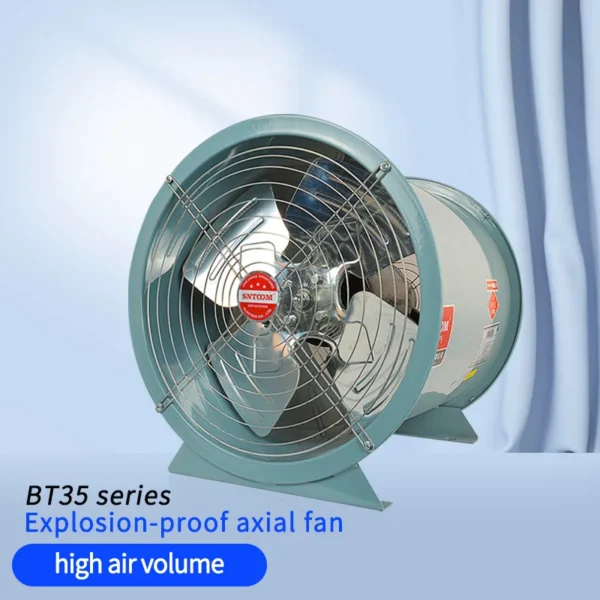

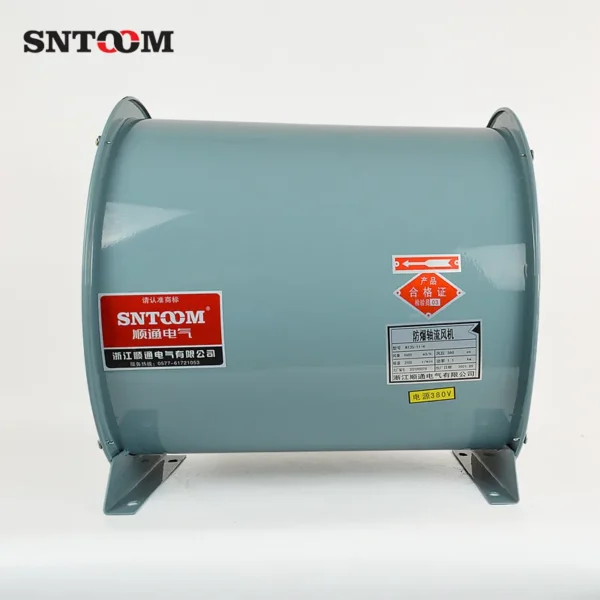

Axial Flow Fan, Explosion-proof, 220V, 2000-46500 m³

Key specification for this axial flow fan: 220V/380V, air flow 2000-46500 m³/min. Everything below is reproduced from the factory data sheet. Made by Zhejiang Shuntong Electric Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Axial Flow Fan

• Model Number: BT35-11
• Voltage: 220V/380V
• Air Flow: 2000-46500 m³/min
• Blade Material: aluminum
• Material: Steel duct/aluminum blade and motor
• Speed: 1450/2900/960 r/min

Technical Specifications

Product Details

Product Description

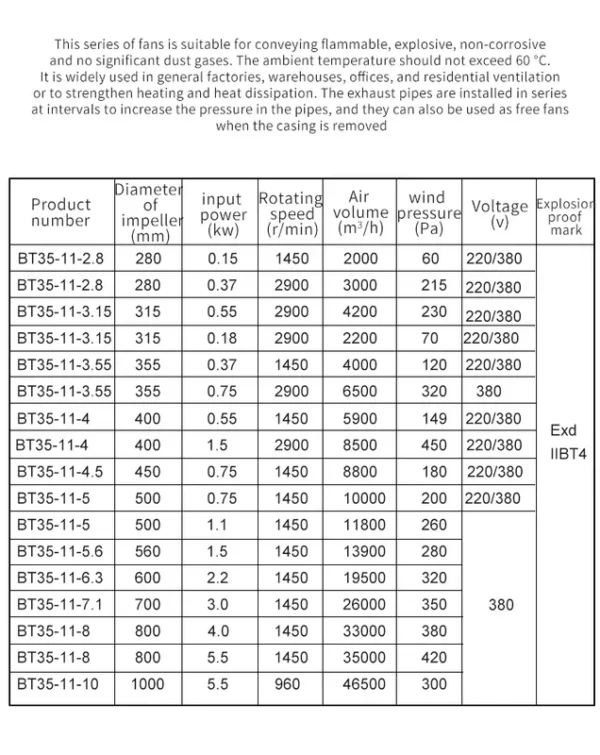

Specification

Model	Diameter of impeller (mm)	Input power (kw)	Rotating Speed (r/min)	Air volume (m³/h)	Wind pressure (pa)	Explosion-proof mark
BT35-11-2.8	280	0.15	1450	2000	60	Exd IIBT4
BT35-11-2.8	280	0.37	2900	3000	215
BT35-11-3.15	315	0.55	2900	4200	230
BT35-11-3.15	315	0.18	2900	2200	70
BT35-11-3.55	355	0.37	1450	4000	120
BT35-11-3.55	355	0.75	2900	6500	320
BT35-11-4	400	0.56	1450	5900	149
BT35-11-4	400	1.5	2900	8500	450
BT35-11-4.5	450	0.75	1450	8800	180
BT35-11-5	500	0.75	1450	10000	200
BT35-11-5	500	1.1	1450	11800	260
BT35-11-5.6	560	1.5	1450	13900	280
BT35-11-6.3	600	2.2	1450	19500	320		79
BT35-11-7.1	700	3.0	1450	26000	350		73
BT35-11-8	800	4.0	1450	33000	380
BT35-11-8	800	5.5	1450	35000	420
BT35-11-10	1000	5.5	960	46500	300

This series of fans are suitable for conveying inflammable, explosive, non-corrosive and non-obvious dust gas. The ambient temperature should not exceed 60 C. They are widely used in general factories, warehouses, offices, residential ventilation and ventilation, or to enhance heat dissipation. They can also be installed in series with long exhaust pipes with intervals to increase the pressure in the pipes. Unloading the machine housing can also be used as a free fan. 1. Pure copper motor, good performance Excellent material high-speed enclosed housing design, safe and explosion-proof, strong wind and low noise 2. Protective net cover, safe and durable Safe to prevent damage to the fan blades after sundries are sucked into the fan 3. All-aluminum fan blade, strong wind speed Durable fan blade, smooth surface, light and durable without deformation

Certifications

Company Profile

Packing and Shipping

FAQ

Q 1.What's the payment term? A. We accept TT,LC,Western Union,Paypal. Q 2.What is the delivery time? A. It depends on order quantity,usually it will take about 3-5 days for sample production. Q 3.What's the package used for? A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for protection. Q 4.Would you accept to use our logo? A.It's no problem,we accept OEM service. Q 5.What's your production capacity for one month? A. Our month capacity can reach near 500-3000pcs for the most of our model. Q 6.Where is your market? A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation. Q 7. What kind of certificates you have? A. Our company has ISO9001,CE, RoHS,SGS etc.

Ordering and Pricing

• Minimum order quantity: 10 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial flow fan?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the axial flow fan be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
