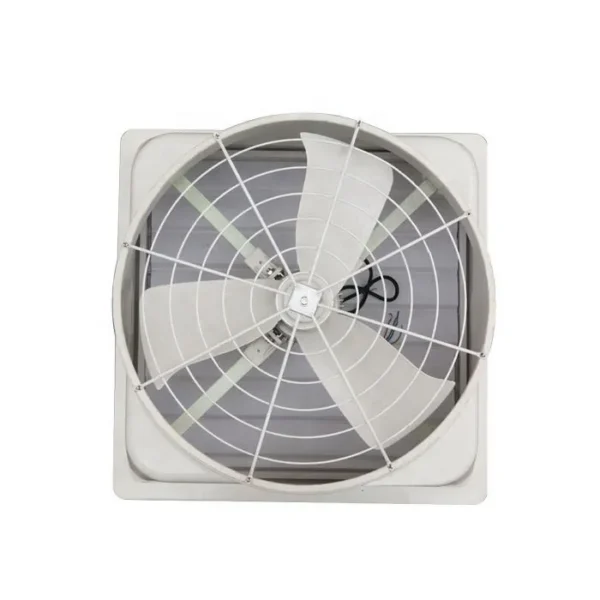

The axial flow fan listed here carries 380v, blade material FRP, documented exactly as the manufacturer publishes it. Made by Mach Industrial (Zhejiang) Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: AFYB-146
- Voltage: 380v
- Blade Material: FRP
- Warranty: 1 Year
- Certification: ISO9001/ISO4001/BV
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 380v |
|---|---|
| Blade Material | FRP |
| Electric Current Type | AC |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | AOSUA |
| Model Number | AFYB-146 |

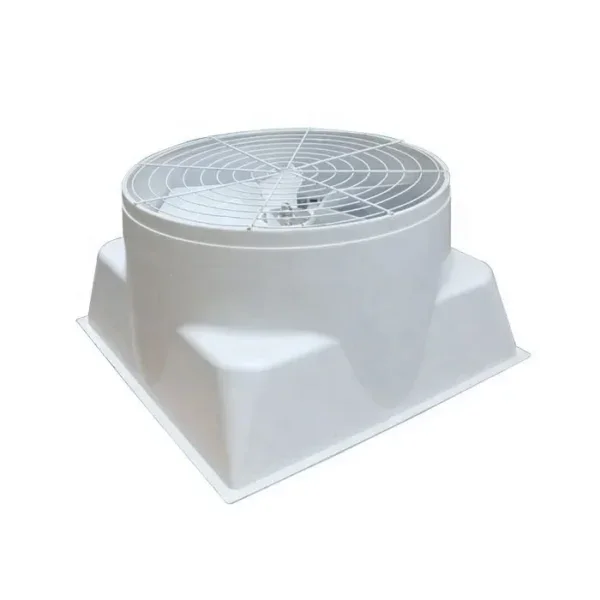

| Name | Industrial FRP Negative Pressure Fan Axial Flow Fan |
| Application | Workshop |
| Dimension | 1460*1460*400mm |
| Fan Diameter | 1220mm |
| Balde No | 6 |
| Vent Size | 1250mm |
| Noise | <65dB(A) |
| Weight | 75KG |
| Cover Area | 100-200㎡ |
| Certification | ISO9001/ISO4001/BV |
| Packaging Details | 1.Wooden case 2.Wooden Pallet |
| Port Of Dispatch | Ningbo/Shanghai |
| Selling Units | Single item |
| Supply Ability | 1000 sets per Month Negative Pressure Fan |
Product Details

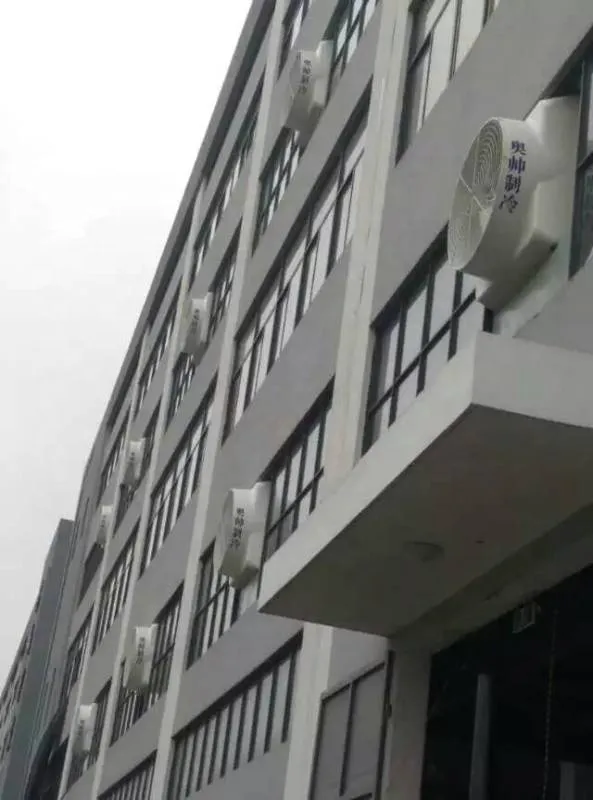

Negative pressure fan discharging air to make indoor air pressure drop, indoor air getting thinner and form a negative pressure zone.The air into the indoor because of differential pressure. In the practical application in industrial workshop, negative pressure fan installed in the factory side, air inlet on the other side of the plant room.Then it formed a negative pressure zone between Negative pressure fan and air inlet. In the process, the doors and Windows near the negative pressure fan keep closed and forcing air into from air inlet doors and Windows to workshop. Air lined up then orderly by the air inlet into the workshop and through the workshop, finally,the negative pressure fan discharge air from workshop. Thoroughly, efficient ventilation and air change rate can be as high as 99%. Through specific engineering design and according to the need for air speed and wind speed and no heat, dust and harmful gases, smoke quickly discharge from workshop.Any problem of poor ventilation can completely solve once only. From the open fan ventilation could be achieved within a few seconds.

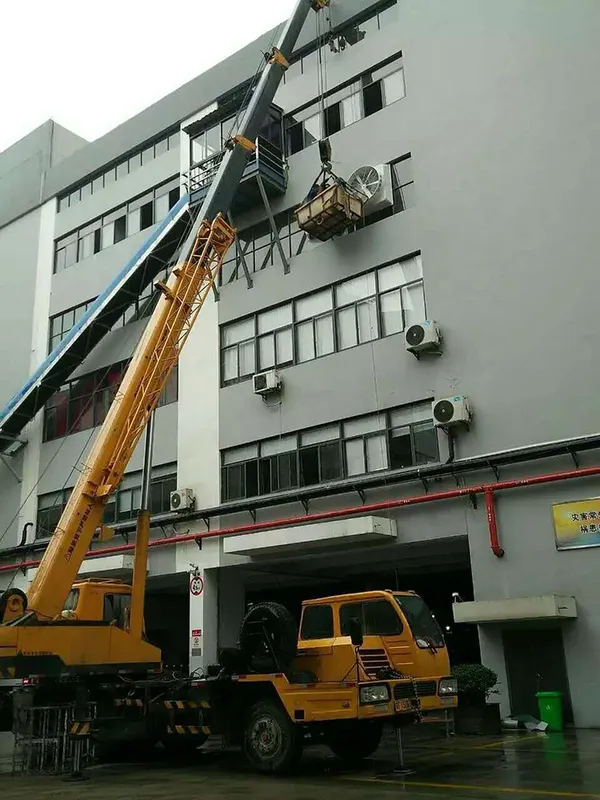

1.Provide install video if necessary.
2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
4.Oversea technical guidance.
1)Q:Are you a factory or a trading company?

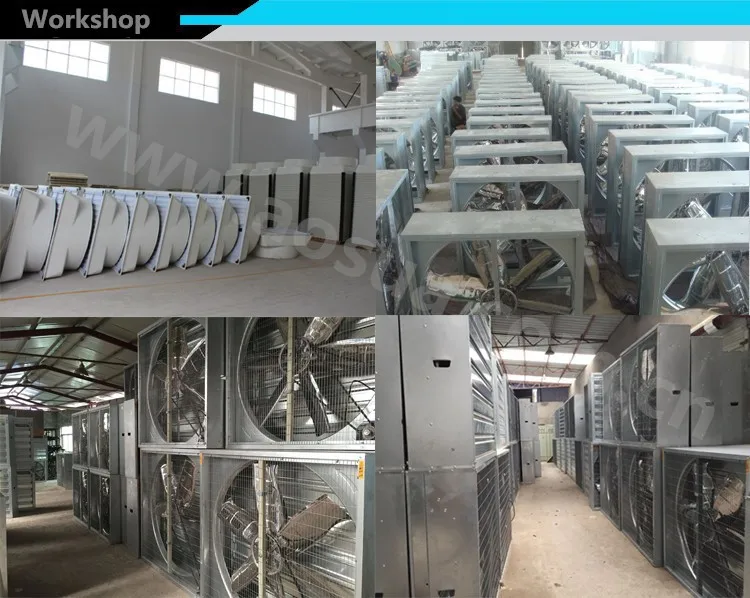

A:Air cooler manufacturer with 50 works.
2)Q:What's your MOQ of this term?
A:1 SET.
3)Q:Where is your Loading port?
A:Ningbo and Shanghai port,China
4)Q:What's your company's available production capacity?
A:1000 SETS per month.
5)Q:How about the packing of this model?
A: Wooden packing, Plywood board packing, 20 feet container, 40 feet container

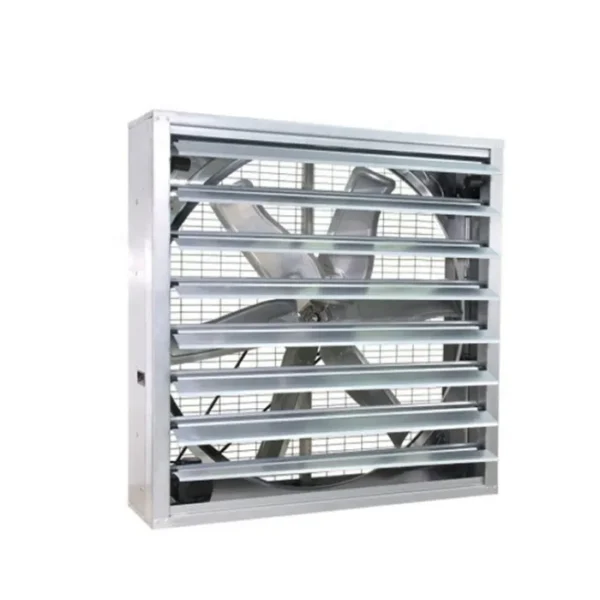

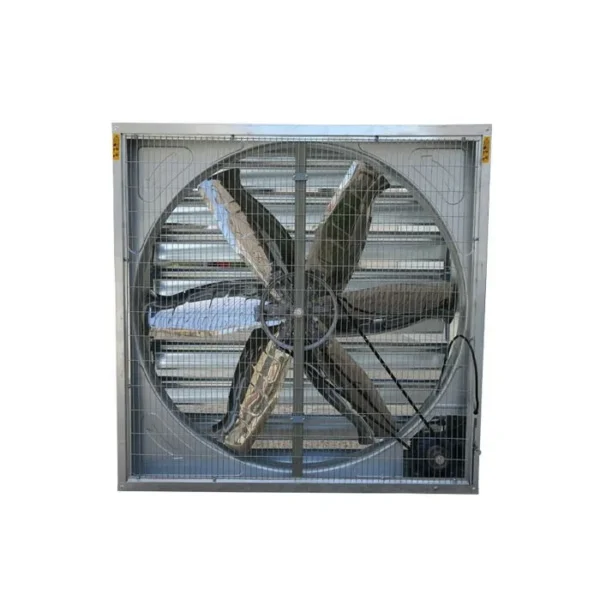

Other model
| No | Model | Size | Air volume | Motor power | Speed | Fan diameter | Noise | Weight |
| 1 | AFYB-85 | 850mm*850mm*480mm | 28000m³/h | 0.55kw-6p | 950rpm | 650mm | <53dB | 45KG |
| 2 | AFYB-106 | 1060mm*1060mm*550mm | 32000m³/h | 0.55kw-10p | 550rpm | 850mm | <55dB | 50KG |
| 3 | AFYB-146 | 1460mm*1460mm*580mm | 45000m³/h | 0.75kw-12p | 440rpm | 1220mm | <65dB | 75KG |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $200 / set
- 20–49 set: US $183 / set
- 50+ set: US $150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow fan carry?
It is supplied with ISO9001/ISO4001/BV documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Mach Industrial (Zhejiang) Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Mach Industrial (Zhejiang) Co., Ltd. range on HVACR Nexus.
