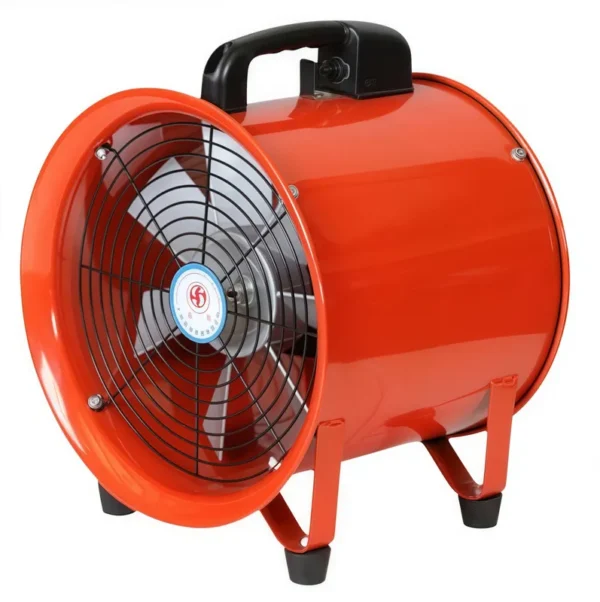

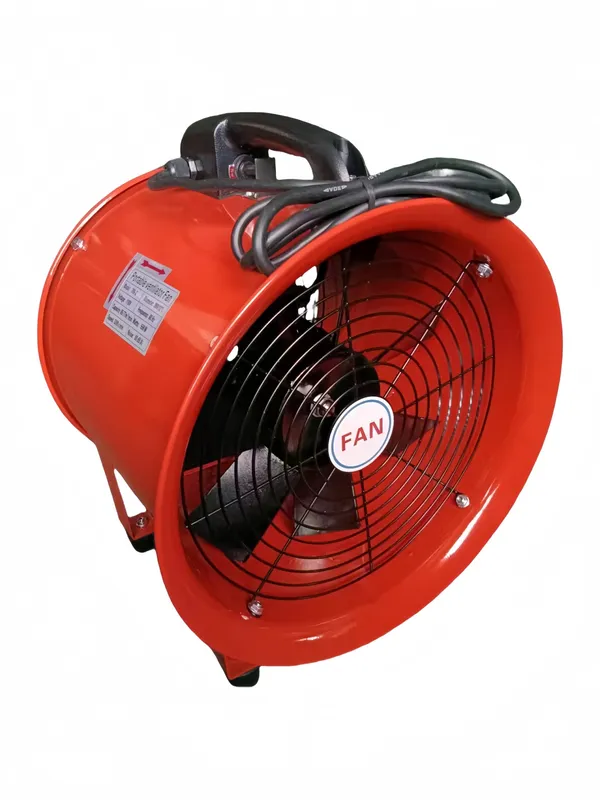

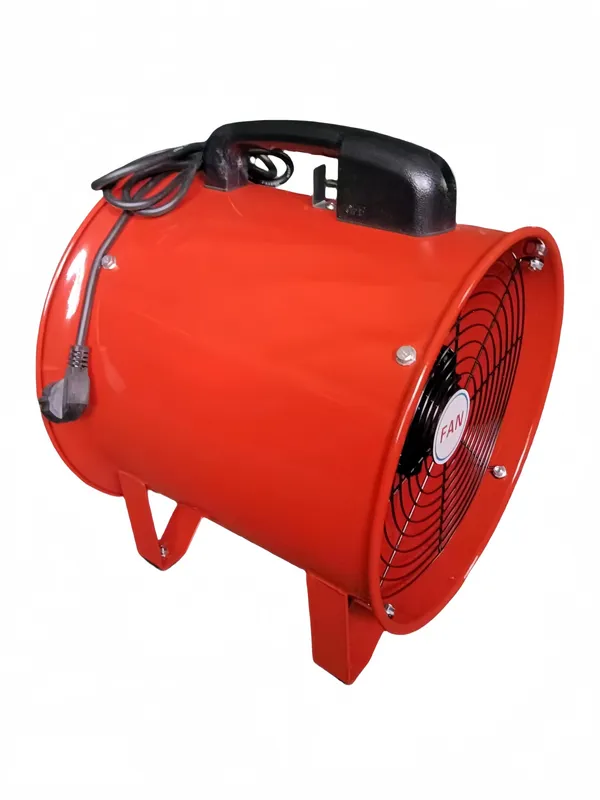

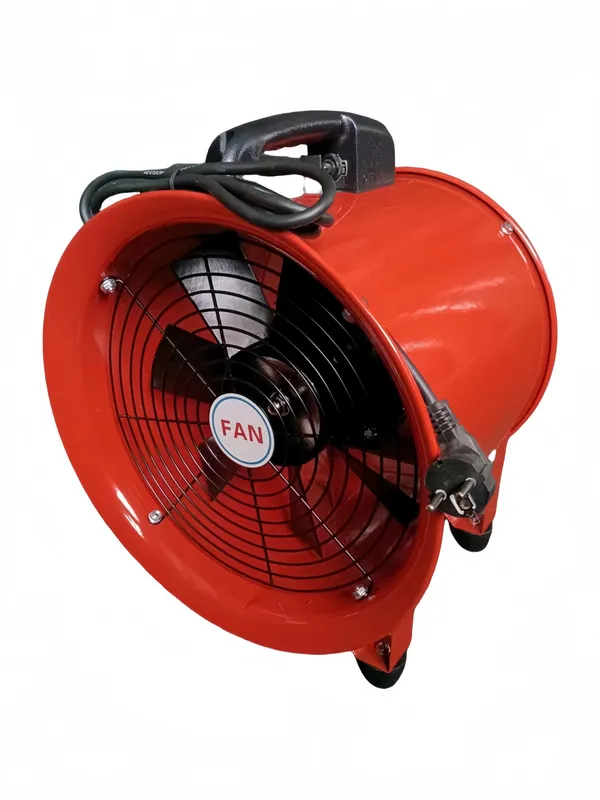

The axial flow fan listed here carries 230 V, rated airflow 1600m³/h, documented exactly as the manufacturer publishes it. Made by Wenling Qintai Machinery Technology Co., Ltd. (6 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Fan
- Model Number: 8"(200mm)
- Power Source: Electric
- Power: 0.25kw
- Voltage: 230 V
- Max Air Flow: 25-30
- Rated Airflow: 1600m³/h
Technical Specifications
| Voltage | 230 V |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | ALUMINUM |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | ZHE |
| Brand Name | QT-TECH |
| Model Number | 8"(200mm) |
| Power | 0.25kw |
| Rated Speed | 2900rpm/2poles |
| Rated Airflow | 1600m³/h |
| Pressure | 250pa |
| Dimension | 31*27*34mm |
| Weight | 9kgs |
| Noise | 61 |
| Speed | 2900/3300 |
| Max Air Flow | 25-30 |
| Static Pressure | 245-295 |
| Selling Units | Single item |
| Single Package Size | 31X27X34 cm |
| Single Gross Weight | 9.0 kg |
Product Details
item | Portable Ventilator Fan Axial Flow Fan |
Type | Axial Flow Fan |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining |
Customized support | OEM, ODM, OBM |
Electric Current Type | AC |
Mounting | Duct Fan |
Blade Material | ALUMINUM |
Place of Origin | ZHE |
Brand Name | QT-TECH |
Model Number | 8"(200MM) |
Warranty | 1 Year |
After-sales Service Provided | Free spare parts |
Rated Voltage | 230v |
Power | 0.25kw |
rated speed | 2900rpm/2poles |
rated airflow | 1600m³/h |
pressure | 250pa |
Dimension | 31*27*34mm |
weight | 9kgs |
The Main Parameters
Model | Rated Voltage(V) | Input power(kw) | Rated Speed(r/pm) | Rated Airflow (m³/h) | Pressure(pa) | Size | Weight (kgs) |
8"(200mm) | 230 | 0.25 | 2900/2poles | 1600 | 250 | 31*27*34 | 9.0 |
10"(250mm) | 230 | 0.37 | 2900/2poles | 2800 | 300 | 41*34*34 | 9.00 |
12"(300mm) | 230 | 0.55 | 2900/2poles | 4000 | 385 | 37*33*44 | 13.00 |
14"(350mm) | 230 | 0.75 | 2900/2poles | 5100 | 430 | 52*45*37 | 15.00 |
16"(400mm) | 230 | 1.5 | 2900/2poles | 7300 | 700 | 48*36*57 | 22.00 |
16"(400mm) | 230 | 0.55 | 1450/4poles | 4900 | 310 | 47*36*57 | 16.00 |
18"(450mm) | 220 | 1.8 | 2900/2poles | 10000 | 972 | 53*36*60 | 25.00 |
18"(450mm) | 220 | 0.75 | 1450/4poles | 8600 | 560 | 53*36*60 | 17.00 |
20"(500mm) | 220 | 2.2 | 2900/2poles | 12000 | 1050 | ||
20"(500mm) | 230 | 0.55 | 1450/4poles | 9960 | 460 |
Ordering and Pricing
- Minimum order quantity: 50 set
- Volume pricing:
- 50+ set: US $29 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 50 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenling Qintai Machinery Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wenling Qintai Machinery Technology Co., Ltd. range on HVACR Nexus.
