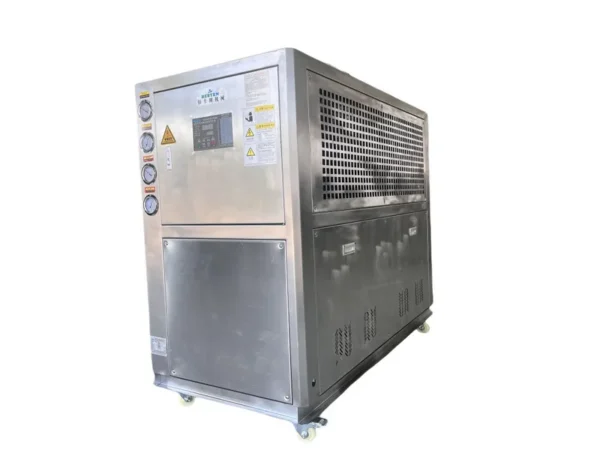

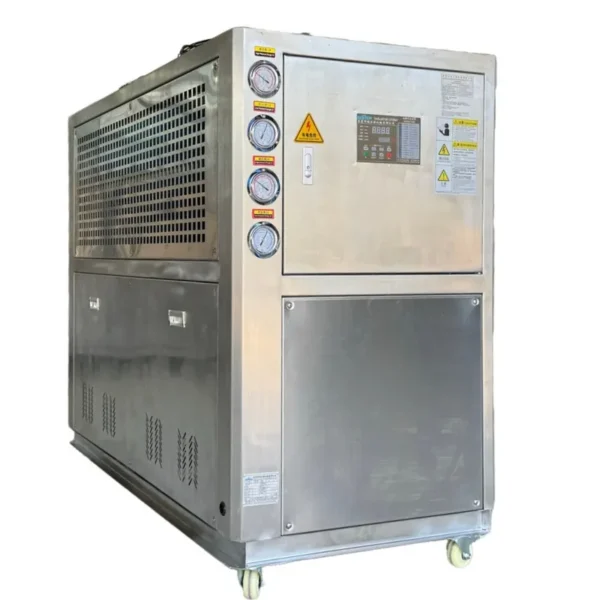

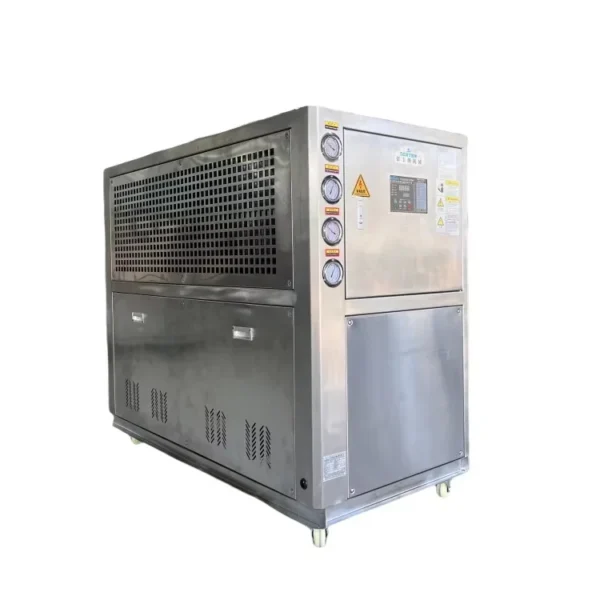

Steel air cooled chiller — 400V/380V, cooling capacity 29154Kcal/h. The complete factory specification follows. Made by Wenling Qintai Machinery Technology Co., Ltd. (6 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steel Air Cooled Chiller
- Model Number: QTC-10ACss
- Power: 10HP
- Refrigeranting Power: 33.9kw
- Compressor Power: 10HP
- Voltage: 400V/380V
- Cooling Capacity: 29154Kcal/h
Technical Specifications
| Voltage | 400V/380V |
|---|---|
| Power | 10HP |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | high quality |
| Core Components | COMPRESSOR |
| Model Number | QTC-10ACss |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 380 |
| Brand Name | QINTAITECH |
| Dimension(L*W*H) | 1530*780*1470mm |
| Working Temperature Range | 0-50℃ |
| Product Name | industrial Scroll water chiller |
| Material | stainless steel |
| Cooling Capacity | 29154Kcal/h |
| Refrigerant | R22 |
| Refrigeranting Power | 33.9kw |
| Standard Flow Of Freezing | 5.83m3/h |
| Chiller Water Temperature | 3℃-8℃ |
| Compressor Power | 10HP |
| Built-In Pump | 1kw |
| Water Tank | 148L |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | QTC-10AC |
Voltage | 460-380V/3P/50Hz-60HZ(can be customized） |
Compressor type | Scroll type |
Compressor power | 10hp |
Cooling capacity | 29154Kcal/h |
Refrigerating power | 33.9kw |
Refrigerant type | R22 |
Weight | 380kgs |
Connect size | DN40 |
Dimension | 1530*780*1470 |
standard freezing water flow | 5.83m3/h |
water tank | 148L |
built in pump | 1kw |
ADVANTAGES:
Models for choose
Type | Technical Parameters of Air-Cooling Chiller | ||||||||||
Model | QTC-5AC | QTC-10AC | QTC-20AC | QTC-30AC | |||||||
Rated CoolingCapacity | 50Hz | Btu/h | 57867 | 115734 | 242394 | 363591 | |||||
KW | 16.95 | 33.9 | 71 | 106.5 | |||||||
Kcal/h | 14577 | 29154 | 61060 | 91590 | |||||||
USRT | 4.8 | 9.6 | 20.2 | 30.3 | |||||||
Power input | 460-380V/3P/50Hz-60HZ(The voltage can be customized according to the requirements） | ||||||||||
Compressor | power | HP | 5 | 10 | 20 | 30 | |||||
type | Closed cycle scroll/Piston | ||||||||||
Flow regulator | Capillary tube/Thermostatic expension valve | ||||||||||
Refrigerant | R22/R407C | ||||||||||
Condenser | style | High Effective Copper tube Covered Aluminum Fins | |||||||||
Evaporator | Style | Water tank type/shell tube type /stainless steel plate heat exchanger | |||||||||
water tank | L | 55 | 148 | 278 | 365 | ||||||
Standard freezing water flow | m3/h | 2.91 | 5.83 | 12.21 | 18.31 | ||||||
Diameter of standard nipple | DN | 25 | 40 | 40 | 50 | ||||||
Built-in pump | KW | 0.55 | 1 | 1.85 | 2.2 | ||||||
Machine weight | 185 | 380 | 830 | 1400 | |||||||
Measure | Long | 1140 | 1530 | 2000 | 2200 | ||||||
Wide | 560 | 780 | 1130 | 1100 | |||||||
Height | 1040 | 1470 | 1720 | 1880 | |||||||
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5+ set: US $3700 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steel air cooled chiller?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the steel air cooled chiller be supplied for my local voltage?
The standard configuration is 400V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenling Qintai Machinery Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wenling Qintai Machinery Technology Co., Ltd. range on HVACR Nexus.
