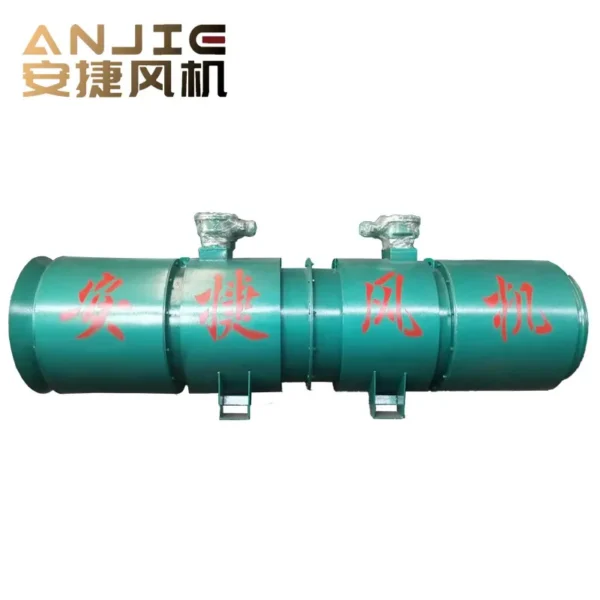

The axial flow fan listed here carries voltage 380/660/1140V, power source Electric, documented exactly as the manufacturer publishes it. Made by Yuncheng Anjie Fan Electric Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: FBDNo10.0/2X45kw(Dual silencer)
- Power Source: Electric
- Rated Power: 2*45kw
- Voltage: 380/660/1140V
- Material: Carbon Steel
- Blade Material: Carbon Steel
Technical Specifications
| Blade Diameter | 1000mm(39.37in) |
|---|---|
| Voltage | 380/660/1140V |
| Speed | 800-1550m³/min(28251.73-54737.73ft3/min) |
| Type | Explosion-Proof Axial Fan |
| Material | Carbon Steel |
| Blade Material | Carbon Steel |
| Mounting Type | Duct Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shanxi, China |
| Brand Name | AnJieXiaoLei |
| Model Number | FBDNo10.0/2X45kw(Dual silencer) |
| Rated Power | 2*45kw |
| Rated Air Volume | 800-1550m³/min |
| Rated Air Pressure | 3800-1000Pa |
| Motor Model | YBF3-225M-4 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model number | Rated power（kw） | Rated air volume（m³/min） | Rated air pressure（Pa） | Motor model |
FBD№10./2×45 | 2×45kw | 800-1550 | 3800-1000 | YBF3-225M-4 |

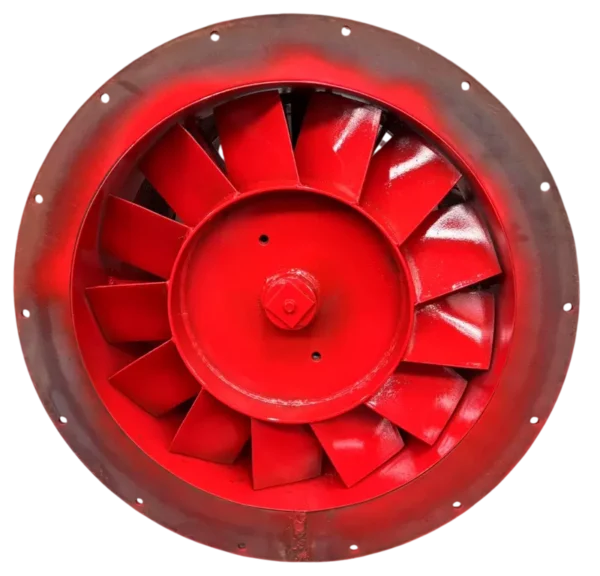

Impeller
Counter-rotating, three-way flow blades, high air pressure (up to 9930 Pa), wide
high-efficiency zone.
high-efficiency zone.

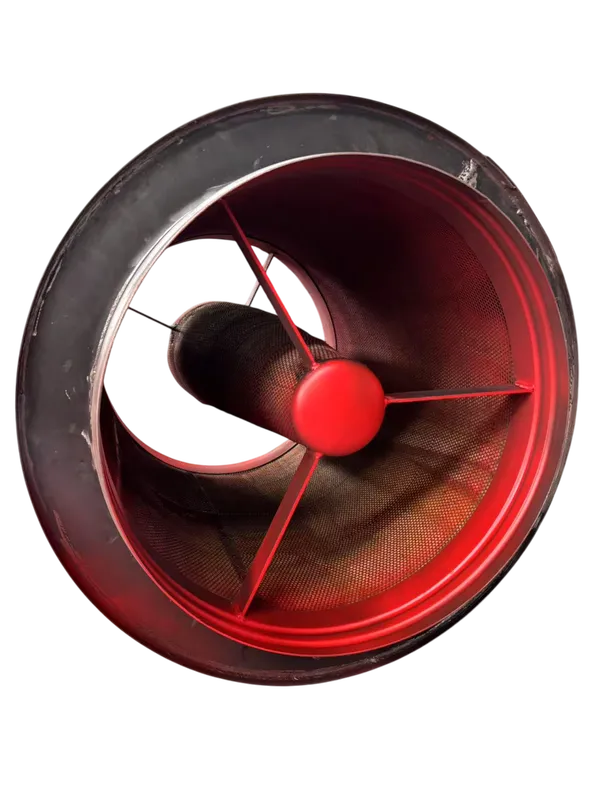

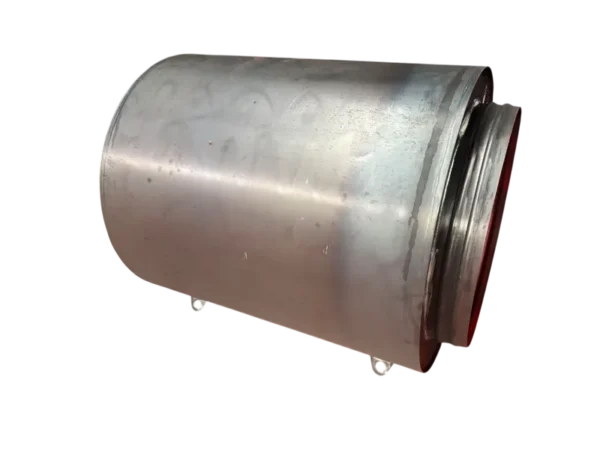

Muffler
Porous plate + sound deadening cotton filling Noise ≤85dB, improve underground environment.

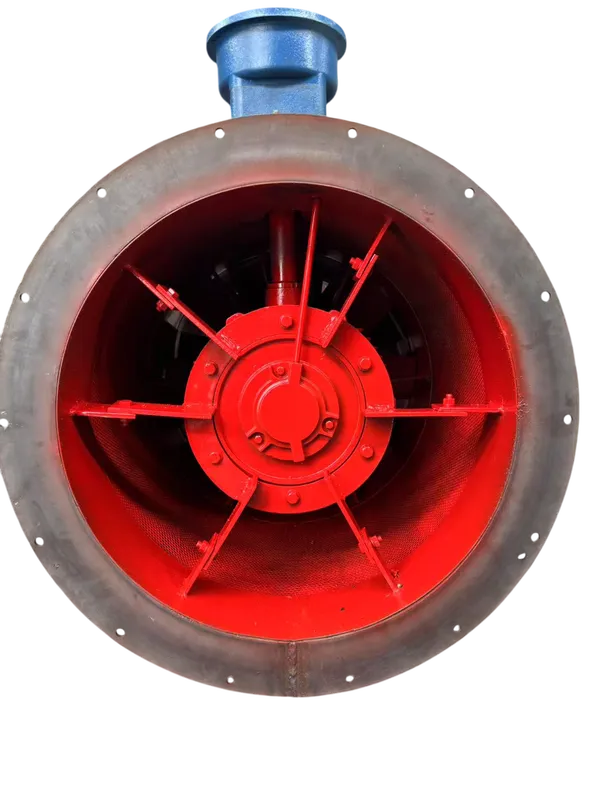

explosion-proof motor
Direct drive, multi-voltage adaptable, zero loss transmission, explosion-proof and safe.
Construction, Advantages and Features
Explosion-proof Press-in Fans (FBD series):
Adopting double-motor counter-rotating structure, equipped with explosion-proof electric motor, the airflow is pressurised by the two-stage impeller rotating in the opposite direction. This kind of fan is suitable for long distance tunnel air supply (up to 2000m), high resistance ventilation network and mining face which needs continuous and stable air supply. Mainstream models such as FBD-5.6/2×11kW, FBD7.1/2*30, etc.,with power configurations ranging from 2×2.2kW to 2×132kW, and with air volumes of up to 1,880m³/min (about 31.3m³/s) to meet the ventilation needs of large mines.
Characteristics: FBD explosion-proof press-in type
Power source: double motors (380V/660V/1140V)
Explosion-proof performance: design of explosion-proof motors, in accordance with MT222
Maximum air volume: 31.3 m³/s (FBD11.2)
Applicable aisle length: ≤2000m
Noise level: <85dB (with muffler)
Special advantages: mobile and flexible, adjustable air cloth wheels Can be used in a hierarchical manner. Energy saving mode
Explosion-proof Press-in Fans (FBD Series) Structure Explanation:
·FBD series explosion-proof press-in ventilator adopts counter-rotating double-motor structure, which consists of collector,
two-stage host unit (including impeller and motor), diffuser and anechoic system. Its innovative design lies in the cancellation of the traditional guide vane device, through the two-stage counter-rotating impeller to achieve airflow rectification and energy superposition.
Adopting double-motor counter-rotating structure, equipped with explosion-proof electric motor, the airflow is pressurised by the two-stage impeller rotating in the opposite direction. This kind of fan is suitable for long distance tunnel air supply (up to 2000m), high resistance ventilation network and mining face which needs continuous and stable air supply. Mainstream models such as FBD-5.6/2×11kW, FBD7.1/2*30, etc.,with power configurations ranging from 2×2.2kW to 2×132kW, and with air volumes of up to 1,880m³/min (about 31.3m³/s) to meet the ventilation needs of large mines.
Characteristics: FBD explosion-proof press-in type
Power source: double motors (380V/660V/1140V)
Explosion-proof performance: design of explosion-proof motors, in accordance with MT222
Maximum air volume: 31.3 m³/s (FBD11.2)
Applicable aisle length: ≤2000m
Noise level: <85dB (with muffler)
Special advantages: mobile and flexible, adjustable air cloth wheels Can be used in a hierarchical manner. Energy saving mode
Explosion-proof Press-in Fans (FBD Series) Structure Explanation:
·FBD series explosion-proof press-in ventilator adopts counter-rotating double-motor structure, which consists of collector,
two-stage host unit (including impeller and motor), diffuser and anechoic system. Its innovative design lies in the cancellation of the traditional guide vane device, through the two-stage counter-rotating impeller to achieve airflow rectification and energy superposition.
·Counter-rotating power system: adopts the structure of double motor direct connection drive, the first impeller rotates clockwise (with YBF132S2-2 explosion-proof motor), and the second impeller rotates counterclockwise (with the same type of motor). Then umber of blades of the two impellers are prime numbers of each other (e.g. 7 blades of the first stage, 11 blades of the second stage), which can effectively destroy the airflow pulsation and reduce the aerodynamic noise. The motor protection class reaches IP55, insulation class F, and can be continuously operated under 40℃ ambient temperature.
-Ternary flow impeller design: the blades are based on the theory of airfoil, adopting the three-dimensional modelling of curved swept combination orthogonal type and hollow steel plate structure. Through CFD optimisation, the impeller tip clearance is controlled within 0.5%D (impeller diameter) to reduce leakage loss. The high efficiency zone covers 70%-130% of the rated flow rate, avoiding wheezing in small flow conditions.
·Modular muffler system: the whole machine adopts composite noise suppression technology, including: air intake muffler (resistive muffler), sound insulation layer of the main machine (50mm thick ultra-fine glass wool), diffuser guide grille (to reduce eddy current noise). The measured noise is lower than 85dB(A), and the specific A sound level is controlled below 35dB, which significantly improves the downhole sound environment.
Core Performance Advantages:
-High efficiency and energy saving features: FBD series adopts counter-rotating + direct connection structure, reducing mechanical transmission loss and improving efficiency by 25%-35% compared with traditional JBT series. Supports single/double-stage switching mode: when the length of the roadway is less than 1000m, only one stage fan can be turned on, reducing energy consumption by 40%;double-stage operation for long-distance ventilation, with a comprehensive power saving rate of 30%.
-Intrinsically safe design: FBD series motors comply with the ExdI Mb explosion-proof standard, with built-in temperature
sensors(cut-off temperature 150°C) and vibration monitoring modules.FQC series adopts a fully pneumatic solution, which has passed the ISO9001 safety certification for pneumatic equipment used in mines, and can be operated safely in the area of gas concentration exceeding the limit.
-Environmental adaptability: Both types of products meet the wide temperature range operation (-20℃~+40℃), adapt to the altitude of ≤1000m (FBD) or ±1000m (FQC).FQC has better humidity resistance (humidity ≤95%), and FBD has better dust resistance (dust content ≤200mg/m³).
-Intelligent control integration: the new generation of FBD supports frequency control + remote monitoring, and can be connected to the mine KJ90 monitoring system. It has the function of automatic switching of dual power supply, and the standby fan starts itself within 0.5s when the main fan fails, which ensures uninterrupted ventilation by cooperating with the linkage device of the dampers.
Preferred scenario for FBD press-in series: For long digging faces (>800m), large section roadways (>15m²) and main transport roadways requiring continuous and stable ventilation, the FBD explosion-proof press-in fan is a more cost-effective and efficient solution due to its advantages of high air pressure, large air volume and energy saving. Its modular anechoic design also fulfils occupational health requirements.
-Ternary flow impeller design: the blades are based on the theory of airfoil, adopting the three-dimensional modelling of curved swept combination orthogonal type and hollow steel plate structure. Through CFD optimisation, the impeller tip clearance is controlled within 0.5%D (impeller diameter) to reduce leakage loss. The high efficiency zone covers 70%-130% of the rated flow rate, avoiding wheezing in small flow conditions.
·Modular muffler system: the whole machine adopts composite noise suppression technology, including: air intake muffler (resistive muffler), sound insulation layer of the main machine (50mm thick ultra-fine glass wool), diffuser guide grille (to reduce eddy current noise). The measured noise is lower than 85dB(A), and the specific A sound level is controlled below 35dB, which significantly improves the downhole sound environment.
Core Performance Advantages:
-High efficiency and energy saving features: FBD series adopts counter-rotating + direct connection structure, reducing mechanical transmission loss and improving efficiency by 25%-35% compared with traditional JBT series. Supports single/double-stage switching mode: when the length of the roadway is less than 1000m, only one stage fan can be turned on, reducing energy consumption by 40%;double-stage operation for long-distance ventilation, with a comprehensive power saving rate of 30%.
-Intrinsically safe design: FBD series motors comply with the ExdI Mb explosion-proof standard, with built-in temperature
sensors(cut-off temperature 150°C) and vibration monitoring modules.FQC series adopts a fully pneumatic solution, which has passed the ISO9001 safety certification for pneumatic equipment used in mines, and can be operated safely in the area of gas concentration exceeding the limit.
-Environmental adaptability: Both types of products meet the wide temperature range operation (-20℃~+40℃), adapt to the altitude of ≤1000m (FBD) or ±1000m (FQC).FQC has better humidity resistance (humidity ≤95%), and FBD has better dust resistance (dust content ≤200mg/m³).
-Intelligent control integration: the new generation of FBD supports frequency control + remote monitoring, and can be connected to the mine KJ90 monitoring system. It has the function of automatic switching of dual power supply, and the standby fan starts itself within 0.5s when the main fan fails, which ensures uninterrupted ventilation by cooperating with the linkage device of the dampers.
Preferred scenario for FBD press-in series: For long digging faces (>800m), large section roadways (>15m²) and main transport roadways requiring continuous and stable ventilation, the FBD explosion-proof press-in fan is a more cost-effective and efficient solution due to its advantages of high air pressure, large air volume and energy saving. Its modular anechoic design also fulfils occupational health requirements.
1. who are we?
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 dozen
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 dozen. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 380/660/1140V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
