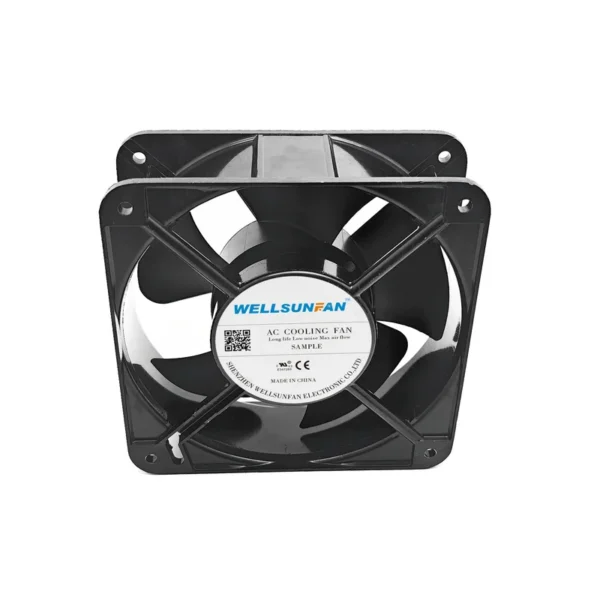

Key specification for this axial panel: 110V/220V, 71.50 W. Everything below is reproduced from the factory data sheet. Made by Shenzhen Weilishun Technology Limited (16 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Panel
- Model Number: AC20060
- Power: 71.50 W
- Power Interface: 2/3/4PIN
- Voltage Range: 110V/220V
- Heatsink Material: Aluminum
- Frame Material: Die-casting aluminum painted black
Technical Specifications
| Type | Fan |
|---|---|
| Application | Computer Case |
| Fan Size | 200x200x60mm |
| Air Volume | 308.23 CFM |
| Fan Speed Control | 2500 RPM |
| Heatsink Material | Aluminum |
| Noise | 62.3 dBA |
| Fan Life | 50000 Hrs |
| Bearing | Ball Bearing |
| Power | 71.50 W |
| Power Interface | 2/3/4PIN |
| Brand Name | WELLSUNFAN |
| Place Of Origin | Guangdong, China |
| Model Number | AC20060 |
| Fan Type | AC Cooling Fan |
| Size | 200x200x60mm (7.9×7.9×2.4inch) |
| Voltage Range | 110V/220V |
| Bearing System | Ball Bearing |
| Motor Type | 100% Copper Motor |
| Frame Material | Die-casting aluminum painted black |
| Blade Material | PBT |
| Approvals | CE |
| Life Expectancy | 60,000Hours at 20℃-Ball |
| Selling Units | Single item |
| Single Package Size | 20X20X6 cm |
| Single Gross Weight | 1.600 kg |
Product Details

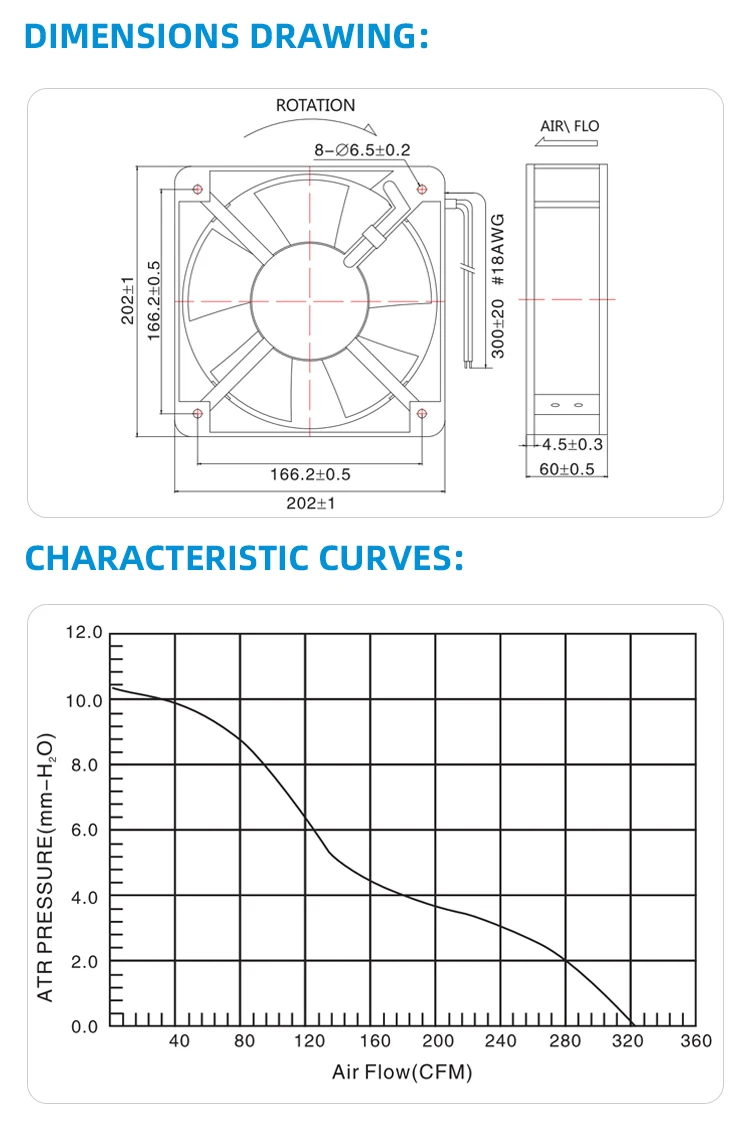

Model | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||||||||
Part No. | VDC | VDC | A | Watt | R.P.M | CFM | mm-H20 | dBA | g | |||||||||
AC20060#11L | 110 | 50/60 | 0.65 | 71.50 | 2500 | 308.23 | 4.83 | 62.3 | 1600.0 | |||||||||
AC20060#22L | 220 | 50/60 | 0.38 | 83.60 | 2300 | 283.57 | 4.06 | 59.5 | 1600.0 | |||||||||
All models could be customized on voltage or any other requirements to fit your need. | ||||||||||||||||||
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–499 piece: US $13 / piece
- 500–2999 piece: US $12.5 / piece
- 3000+ piece: US $12 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial panel?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this axial panel carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial panel be supplied for my local voltage?
The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Weilishun Technology Limited, based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Weilishun Technology Limited range on HVACR Nexus.
