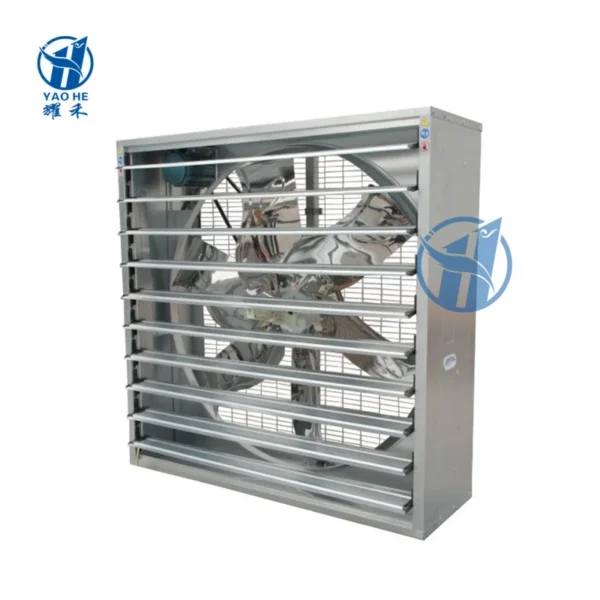

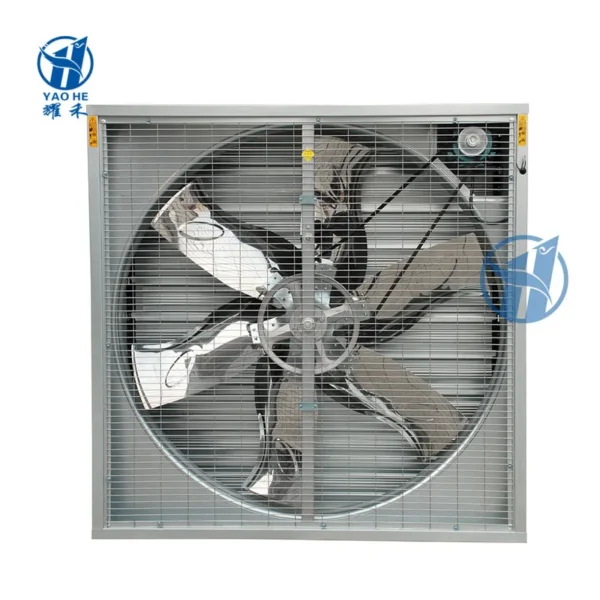

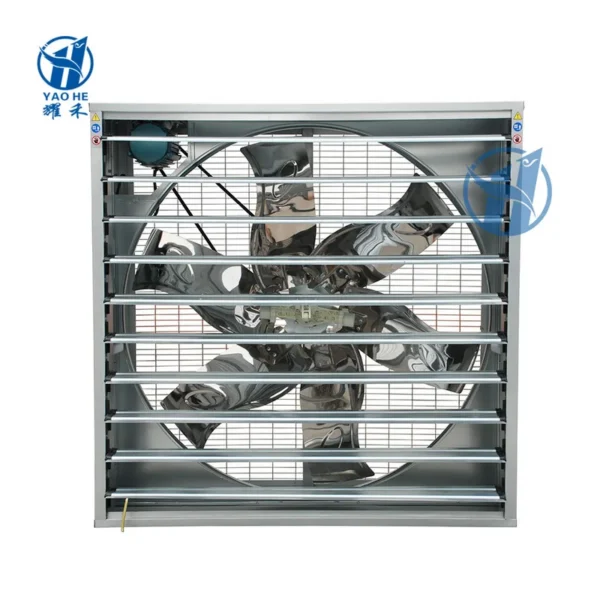

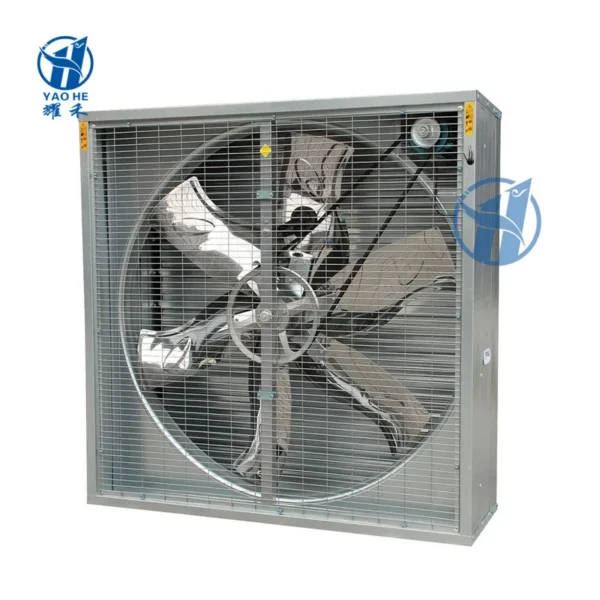

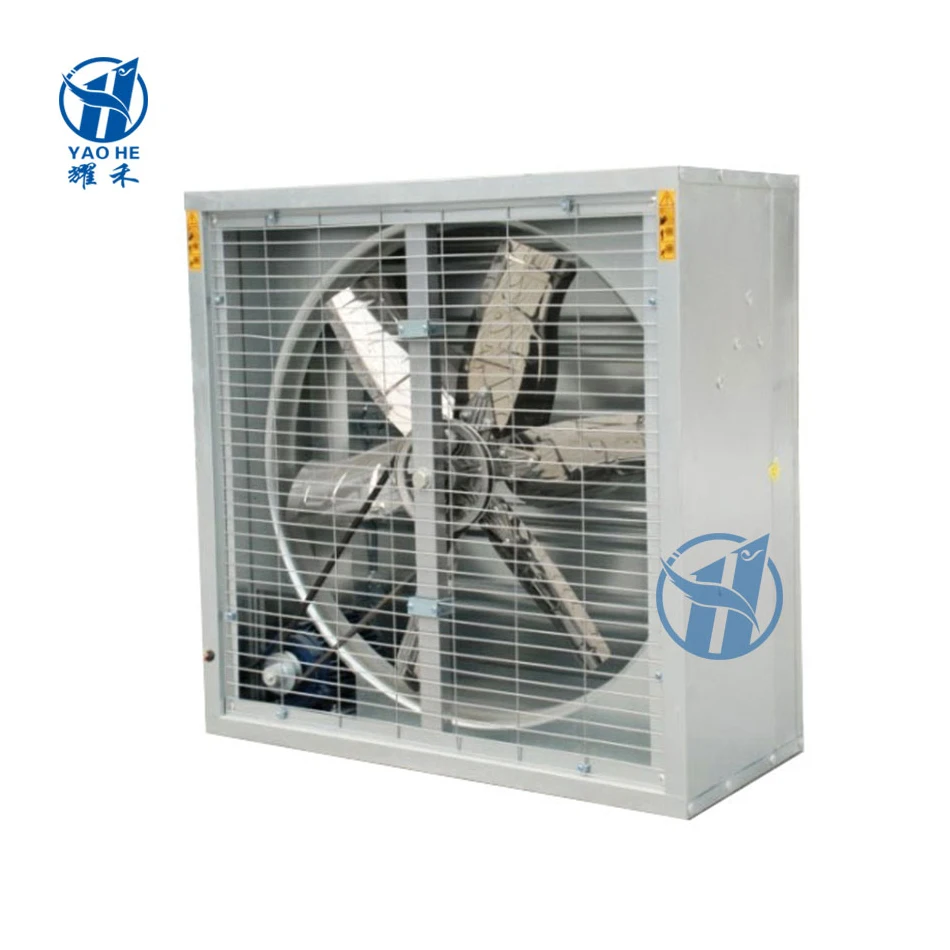

Axial Poultry Exhaust Fan, Wall, 380V

The axial poultry exhaust fan listed here carries power source Electric, blade material 430 Stainless steel, documented exactly as the manufacturer publishes it. Made by Qingzhou Yaohe Machinery Co., Ltd. (8 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Axial Poultry Exhaust Fan

• Model Number: YHA-710, YHA-900, YHA-1000, YHA-1100, YHA-1250, YHA-1400, YHA-1600
• Power Source: Electric
• Motor Power: 0.37 / 0.55 / 0.75 / 1.1 / 1.5KW
• Voltage: 380V, 220V, 100V, 110V, 200V, 230V, 400V, 415V
• Motor Voltage: 100/110/200/220/230/380/400/415V
• Blade Material: 430 Stainless steel

Technical Specifications

Product Details

Products Description.

Product Application:

YAOHE Stainless Steel Blade Push-pull Centrifugal Exhaust Fan is widely used in ventilation and cooling, smoke extraction, odor removal environment. Mainly used in Greenhouse, Poultry house, Factory workshop warehouse, BTC mining, Livestock breeding, Animal husbandry, etc.

* Low product price(40-180$/PCS). * Various sizes(600/800/900/1000/1100/1220/1380/1530mm). * Various powers(0.25/0.37/0.55/0.75/1.1/1.5kw). * Voltage: 200/220/230/380/400/415V,single phase/three-phase, 50/60Hz. * Large air volume(28000-55800m³/hour). * Long service life (>5 years). * Low power consumption(0.5-0.75kw/hour). * Motor and belt maintenance free(24hour * 365days uninterrupted operation). * Warranty period: 2 years.

Model & Parameters.

Model

Blade Diameter (mm)

Blade Speed (r/min)

Motor Speed (r/min)

Air Flow (m³/h)

Noise (dB)

Input Power (KW)

Voltage (V)

Size(mm)

YHA-710 (28inch)

710

650

≥1400

28000

≤48

0.37

200/220/230/380/400/415V

800*800*450 mm

YHA-900 (36inch)

900

560

≥1400

32000

≤60

0.55

200/220/230/380/400/415V

1000*1000*450mm

YHA-1000 (40inch)

1000

440

≥1400

35000

≤65

0.75

200/220/230/380/400/415V

1100*1100*450 mm

YHA-1100 (43inch)

1100

460

≥1400

38000

≤65

1.1

200/220/230/380/400/415V

1220*1220*450 mm

YHA-1250 (50inch)

1250

437

≥1400

44000

≤70

1.1

200/220/230/380/400/415V

1380*1380*450 mm

YHA-1400 (55inch)

1400

420

≥1400

55800

≤70

1.5

200/220/230/380/400/415V

1530*1530*450 mm

YHA-1600 (63inch)

1600

400

≥1400

58000

≤75

1.5

200/220/230/380/400/415V

1750*1750*450 mm

WhatsApp & WeChat & TM Trademanager & Mobile 24hours is online, please feel free to contact me.

WhatsApp: +86 15263635153

WeChat: +86 15263635153
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com

Accessories Parameters.

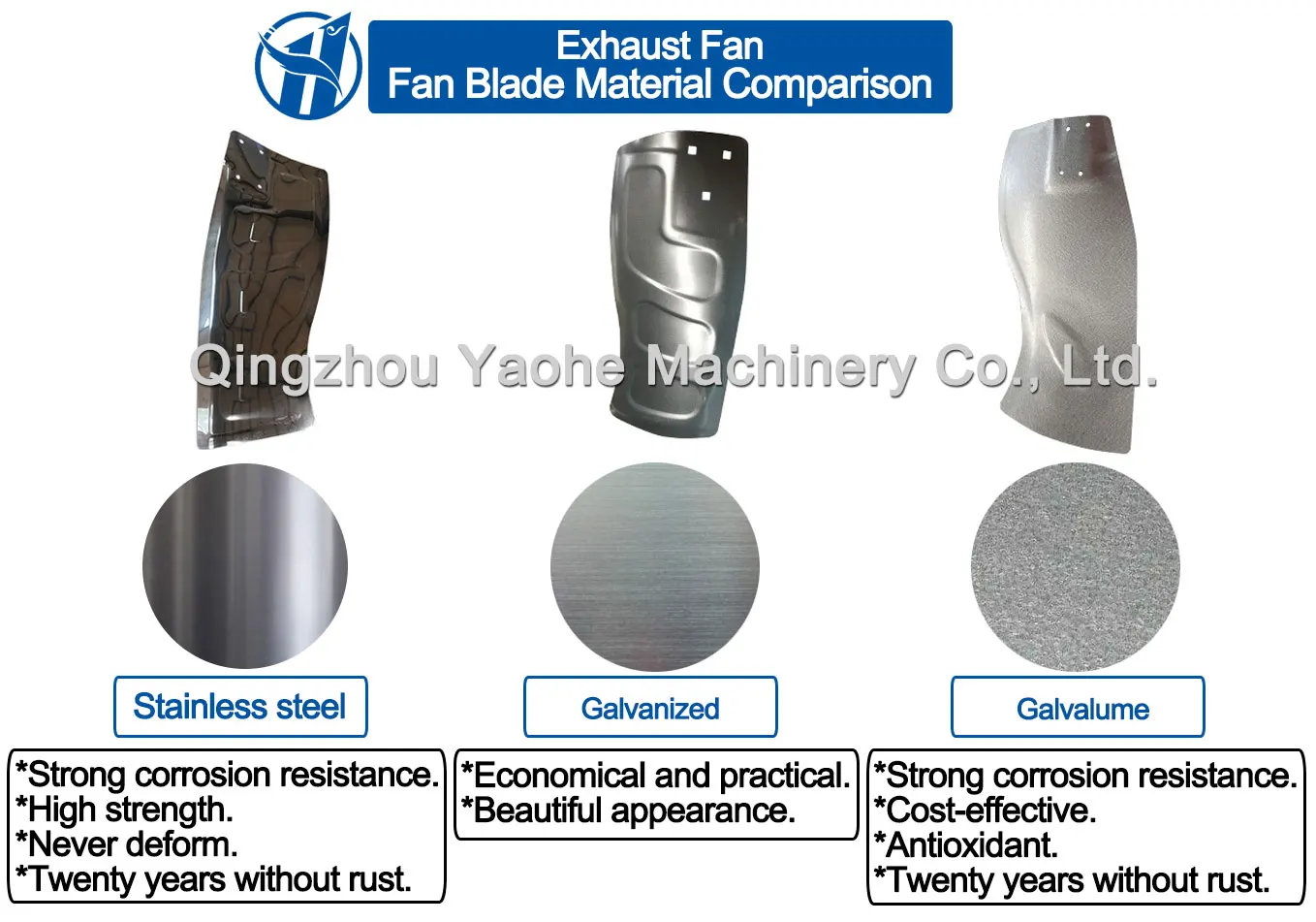

Fan Blade Introduction:

* Number of Blades: 6 PCS. * Material:430 Stainless steel. * Thickness: 1.2mm. * Production Process: Krupp, Stamping, One-time forming. * Surface finish BA grade. * Blade is made of Krupp stainless steel by punch forming, no dust, attractive and durable. Special blades shape design ensure large air volume, no deformation, no broken. The fan blades of each exhaust fan have been statically balanced to measure the weight, and the fan blades have been dynamically balanced and calibrated, and the dynamic balance is controlled within 1g, reaching the highest level in the industry, and can assure steady running and even airflow.

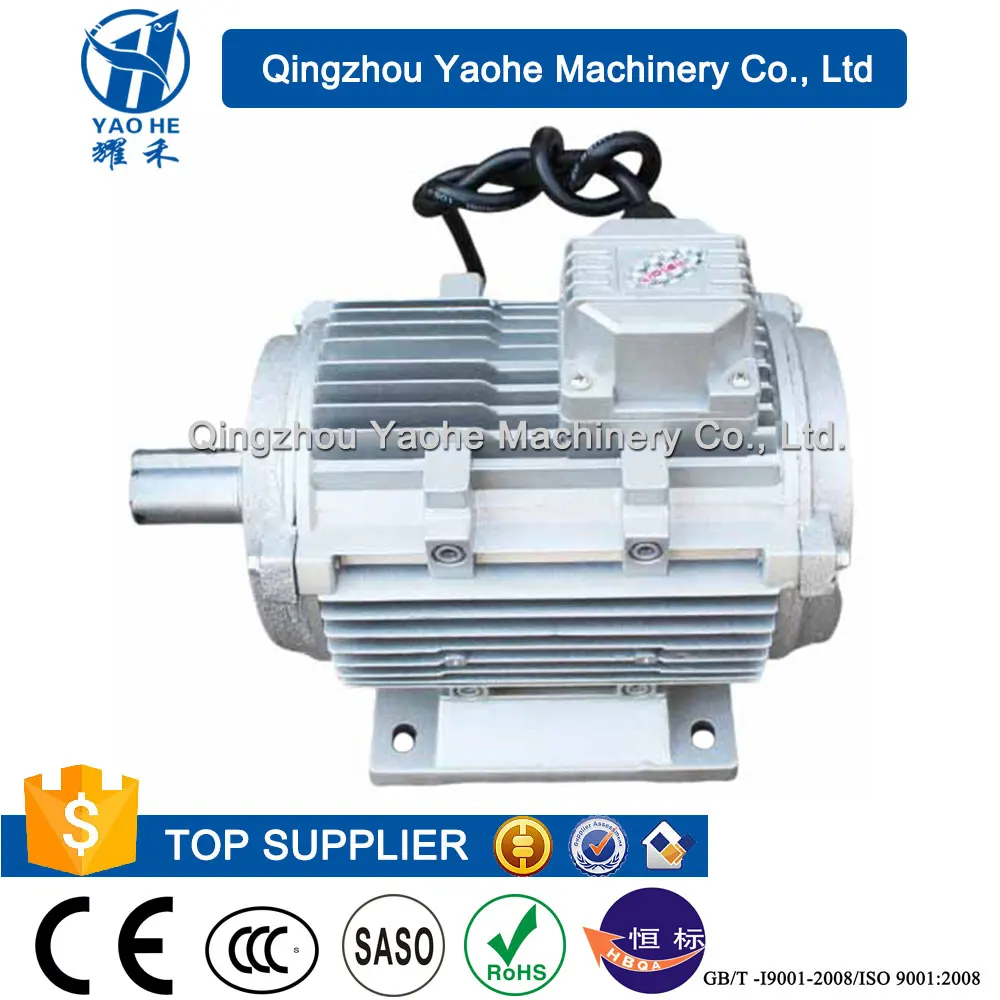

Motor Introduction:

* Voltage: 200/220/230/380/400/415V, single phase/three-phase, Customizable. * Frequency: 50/60Hz. * Motor Wire Material: Pure copper wire. * Motor Housing Material: Aluminum & Cast iron. * Motor Ingress Protection: IP55. * Motor Insulation Level: F. * Working Temperature: +155℃. * Certification: CE, CCC, UL. * Can be provided according to different needs of customers, domestic brands: XIZI & Laoyite & Shunbao. Imported brand: Siemens(Originally imported from Germany). * Configuration of phase break protector, when there is a break will automatically cut off the power supply, to avoid burning the motor.

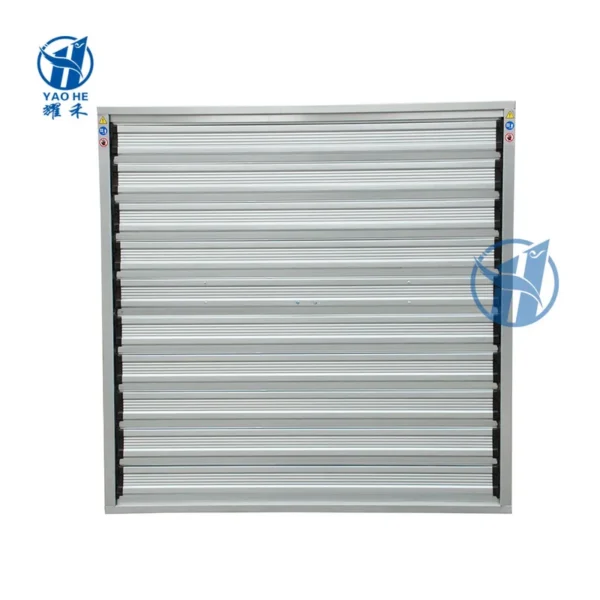

Shutter Introduction:

* Material: Galvanized plate. * Opening angle: 90°. * The thickness of the shutter plates connected to the Push-pull Mechanism: 1.5 mm. * Other shutter plates steel thickness: 0.8mm. * High strength galvanized plate, the automatic opening-closing device makes it possible to open and close completely, maintain a 90-degree opening angle to ensure shutters are windproof, rainproof and dust proof.

Push-pull Mechanism Introduction:

* Material: Nylon+30% glass fiber (PA66). * Guide rod material: 304 Stainless steel. * Connection rivet material: copper, strong corrosion resistance. * Production Process: Injection molding. * Made of high quality nylon, opening the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the house. The fasteners of Push-pull mechanism are copper rivets, wear-resisting, no rust, and flexible. Guide rod is made of 304 stainless steel, ensures the high strength, no rust, reduces frication.

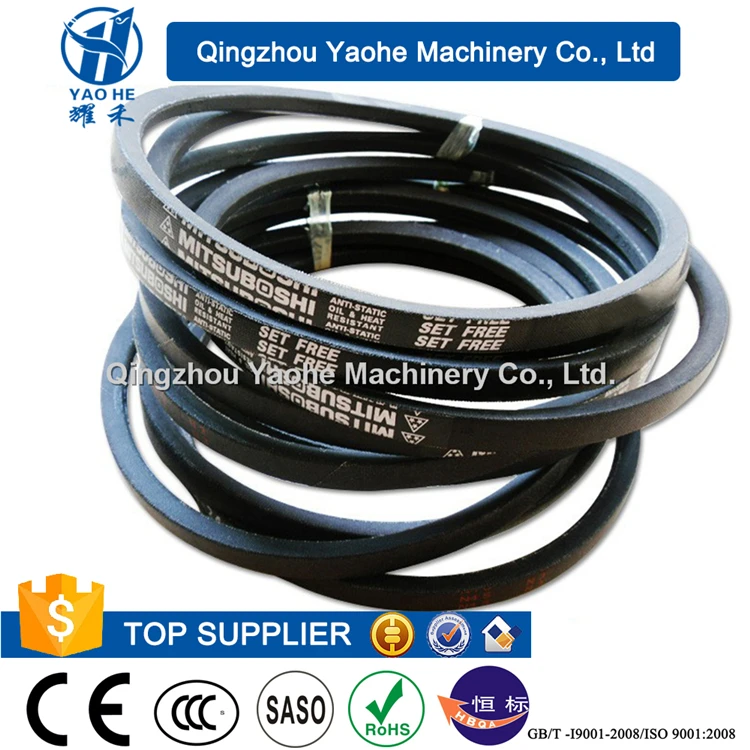

Fan Belt Introduction:

* Belt diameter: 12.5mm. * Temperature range: -50-120℃. * RMA oil and heat resistance standards. * RMA Electrostatic Conduction Standard. * Can be provided according to different needs of customers, domestic brands: Sanlux. Imported brand: Mitsubishi(Originally imported from Japan). * Long service life ＞5 years, maintenance free.

Collecting Wind Circles Introduction:

* Material: Galvanized plate. * Thickness 0.7mm. * Production Process: Stamping, One-time forming. * The round shape is advantageous for wind gathering to ensure smooth collection and maximum output air volume.

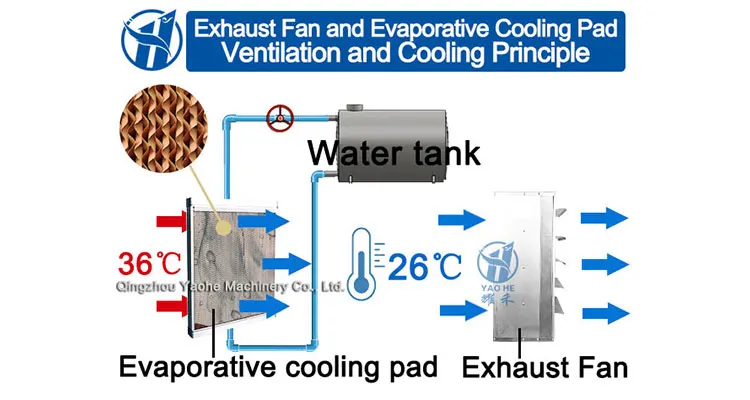

Principles of Ventilation and Cooling.

Widely Used.

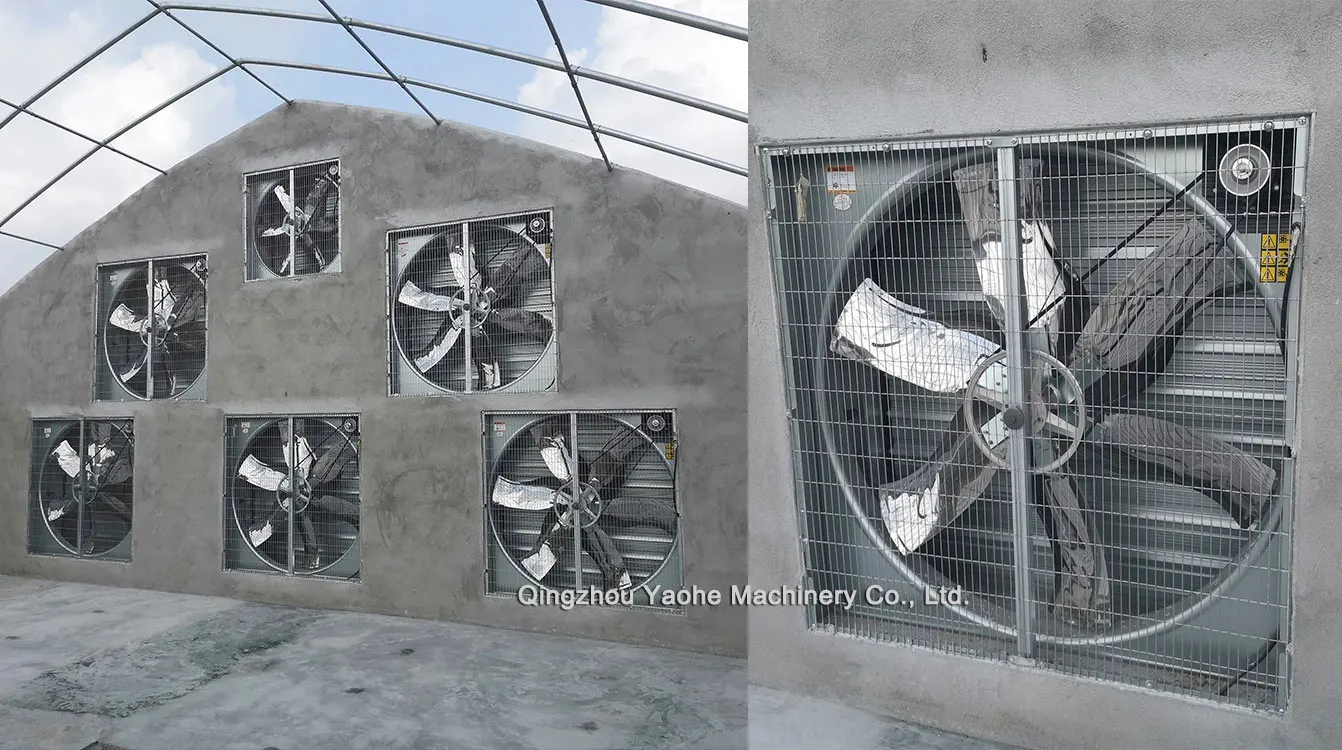

Use in Poultry, Livestock breeding, Animal husbandry.

Chicken house,

Pig house,

Rabbit house,

Duck house, etc.

Use in Agriculture.

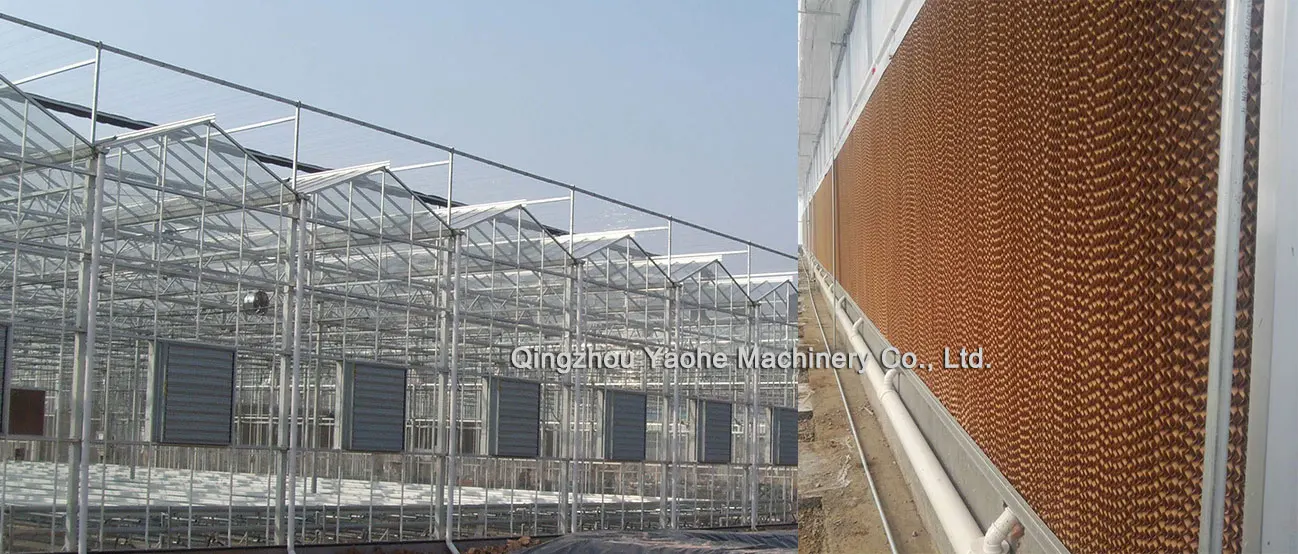

Vegetable greenhouses, Flower greenhouses, NFT Hydroponic greenhouses, Tunnel greenhouse, Ecological landscape greenhouses, Glass greenhouse, PC Polycarbonate greenhouse, Hemp greenhouse, Solar greenhouse, Sun panels greenhouse, Nursery greenhouses, etc.

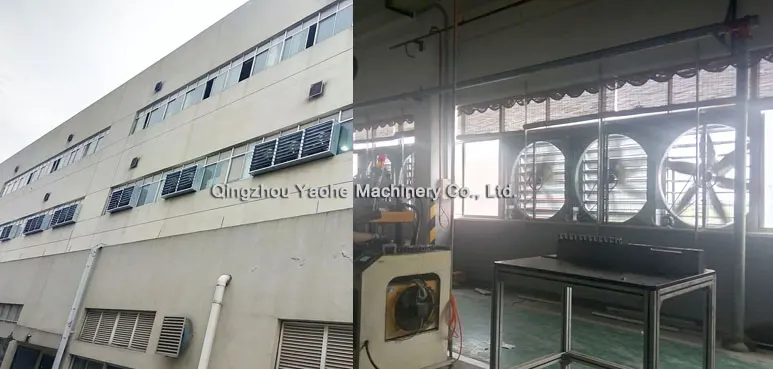

Use in Industry.

Especially suitable for the workshop with bad smell or high temperature, for example, Heat treatment workshop, Foundry factory,
Plastics factory, Aluminum profile factory, Garment factory, Shoe factory, Leather goods factory, Electroplating factory, and
various chemical plants and assembly workshops.

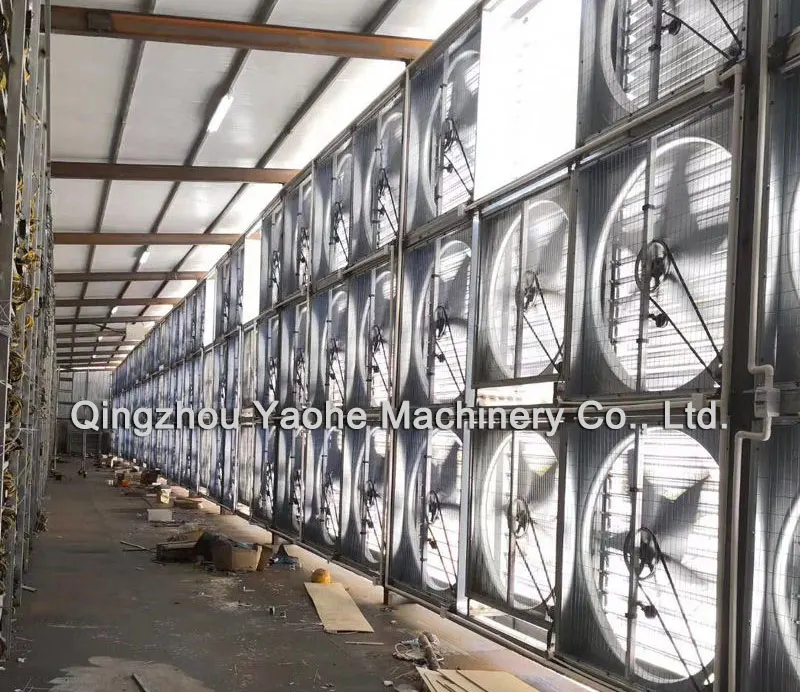

 Use in Bitcoin(BTC) Mining Farm.

Bitcoin(BTC) Mining Farm,

Mobile Bitcoin(BTC) Mining Farm,

Container Bitcoin(BTC) Mining Farm.

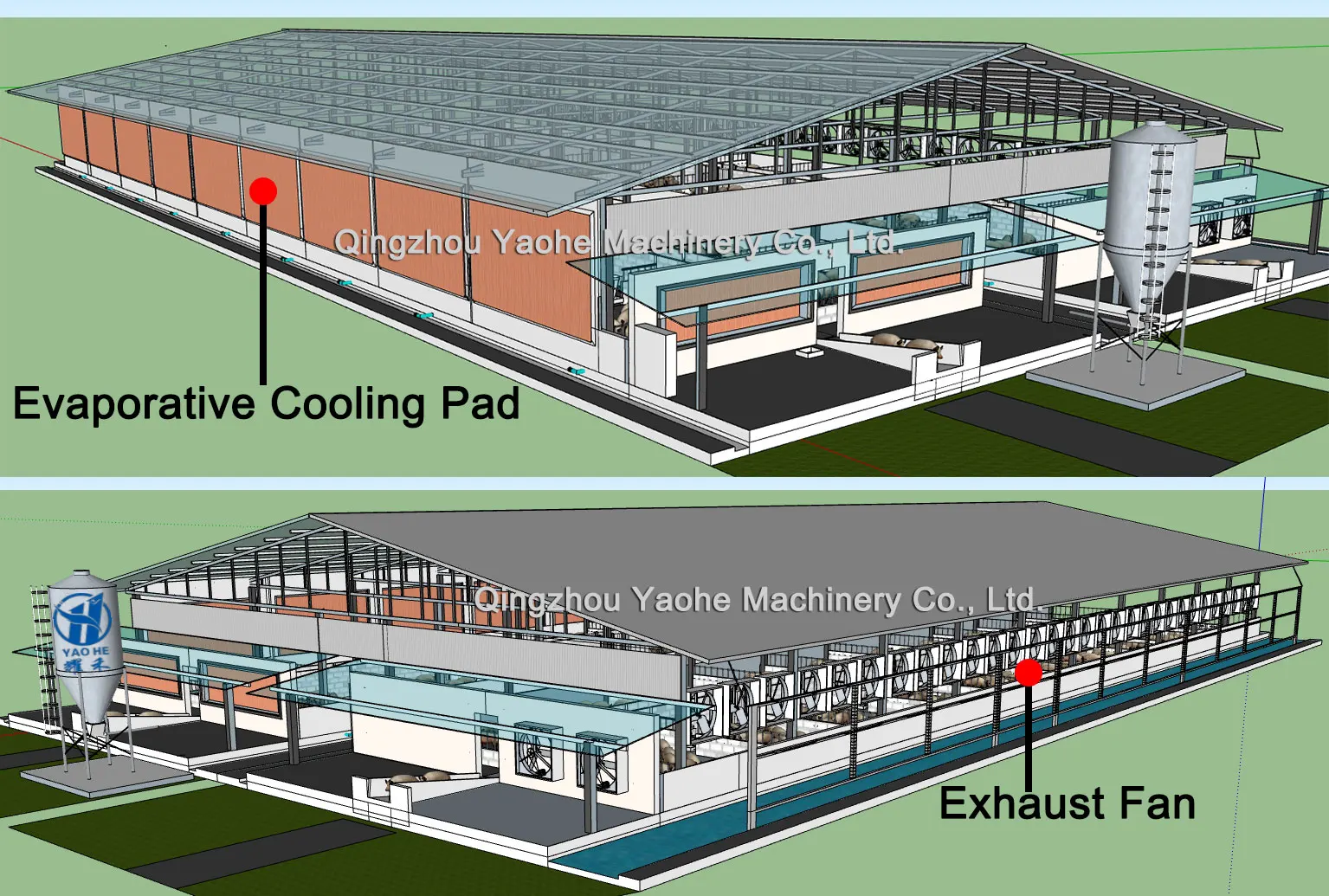

Provide exclusive 3D design for you.

As above, Pig house 3D design.

According to your actual use and use environment and building areas, can provide you with exclusive 3D and CAD design drawings, so that you can see the product layout and installation more intuitively and comprehensively.

Product Packaging.

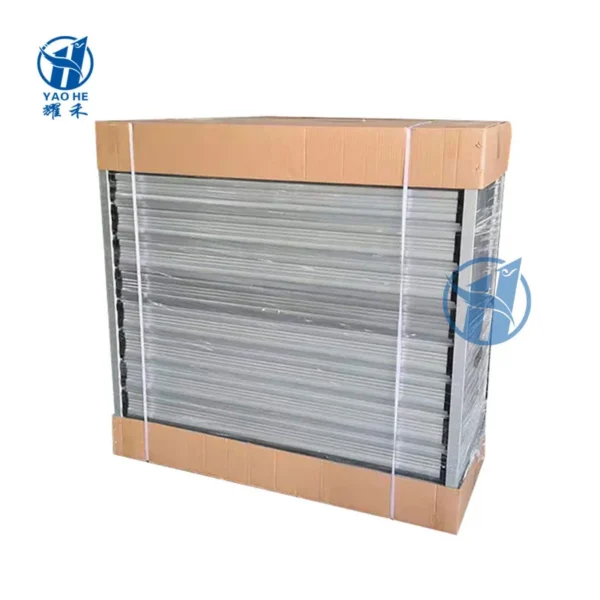

Fully assembled packing.

Secure with carton and packing belt to protect the surface from scratches.

Unassembled packing.

Unassembled packing means packing a variety of accessories to save on shipping costs.

LCL packing.

Fumigation-free tray + carton + packing belt + plastic film packaging. Suitable for small quantity purchases.

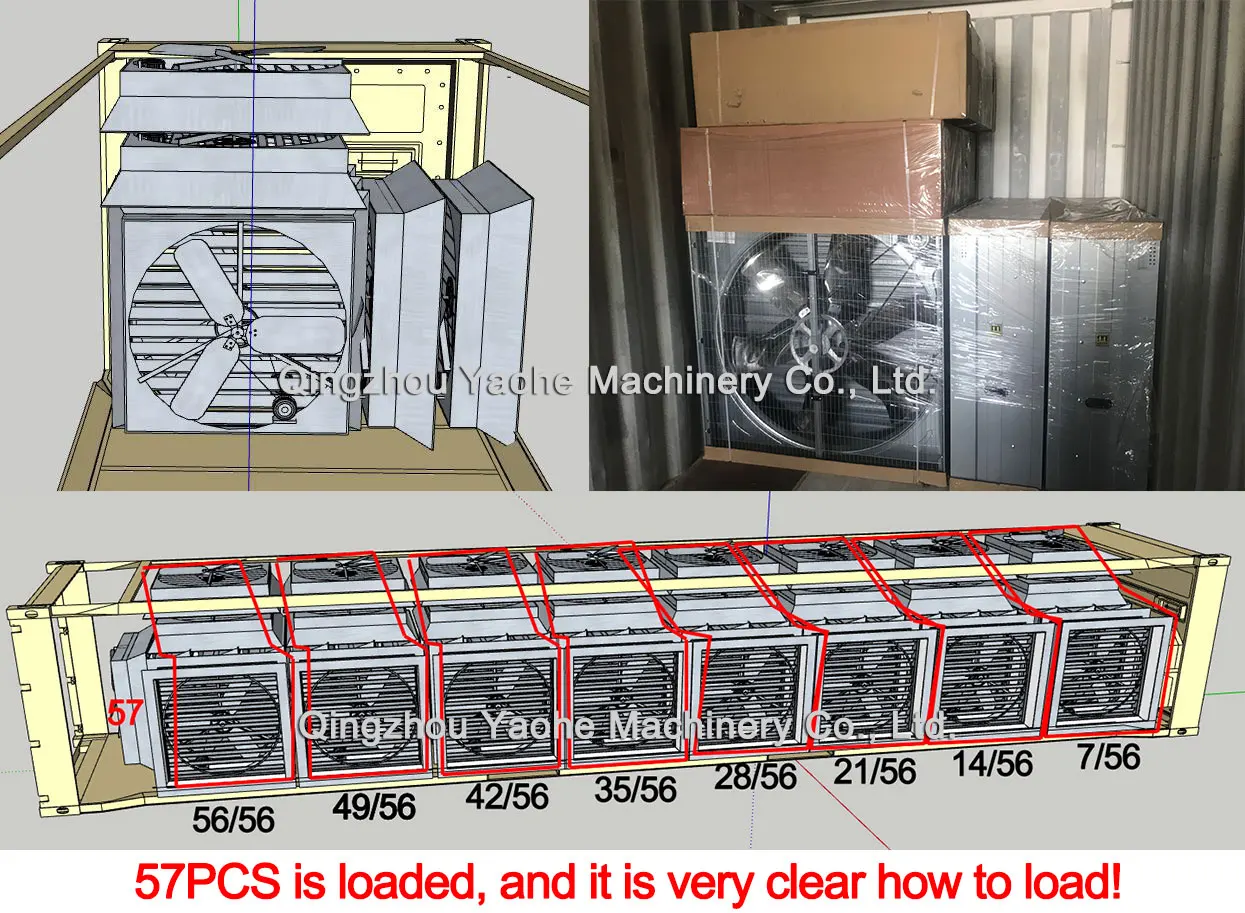

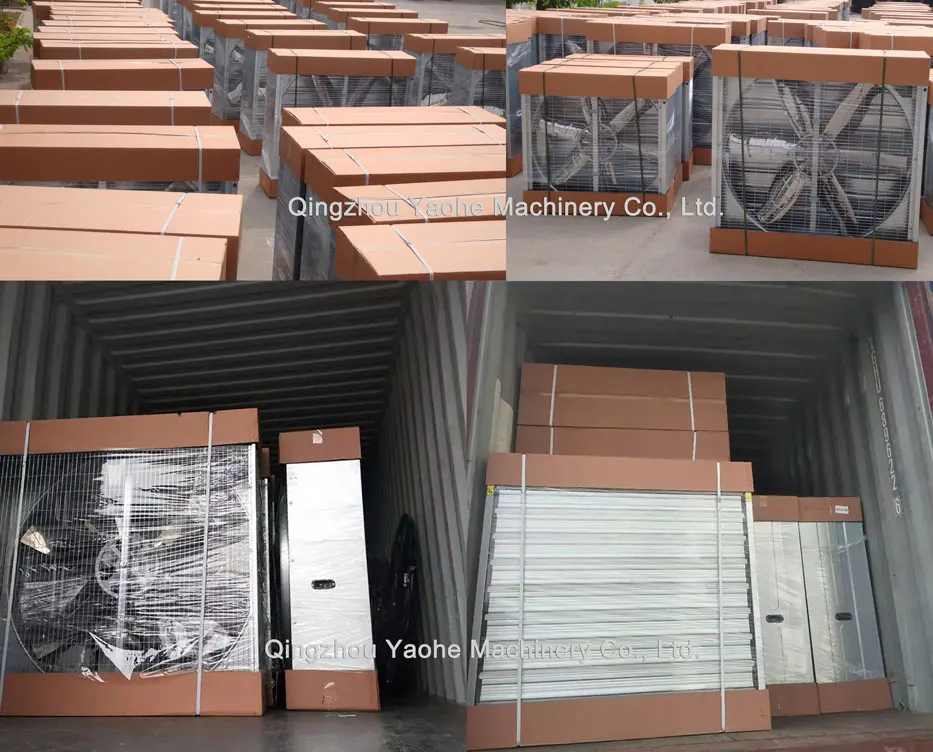

Product Loading.

Fully assembled loading.

We guarantee a 100% loading rate to reduce your shipping costs as much as possible.

Unassembled loading.

We promise that any damage caused by the product in the process of transportation shall be borne and compensated by our company.

Accurately calculate the loading quantity!

Stainless Steel Blade Heavy Hammer Centrifugal Exhaust Fan

*Use in Chicken house, Poultry, Greenhouse, Factory.
*High air volume, wall installation.

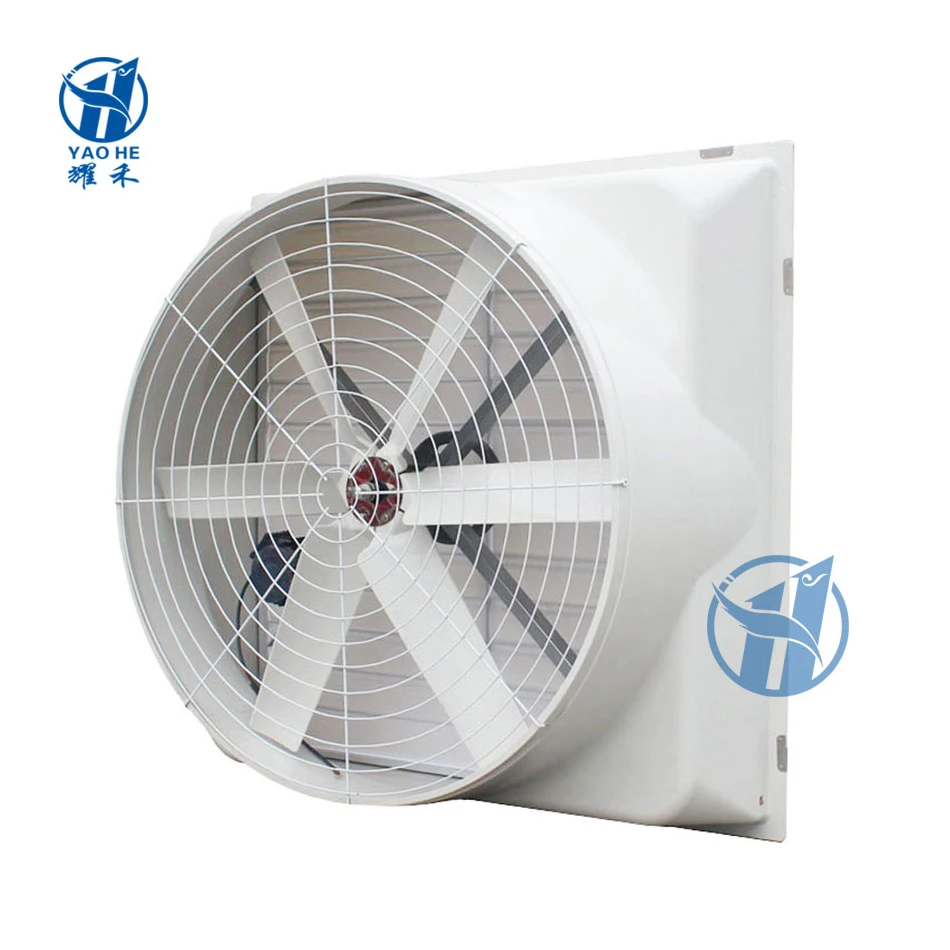

FRP Exhaust Fan

(Fiberglass exhaust fan)

*Glass fiber material has strong corrosion resistance.

*A variety of fan blade materials are available.
*High air volume, wall installation.

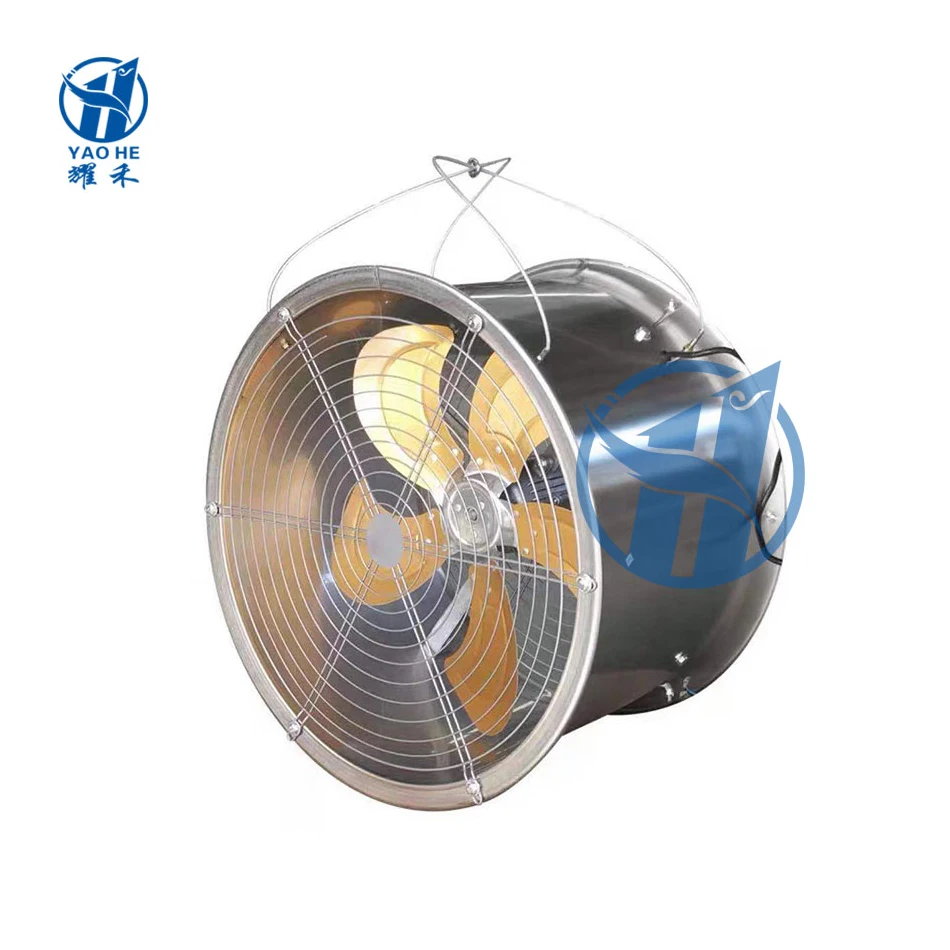

Greenhouse Air Circulation Fan

*Use in Greenhouse.

*The shell is 304 stainless steel with strong corrosion resistance.
*Circulation air flow, Ceiling installation.

Evaporative Cooling Pad

(Wet curtain)

*Use in Chicken house, Poultry, Greenhouse, Factory.
*High cooling efficiency, wall installation.

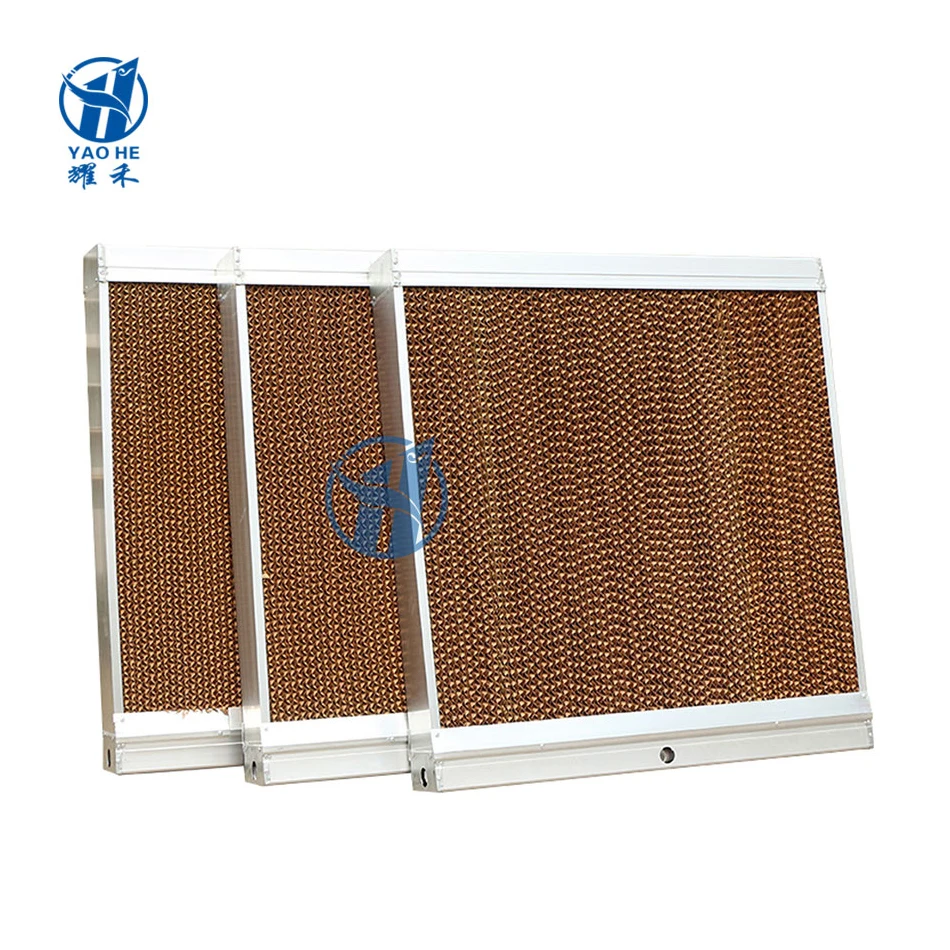

Aluminum Alloy Frame for Evaporative Cooling Pad

*Frame Height, Width, Thickness can be customized.
*Configured water pipes, a full set of plastic accessories, water pumps to assemble a complete evaporative cooling pad system.

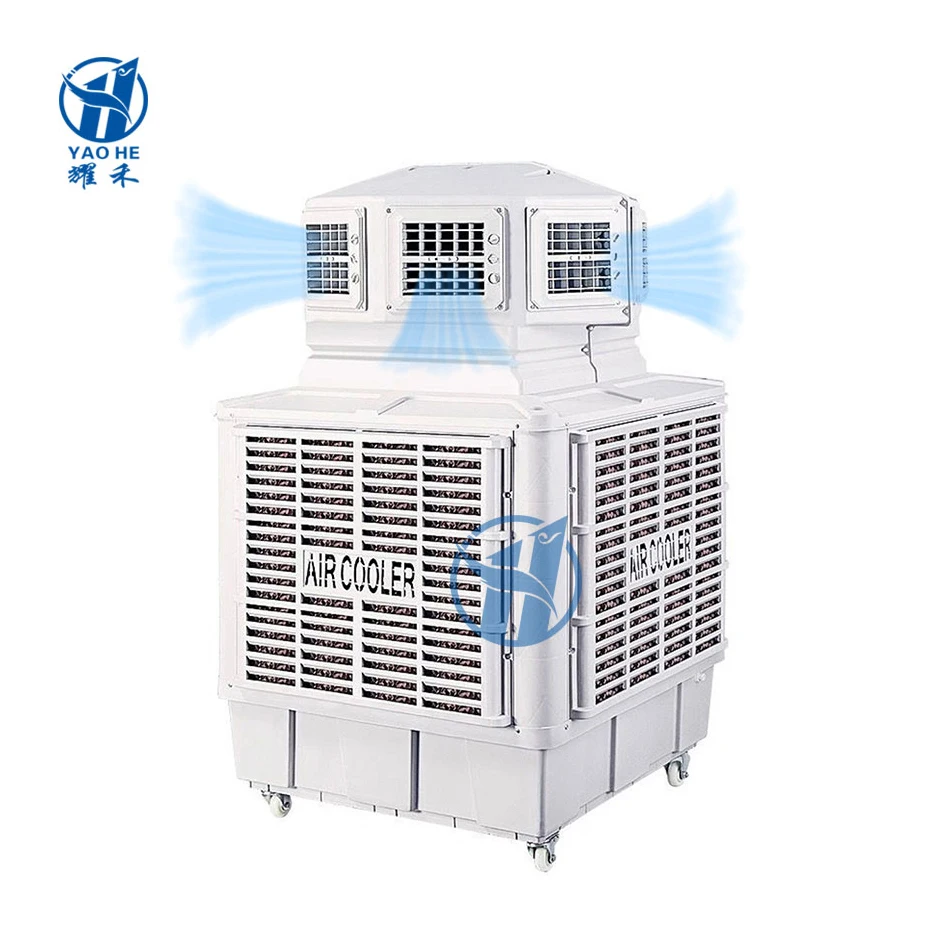

Evaporative Air Cooler

*Use in Factory, Workshop, Warehouse, Greenhouse, Poultry.

*Movable for use, or wall installation.
*Can be configured with Plastic Pipe and Fiber Pipe.

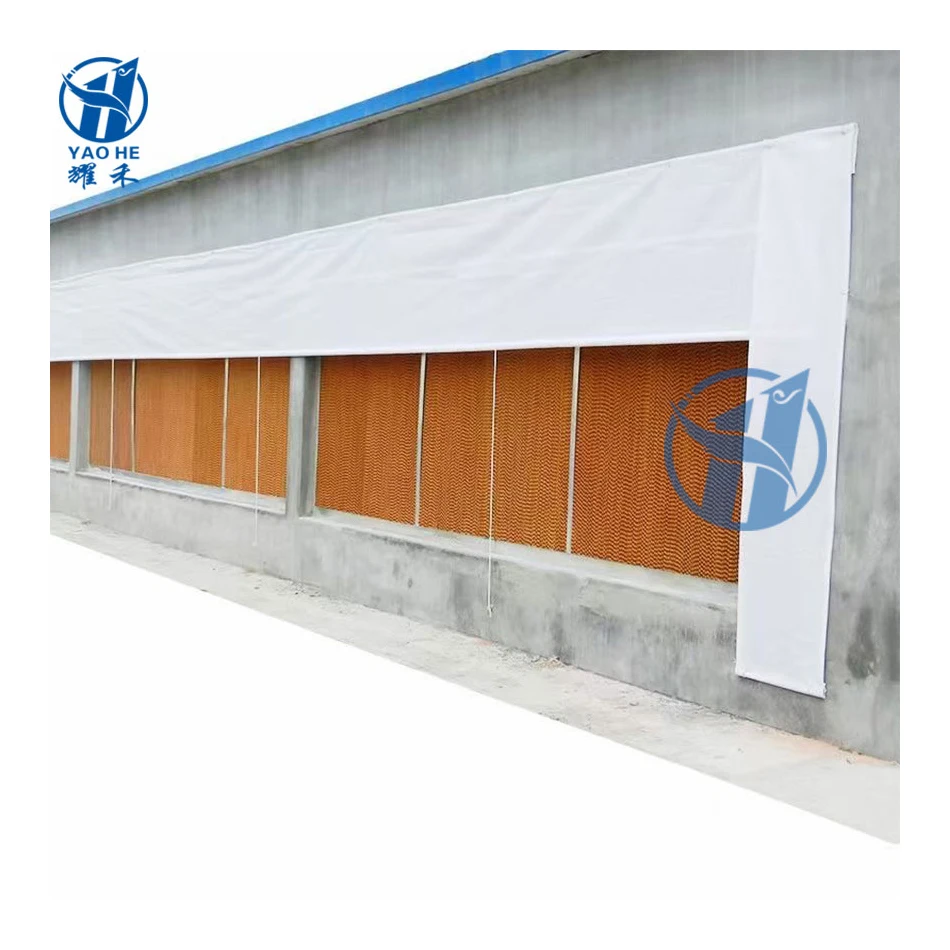

Side Wall Curtain System

*Cover the surface of the evaporative cooling pad, avoid dust adhesion and sunlight exposure, and improve the service life of the evaporative cooling pad.

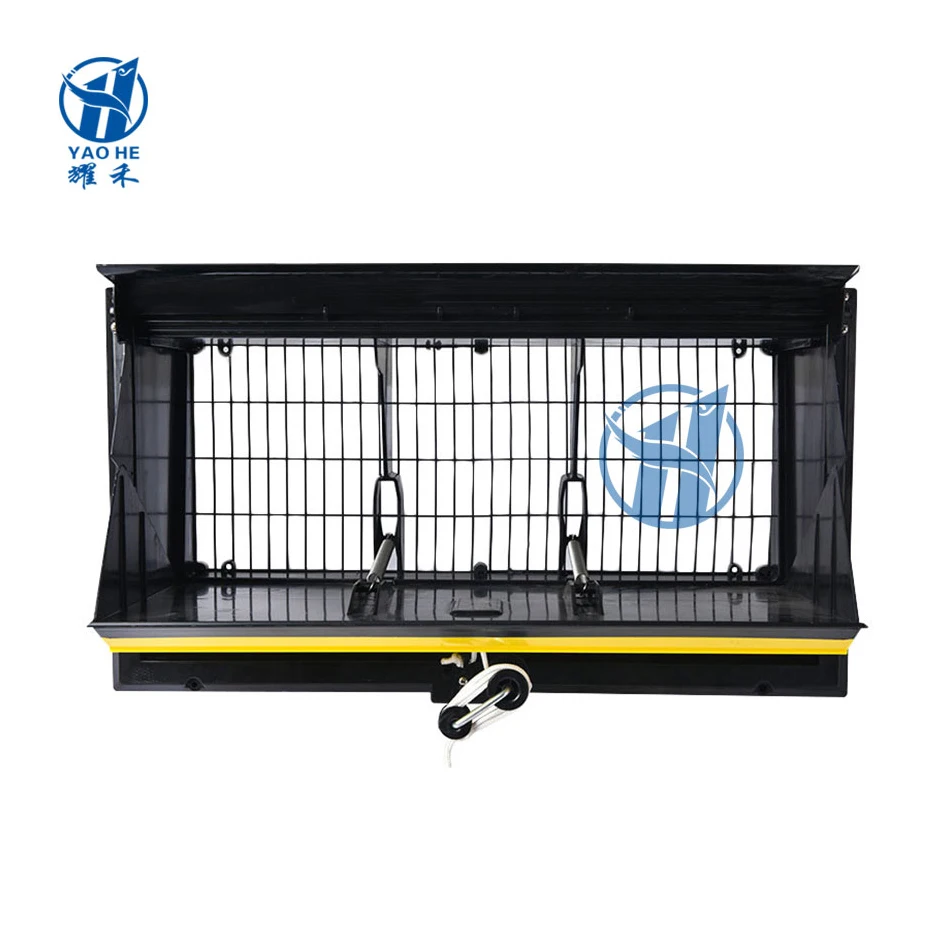

NEW Poultry Air Inlet

*Use in Chicken house, Pig house, Duck house, Rabbit house.

*Natural ventilation, let fresh air enter the farm, and improve the farm environment.
*Spring position change, better sealing.

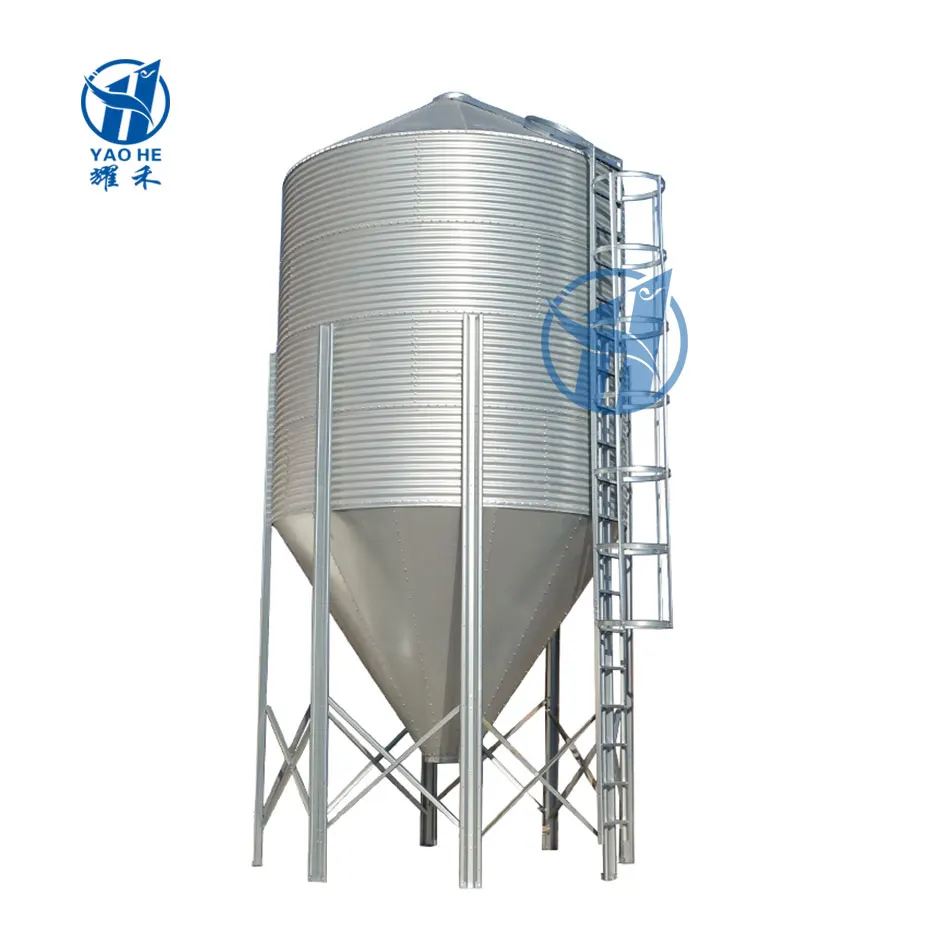

Feed Silo(Feed Storage)

*3-67tons. *Double-sided galvanized layer 275g. *Thickness:1.0/1.2/1.5mm(±0.02mm).

Contact Information.

WhatsApp & WeChat & TM Trademanager & Mobile 24hours is online, please feel free to contact me.

WhatsApp: +86 15263635153

WeChat: +86 15263635153

Skype: +86 15263635153

24 Hr. Mobile: +86 15263635153

E-mail: yaohe-ronne@hotmail.com

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $135 / piece
  • 50–199 piece: US $133 / piece
  • 200–499 piece: US $130 / piece
  • 500+ piece: US $128 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial poultry exhaust fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the axial poultry exhaust fan be supplied for my local voltage?

The standard configuration is 380V, 220V, 100V, 110V, 200V, 230V, 400V, 415V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Yaohe Machinery Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingzhou Yaohe Machinery Co., Ltd. range on HVACR Nexus.
