The axial wall exhaust fan listed here carries 380V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Xinyujie Technology Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Wall Exhaust Fan
- Model Number: YWF6D-180-710
- Power Source: Electric
- Power Input: 1100W,1250W
- Voltage: 380V
- Rated Voltage: 380V
- Material: Plastic
Technical Specifications
| Voltage | 380V |
|---|---|
| Speed | high |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Metal |
| Mounting Type | Install by screws |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | xinyujie |
| Model Number | YWF6D-180-710 |
| Dimension | 710MM |
| Rated Voltage | 380V |
| Frequency | 50Hz |
| Current | 2A |
| Power Input | 1100W,1250W |
| Volume | 15500m³/h,17000m³/h |
| Pressure | 120Pa,180Pa |
| Noise Level | 75dBA,78dBA |
| Selling Units | Single item |
| Single Package Size | 70X70X20 cm |
| Single Gross Weight | 50.0 kg |
Product Details

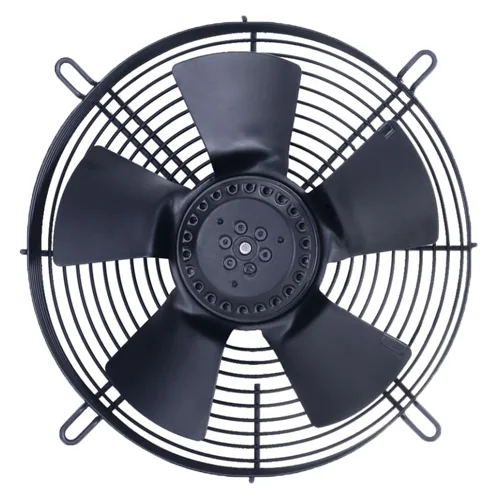

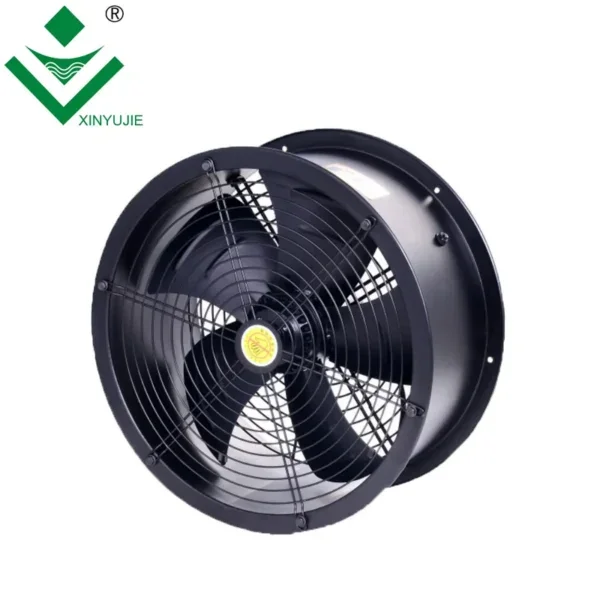

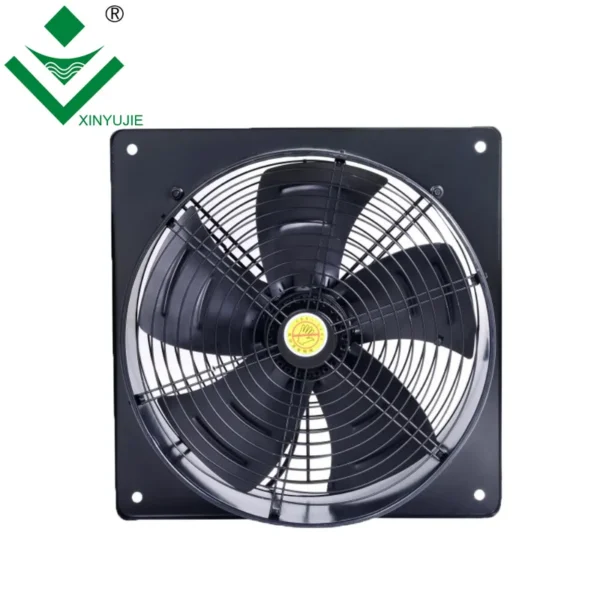

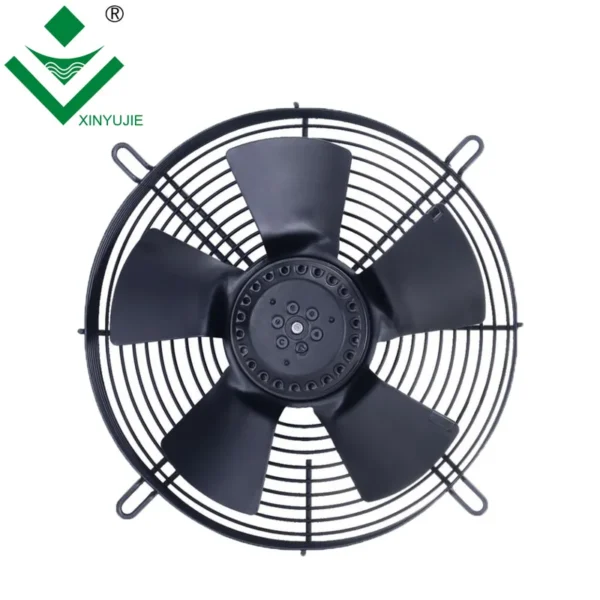

AC 710mm 28 inch commercial axial wall exhaust fan industrial extractor external rotor motor fan
Engineer drawing
Datasheet
| Model | Rated voltage(V) | Frequency(Hz) | Current(A) | Power Input(W) | Speed(RPM) | Air Volume(m³/h) | Max Static Pressure(Pa) | Noise(dBA) | Capacitor(μF) |
| XYJ4D-600 | 380 | 50 | 1.50 | 780 | 1380 | 9500 | 230 | 75 | — |
| XYJ4E-600 | 220 | 50 | 3.8 | 780 | 1380 | 9500 | 230 | 75 | 16 |
| XYJ6D-600 | 380 | 50 | 1.5 | 500 | 930 | 8500 | 150 | 70 | — |
| XYJ6E-600 | 220 | 50 | 2.4 | 500 | 930 | 8500 | 150 | 70 | 12 |
1. What’s the difference between the sleeve and ball bearing fan?
The ball bearing brand was NSK bearing imported from Japan.
The warranty for ball bearing fan is 30,000 hours but sleeve bearing just 10,000 hours.
Ball bearing has 5-8 years lifetime,sleeve bearing has 2-3 years lifetime.
Ball bearing fan noise level won’t change for a long time term,but sleeve bearing fan noise level will grown as time goes on.
Sleeve bearing is cheaper than ball bearing fans.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stppage Alarm,Waterproof(IP55-IP68 optional), PWM function ,Temperature control etc.
3. How long can your wire length be ?
The wire length and terminal could be customized as your request. We just need the picture of connector and rank of wires for confirm.(Default wire length is 200mm)
4. What’s your MOQ and delivery date ?
MOQ200PCS
Sample lead time:5 working days
Mass production:15 working days
Waterproof fans need 1 more week
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–1999 piece: US $120 / piece
- 2000–4999 piece: US $110 / piece
- 5000+ piece: US $100 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial wall exhaust fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial wall exhaust fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Xinyujie Technology Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Xinyujie Technology Co., Ltd. range on HVACR Nexus.
