Key specification for this radial fan: 12V 24V, material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Xinyujie Technology Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Radial Fan
- Model Number: XYJ12B12032H, XYJ12B12032M, XYJ12B12032L, XYJ24B12032L, XYJ24B12032M
- Voltage: 12V 24V
- Startup Voltage: 6v 12v
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 40-51dBA
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 12V 24V |
| Material | Plastic |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | XINYUJIE |
| Model Number | XYJ12B12032H, XYJ12B12032M, XYJ12B12032L, XYJ24B12032L, XYJ24B12032M |
| Dimension | 120X120X32mm |
| Bearing Type | ball or sleeve bearing |
| Startup Voltage | 6v 12v |
| Current | 0.13-0.68A |
| Static Pressure | 16.29-27.22mmH2O |
| Noise Level | 40-51dBA |
| Weight | 212.00g |
| Connector | 2pin/3pin/4pin |
| OEM | Based on MOQ1000pcs |
| Selling Units | Single item |
| Single Package Size | 12X12X3.2 cm |
| Single Gross Weight | 0.5 kg |
Product Details

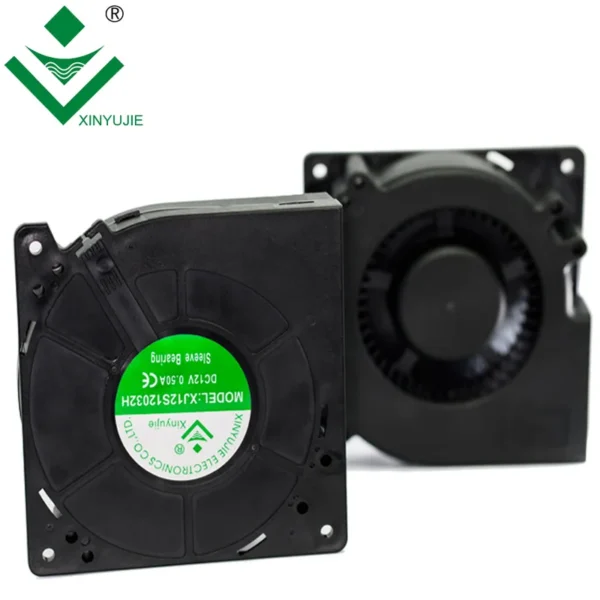

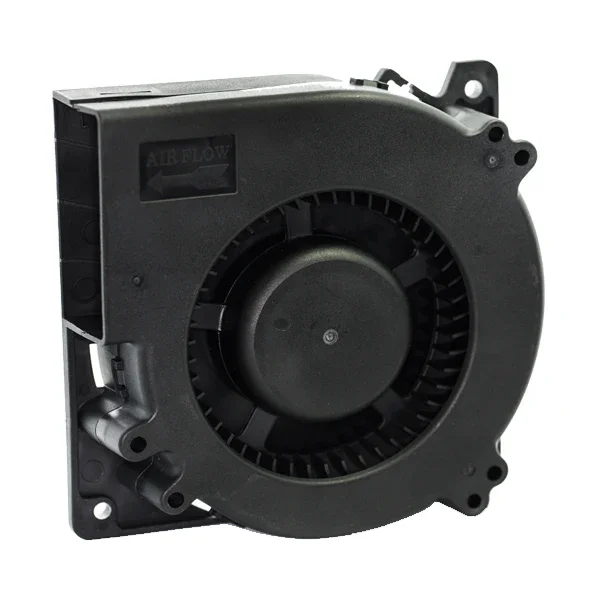

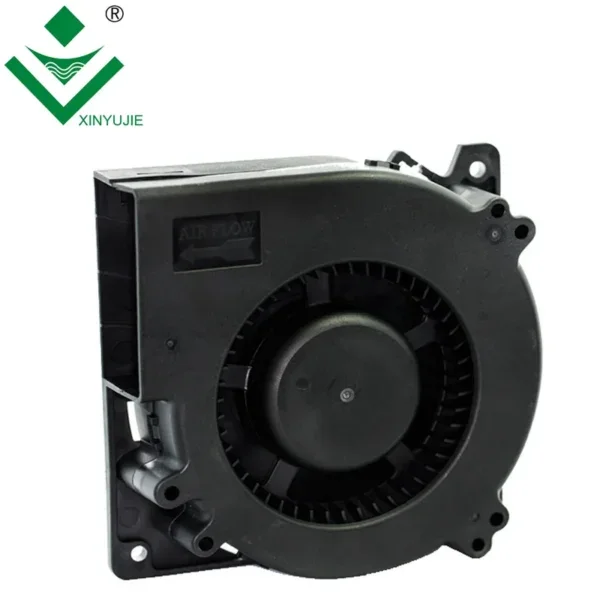

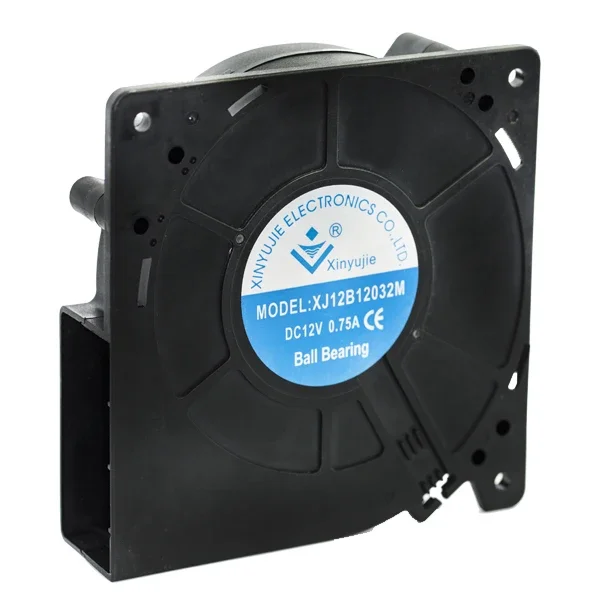

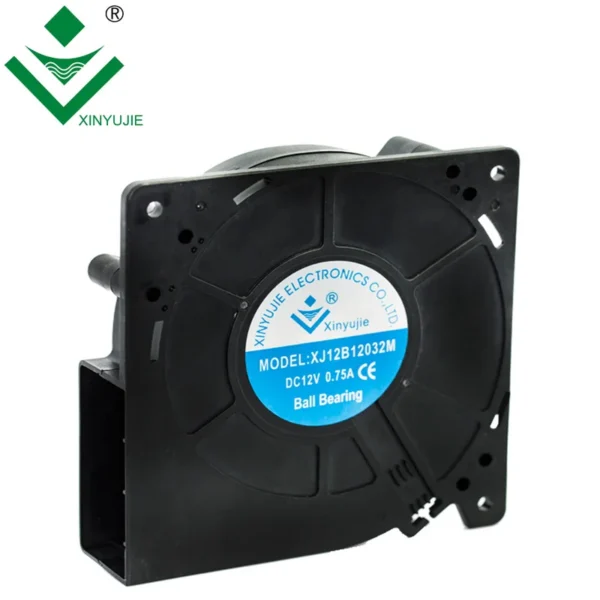

High pressure radial fan 120mm 12v centrifugal fan 120x120x32mm small size air blower fan
General Specifications and use of environment
| Frame | Thermal Plastic,Environmental Protection & Fireproof |
| Impeller | Thermal Plastic,Environmental Protection & Fireproof |
| Bearing type | Sleeve bearing or double ball bearing |
| Lead wires | Red +,Black -, default 200mm length,can be customized lenth |
| Motor Protection | Impedance Protected;Reverse Polarity Protected;Automatic Restart |
| Operating Voltage | 4.5~5.5V,10.2-13.8V;20.4-27.6V (That's the suggest working voltage,not startup voltage) |
| Operating Temperature/Humidity | -10℃~70℃,15~85%RH |
| Storage Temperature/Humidity | -40℃~80℃,15~85%RH |

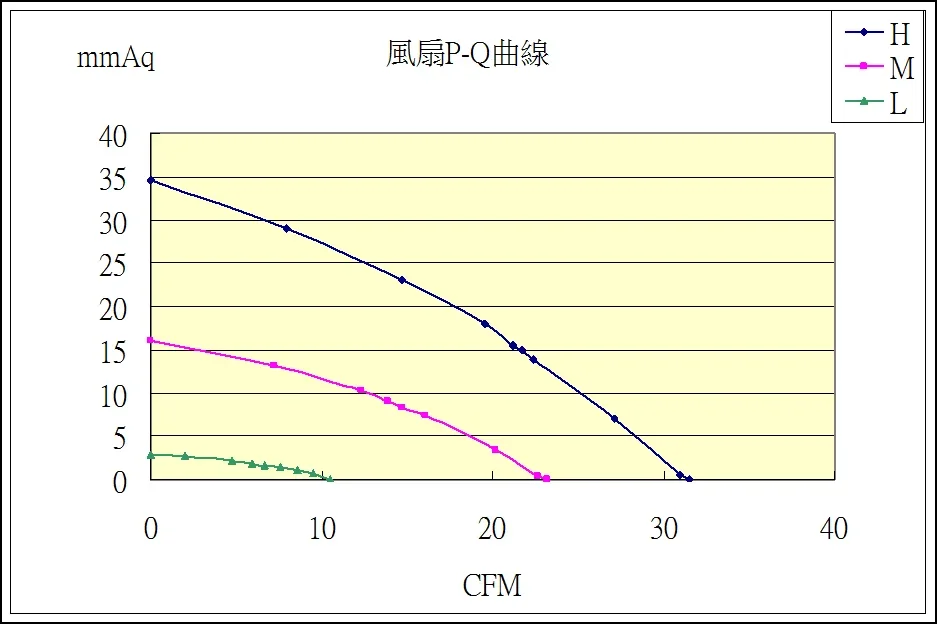

Fan performance curves

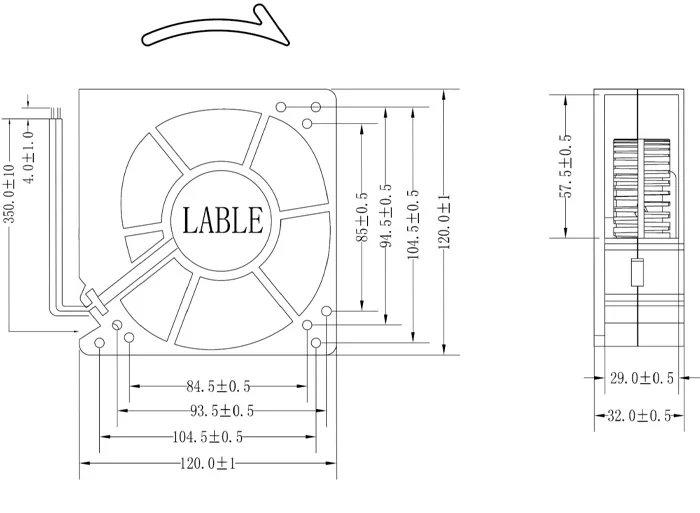

Measurement
Specification
| Dimension | Model | Rated voltage(V) | Current Amp(A) | Speed(RPM) | Air flow(CFM) | Static Pressure(mmH2O) | Noise level(dBA) | Weight(g) | FG | RD | PWM | Auto restart |
| 120X120X32MM | 12032L | 12 | 0.06 | 1100 | 10.5 | 2.94 | 30.5 | 207 | √ | √ | √ | √ |
| 12032M | 12 | 0.60 | 2400 | 23.16 | 16.10 | 45.4 | 207 | √ | √ | √ | √ | |
| 12032H | 12 | 1.20 | 3300 | 31.54 | 34.58 | 51.5 | 207 | √ | √ | √ | √ | |
| 12032L | 24 | 0.03 | 1100 | 10.5 | 2.94 | 30.5 | 207 | √ | √ | √ | √ | |
| 12032M | 24 | 0.21 | 2400 | 23.16 | 16.10 | 45.4 | 207 | √ | √ | √ | √ | |
| 12032H | 24 | 0.60 | 3300 | 31.54 | 34.58 | 51.5 | 207 | √ | √ | √ | √ |

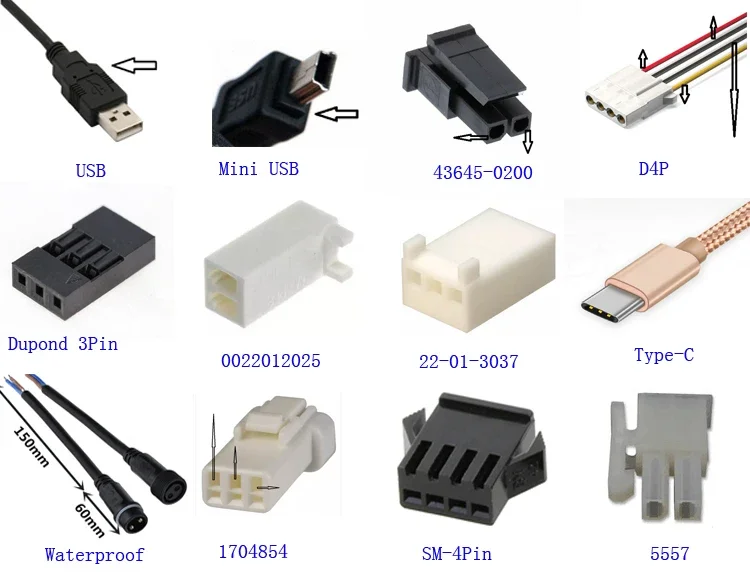

Spare Parts-Connector

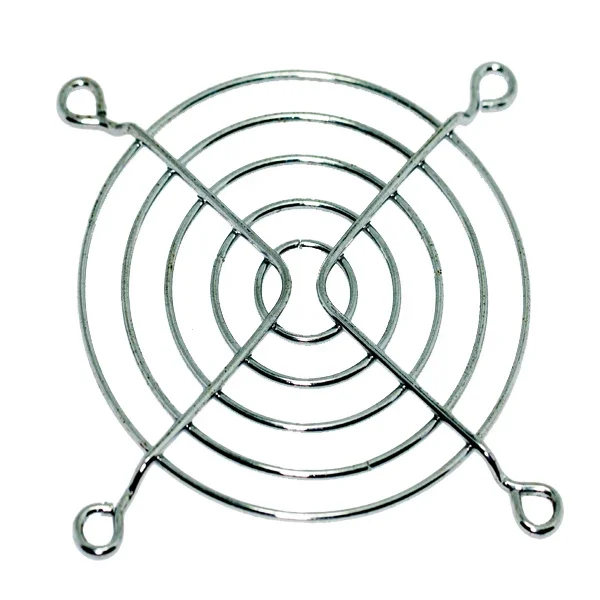

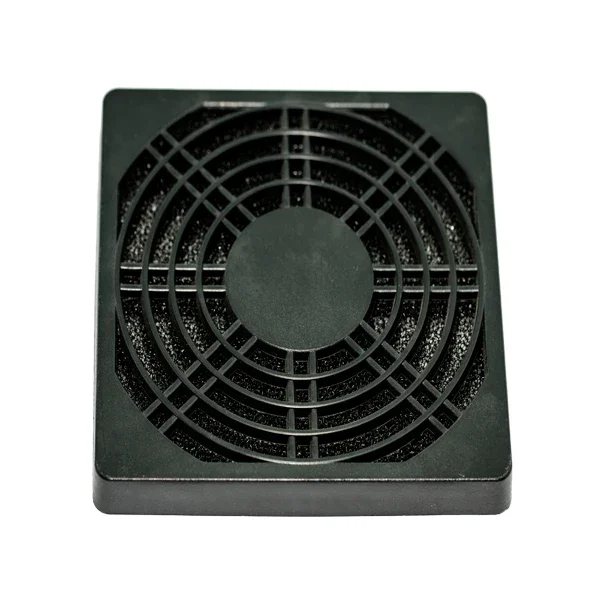

Spare parts-Fan guard

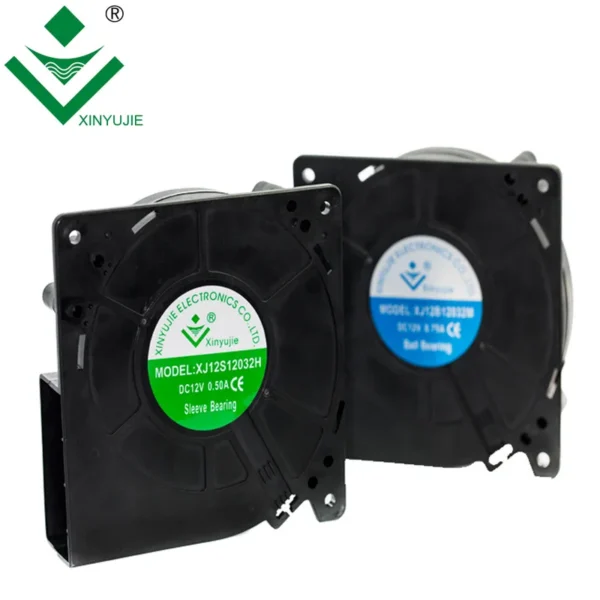

Bearing type contrast
| Sleeve bearing | Double ball bearing | |
| Support function | FG,RD,Auto Restart function(not normal,optional) | FG,RD,PWM,Auto Restart(Not normal,optional) |
| Brand | NSK brand imported from Japan | Made in China |
| Advantage | Stable performance,low current amp,low noise,50000-80000hrs lifespan | Low cost,20000-30000 hrs lifespan,suit for small household appliance |
| Warranty | 30000 hours | 10000 hours |
| Material | Stainless | Copper sleeve |
| Price | Higher | lower |
What’s the difference between the sleeve and ball bearing fan?
The ball bearing brand was NSK bearing imported from Japan.
The warranty for ball bearing fan is 30,000 hours but sleeve bearing just 10,000 hours.
Ball bearing has 5-8 years lifetime,sleeve bearing has 2-3 years lifetime.
Ball bearing fan noise level won’t change for a long time term,but sleeve bearing fan noise level will grown as time goes on.
Sleeve bearing is cheaper than ball bearing fans.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $4.2 / piece
- 100–999 piece: US $3.66 / piece
- 1000+ piece: US $3.55 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this radial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the radial fan be supplied for my local voltage?
The standard configuration is 12V 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Xinyujie Technology Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Xinyujie Technology Co., Ltd. range on HVACR Nexus.
