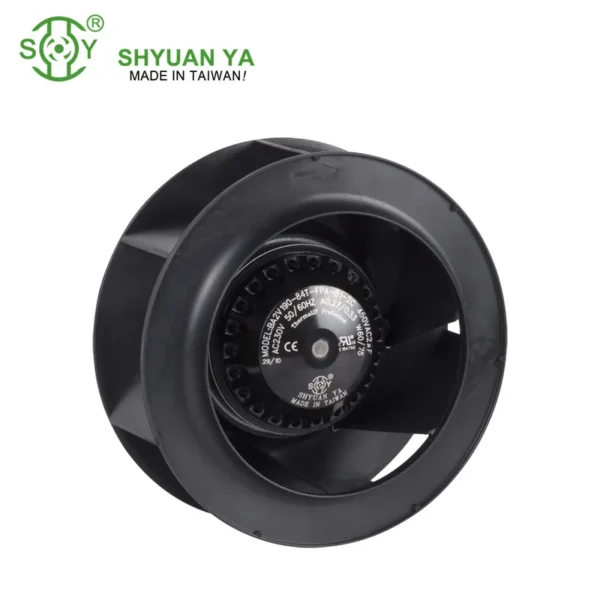

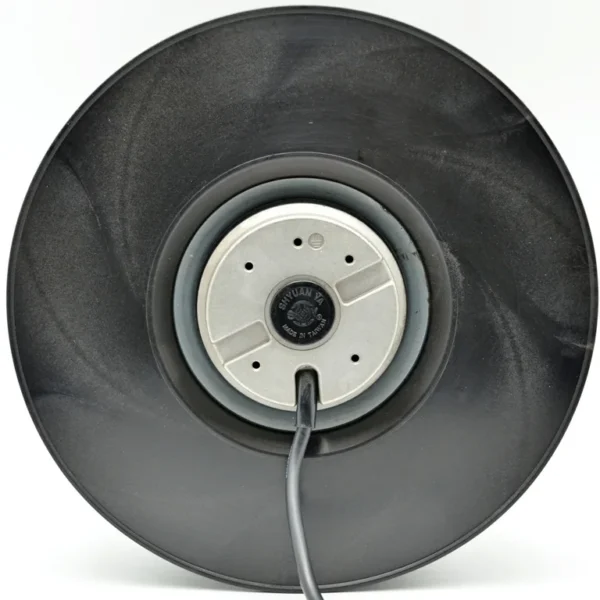

This backward curved centrifugal fan is published with the manufacturer’s full specification — voltage 115, 230V, air flow 384 ~ 416 CFM. Made by LIANG HERNG ELEC MACH CO., LTD. (21 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Backward Curved Centrifugal Fan
- Model Number: BA190-84T
- Voltage: 115, 230V
- Air Flow: 384 ~ 416 CFM
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Taiwan, China
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115, 230V |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Model Number | BA190-84T |
| Air Flow | 384 ~ 416 CFM |
| Impeller | Plastic PA |

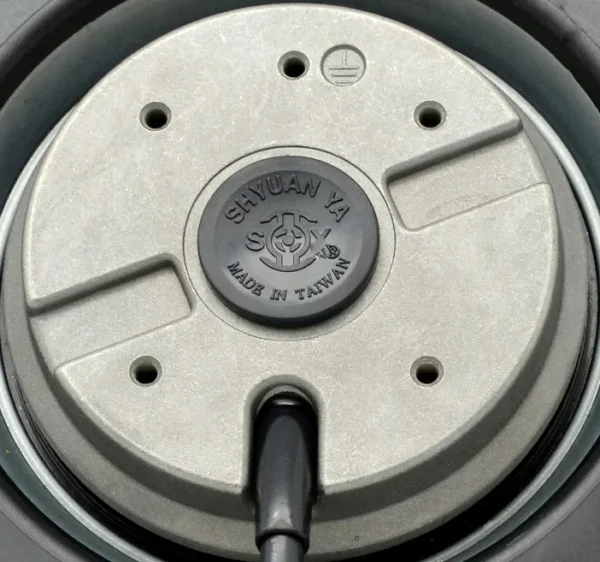

| Motor | External Rotor Motor |
| Rotor | Black Paint |
| Bearing | Dual Ball Bearing |
| Lead Wire | 450mm AWG# 20 |
| Insulation | Class "B" or "F" |
| Safety | Thermally Protected (Auto Restart) |
| Operating Temperature | -20°C to +70°C |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail |
| Core Components | Motor, Bearing |
| Selling Units | Single item |
| Single Package Size | 19X19X8.4 cm |
| Single Gross Weight | 1.4 kg |
Product Details
Specification | ||
Air Flow | 384 ~ 416 CFM | |
Impeller | Plastic PA | |
Motor | External Rotor Motor | |
Rotor | Black Paint | |
Bearing | Dual Ball Bearing | |
Lead Wire | 450mm AWG# 20 | |
Insulation | Class “B” or “F” | |
Safety | Thermally Protected (Auto Restart) | |
Operating Temperature | -20°C to + 70°C | |
Certification | ce, RoHS, CUL, UL | |
Product Name | CENTRIFUGAL FAN BA155-95T | CENTRIFUGAL FAN BA155-110T | CENTRIFUGAL FAN BA175-69T | ||
Air Flow | 234 ~ 273 CFM | 280~315CFM | 287 ~ 331 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||
Product Name | CENTRIFUGAL FAN BA175-84T | CENTRIFUGAL FAN BA175-95T | CENTRIFUGAL FAN BA180-54T | ||
Air Flow | 348 ~ 389 CFM | 371 ~ 421 CFM | 229 ~267CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||
Product Name | CENTRIFUGAL FAN BA180-85T | CENTRIFUGAL FAN BA190-69T | CENTRIFUGAL FAN BA190-84T | ||
Air Flow | 387 ~ 426 CFM | 339 ~ 378 CFM | 229 ~267CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||
Product Name | CENTRIFUGAL FAN BA190-95T | CENTRIFUGAL FAN BA220-71T | CENTRIFUGAL FAN BA225-69T | ||
Air Flow | 410 ~ 451 CFM | 482 ~ 590 CFM | 460 ~ 527 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | -20°C to +60°C | |||
Product Name | CENTRIFUGAL FAN BA225-85T | CENTRIFUGAL FAN BA225-99T | CENTRIFUGAL FAN BA225-107T | ||
Air Flow | 586 ~ 669 CFM | 682 ~ 772 CFM | 711 ~ 807 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | -20°C to +60°C | |||
Product Name | CENTRIFUGAL FAN BA250-89T | CENTRIFUGAL FAN BA250-99T | CENTRIFUGAL FAN BA250-112T | ||
Air Flow | 700 ~ 774 CFM | 824 ~ 909 CFM | 945 ~ 1024 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | -20°C to +60°C | |||
Questions & Answers
Ordering and Pricing
- Minimum order quantity: 12 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this backward curved centrifugal fan?
The standard minimum order quantity is 12 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the backward curved centrifugal fan be supplied for my local voltage?
The standard configuration is 115, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

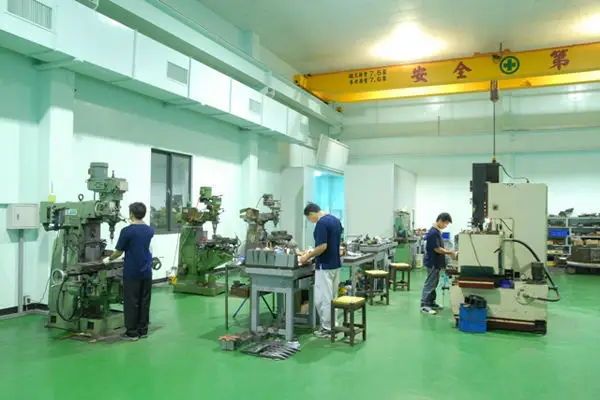

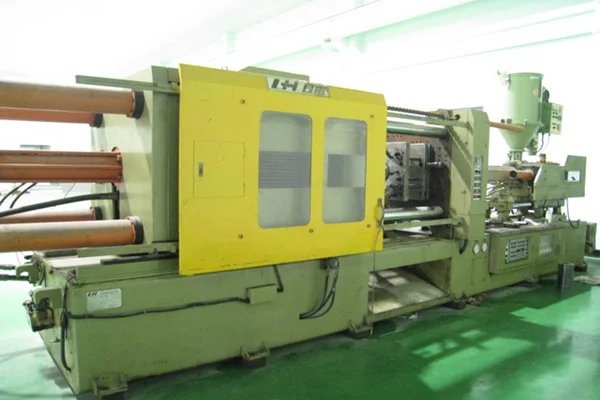

About the Manufacturer
This product is produced by LIANG HERNG ELEC MACH CO., LTD.. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LIANG HERNG ELEC MACH CO., LTD. range on HVACR Nexus.
