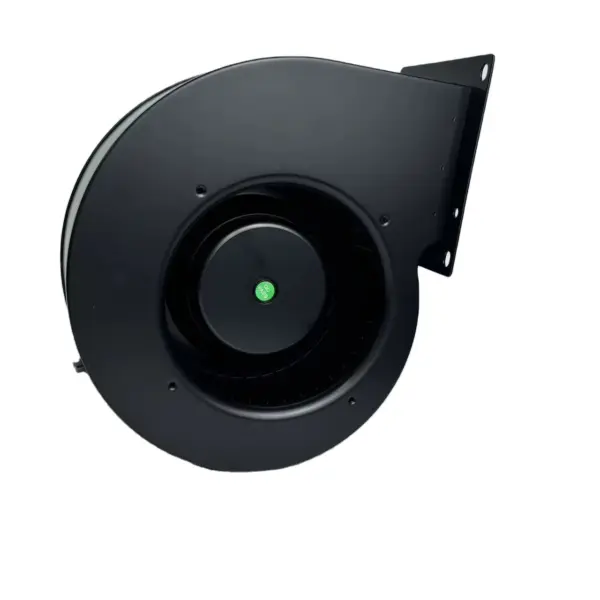

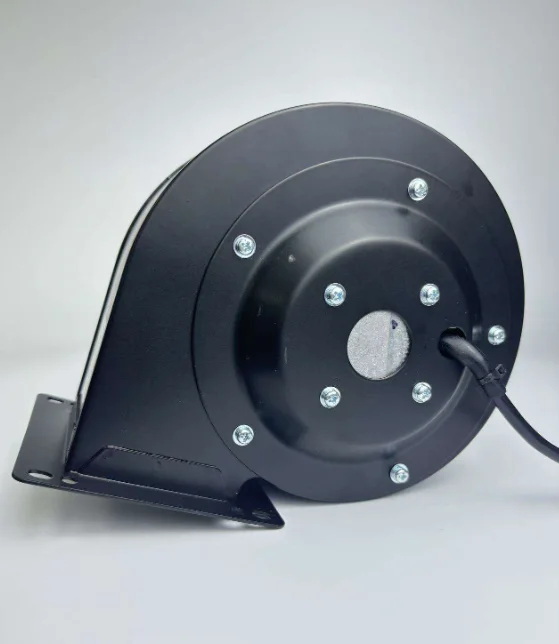

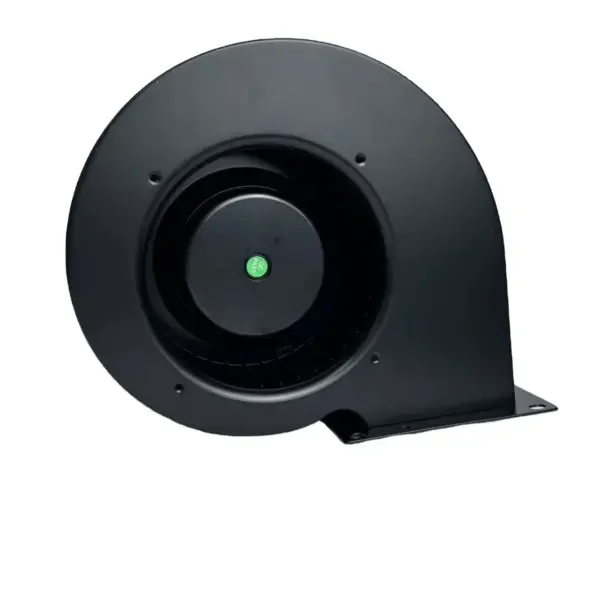

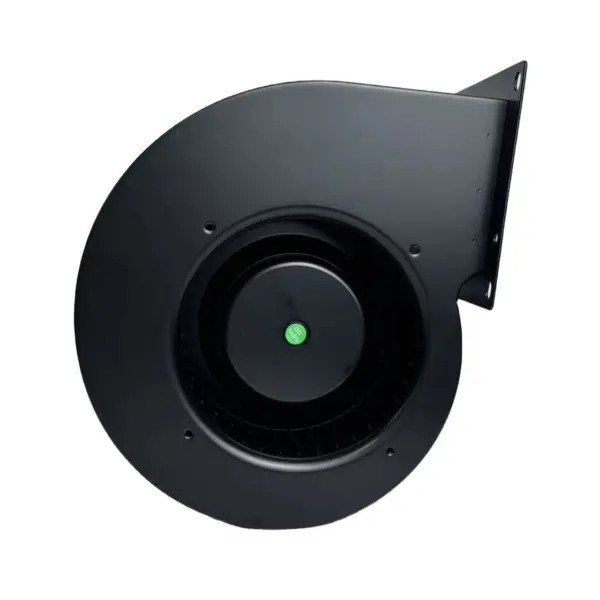

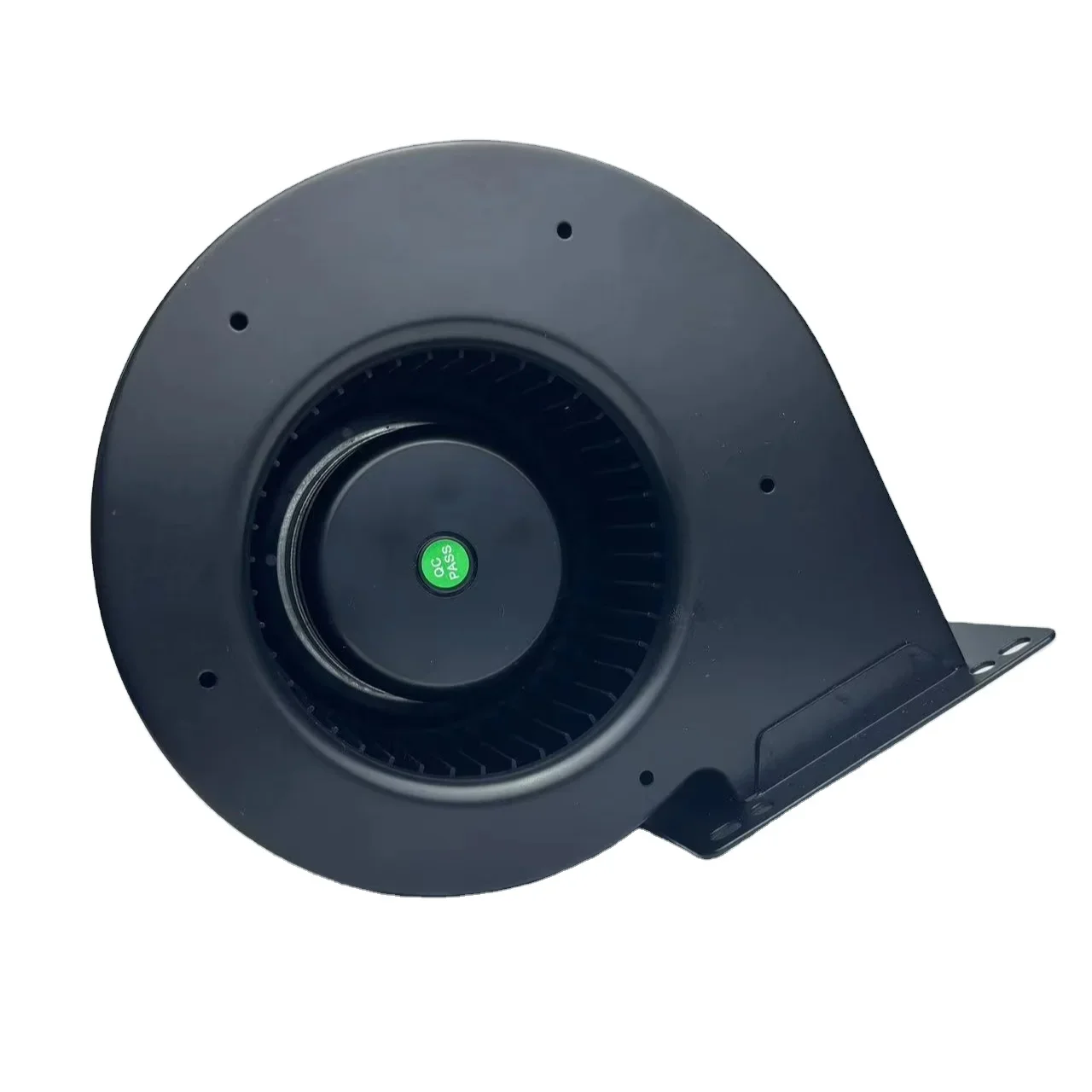

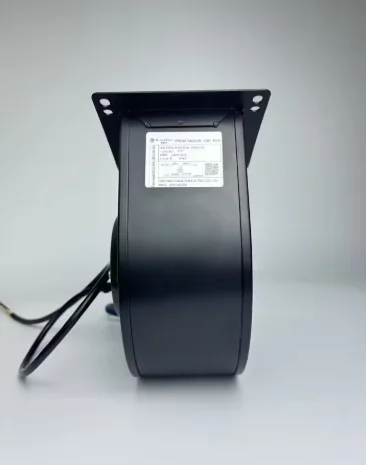

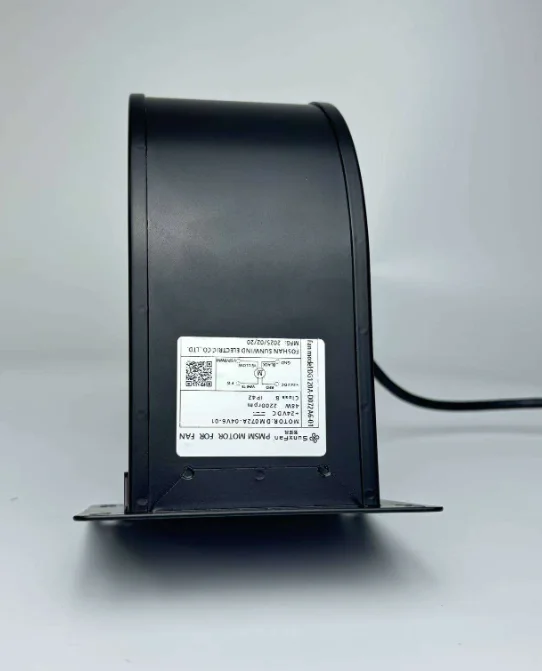

This centrifugal blower is listed with the manufacturer’s full published specification — voltage 24VDC, power source type Corded Electric, material Galvanized Steel. It is produced by Foshan Sunwind Electric Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: DG120A-D072A6-00
- Power Source Type: Corded Electric
- Voltage: 24VDC
- Material: Galvanized Steel
- Blade Material: Glvanized plate
- Noise Level: 40 dB and above
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Power Source Type | Corded Electric |
| Noise Level | 40 dB and above |
| Voltage | 24VDC |
| Material | Galvanized Steel |
| Speed | 2200 |
| Blade Material | Glvanized plate |
| Customized Support | OEM |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Model Number | DG120A-D072A6-00 |
| Place Of Origin | Guangdong, China |
| Selling Units | Single item |
|
Material
|
Impeller made of galvanized plate，scroll housing made of cool-rolled steel sheet
|
|
Bearing
|
Ball bearing
|
|
Speed control
|
Control input 0-5/10V or PWM
|
|
Working Temp.
|
-25~ +60°C
|
|
Insulation Class
|
B
|
|
Protection Class
|
IP44
|
|
Approvals
|
CCC, CE
|
2001-2003: Fan blade design, impeller fluid flow development
2004-2006: Shaded-pole motor
2007-2017: BLDC & PMSM motor
2017-2021: Integrated fan motor, fluid flow, electric control to manufacture centrifugal fan and axial fan
Quality Control System:
MSA, ISO9001, Traceability system, PDCA
100% full inspection before shipment
About SunxFan:

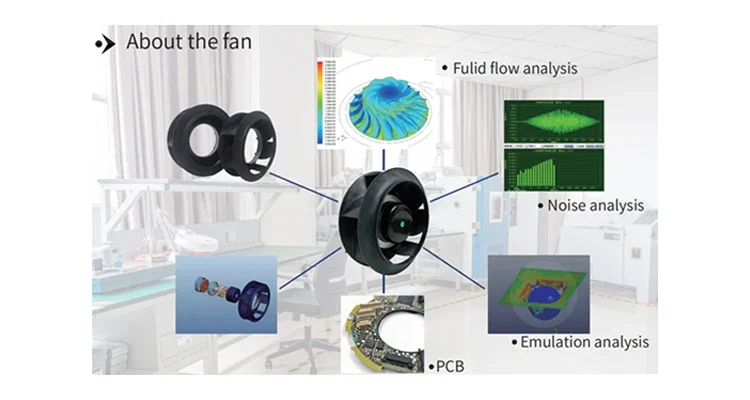

* Design on motor, fluid flow, electric control
* Manufacture all the key components by ourselves
* Process management: IPD
* Product Reliability: Type test, life expectancy test and running test.
We manufacture a range of product:
※133mm,175mm,190mm,220mm,225mm,250mm,280mm,320mm,355mm backward curved centrifugal fan
※120,140,160,180mm single inlet forward curved centrifugal fan
※133, 146mm double inlet forward curved centrifugal fan
※200, 220, 225, 250, 280mm axial flow fan
※Motor type: 115V/230V AC, 24/48V/310VDC, 115/230V/380V EC type

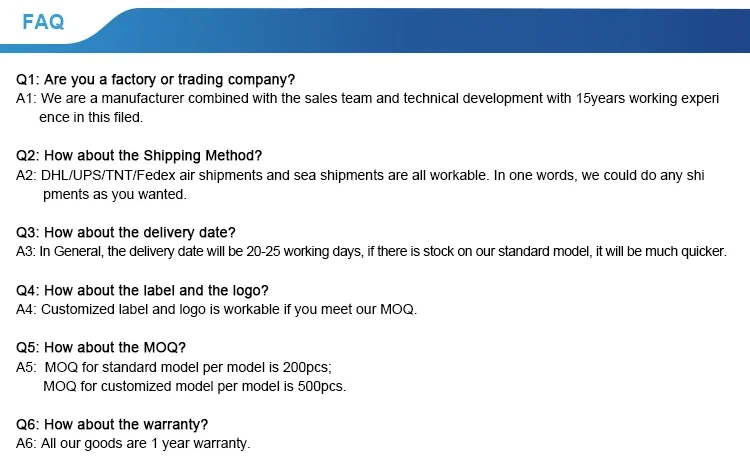

Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this centrifugal blower?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 24VDC. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This centrifugal blower is produced by Foshan Sunwind Electric Co., Ltd.. Browse the full Foshan Sunwind Electric Co., Ltd. range on HVACR Nexus.
