PRODUCT SPECIFICATIONS
1.General Characters
|
Rated Voltage
|
24 VDC
|
Insulation Class
|
Class B
|
|
Operating Voltage
|
16 ~ 28 VDC
|
Static Pressure
|
1.43 mmH2O / 14 Pa
|
|
Rated Speed
|
2700 RPM
|
Input Power
|
1.92 W
|
|
Input Current
|
0.08 A
|
Speed Control
|
Control input 0~10VDC
|
|
Acoustical Noise
|
31 dB(A)
|
Air Flow
|
30.60 CFM / 52 m3/H
|
|
Life Expectance |
50,000Hours(L10)
At 40℃ room, humidity 15%~65%RH. |
Motor Protection |
Locked rotor protection
Polarity protection Automatic restart capability |
|
Direction of Rotation
|
Clockwise seen on motor
|
Protection Type
|
IP44
|
2. Mechanical Characters
|
Dimension
|
48x50x252 (see dimension drawing)
|
Bearing System
|
NMB ball bearing
|
|
Material of Impeller
|
Aluminum alloy
|
Lead Wire
|
Red , Black, White AWG22#
|
|
Number of Blades
|
22
|
Package
|
Standard
|

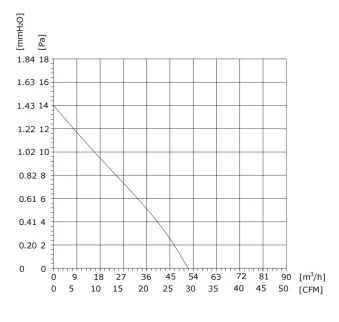

3. Airflow Curve
Testing Condition
Input Voltage—-Operating voltage (24VDC)
Temperature—–Room temperature
Humidity———65%RH Test
distance—–1m
distance—–1m

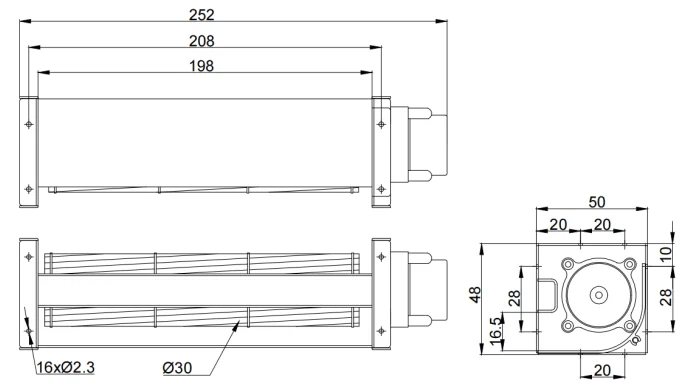

4. Outline Drawing
Note
Connection line 3X (Red, Black, White AWG22#); Red=+24VDC, White=0-10VDC, Blue=GND.
Recommend Products
|
Model
Part No.
|
Rated
Voltage
VDC
|
Air
Flow
m³/H
|
Air
Pressure
Pa
|
Rated
Speed
RPM
|
Sound
Level
dB(A)
|
Total
Length
mm
|
|
12
|
35
|
17
|
3000
|
29
|
152
|
|
|
24
|
35
|
17
|
3000
|
29
|
152
|
|
|
12
|
42
|
15
|
2800
|
30
|
214
|
|
|
12
|
52
|
14
|
2700
|
31
|
252
|
|
|
12
|
65
|
14
|
2600
|
32
|
302
|
|
|
12
|
72
|
13
|
2500
|
33
|
354
|
|
|
12
|
84
|
12
|
2400
|
35
|
406
|
|
|
24
|
42
|
15
|
2800
|
30
|
214
|
|
|
24
|
52
|
14
|
2700
|
31
|
252
|
|
|
24
|
65
|
14
|
2600
|
32
|
302
|
|
|
24
|
72
|
13
|
2500
|
33
|
354
|
|
|
24
|
84
|
13
|
2400
|
35
|
406
|
Certifications
Application Scopes

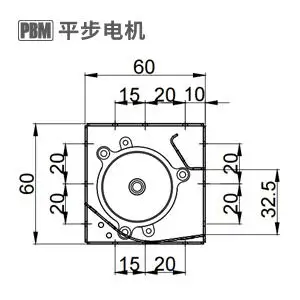

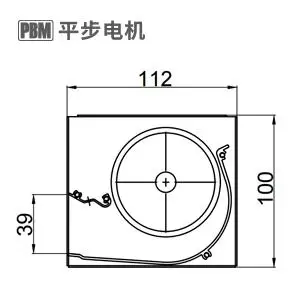

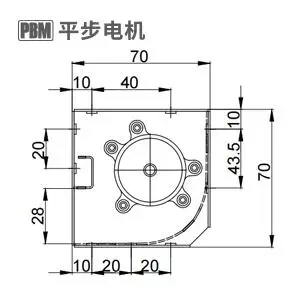

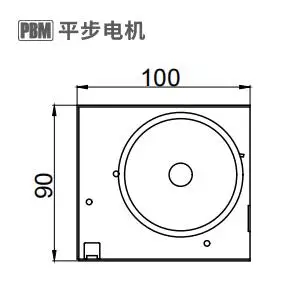

PBM DC Tangential Blowers with Different Impeller Sizes
PBM Cross Flow Fan 30mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.
Heater.
PBM Cross Flow Fan 40mm Blades
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.
PBM Cross Flow Fan 43mm Blades
Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.
PBM Cross Flow Fan 45mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 50mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 60mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 65mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

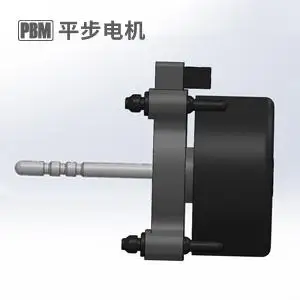

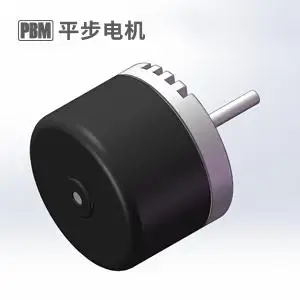

PBM DC Tangential Blowers with Different Motor Sizes

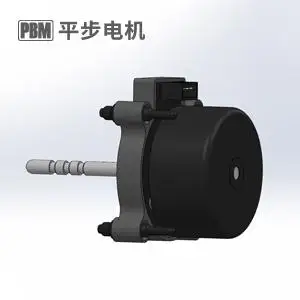

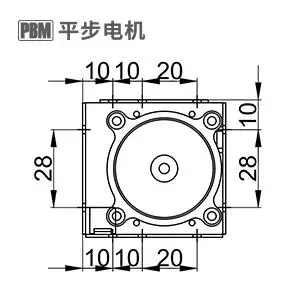

PBM DC 37.5mm Motor
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.

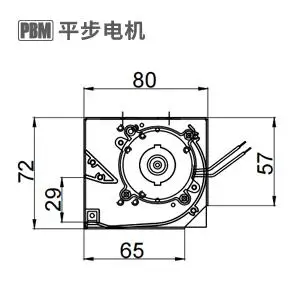

PBM DC 50mm Motor
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery, Storage Heaters,
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
PBM DC 72mm Motor
Application: Refrigeration and Display Cabinets, Air Conditioning Fans (Air Conditioning Fans, Building Fans, Tower fans), Air Heaters, Electric Fireplaces, Air Curtain Machines, Embedded Ovens, Wood-burning Stoves, Air Conditioners and Storage Heaters etc.

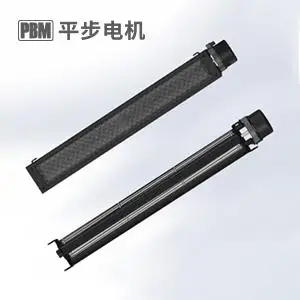

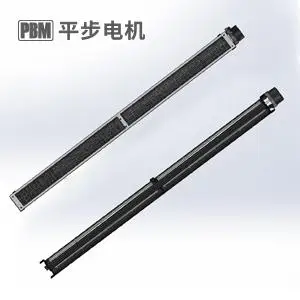

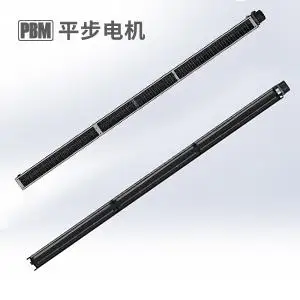

PBM DC Tangential Blowers with X1/X2/X3 Machine Type
Single Tangential Blower
Double Tangential Blower
Triple Tangeltial Blower

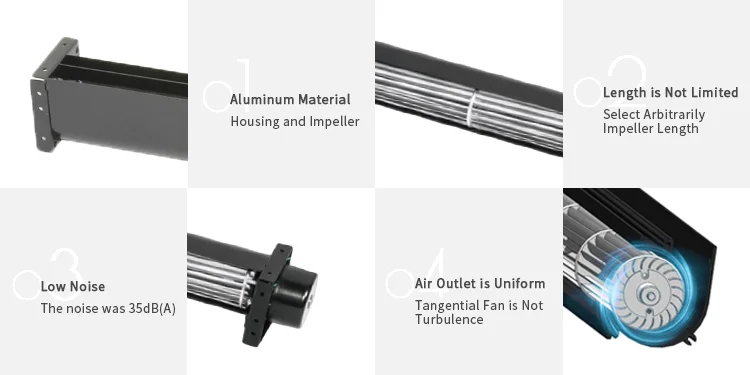

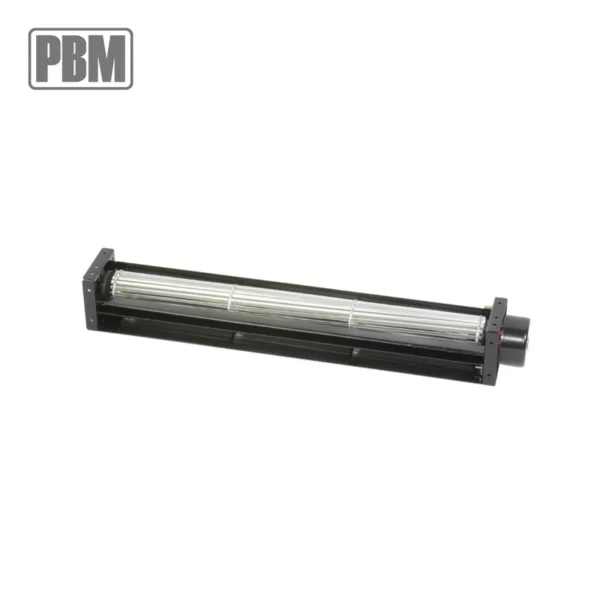

Product Overview
Exhibition Show
Packing Detail
FAQ
Q: What are the typical applications for these cross-flow blowers?
A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What’s the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
