Bilge blower — 24V, 130CFM. The complete factory specification follows. Made by Xiamen Youme Electric Co., Ltd. (16 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Bilge Blower
- Model Number: HYIB2-130-01
- Power Source: Electric
- Power: Electric
- Voltage: 24V
- Air Flow: 130CFM
- Warranty: 1 year
Technical Specifications
| Application | Marine |
|---|---|
| Structure | bilge pump |
| Voltage | 24V |
| Power Source | Electric |
| Outlet Size | no |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Pressure | no |
| Model Number | HYIB2-130-01 |
| Place Of Origin | Fujian, China |
| Brand Name | Sailingflo |
| Usage | Water |
| Power | Electric |
| Fuel | Diesel |
| Volt | 24V |
| Air Flow | 130CFM |
| Intake Pipe Dia (MM) | 3”/76mm |
| Certification | ce |
| Selling Units | Single item |
| Single Package Size | 44.5X44.5X25.5 cm |
| Single Gross Weight | 1.0 kg |
Product Details

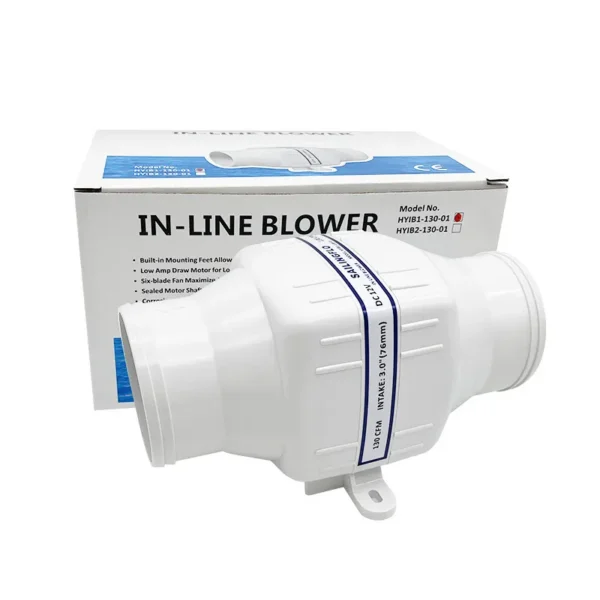

Singflo 4'' Marine Boat 12v Inline Silent Electric air Blower
Benifits
Built-in mounting feet allow easy vertical or horizontal installation
Very low current draw,high volume air flow,long life
Four/Six-blade fan maximizes airflow and efficiency
Sealed motor shaft for moisture protection
Corrosion resistant ABS plastic housing
Application
Boats Bilge ventilation, Engine Compartments,Galleys and Heads
Race cars and helmet ventilation
Bus ventilation (engine and bathroom fumes)
Tanning booths and building ventilation
Prison van ventilation (cooling, air-freshening)
Blowe-up sighs and mascots
Building ventilation
Product Description
* IMCI (CE)
* Igntion protected
* Provides ventilation for engine compartments,galleys,bilges and heads
* Hi-Flow 3,681 Litres per minute (130CFM) capacity.
* Up to 25% more efficient than conventional in-line blowes.
* UV resistant white ABS plastic construction with built-in mounting feet
* Corrosion proof design and water resistant motor casing for use in the marine environment
* Very low current draw and high volume air flow
* Four blade fan maximises airflow and efficiency
* Sealed motor shaft for moisture protection
* Hose connections each end,for use with 98mm (4'') diameter blowe hoses
* Easy to mount-for easy vertical or horizontal installation
* Does not include mounting screws
* For intermittent use only.

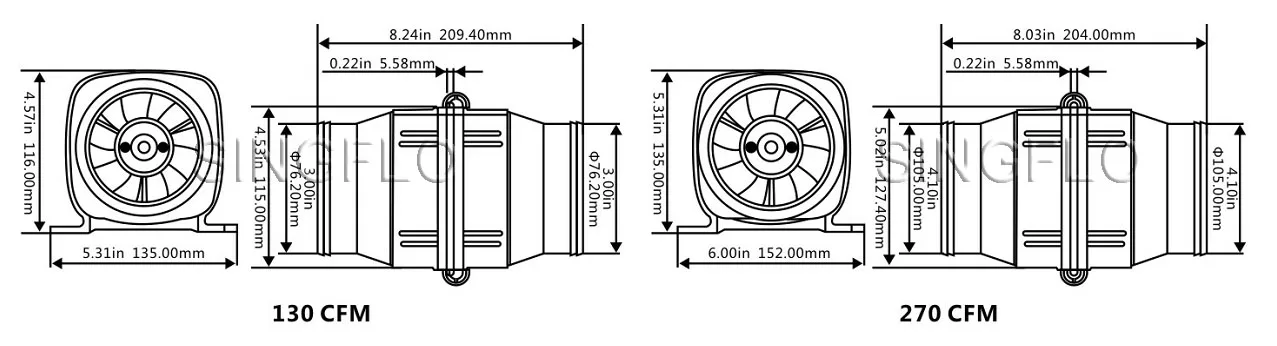

| Model | Volts(V) | AirFlow (cfm/cmh) | Amp Draw(A) | Fuse (A) | Intake Pipe Dia(A) | Packing Size (mm) | N.W./G.W. (kg) |
| HYIB1-270-02 | 12V | 270/456 | 6.0A | 10.0A | 4''/105 | 207*154*114 | 0.70/0.90 |
| HYIB2-270-02 | 24V | 270/456 | 3.0A | 5.0A | 4''/105 | 207*154*114 | 0.70/0.90 |
| HYIB1-130-01 | 12V | 130/220 | 2.5A | 5.0A | 3''/78 | 215*137*120 | 0.45/0.60 |
| HYIB2-130-01 | 24V | 130/220 | 1.3A | 3.0A | 3''/78 | 215*137*120 | 0.45/0.60 |
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-20USD/pcs, when can i get the price at 1usd?
A: 1-20USD is just a price range for your reference here.
Guarangee:
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
2. If you have any problems with the item received, please let us know within 7 days after received. Please contact us before send items back! If problem really exists, a replacement or a refund is available after we receive the items in goods condition.
Note: If area is remote area. You should pay the remote fee before delivery.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $9.5 / piece
- 100+ piece: US $9.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bilge blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this bilge blower carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the bilge blower be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xiamen Youme Electric Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Xiamen Youme Electric Co., Ltd. range on HVACR Nexus.
