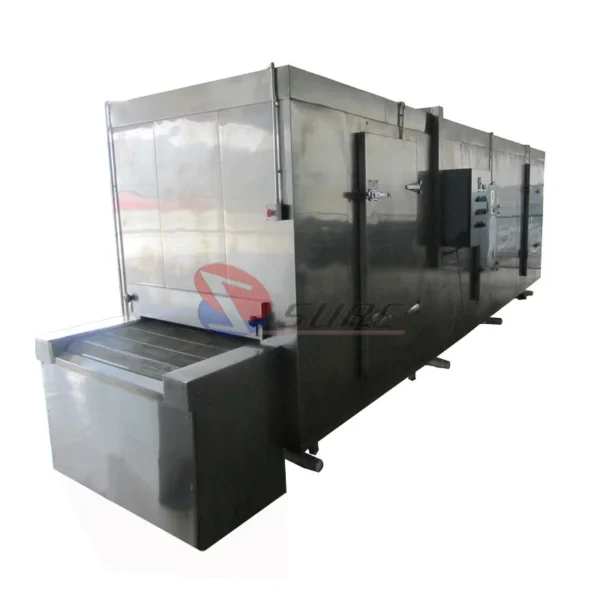

This blast freezer is published with the manufacturer’s full specification — 100kg/h, refrigerant R404A. Made by Tianjin Sure International Trading Co., Ltd. (16 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blast Freezer
- Power(W): customized
- Voltage: customized
- Capacity: 100kg/h

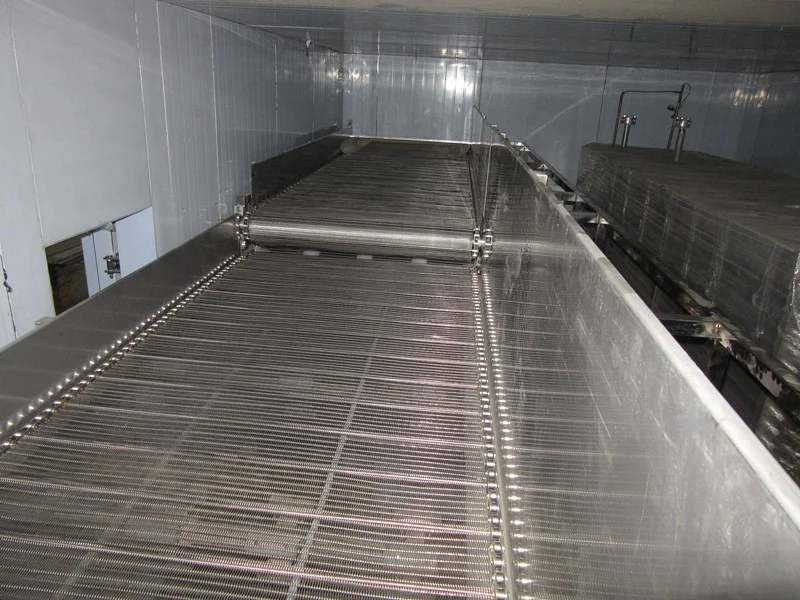

- Belt Material: Food Grade SUS304 Stainless Steel
- Refrigerant: R404A
- Warranty: 1 Year
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Temperature Control | -20℃ to 0℃ |
| Voltage | customized |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Key Selling Points | Competitive Price |
| Power(W) | customized |
| Place Of Origin | Tianjin, China |
| Weight (Kg) | 1500 |
| Brand Name | SURE |
| Dimension(L*W*H) | 7.4*1.5*2.2m |
| Product Name | IQF Tunnel Quick Freezer |
| Application | Fish Quick Freezing |
| Function | Individual Quick Freezing |
| Refrigerant | R404A |
| Product Keywords | Tunnel Flash Freeze machine |
| Capacity | 100kg/h |
| Belt Material | Food Grade SUS304 Stainless Steel |
| Freezing Time | Adjusted |
| Advantage | Convenient Operation |
| Freezer Type | Belt IQF Freezer |
| Selling Units | Single item |
Product Details

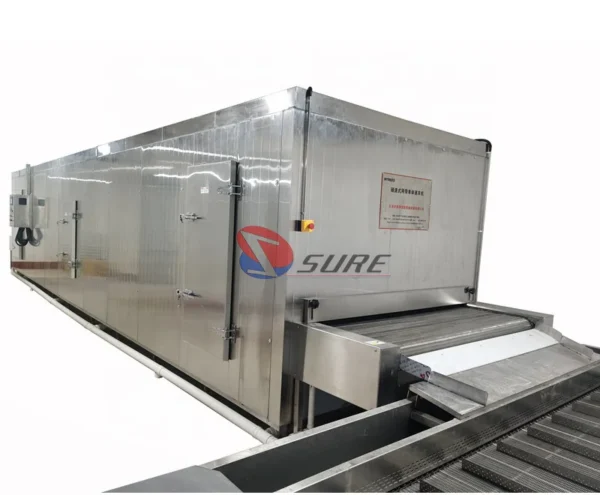

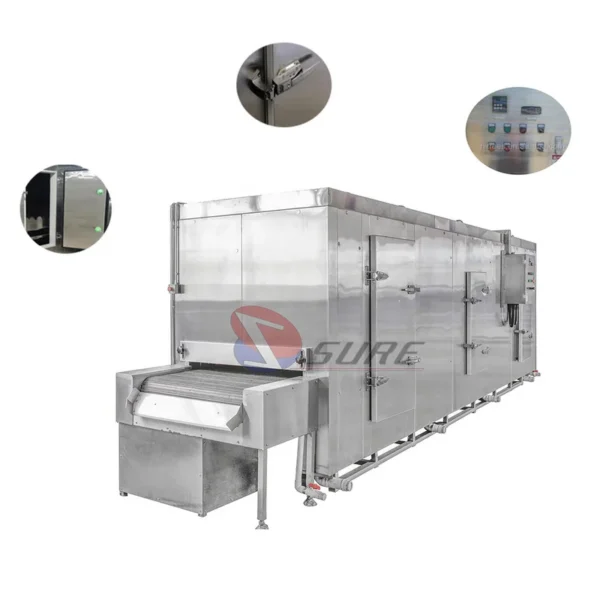

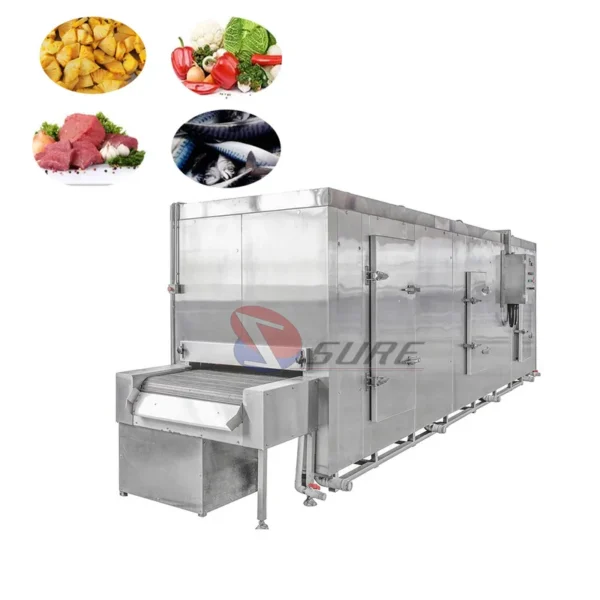

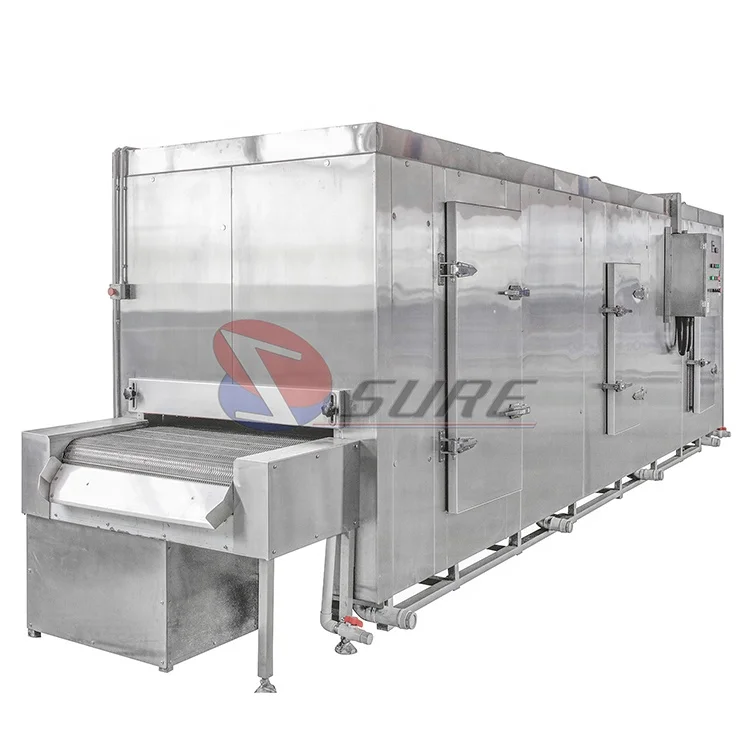

TUNNEL FREEZER
model | output | consunptioninstalled power | refrigeration power | dimension | belt width |
tf100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm |
tf150 | 150kg/h | 2.95kw | 21kw | 8.0*1.8*2.3m | 1300mm |
tf200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm |
tf300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm |
tf500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm |
tf1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm |
tf1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm |
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;

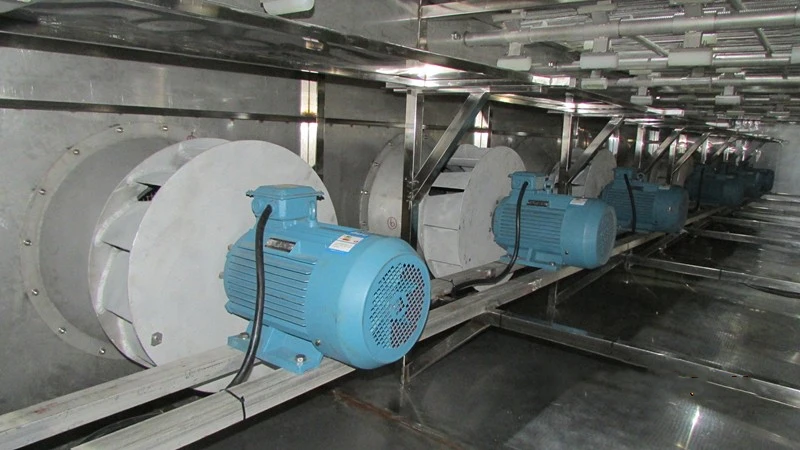

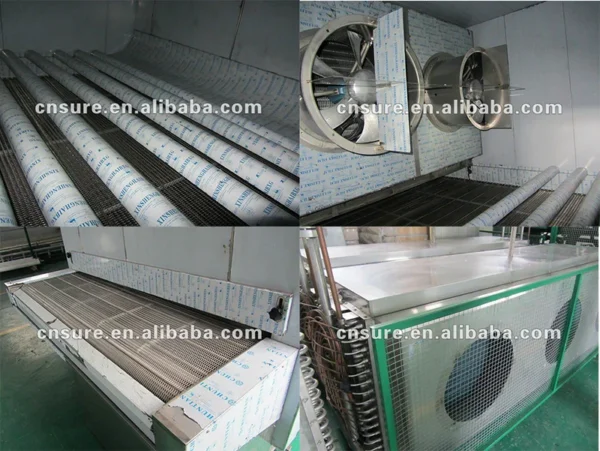

(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of
cabinet through stainless steel draining pipes;
2. Low operating cost through maximized cryogen efficiency.

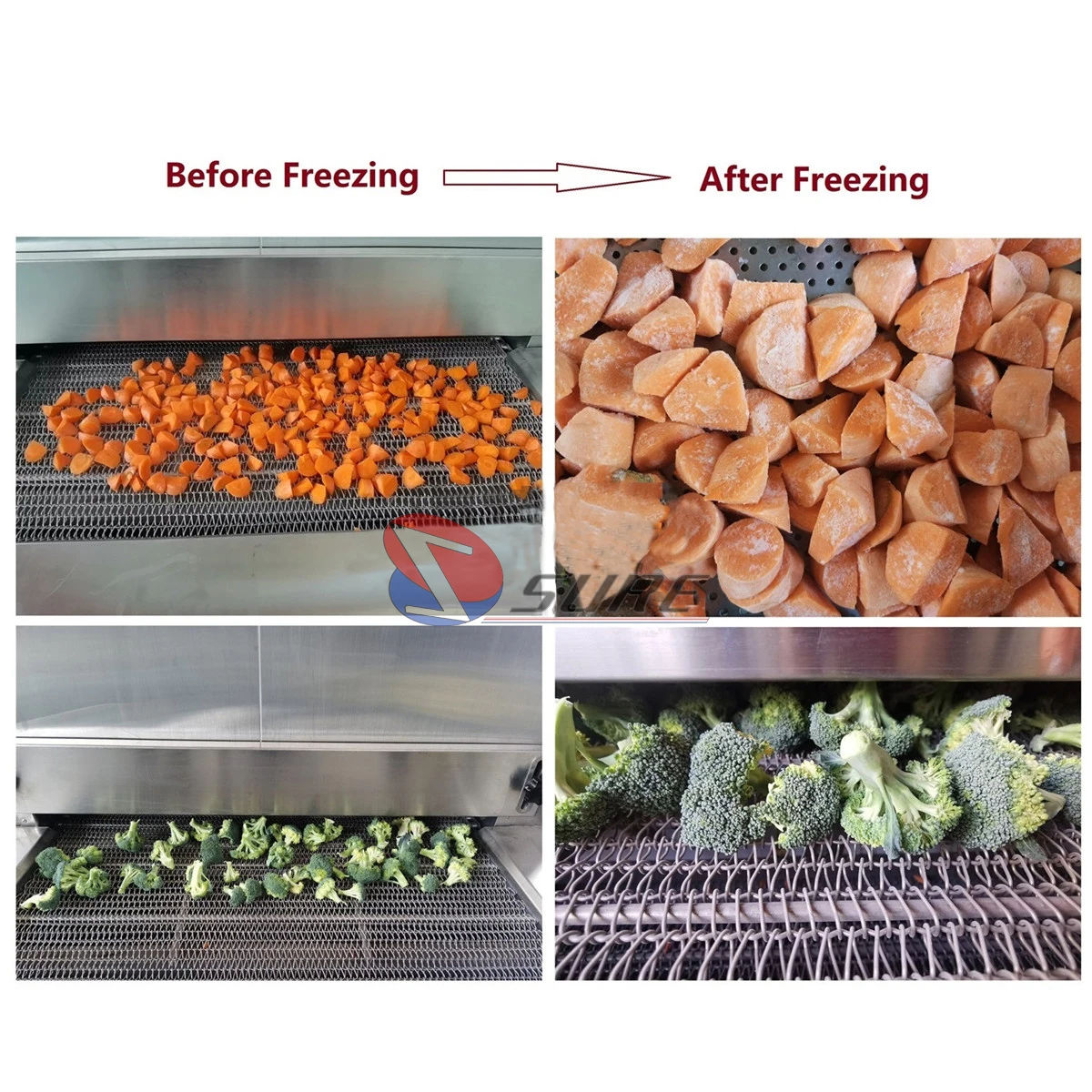

3. Higher frozen product quality from a quicker freeze.
4. Reduced labor for cleaning and improved food safety through hygienic design.
5. Less product dehydration through reduced freezing time resulting in higher product yield
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $35000 / set
- 5–9 set: US $32500 / set
- 10–19 set: US $28500 / set
- 20+ set: US $23500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the blast freezer be supplied for my local voltage?
The standard configuration is customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tianjin Sure International Trading Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Tianjin Sure International Trading Co., Ltd. range on HVACR Nexus.
