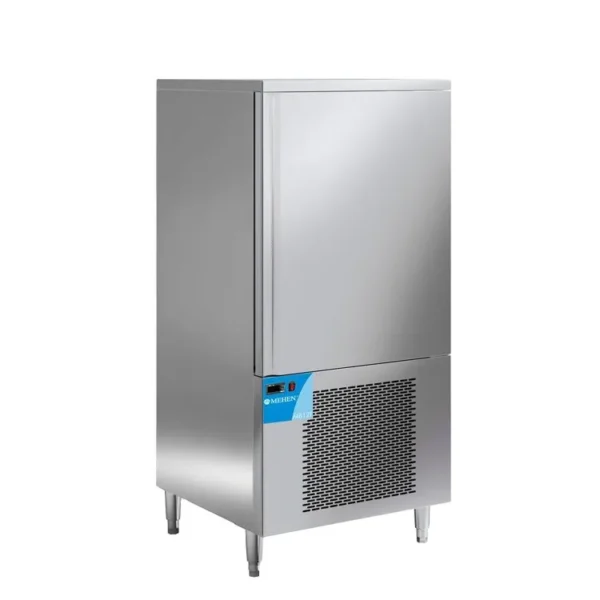

Key specification for this freezing machine shock freezer: 220V, 380V, power 1.5. Everything below is reproduced from the factory data sheet. Made by Mehen Food Machine Manufacture Co., Limited (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Freezing Machine Shock Freezer
- Power(W): 1.5
- Voltage: 220V, 380V
- Refrigerant: R404A
- Warranty: 1 Year
- After Warranty Service: Spare parts
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Temperature Control | -40℃ to 0℃ |
| Voltage | 220V, 380V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Compressor |
| Key Selling Points | Automatic |
| Power(W) | 1.5 |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 90 |
| Brand Name | MEHEN |
| Dimension(L*W*H) | 750*750*1450mm |
| Processing Types | blast freezer; shock freezer |
| Processing | Gelato, pastry ect |
| Temperature | -40 celsius degree in 30 min |
| Compressor | Tecumseh |
| Specials | Customer Dimension Available |
| Features | 100 mm isolation |
| Expansive Valve | Danfoss from Denmark |
| Working Temperature | +35 celsius degree |
| Refrigerant | R404A |
| After Warranty Service | Spare parts |
| Selling Units | Single item |
| Single Package Size | 85X85X145 cm |
| Single Gross Weight | 190.000 kg |
Product Details
Product performance description
The blast chillers can fast freezing the ice cream (or other food) and reducing the central temperature of the food to a target level very quickly. Curbs the bacterium growing so as to achieve hygienic. Shock freezing and prevent ice to appear thus to reserve original texture. The blast freezers designed and engineered for the needs of restaurants, bakeries, pastry, ice cream production and medical treatment etc.

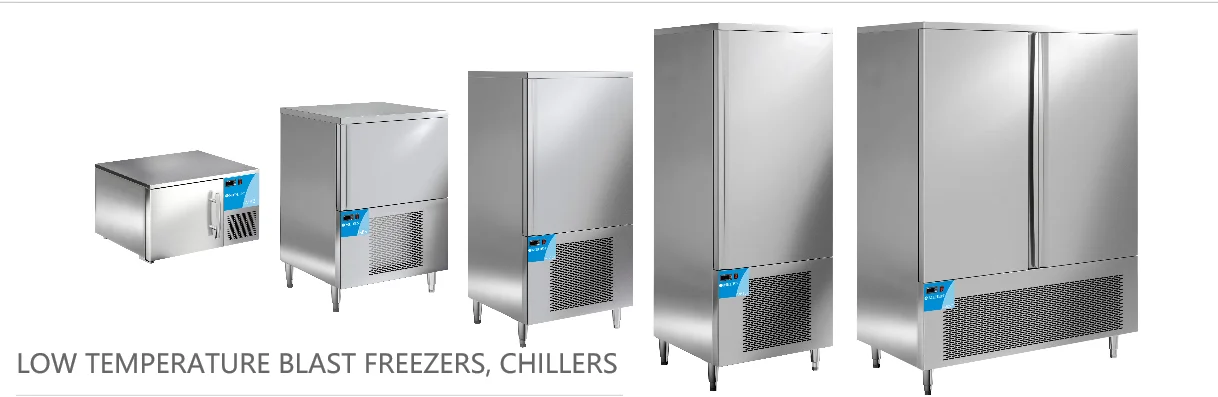

* Various range of capacity options, 36,122,241,342,425,703,1061 liters.
* Stainless steel frame interior/exterior.
* Integral foam insulation door with electric heating.
* Digital temperature controller with defrost option and digital display.
* Temperature Range 0˚C to -39˚C.
* Auto switch turns off fans when door opened, avoid temperature lost.

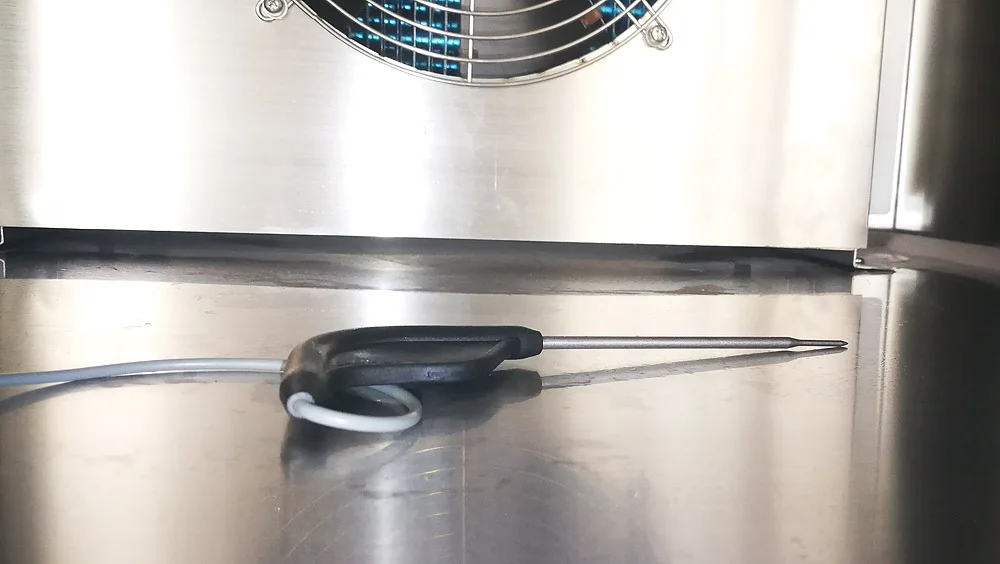

* Pierceable sensor probes, detecting the central temperature of product.

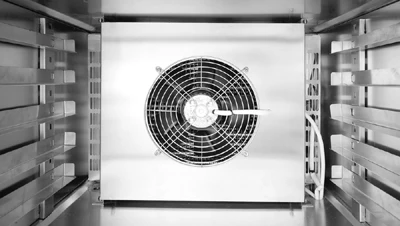

* Fan & extended evaporator coil eliminate icing on interior walls.
* Expansion valve provides quick pull down and decrease compressor run time.
* Fin coil and forced air evaporator coil result in faster performance.

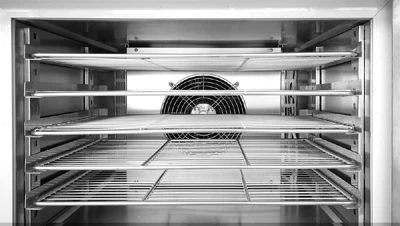

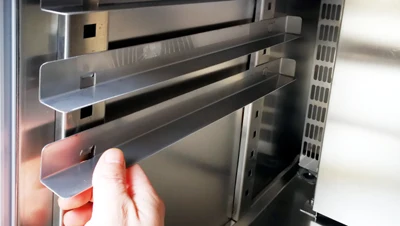

* Adjustable cantilever shelves.
* Heated drain pan dissipates condensation, no plumbing required.
* Radiation direction diversion accessory optional.
* Auto-close door design.
* ISO9001 approved factory, only use high quality components to ensure product quality.
* International acceptable refrigerate gas.
Model | Standard power, cooling | compressor / Hp | Ner/ gross weight KG | Net/package DIM W*D*H mm |
MB2T, 36 Ltr | 220/1/50, AIR | 5/8 | 60/80 | 370*330*300/ 720*640*440 |
MB6T, 122 Ltr | 220/1/50, AIR | 1.5 | 150/180 | 630*448*435/ 750*750*960 |
MB12T, 241 Ltr | 380/3/50, AIR | 3 | 190/230 | 630*448*855/ 750*750*1450 |
MB18T, 342 Ltr | 380/3/50, AIR | 4 | 280/330 | 630*448*1215/ 750*750*1810 |
MB22T, 425 Ltr | 380/3/50, AIR | 5 | 300/360 | 690*508*1215/ 810*810*1810 |
MB36T, 703 Ltr | 380/3/50, AIR | 6 | 350/420 | 1292*448*1215/ 1468*750*1810 |
MB54T, 1061 Ltr | 380/3/50, AIR | 5 semi | 420/500 | 1348*648*1215/ 1468*950*1810 |
2. USA standard bakeware sizeUB: WDH=45.7×67.2×6 mm.
3. Ice cream traySCsize: WDH=327x265x65 mm.
Ice cream tray SD size: WDH=327x175x65 mm.
4. Aboutthe power type:
European standard single-phase power (EU1): 220v/1ph/50hz
European standard three-phase power(EU3): 400v/3ph/50hz.60hz
American standard single-phase power supply(US1): 220v/1ph/60hz
American standard three-phase power supply(US3):220v/3ph/60hz
5. SEMI:Semi-hermetic compressor which has more powerful performance.
6. Notice: it's very important to select correctpower type when purchasing machine.

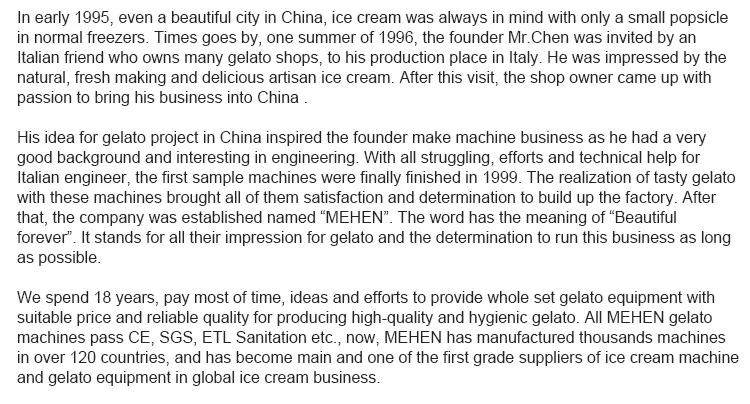

MEHEN was set up in 1999 and located at Nanjing, capital of Jiangsu Province.
Since it was first established, MEHEN was dedicated in research, development and manufacture of ice cream gelato machines. Now, MEHEN has become main and one of the first grade suppliers of ice cream and gelato equipment in global ice cream business.
Our products include: Gelato (ice cream) batch freezer, blast freezer(fast chiller), ice cream display freezer, pasteurizer and Gelato MIX boiler
Our Services & Strength
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $5999 / set
- 5+ set: US $5299 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezing machine shock freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the freezing machine shock freezer be supplied for my local voltage?
The standard configuration is 220V, 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
