Blast Freezer, 220 V, Tunnel Freezer

Key specification for this blast freezer: 220 V, 380 V, type Tunnel Freezer. Everything below is reproduced from the factory data sheet. Made by Henan Foodmax Machinery Co., Ltd. (1 year on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Blast Freezer

• Power(W): Customized
• Voltage: 220 V, 380 V
• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application: Food Quick Freezing
• Type: Tunnel Freezer

Technical Specifications

Product Details

Product Description

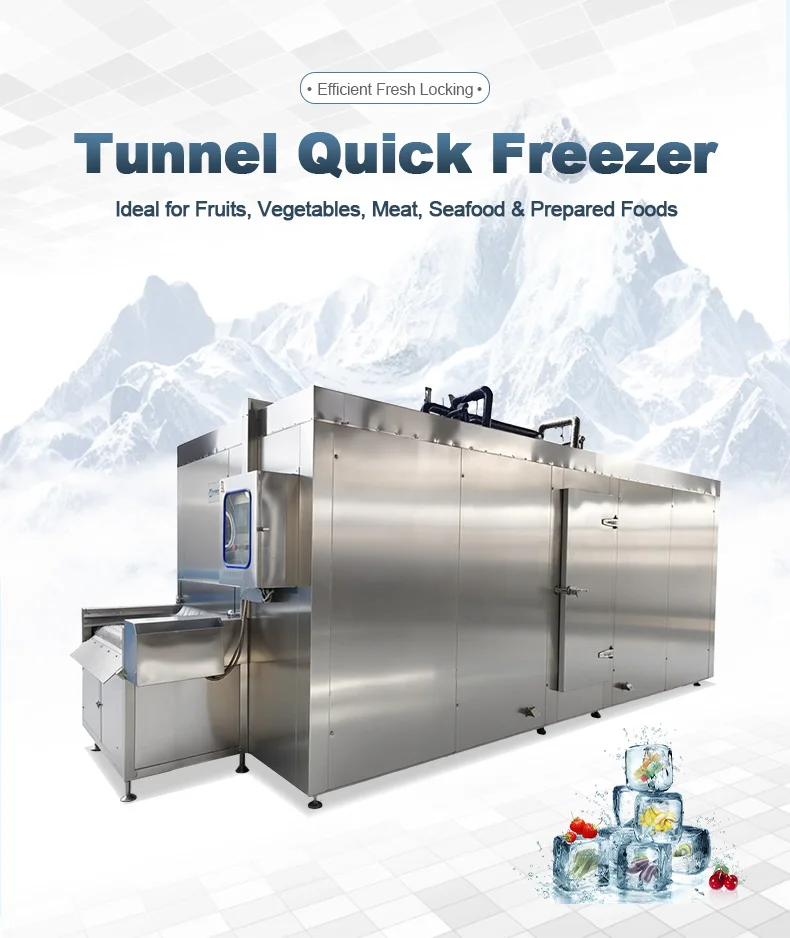

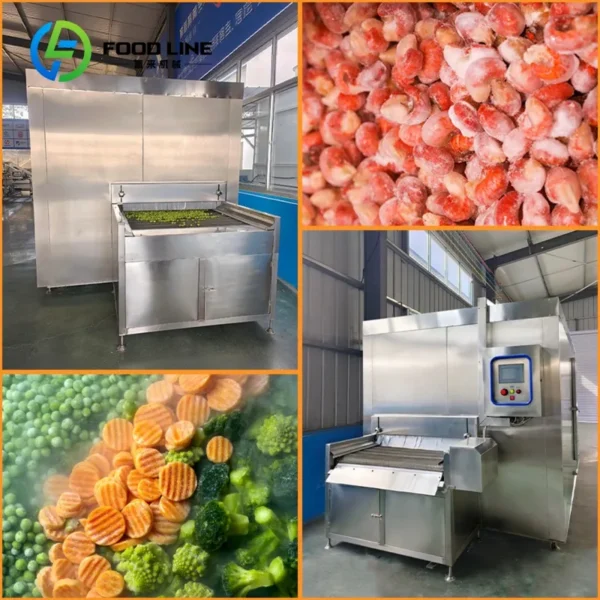

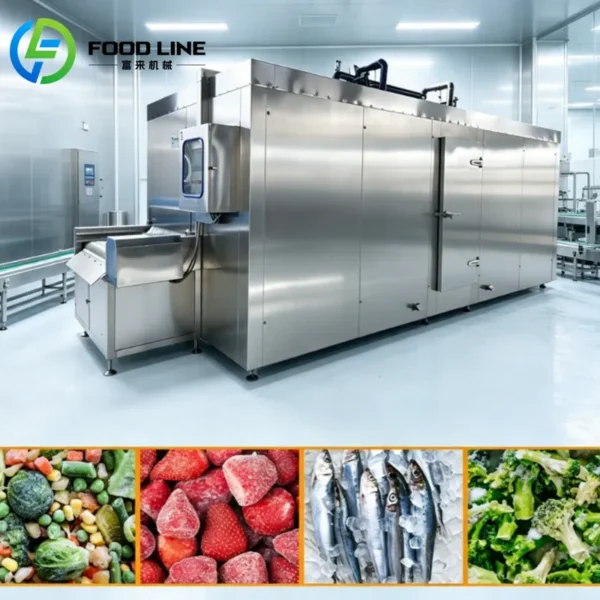

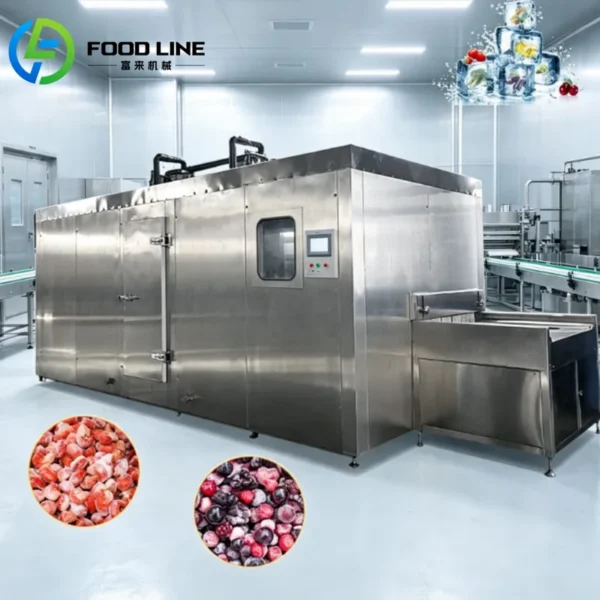

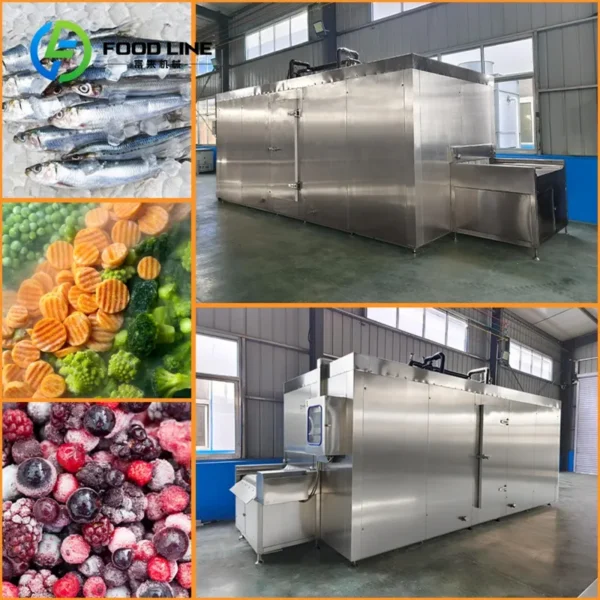

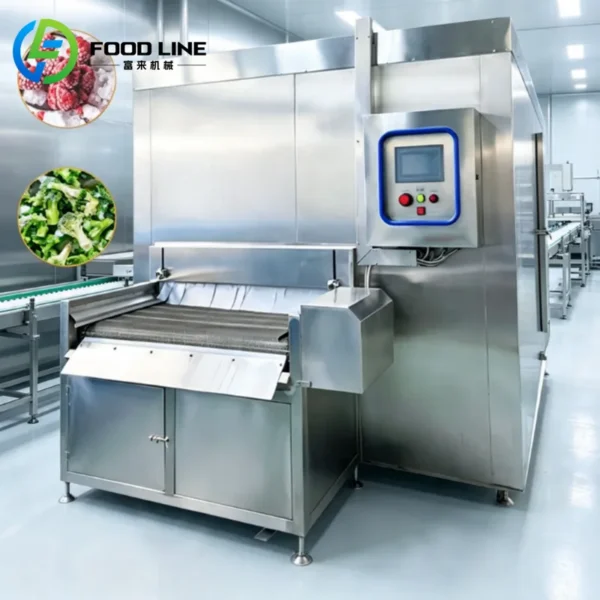

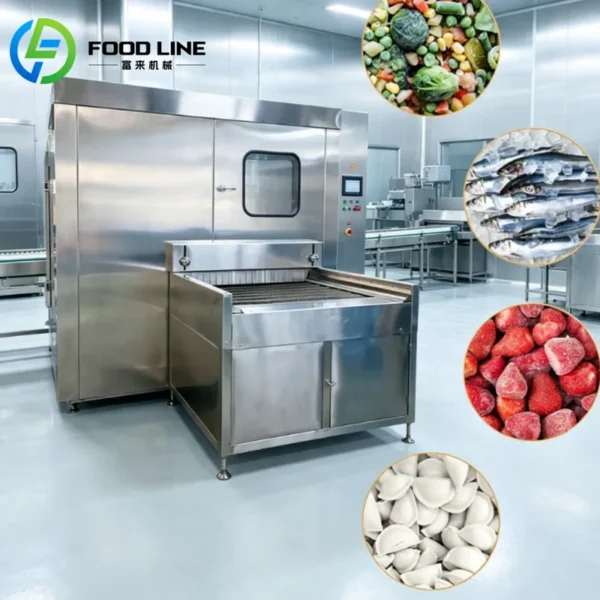

This continuous tunnel freezing machine adopts fluidized IQF (Individual Quick Freezing) technology to freeze fruits, vegetables,seafood, meat and prepared food separately without sticking together. The whole machine is made of food-grade 304 stainless steel,clean and easy to sanitize. The low-temperature refrigeration system features fast cooling speed and low energy consumption with uniform freezing effect, which maximally retains the original taste, color and nutrition of raw materials. It supports automatic continuous assembly line mass production for food factories. Customized size, freezing temperature and production capacity are available. Widely applied in processing lines of frozen fruits, vegetables, shrimp, chicken chunks and grains.

Specification

Model	Output	Installed Power	Refrigeration Consumption	Dimension L*W*H	Belt Width
FL100	100kg/h	2.25kw	15kw	7.4*1.5*2.2m	1000mm
FL150	150kg/h	2.95kw	21.5kw	8.0*1.8*2.3m	1300mm
FL200	200kg/h	4.5kw	30kw	10.2*1.8*2.3m	1300mm
FL300	300kg/h	6.5kw	43.5kw	11.2*2.3*2.3m	1800mm
FL500	500kg/h	10.3kw	75kw	13.5*3.0*2.5m	2500mm
FL1000	1000kg/h	19.8kw	142kw	22.9*3.0*2.5m	2500mm
FL1500	1500kg/h	28.6kw	225kw	26.4*3.5*2.5m	3000mm

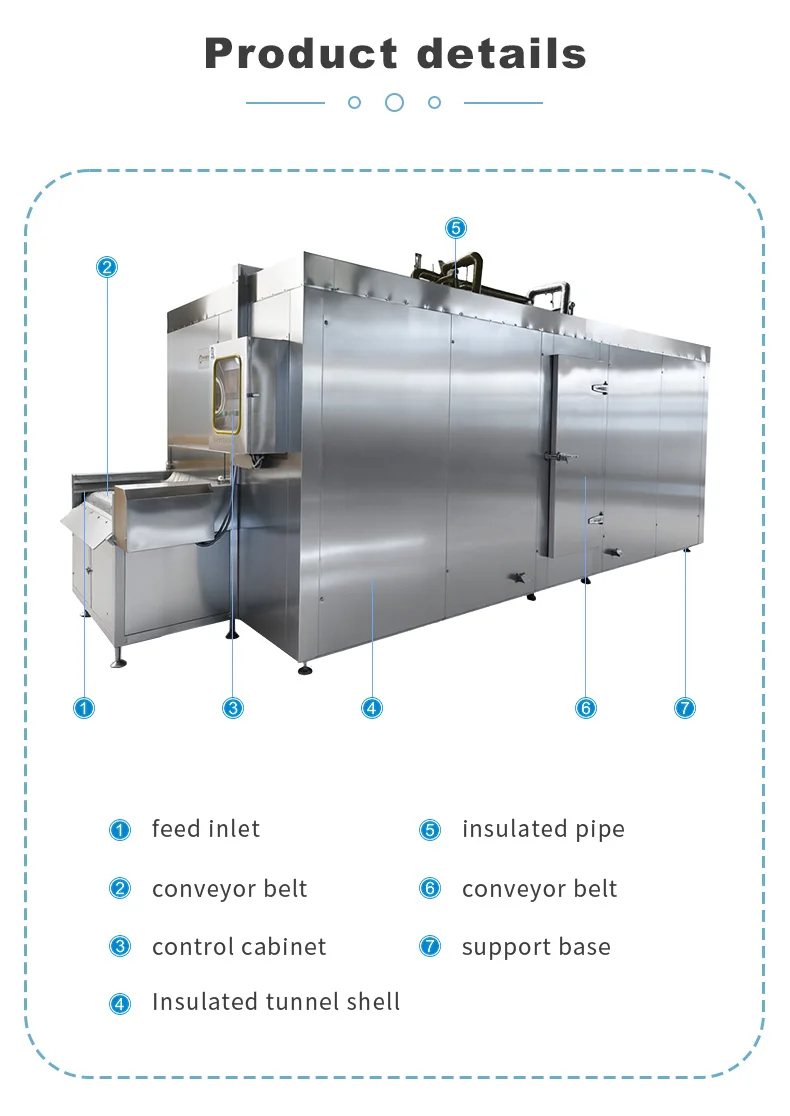

Product Detail

core advantages

1. Individual quick-frozen units do not clump together The design of high-speed cold air suspension ensures independent and rapid freezing of materials, resulting in loose and separated finished products that do not require manual disassembly, thereby enhancing the efficiency of subsequent packaging. 2. Food-grade complete machine material

All parts of the machine that come into contact with materials are made of 304 stainless steel, meeting food hygiene standards. The detachable structure ensures no cleaning dead zones, satisfying the hygiene audits required for export food factories. 3. High-efficiency and energy-saving refrigeration system Equipped with a high-efficiency evaporator and industrial refrigeration unit, the temperature in the cold storage can reach -40℃. It has a fast cooling speed and short freezing time, saving over 30% of energy compared to traditional cold storage.

4. Flexible customization service The tunnel length, belt width, and height for material entry and exit can be customized according to the factory space and daily processing capacity

Company Profile

Packing & Delivery

FAQ

1.Will shrimp or strawberries stick together after freezing with this IQF tunnel freezer?
No. Fluidized suspension design freezes each item separately to keep products loose.

Q2Can the machine run 24 hours non-stop for continuous production?

Yes. Equipped with variable frequency mesh belt and stable refrigeration unit for all-day mass processing.

Q3 Is the IQF tunnel freezer easy to clean and maintain?
A3 Detachable overall structure with no sanitary dead corners, easy daily cleaning.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–2 piece: US $28990 / piece
  • 3–4 piece: US $25990 / piece
  • 5+ piece: US $18990 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Foodmax Machinery Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Foodmax Machinery Co., Ltd. range on HVACR Nexus.
