Blast Freezer, 2T, IQF

Key specification for this blast freezer: 220V/380V, cooling capacity 200-2000KG/H(Customized). Everything below is reproduced from the factory data sheet. Made by Shandong Inchoi Machinery Co., Ltd. (7 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Blast Freezer

• Power(W): 15KW
• Voltage: 220V/380V
• Cooling Capacity: 200-2000KG/H(Customized)
• Capacity: 200-2000kg/h
• Material: Stainless Steel 304
• Warranty: 2 Years

Technical Specifications

Product Details

Product Description

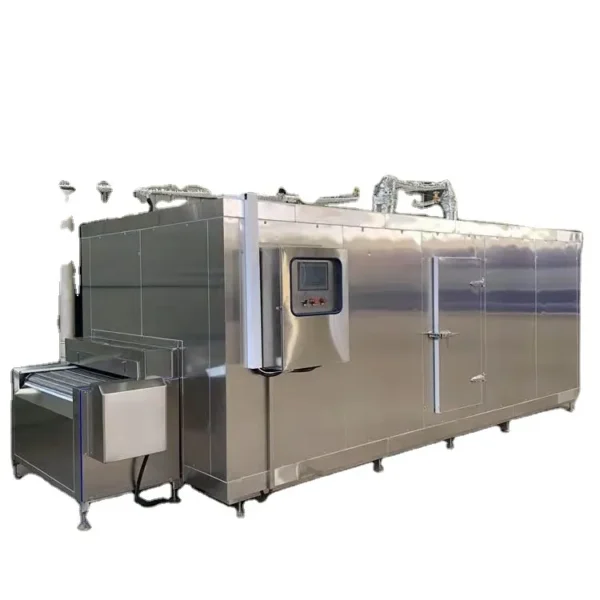

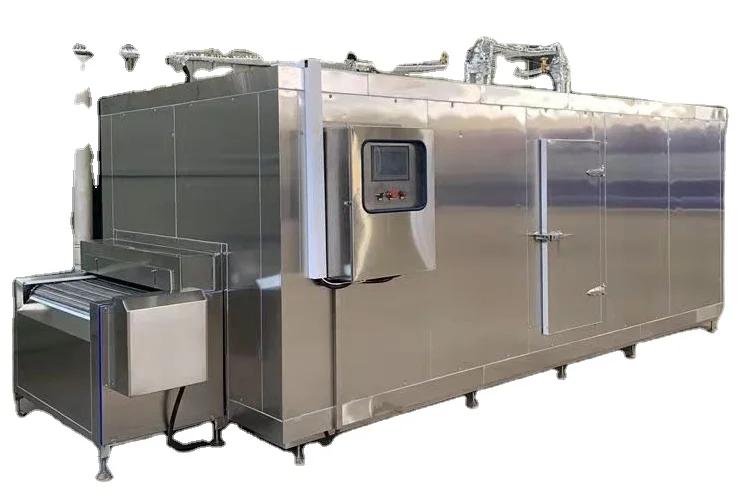

SSD-2000 single quick-freezing machine is composed of feeding port, insulation storage body, discharging port, transmission system, circulating air system, evaporator, electric control system and so on.

Equipment Introduction

Basic framework

Considering the layout of the customer workshop, the design of 24500*4900*2500mm and metal frame base of the quick-freezing device, so that the gravity focus on the framework of several bearing points, the library body hanging, easy to wash the ground cleaning.

Insulation storage body and insulation door

120mm thick double-sided stainless steel rigid polyurethane sandwich board assembled into a fully closed hexahedron structure,
installed on the overall frame, thermal insulation performance and health environment are excellent.The concave and convex surface between the library board and the library board, the hook lock surface connection, firm and reliable.

* The inlet is equipped with a windproof cover, which effectively isolates the frozen area from the processing workshop and puts an end to cold running, saving energy and providing a suitable working environment for the processing personnel.
* The opening position is set reasonably, which is convenient for cleaning and maintenance of the equipment.The position of the door can be adjusted according to the actual position of the customer.
* Adopt engineering plastic door frame with high strength and small deformation of cold and heat, and the whole inside and outside door panel is formed by high pressure foaming, frequent switch is not deformed, long time use is not aging.
* The carefully designed sealing strip ensures the effective blocking of air flow under the circumstance of great difference in temperature between cold and hot.

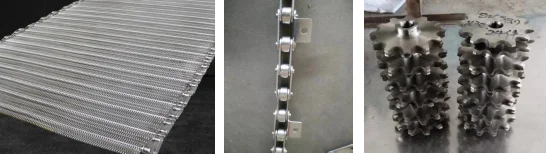

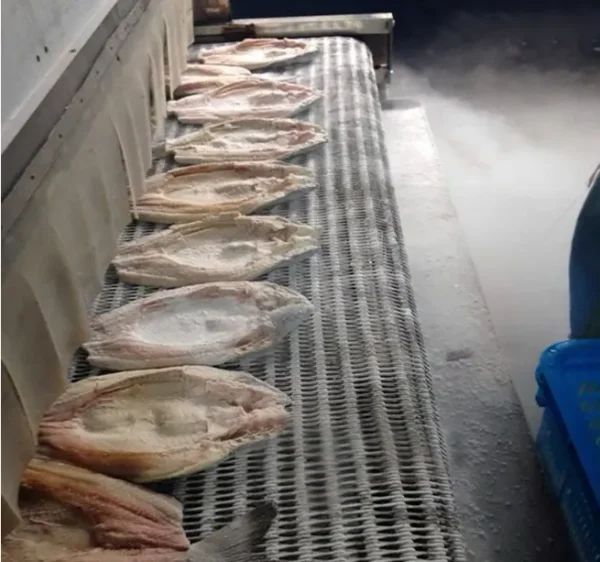

Mesh belt and drive system

* The drive system of SSD-2000 quick-freezing machine is composed of a complete drive system.
* Stainless steel mesh belt is provided by professional mesh belt manufacturers. The surface is smooth and beautiful, and meets the requirements of food hygiene. There are many supporting rails under the mesh belt, and frozen products can be frozen irectly on the mesh belt.Stainless steel chains on both sides ensure the stability of the drive system.Reasonable design of tensioning device, can effectively adjust the degree of tightness of the net belt, to prevent the slack and deviation of the net belt.
* The reducer is equipped with domestic high-quality brand products, stepless frequency conversion speed regulation, flexible adjustment, to meet the requirements of different products.The protection grade of gear reducer is IP55.Reducer can be directl connected to the transmission, can also be used in the form of sprocket, chain connection.

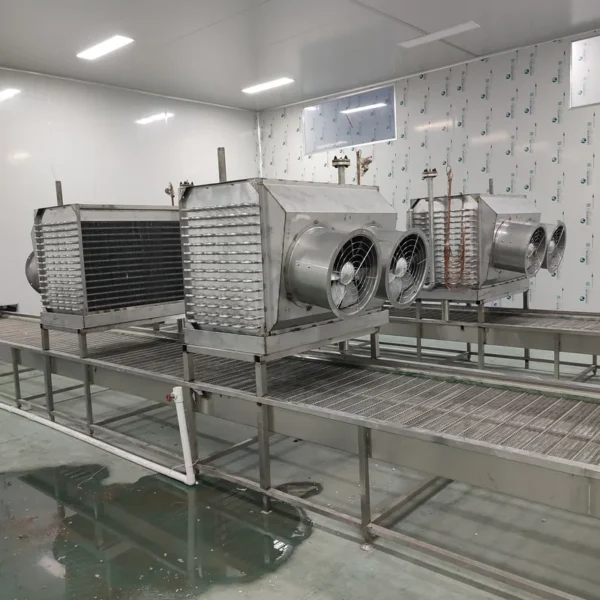

Air supply system and fan

* Air supply system has high efficiency on the flow of wind effect, a large number of cold air uniform effect on the material,completely wrapped by the cold air frozen in the shortest time, can obtain high quality freezing effect. The air guide device effectively reduces the loss of wind dynamic energy and potential energy, maximizes its effect on the material, gives full play to its freezing function, and makes the material obtain the best freezing quality.

* With low noise, high efficiency axial flow fan, stable and reliable operation, can ensure long-term stable operation under low temperature.The evaporator is placed separately from the fan to provide operational space for the maintenance of the fan.
* The fan blade is made of die-cast aluminum, the air duct is made of 304 stainless steel, and the motor protection grade reaches IP55.

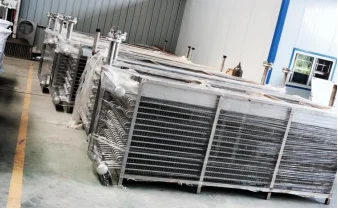

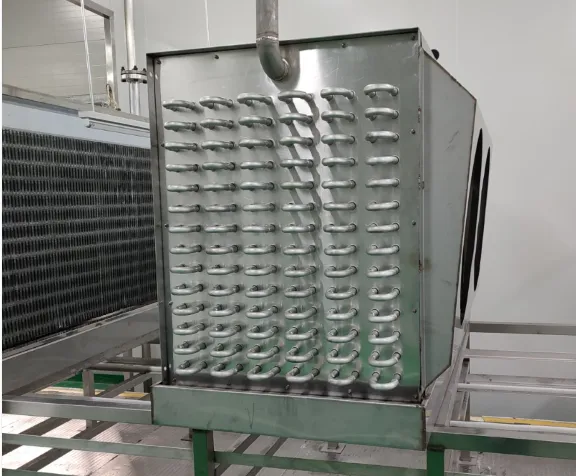

Evaporator

* Aluminum-tube and aluminum-sheet evaporator is made by a new process, which makes the flow in the evaporator smooth and the flow resistance small, and lays a foundation for the low energy consumption operation of the refrigeration system.
* Three different chip spacing design, can be used in low temperature for a long time with less frost, effectively prolong the production time.

* Unique fin form and whole structure, as well as the use of special equipment expansion of intact evaporator, close contact,high heat exchange efficiency.
* Through the in-depth study of airflow dynamics, the air flow is organized and planned, so that the air flow can safely and
evenly pass through the evaporator, the area of the evaporator is fully utilized, and the cold amount displaced is sufficient,
which lays a foundation for rapid and high-quality freezing.

Control system

The control box body is made of stainless steel, and the main components are famous brands.The conveyor belt drive motor is powered by frequency conversion governor, which can adjust the speed of the transmission system at any time.The machine is equipped with a set of waterproof temperature sensor, which can accurately measure the temperature in the single-frozen hangar. Users can add temperature detection points according to their needs.

Specification

item	value
Applicable Industries	Food & Beverage Factory, Farms
Showroom Location	Italy, Viet Nam, Philippines, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Romania, South Africa, Malaysia, Australia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	2
Core Components	PLC, Engine, Motor, Pump
Condition	New
Type	Tunnel Freezer
Place of Origin	China
	Shandong
Brand Name	INCHOI
Voltage	220V/380V
Power	15KW
Dimension(L*W*H)	9600*6800*2500mm
Weight	500
Warranty	2 years
Cooling Capacity	200-2000KG/H(Customized)
Key Selling Points	Accurate temperature control
Product name	IQF Tunnel Quick Freezer
Application	Food Quick Frozen Machine
Function	Individual Quick Freezing
Freezer Type	Air Cooling
Material	Stainless Steel 304
Usage	Freezing Product
Capacity	200-2000kg/h
Keywords	Tunnel Freezer

Packing & Delivery

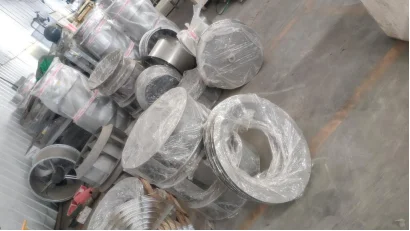

Machine packaging with plastic film and fixed by steel wire in the container.

Company Profile

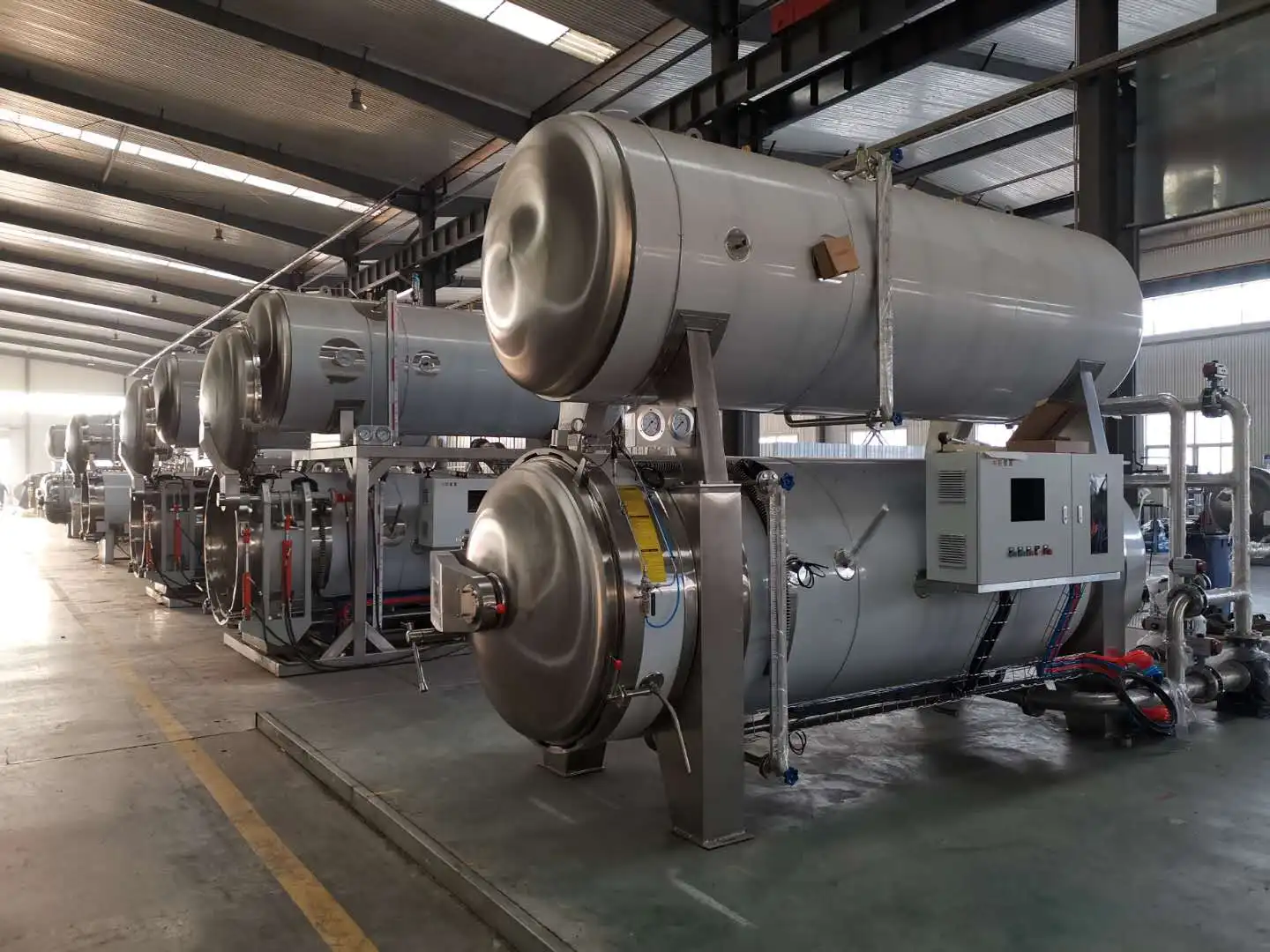

In the field of food machinery and sterilization with 20 years of design and development experience, the main production and sales of fruit and vegetable pretreatment equipment, sterilization equipment, after the packaging equipment, to provide customers with the whole line of turnkey service.Welcome to consult.

Hot sale products

FAQ

1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(20.00%),Africa(10.00%),Central America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
food machine,sterilize retort autoclave,Fruit and vegetable wash&dry processing machine,vacuum packing machine,vacuum frying machine

4. why should you buy from us not from other suppliers?
In the field of food machinery and sterilization with 20 years of designing and developing experience, to provide customers with the whole line of turnkey service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–1 piece: US $30000 / piece
  • 2+ piece: US $29000 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
