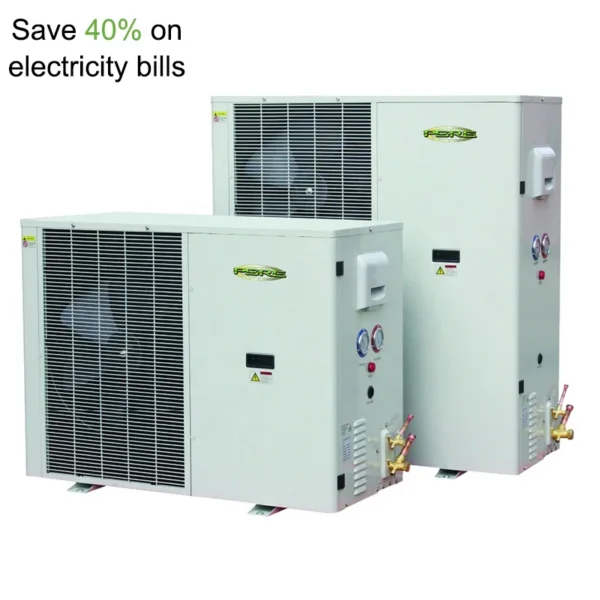

Blast Freezer, Inverter, CDU

This blast freezer is published with the manufacturer’s full specification — 220V/1ph,380V/3ph, cooling capacity 2-10HP. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Blast Freezer

• Model Number: NF
• AC Power: 380V/3Ph/50Hz,220V/1Ph/50Hz
• Voltage: 220V/1ph,380V/3ph
• Cooling Capacity: 2-10HP
• Case Material: Galvanized steel
• Refrigerant: R404a,R448A,R449A,R452A

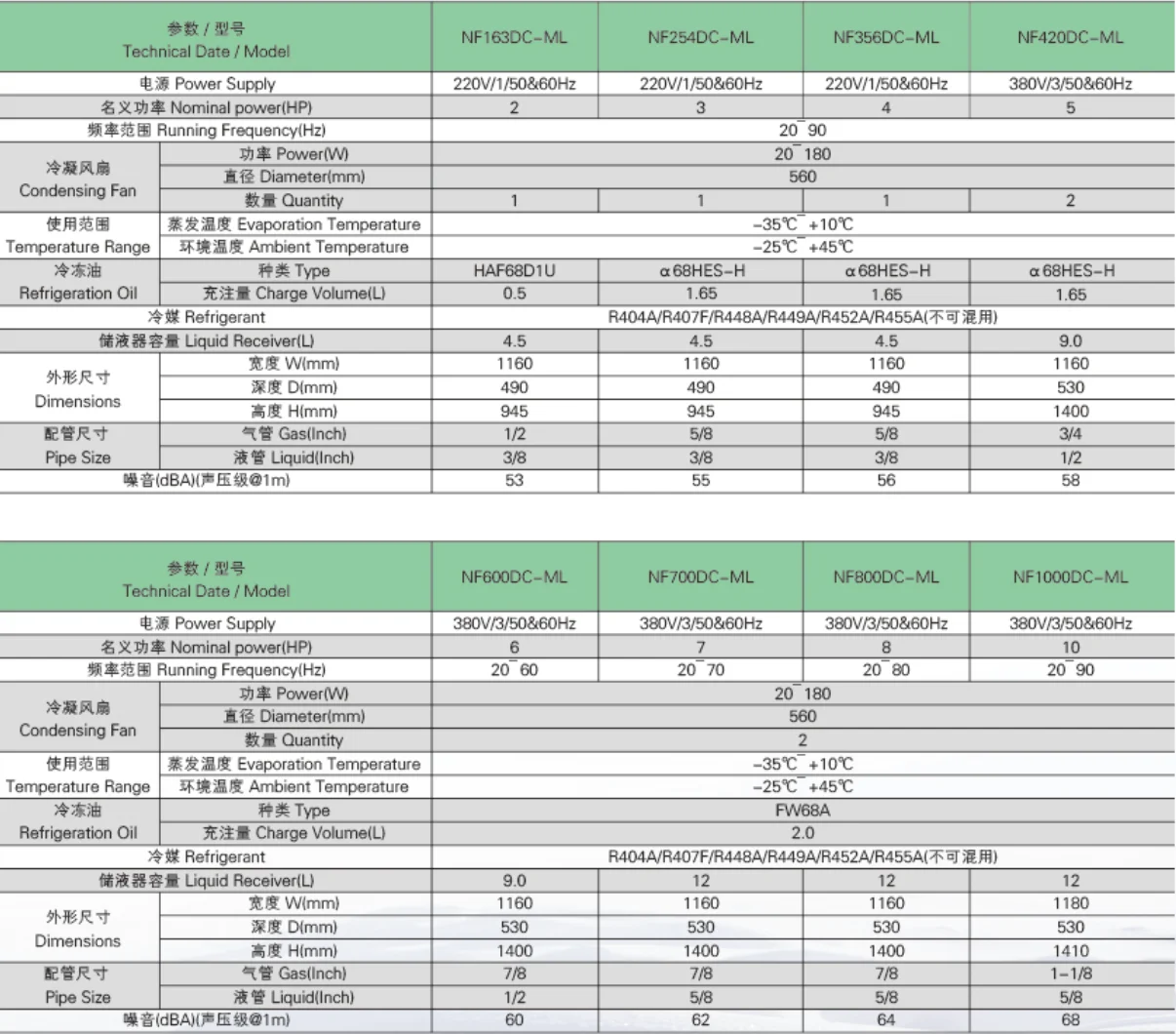

Technical Specifications

Product Details

Products Description

For more experimental data, please inquiry us！

The use of inverter compressors combined together with refrigeration systems is nowadays subject of several studies conducted both
from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter compressor
starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the
compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature
fluctuation to avoid compressor frequently start to effect compressor life.

Main Feature

Reduce cooling speed faster,small temperature fluctuation range;Efficient energy saving, reduce the system energy;
Increase in compressors reliability thanks to the significant decrease of compressors startups;
Low noise thanks to the extremely high system flexibility;
Extremely low vibration phenomena.

NF1000DC-ML R404A
频率	20Hz					55Hz					90Hz
排气量	5.41m3/h					14.89m3/h					24.36m3/h
蒸发温度	Qo(kW)	Pe(kW)	COP	Qo(KW)	Pe(kW)	COP	Qo(kW	Pe(KW)	COP
-30℃	2.04	1.66	1.23	4.62	3.73	1.24	7.29	5.72	1.27
-25℃	2.31	1.7	1.36	5.78	3.87	1.49	8.94	6.41	1.39
-20℃	2.63	1.74	1.51	7.06	4.03	1.75	10.73	7.13	1.5
-15℃	3	1.78	1.69	8.41	4.21	1.99	12.65	7.85	1.61
-10℃	3.53	1.81	1.95	9.93	4.4	2.26	14.51	8.5	1.71
-5℃	4.32	1.83	2.36	11.67	4.61	2.53	16.44	9.04	1.82
o℃	5.3	1.84	2.88	13.5	4.83	2.8	18.56	9.52	1.95
5℃	6.47	1.86	3.48	15.53	5.07	3.06	20.79	9.99	2.08
10℃	7.89	1.87	4.22	17.7	5.32	3.33	23.29	10.39	2.24

Certifications

The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and nationalindustrial product production license.

Company Introduction

Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales ofrefrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, Highquality condensing unit and so on.

The DC inverter condensing unit is very SuperEnergySaving(40%-60%), Super Silent( as low as45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.

The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leakdetection equipment, type labs, and production process management software systems to ensure the quality of all products of thecompany and also ensure the company’s new product development and production supply ability.

Exhibition

The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-endrefrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom andAustralia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trust worthiness in international trade and enjoyed a good reputation among its customers. In 2018, webegan to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.

FAQ

Title goes here.

A1: We are a factory.

Q2: Is a sample available?

A2: Yes, but the sample will be at your charge.

Q3: What is the main market for your products?

A3: Our main market is in North America, Europe and Australian.

Q4: What is your warranty?

A4: We can assure you one year against manufacturing defect.

Q5:Can you provide OEM/ODM service and make OEM logo for us?

A5:Yes,we can provide OEM service and make OEM logo for you.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $1400 / set
  • 5+ set: US $1200 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 220V/1ph,380V/3ph. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
