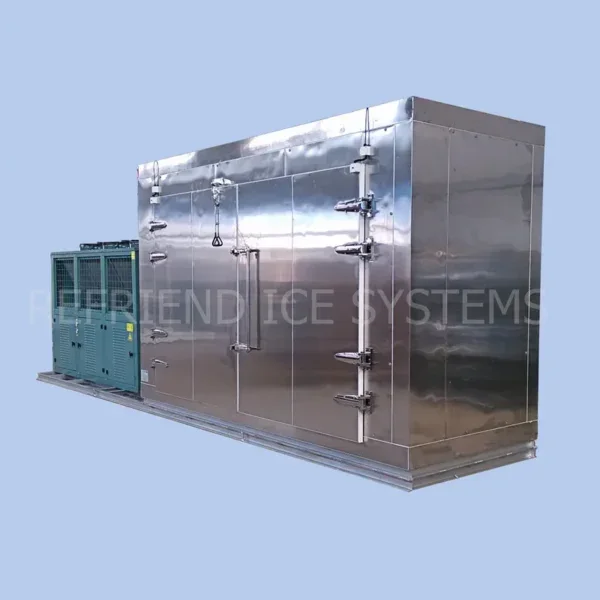

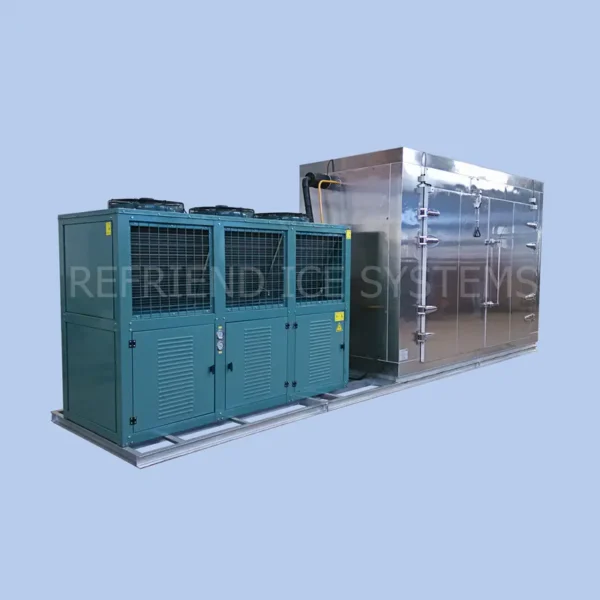

Blast freezer — 380V 3Ph 50Hz, capacity 750kg/batch. The complete factory specification follows. Made by Nantong Refriend Industry & Trade (Ice Systems) Co., Ltd. (22 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Blast Freezer
- Model Number: PFA-750
- Power(W): 30kw
- Installed Power: 30KW
- Voltage: 380V 3Ph 50Hz
- Capacity: 750kg/batch
- Air Flow: 21000m3/h x 2pcs
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Voltage | 380V 3Ph 50Hz |
| Warranty | one year |
| Power(W) | 30kw |
| Place Of Origin | Jiangsu, China |
| Model Number | PFA-750 |
| Brand Name | REFRIEND |
| Dimension(L*W*H) | 6700 x 1500 x 2500 |
| Capacity | 750kg/batch |
| Inside Temperature | -35oC to -40oC |
| Freezing Time | 8 hours |
| Compressor | Bitzer 25HP |
| Installed Power | 30KW |
| Refrigerant | R404a |
| Dimensions | 6700 x 1500 x 2500 |
| Net Weight | 2500kg |
| Fan | 2.2kw x 2pcs |
| Air Flow | 21000m3/h x 2pcs |
| Packaging Details | FULL CONTAINER |
| Port Of Dispatch | SHANGHAI |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30 sets per Month |
Product Details
Plate Blast Freezer has several layers(plate) on which fish or shrimp trays are put
Refrigerant will evaporate in the tubes across the plates, freeze the products directly.
2 fans blow and recycle the air in the freezer, taking heat away.
| Capacity | 750kg/batch |
| Freezing Time | 8 hours |
| Inside Temperature | -35oC to -40oC |
| Compressor | Bitzer 25HP |
| Installed Power | 30KW |
| Refrigerant | R404a |
| Dimensions | 6700 x 1500 x 2500 |
| Net Weight | 2700kg |
| Fan | 2.2kw x 2pcs |
| Air flow | 21000m3/h x 2pcs |
1. Engineer avaiable provides sevice overseas
2. Techniqual Instruction Service
3. Spare parts provide
4. Wooden Box for machine
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a one year warranty. Spare parts and technical support remain available after the warranty period.
Can the blast freezer be supplied for my local voltage?
The standard configuration is 380V 3Ph 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
