Key specification for this ice machines: 380V, refrigerant R22. Everything below is reproduced from the factory data sheet. Made by Nantong Refriend Industry & Trade (Ice Systems) Co., Ltd. (22 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ice Machines
- Model Number: LT
- Voltage: 380V
- Refrigerant: R22
- Warranty: ONE YEAR
- Place Of Origin: Jiangsu, China
- Single Gross Weight: 0.0 kg
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Voltage | 380V |
| Warranty | ONE YEAR |
| Place Of Origin | Jiangsu, China |
| Brand Name | REFRIEND |
| Model Number | LT |
| Dimension(L*W*H) | 2500 X 2000 X 1500 |
| Compressor | BITZER 25HP |
| Condenser | Air cooled |
| Refrigerant | R22 |
| Solenoid Valve | Danfoss |
| Pressure Control | Danfoss/Signomia |
| Expansion Valve | Danfoss |
| Electric Parts | Schneider |
| Meter Pump | Promient |
| Dry Filter | Emerson |
| Suction Filter | Emerson |
| Packaging Details | WOODEN BOX OR FULL CONTAINER |
| Port Of Dispatch | Nantong/Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30 sets per Month |
Product Details

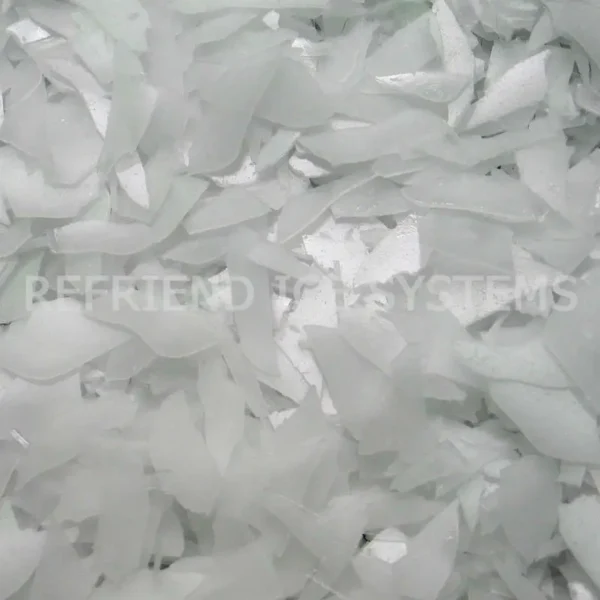

Flake Ice:
1. Flake ice also called scale ice, it’s irrigular shaped, thickness 1.5 to 2.3mm, about 40 x 30mm dimensions.
2. it’s thin but has no acute edge, it wouldn’t hurt the surface of product
3. Large contact area, fast cooling effect
4. crash easily, can mix with product to direct cool
5. Application: Fishing preservation, Chemical Plant, Mine or factory cooling, concrete mixing cooling.

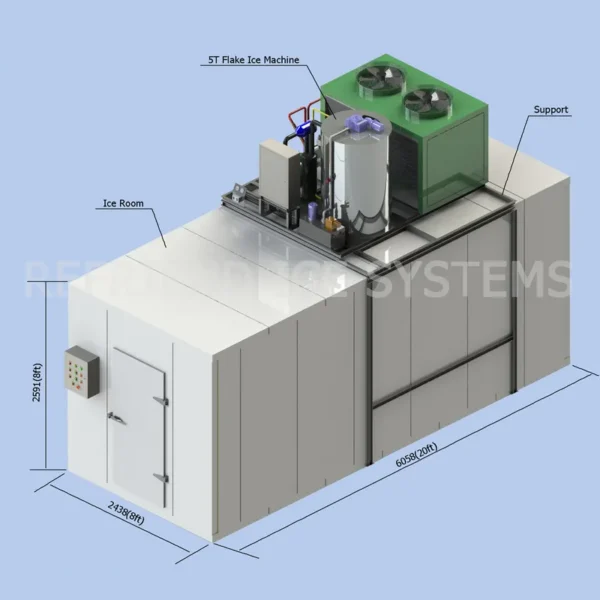

The System includes:
1. 5T Flake ice Machine
2. Ice Room(20ft)
3. SS304 Support Frame.
On the picture, there is a 3T flake ice machine supported on a ice room. flake ice generated will drop in to ice room directly.
There is a remote control box, not have to operate machine on the top of ice room.
| Model | LT-5000A |
| Capacity | 5000kg/day |
| Ambient Temp. | 32oC |
| Water Temp. | 20oC |
| Compressor | Btizer 25HP |
| Refrigerant | R22 |
| Running Power | 380V 50Hz 3Ph, 25KW |
| Ice Generator | SS304 |
| Dimensions | 2500 x 2000 x 1500 |
| Net Weight | 1200kg |
| Ice Room | |
| Dimensions | 6058 x 2438 x 2591mm |
| Capacity | 31m3 |
| Panels Area | 69m2 |
| Floor Area | 13m2 |
| Panel Thickness | 100mm |

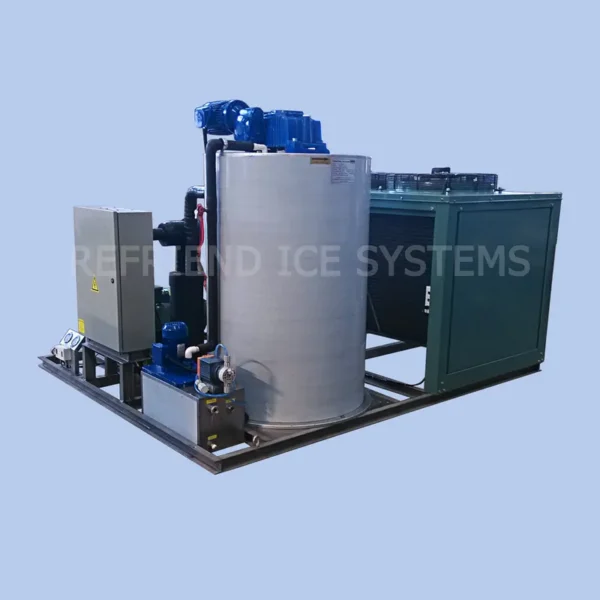

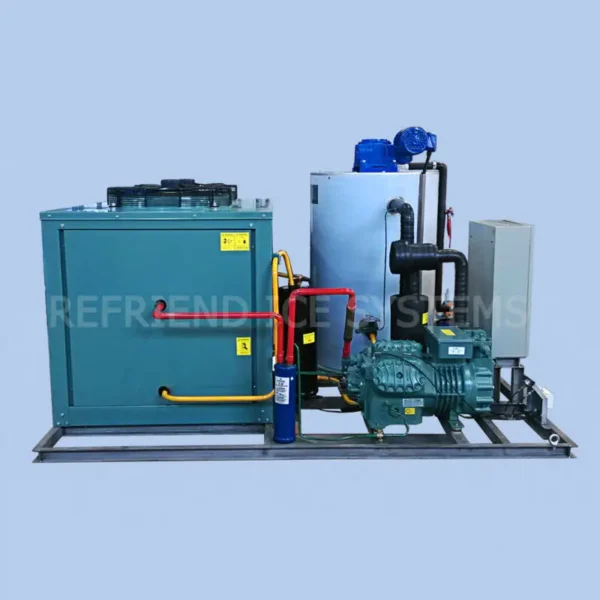

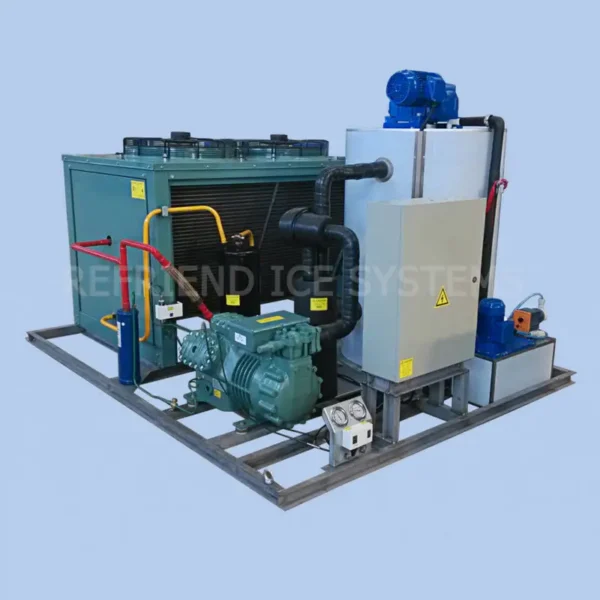

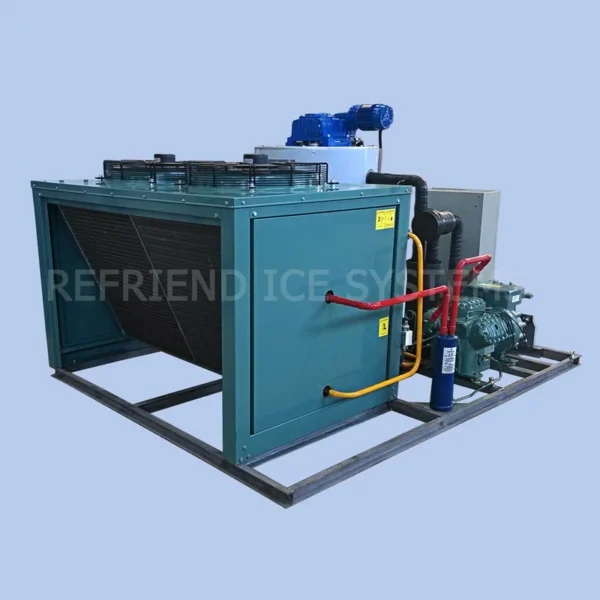

Flake ice Machine:
1. Engineer avaiable provides sevice overseas
2. Techniqual Instruction Service
3. Spare parts provide
4. Wooden Box for machine.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a ONE YEAR warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nantong Refriend Industry & Trade (Ice Systems) Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nantong Refriend Industry & Trade (Ice Systems) Co., Ltd. range on HVACR Nexus.
