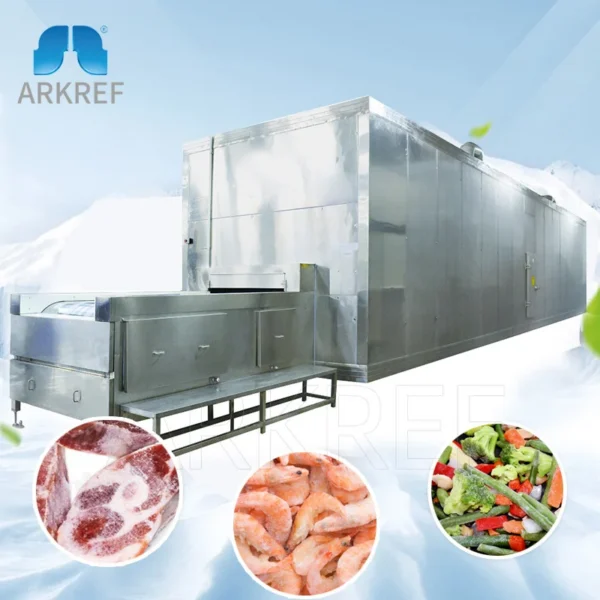

Blast Freezer, ARKREF, 220V, Tunnel Freezer

This blast freezer is published with the manufacturer’s full specification — 220V/380V, type Tunnel Freezer. Made by Shandong Shenzhou Refrigeration Equipment Co., Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Blast Freezer

• Power(W): Customized
• Voltage: 220V/380V
• Freezing Capacity: 150~2000kg
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Application: Frozen Food

Technical Specifications

Product Details

Technical Data

Model	Freezing Capacity(kg)	Freezing Time(min)	Installed Power(kw)	Cooling Capacity(kw)	Size(m)	Transmission bandwidth(m)
SZ-1TF150	150	10-100 Adjustable	3.75	34	76*25*25	1.8
SZ-1TF300	300	10-100 Adjustable	9.55	65	115*25*25	1.8
SZ-1TF500	500	10-100 Adjustable	19.8	99	166*25*25	1.8
SZ-2TF500	500	10-100 Adjustable	20.2	99	92*39*29	2.5
SZ-1TF1000	1000	10-100 Adjustable	28.6	175	180*42*28	3
SZ-1TF1500	1500	10-100 Adjustable	42.6	256	240*42*28	3
SZ-1TF2000	2000	10-100 Adjustable	55.8	326	296*42*28	3

Customization Process

Need to provide the following information:

1.Types of frozen products

2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing

Product Details

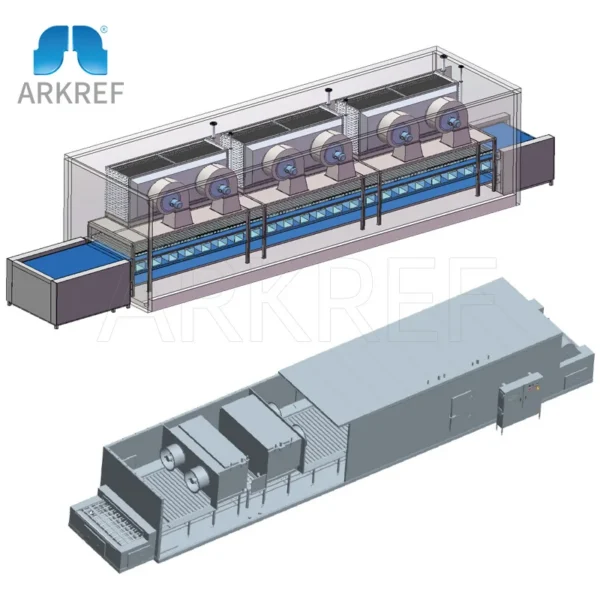

Perfect air distribution system

Reasonable air distribution, low-noise and high-efficiency fans ensure the rapid freezing of frozen materials.

Evaporator

Large size fins, Imported special equipment for expanded connection, tight contact，small heat resistance，high heat exchange efficiency.

Axial Fan

Reasonable air current organization and the high-efficiency axial flow fan with low noise ensure freezing of materials.

Good insulation performance

The library board adopts double-sided stainless steel structure, which has good heat preservation.

Stable and reliable transmission system

A reduction gear is installed and can realize stepless frequency conversion and speed control;with the reduction gear, the speed of conveyor belts can be flexibly adjusted to meet the requirement of different products.

Related Products

Stronger freezing capacity

Stronger Freezing Capacity

Specifically designed for the application of quick-freezers, two-stage compression + frequency conversion speed increase +electronic expansion valve control.the lower the temperature required by the quick-freezer, the greater the advantage of its freezing capacity.

Control System

It adopts advanced dedicated quick freezing visual controller and monitor, which can memorize the relevant parameters of the machine's operation, and the button can switch the quick-freezing category, which is convenient for querying faults and providing
references for solving problems.

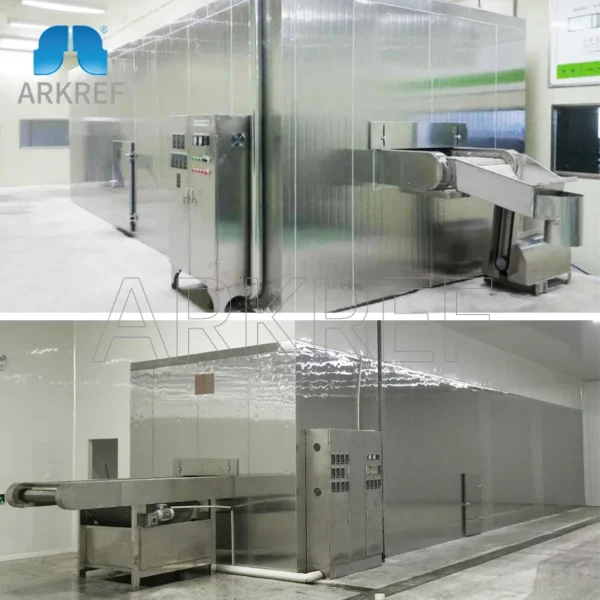

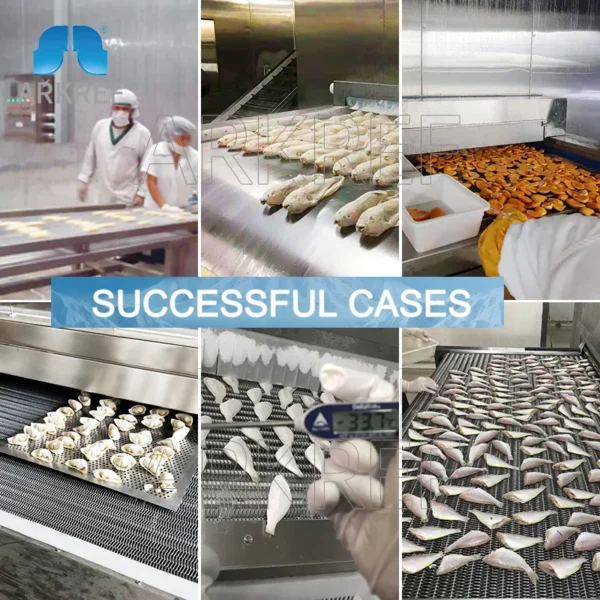

Sucessful Cases

Company Profile

Our company ensures the continuous improvement of product quality by using advanced 'SAP' management system,gradually transforming the methods of pipeline production, adopting advanced production methods and equipment, and applying strict quality assurance system and control system.

WE GOT 5 STARS RATING!

We are able to provide satisfied service of refrigeration equipment for customers all over the world, with more than 30 years experience in Jinan city, China.

Certifications

Shandong Shenzhou Refrigeration Equipment Co.Ltd has obtained ISO9001:2008 quality system certification and CE and other certificates.

FAQ

Q1: Are you a factory or a trading company? A1: We are one of the largest refrigeration equipment manufacturers in China. Q2: Where is your factory located? A2: Our factory is located in Shengjing High-tech Park of Zhangqiu, Jinan city, China. Q3: Do you guarantee safe and secure delivery of products? A3: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge. Q4: Can the product be customized according to specifications? A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made. Q5: What are the payment terms? A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $50000 / set
  • 2–10 set: US $37500 / set
  • 11+ set: US $17800 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Shenzhou Refrigeration Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Shenzhou Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
