Key specification for this spiral freezer: 220V/380V, cooling capacity 1000kg. Everything below is reproduced from the factory data sheet. Made by Shandong Shenzhou Refrigeration Equipment Co., Ltd. (15 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Spiral Freezer
- Power(W): Customized
- Voltage: 220V/380V
- Cooling Capacity: 1000kg
- Freezing Capacity: 150~2000kg
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Voltage | 220V/380V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | compressor |
| Key Selling Points | Automatic |
| Power(W) | Customized |
| Place Of Origin | China |
| Cooling Capacity | 1000kg |
| Product Name | IQF Spiral Freezer |
| Freezing Capacity | 150~2000kg |
| Freezing Time(Min) | 10-100 Adjustable |
| Marketing Type | Hot Product |
| Applicable Industries | Manufacturing Plant, Food Shop |
| Showroom Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 1000 |
| Port Of Dispatch | Qingdao |
| Selling Units | Single item |
| Supply Ability | 50 sets per Month Industrial screw compressor water cooled chiller plant safety pr |
Product Details
Technical Data
Model | Freezing Capacity(kg) | Freezing Time(min) | Installed Power(kw) | Cooling Capacity(kw) | Enclosure Size(m) | Dimensions(m) |
SZ-1SF200 | 200 | 10-100 Adjustable | 11.05 | 64 | 44*28*24 | 49*28*24 |
SZ-1SF300 | 300 | 10-100 Adjustable | 11.05 | 96 | 44*28*24 | 49*28*24 |
SZ-1SF400 | 400 | 10-100 Adjustable | 12.5 | 128 | 55*28*28 | 60*28*26 |
SZ-1SF500 | 500 | 10-100 Adjustable | 12.5 | 160 | 55*28*28 | 60*28*28 |
SZ-2SF600 | 600 | 10-100 Adjustable | 21.9 | 192 | 85*36*29 | 110*36*29 |
SZ-2SF800 | 800 | 10-100 Adjustable | 21.9 | 216 | 85*36*30 | 110*36*30 |
SZ-2SF1000 | 1000 | 10-100 Adjustable | 27.9 | 240 | 136*55*30 | 162*55*30 |
SZ-2SF1500 | 1500 | 10-100 Adjustable | 27.9 | 324 | 148*55*38 | 173*55*38 |
Customization Process
Need to provide the following information:
1.Types of frozen products
2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing
Product Details
Control system
Man-machine interface, touch screen operation
304 stainless steel
Food grade 304 stainless steel, sturdy and durable, no rust
Mesh belts
The surface of mesh belts is flat and attractive, and mesh belts run stably and reliably;flanges are set up on the chain pieces on the two sides of mesh belts to prevent materials from slipping down.
Stable and reliable transmission system
Imported well-known brand reducer
High-precision rotating cage+ ultra-high molecular polyethylene wear-resistant strip
Universal spherical roller bearings
Perfect wind field design
Symmetrical layout of the wind field, reasonable and smooth air duct. The air volume, air pressure, freezing speed and uniformity with scientific proportioning, low dry consumption. The low-speed return air passage reduces the frosting speed of the evaporator.
Related Products
Stronger freezing capacity
Stronger Freezing Capacity
It adopts advanced dedicated quick freezing visual controller and monitor, which can memorize the relevant parameters of the machine's operation, and the button can switch the quick-freezing category, which is convenient for querying faults and providing
references for solving problems.
references for solving problems.

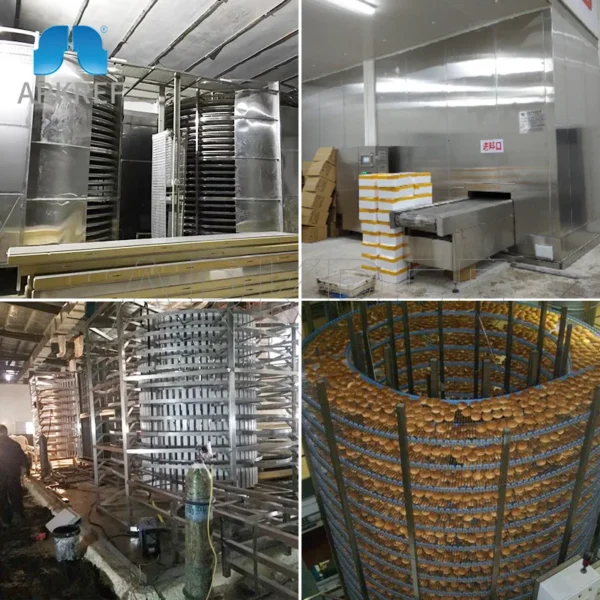

Sucessful Cases
Company Profile
Our company ensures the continuous improvement of product quality by using advanced 'SAP' management system,gradually transforming the methods of pipeline production, adopting advanced production methods and equipment, and applying strict quality assurance system and control system.
WE GOT 5 STARS RATING!
We are able to provide satisfied service of refrigeration equipment for customers all over the world, with more than 30 years experience in Jinan city, China.
Certifications
Shandong Shenzhou Refrigeration Equipment Co.Ltd has obtained ISO9001:2008 quality system certification and CE and other certificates.
FAQ
Q1: Are you a factory or a trading company? A1: We are one of the largest refrigeration equipment manufacturers in China. Q2: Where is your factory located? A2: Our factory is located in Shengjing High-tech Park of Zhangqiu, Jinan city, China. Q3: Do you guarantee safe and secure delivery of products? A3: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge. Q4: Can the product be customized according to specifications? A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made. Q5: What are the payment terms? A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $50000 / set
- 2–10 set: US $40000 / set
- 11+ set: US $25000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the spiral freezer be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Shenzhou Refrigeration Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Shenzhou Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
