Key specification for this monoblock unit: voltage single/three phase, refrigerant R404a. Everything below is reproduced from the factory data sheet. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Monoblock Unit
- Voltage: single/three phase
- Refrigerant: R404a
- Warranty: 3 Years
- Place Of Origin: Jiangsu, China
- Application: medium/low temperature
- Weight (Kg): 100
Technical Specifications
| Machinery Test Report | Provided |
|---|---|
| Warranty | 3 Years |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 100 |
| Place Of Origin | Jiangsu, China |
| Brand Name | PSRE |
| Product Name | Freezer monoblock unit chiller manufacturer |
| Refrigerant | R404a |
| Application | medium/low temperature |
| Model | LY075-LY300 |
| HP Range | 0.75-3HP |
| Compressor | Tecumseh |
| Brand | PSRE |
| Voltage | single/three phase |
| Color | white/grey |
| Selling Units | Single item |
Product Details

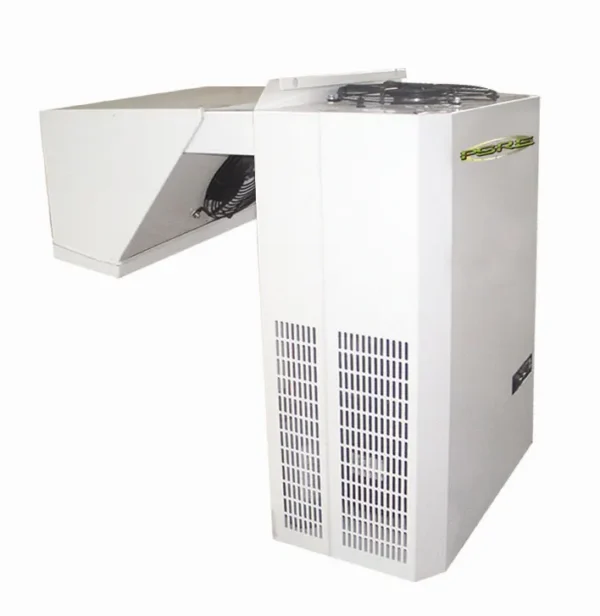

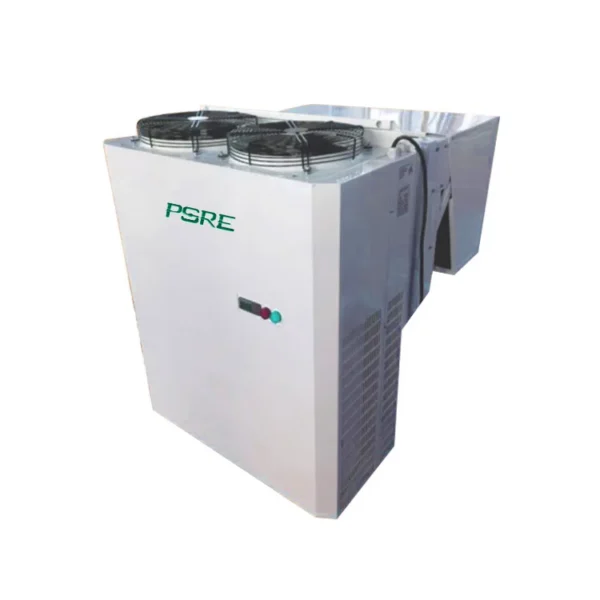

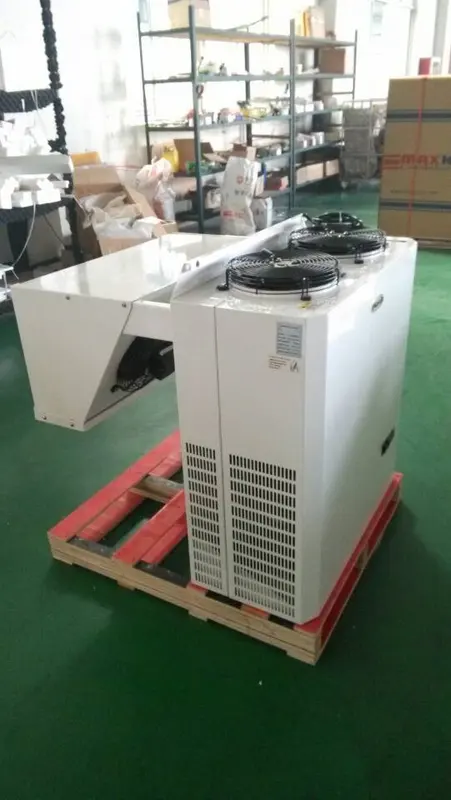

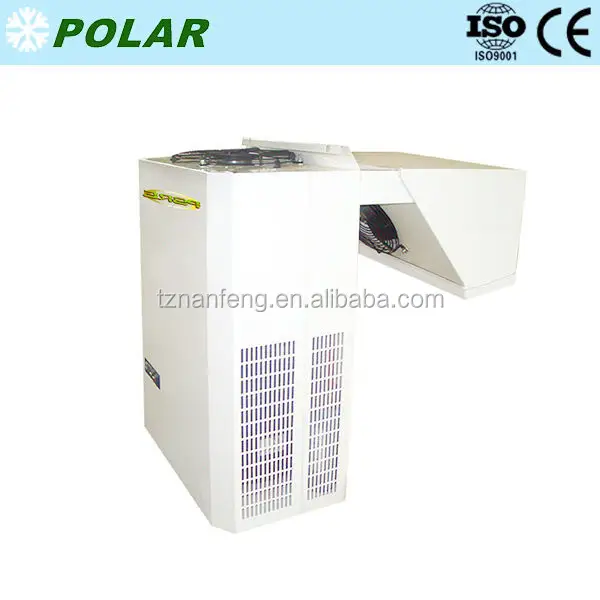

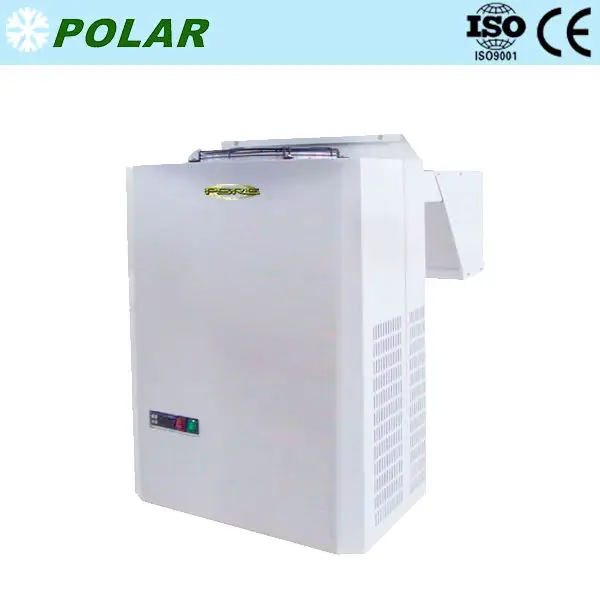

Freezer monoblock unit chiller manufacturer
1. small monoblock refrigeration condensing units
2. Range:0.75HP~3HP,
3.Medium/Low temperature refrigeration equipment.
4.Hermetic design and anti-corrosion outer shell
5.Completely welded to ensure less leakage
6.Used for cold rooms
7.Good quality and competitive price
Main components
Tecumseh compressor
Dixell controller
ABB electricals
Brand spare parts
Te=Evaporating temperature, Tc=Outside temperature, P=Refrigeration capacity(Watt)
V100=Suggested room volume in m3/h with insulation thickness 100mm
| Independent Monobloc Refrigeration Unit R404A Medium/High back Pressure | |||||||||||
| Model | LY075DGM/H | LY100DGM/H | LY150DGM/H | LY200DGM/H | LY300DGM/H | ||||||
| LY300SGM/H | |||||||||||
| Nom.HP | 0.75 | 1 | 1.5 | 2 | 3 | ||||||
| Power Supply | 220v/1ph/50hz | 220v/1ph/50hz | 220v/1ph/50hz | 220v/1ph/50hz | 220v/1ph/50hz | ||||||
| 380v/3ph/50hz | |||||||||||
| Defrost | Hot Gas | Hot Gas | Hot Gas | Hot Gas | Hot Gas | ||||||
| Air Flow cond | 1480m³/h | 1480m³/h | 1480m³/h | 3400m³/h | 3400m³/h | ||||||
| Air Flow evap. | 2600m³/h | 2600m³/h | 2600m³/h | 6600m³/h | 6600m³/h | ||||||
| Te℃ | Tc℃ | P watt | V 100m³ | P watt | V 100m³ | P watt | V 100m³ | P watt | V100m³ | P watt | V 100m³ |
| 15 | 30 | 2998 | 25 | 3630 | 30 | 6862 | 57 | 8253 | 58 | 10415 | 87 |
| 40 | 2648 | 22 | 3206 | 26 | 6062 | 50 | 7291 | 60 | 9200 | 76 | |
| 7.2 | 30 | 2213 | 18 | 2700 | 22 | 5124 | 42 | 6089 | 50 | 7928 | 66 |
| 40 | 1954 | 16 | 2385 | 19 | 4527 | 37 | 5380 | 44 | 7005 | 58 | |
| 0 | 30 | 1637 | 12 | 2009 | 14.5 | 3827 | 28 | 4443 | 32 | 5813 | 43 |
| 40 | 1446 | 10.5 | 1775 | 13 | 3380 | 25 | 3925 | 29 | 5135 | 38 | |
| -10 | 30 | 1028 | 6.8 | 1277 | 8.5 | 2397 | 16 | 2618 | 17 | 3363 | 22 |
| 40 | 908 | 6 | 1128 | 7.5 | 2118 | 14 | 2313 | 15 | 2970 | 19 | |
| Independent Monobloc Refrigeration Unit R404A Low back Pressure | |||||||||
| Model | LY100DGL | LY150DGL | LY200DGM/H | LY300DGL | |||||
| LY300SGL | |||||||||
| Nom.HP | 1 | 1.5 | 2 | 3 | |||||
| Power Supply | 220v/1ph/50hz | 220v/1ph/50hz | 220v/1ph/50hz | 220v/1ph/50hz | |||||
| 380v/3ph/50hz | |||||||||
| Defrost | Hot Gas | Hot Gas | Hot Gas | Eletrical heater | Eletrical heater | ||||
| Air Flow cond | 1480m³/h | 1480m³/h | 1700m³/h | 1700m³/h | |||||
| Air Flow evap. | 1400m³/h | 1400m³/h | 3300m³/h | 3300m³/h | |||||
| Te℃ | Tc℃ | P watt | V 100m³ | P watt | V 100m³ | P watt | V 100m³ | P watt | V 100m³ |
| -10 | 30 | 2333 | 13 | 3068 | 17 | 4502 | 25 | 6339 | 35 |
| 40 | 2061 | 11 | 2711 | 15 | 3977 | 22 | 5599 | 31 | |
| -20 | 30 | 1449 | 7.2 | 1938 | 9.8 | 2712 | 13.6 | 3867 | 19 |
| 40 | 1280 | 6.4 | 1712 | 8.6 | 2396 | 12 | 3416 | 17 | |
| -23.3 | 30 | 1216 | 6 | 1635 | 8.2 | 2224 | 11 | 3195 | 15 |
| 40 | 1075 | 5.3 | 1445 | 7.2 | 1965 | 9.6 | 2822 | 14 | |

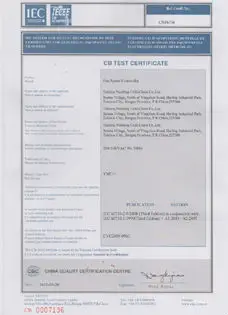

Nanfeng Cold Chain was founded in 1996,engaged in exploitation,production and sale of refrigeration products.We have technical personnel with professional ability and nice cooperation with many universities.Since 2005,our products have been sold to international markest,the perfect quality and improving services make sure that our products are sold to Europe,Australia,South America and other tens of countries.We also provide OEM,ODM services.We have our own brand"PSRE"&"polar",gained many quality certification such as ISO9001:2000,CE,CB,RoHS and so on.

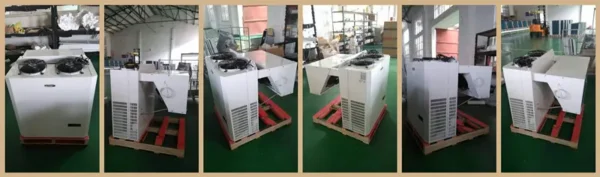

Warehouse
Ordering and Pricing
- Minimum order quantity: 5 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this monoblock unit?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the monoblock unit be supplied for my local voltage?
The standard configuration is single/three phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
