Blast Freezer, IQF, 2000kg/hour, 220v, R-404A

Blast freezer — 220v/380v/(custom), 20kw(26.82hp). The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Blast Freezer

• Power(W): 20kw(26.82hp)
• Voltage: 220v/380v/(custom)
• Refrigerant: R-404A, R-717
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Type: Spiral Freezer

Technical Specifications

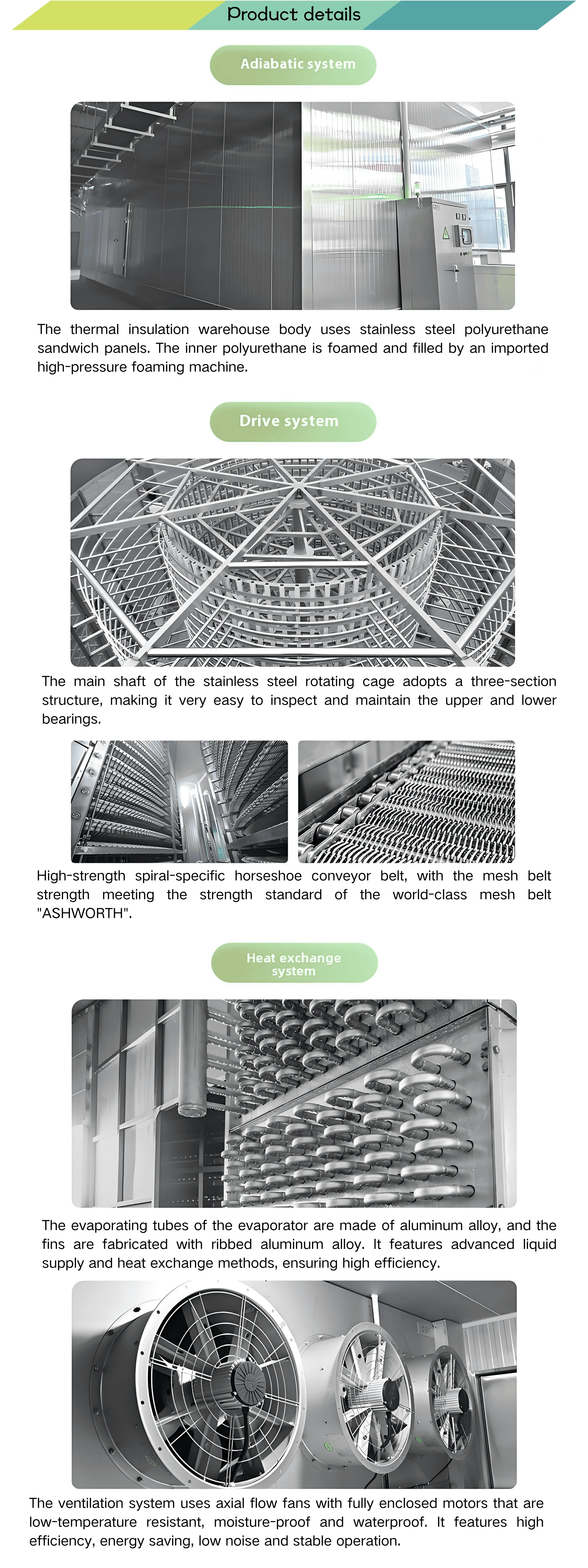

Product Details

Application:

Our spiral freezers adopt the friction drive method, which is also the most widely used drive method globally. This drive method features mature and stable technology, has no strict requirements on operating conditions, and is easy to maintain. Since the freezer operates in an ultra-low temperature environment, ice is prone to form inside the equipment. However, friction drive is not affected by ice formation, enabling the freezer to maintain highly stable operation for extended periods. For factories engaged in continuous operations, the stability of equipment is of utmost importance.

1.Main Machine Technical

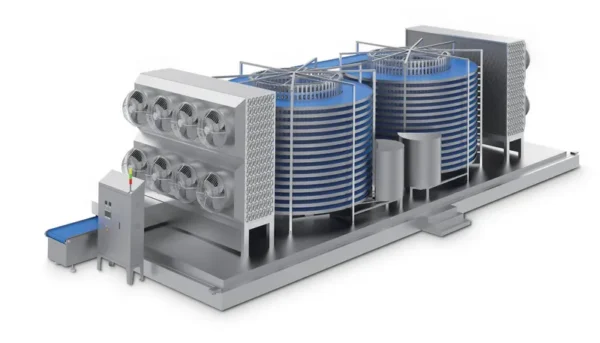

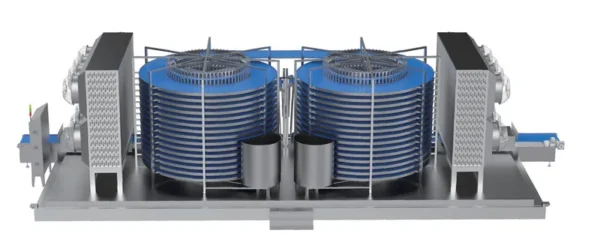

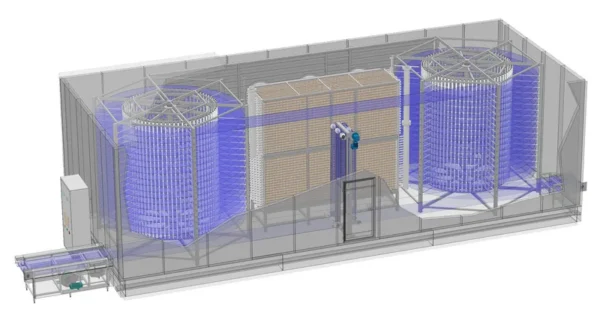

Machine Name	Double Spiral freezer
Frozen Capacity	1000kg/h
Model	SF-1000
Power Supply	380V/3P/50Hz
Refrigerant	R507a
Insulation Body Size	10300×4160×3600mm
2.Insulation System Technical
Panel Material	304 stainless steel wrapped inside and outside, thickness 0.6mm
Panel Thickness	120mm
Panel Foam Density	≧42kg/m3
Cold Storage Door	Three doors
Bottom Sink Panel Material	304
Bottom Drain	4 locations, located at the four corners of the cold storage body
Lighting in Cold Storage	Cold storage dedicated LED waterproof moisture-proof explosion-proof low temperature resistance
3.Transmission System Technical
Drum
Drum Drive Type	Chain drive
Drive Sprockets	High-strength stainless steel material
Protective Strips	HDPE high density polyethylene
Mesh Belt
Mesh Belt Material	304 stainless steel
Mesh Belt Width (Total Width)	520mm
In feed Length	500mm
Out feed Length	500mm
Speed Reducer
Brand	GUOMAO
Power	2.2kw
Quantity	2
4.Heat Exchange System Data
Evaporator
Material	Aluminum
Specification	Outer diameter 20mm, wall thickness 2mm
Fin Material	Aluminum
Frame Material	304 stainless steel
Liquid Supply Method	Direct expansion
Defrosting Method	Water melting frost
Amount of Frosting Water	12t/h
Frost Water Pipe Diameter	DN65
Fan
Quantity	6
Model	7#
Wind Pressure	450Pa
Hair Dryer Material	304 stainless steel
Wind Blade Material	Aluminum alloy
Motor Power	4kw

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $150000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 220v/380v/(custom). Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wuxi Julies Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wuxi Julies Technology Co., Ltd. range on HVACR Nexus.
