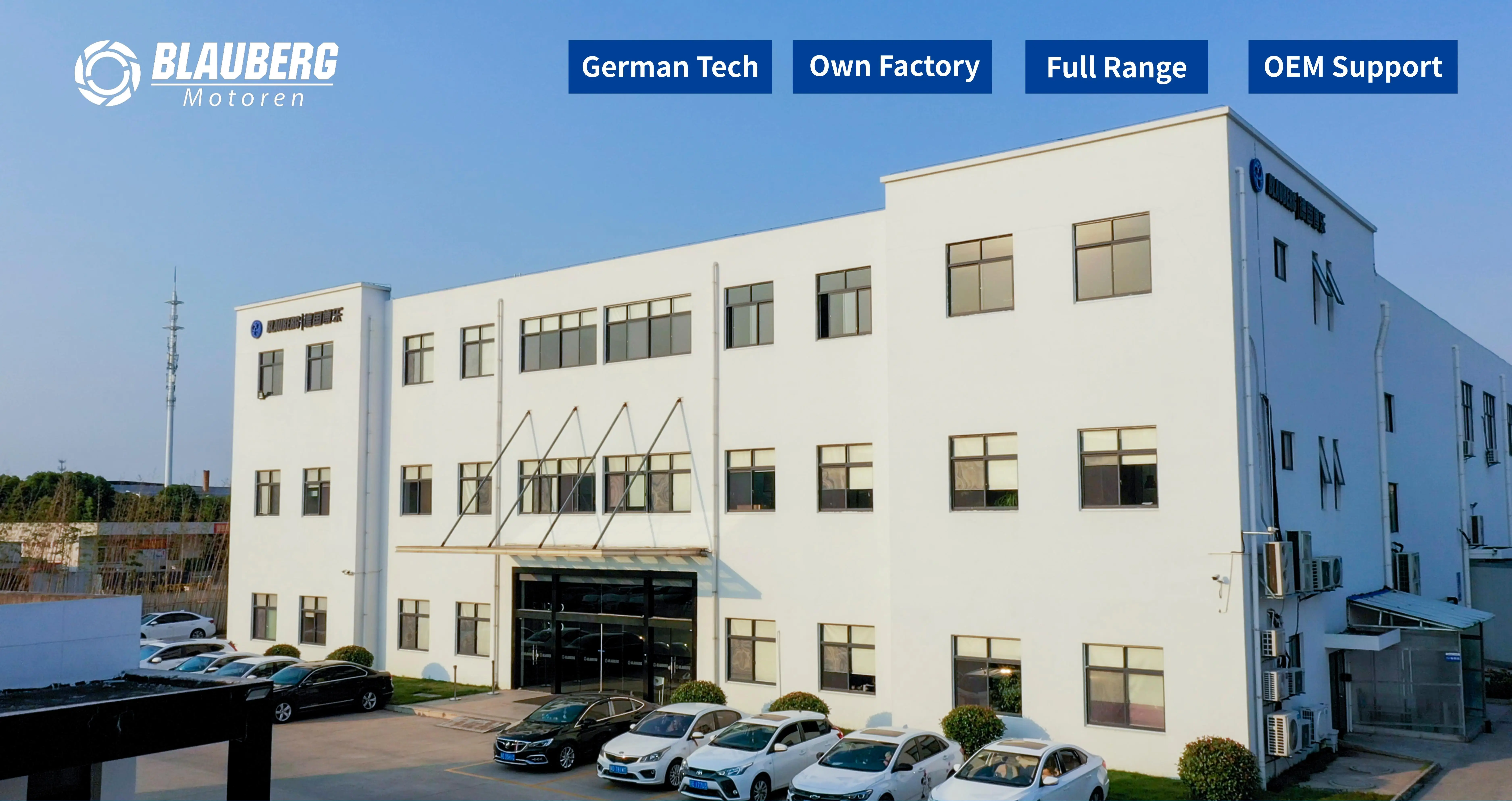

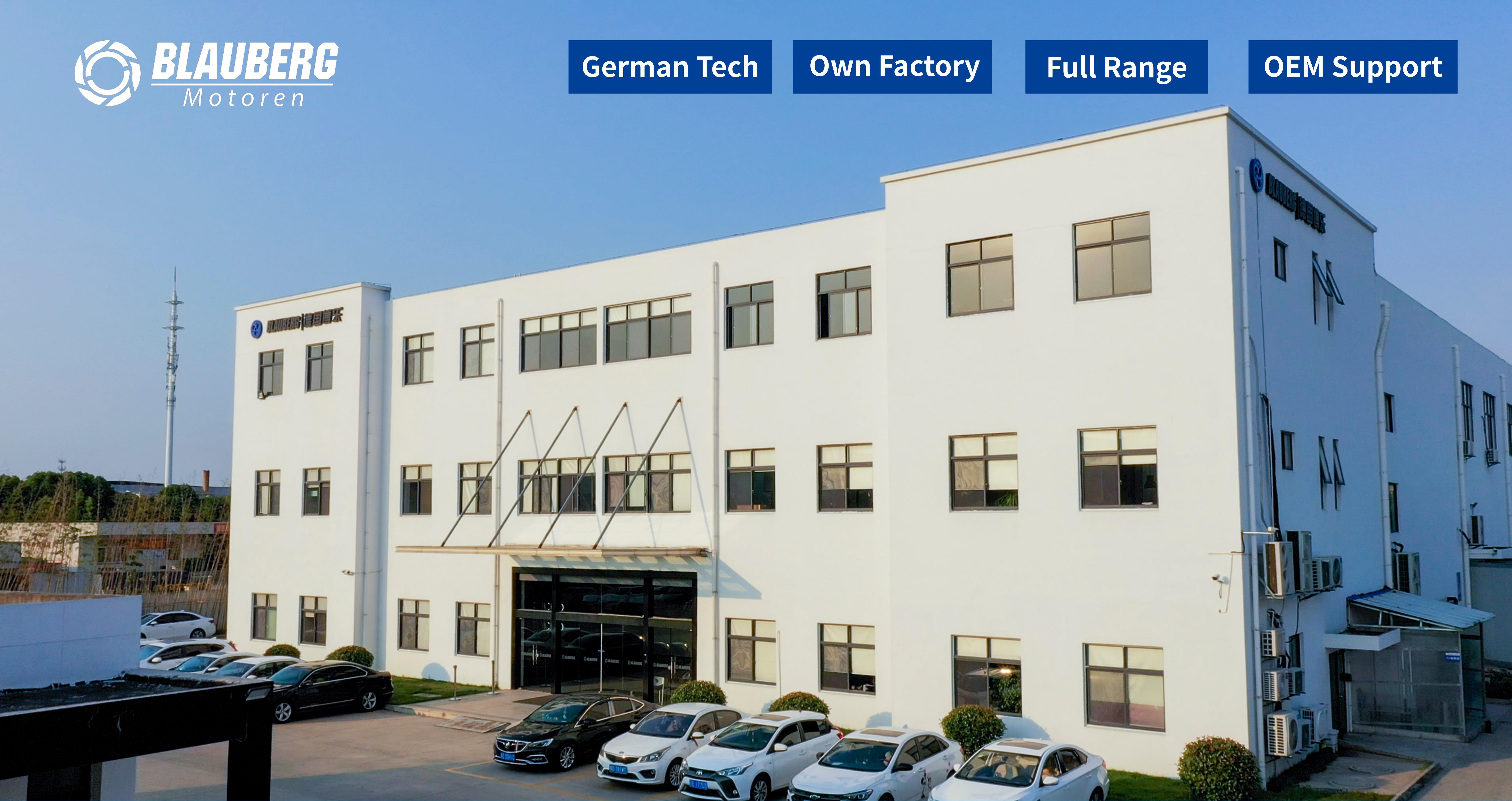

Company Profile
Product Paramenters
|
Type
|
GL-B250E-EC-05
|
Nominal Speed
|
3400±5%RPM
|
|
|
Motor
|
EC102AC230V750W-35
|
Max. Input Power
|
520W
|
|
|
Phase
|
1~
|
Max. Input Current
|
2.5A
|
|
|
Nominal Voltage
|
230VAC
|
Sound level
|
86dB(A)
|
|
|
Nominal Voltage Range
|
184～276VAC
|
Min.Ambient Temperature
|
-25℃
|
|
|
Frequency
|
50/60 Hz
|
Max.Ambient Temperature
|
60℃
|
|
|
Method of Obtaining Data
|
FA
|
ML=Max. load ME=Max, effciency FA=Free Air
|
||

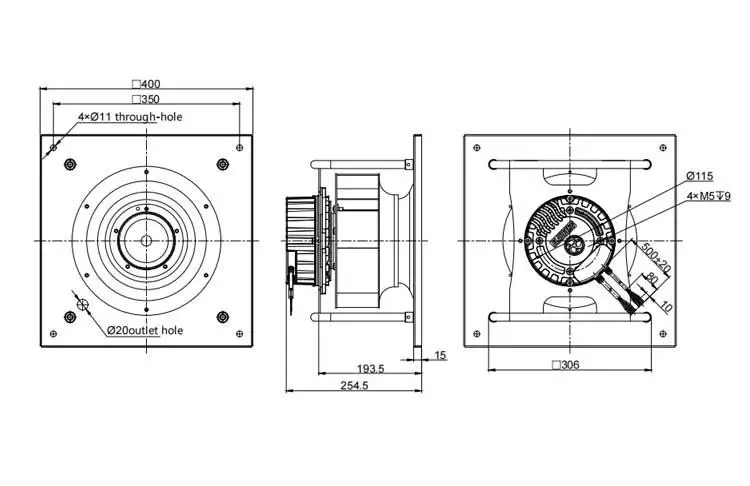

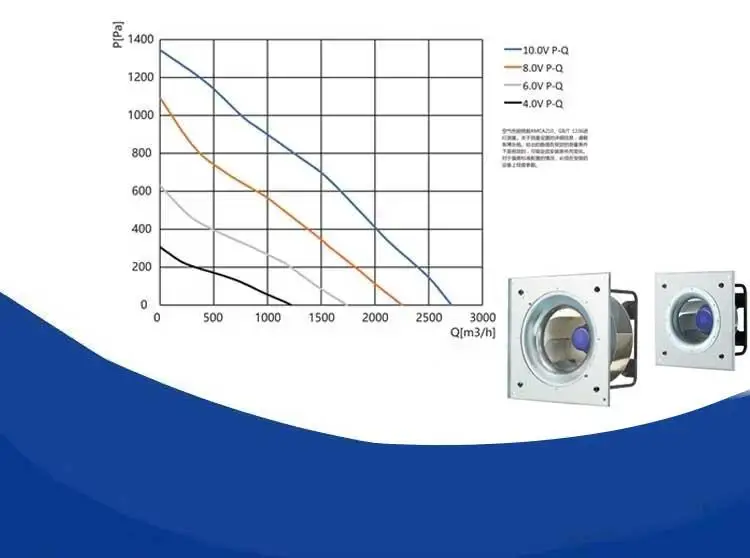

EC Backward Curved Centrifugal Fan Air Performance and Outline Drawing
1.Accessory part：Inlet Ring;2.M4 Screw, Max. Screw-in Depth 5 mm;3.AC Cable PVC 3×AWG20;4.DC Cable PVC 4×AWG24;

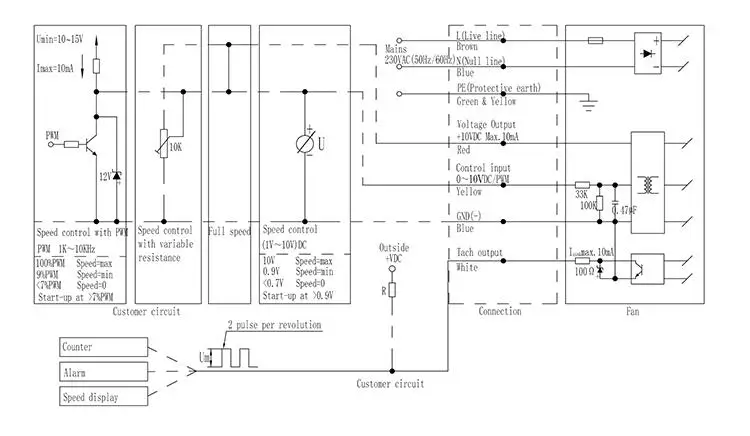

EC Backward Curved Centrifugal Fan Wiring Diagram
Power Line:Green/ Yellow:Protective Earth;Brown:Power supply, live wire see nameplate for voltage range;Blue:Power supply, neutral wire see nameplate for voltage range;
Control Line:Red:Fixed voltage output 10 VDC ±5%,Imax.10mA,power supply for external devices(e.g.potentiometers);SELV;Yellow:0-10V/PWM(Max. amplitude of PWM 10V)control input;SELV;White:Tach output,2 pulse per revolution,(pulses can be customized,or changed to RD signal);SELV;Blue:Reference ground for control interface;SELV;
Related Product
|
Model
Part No.
|
Rated Voltage
VAC
|
Air Flow
m³/h
|
Rated Speed
RPM
|
Power Input
W
|
Sound Level
dB(A)
|
|
GL-B250D-EC-F05
|
230
|
2400
|
3900
|
400
|
82
|
|
GL-B250E-EC-05
|
230
|
2800
|
3450
|
520
|
86
|
|
GL-B250E-EC-H5
|
230
|
3200
|
3150
|
750
|
86
|
|
GY-B250E-EC-05
|
380
|
3400
|
3900
|
750
|
92
|
