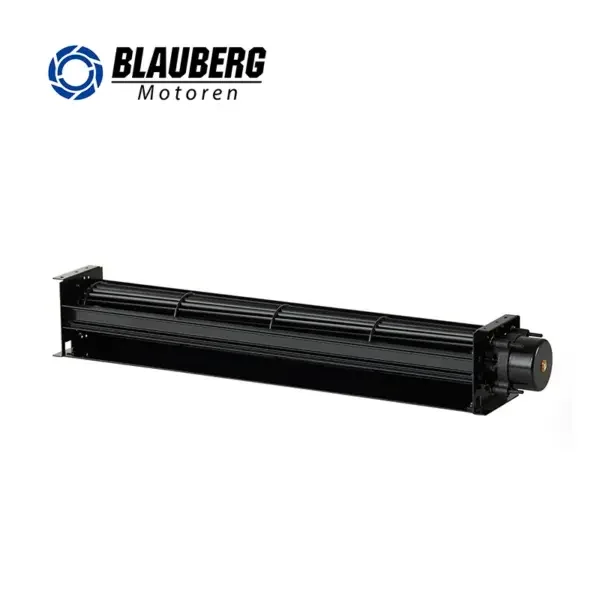

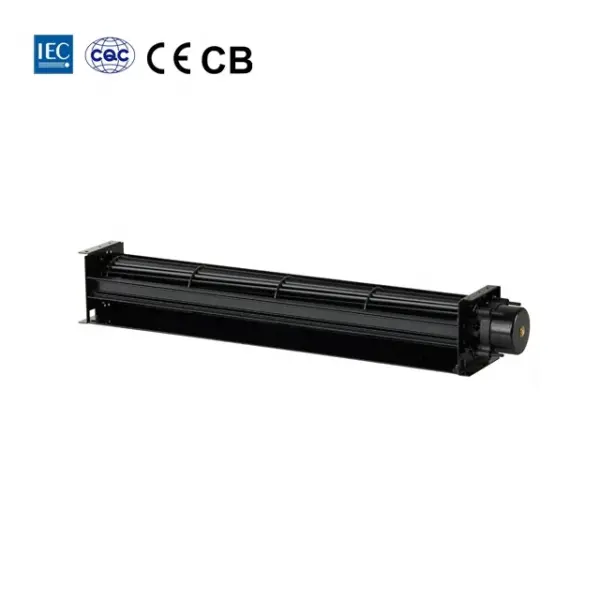

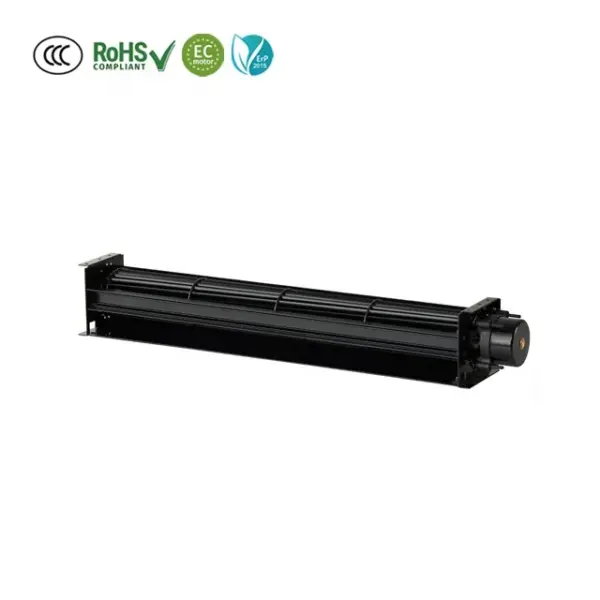

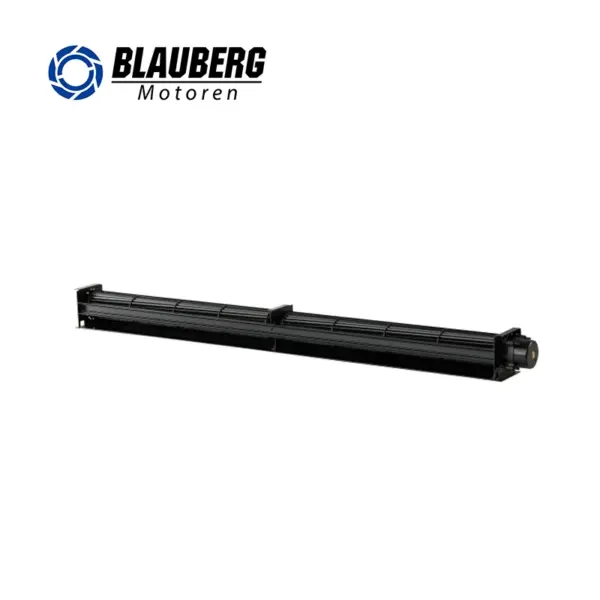

The cross flow fan listed here carries 24V, blade material galvanized steel, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
This cross flow fan is listed with the manufacturer’s full published specification — voltage 24V, blade material galvanized steel, model number CD24-F030A-EC-01. It is produced by Suzhou Blauberg Motoren Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: CD24-F030A-EC-01
- Voltage: 24V
- Blade Material: galvanized steel
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
- Application: General Machinery

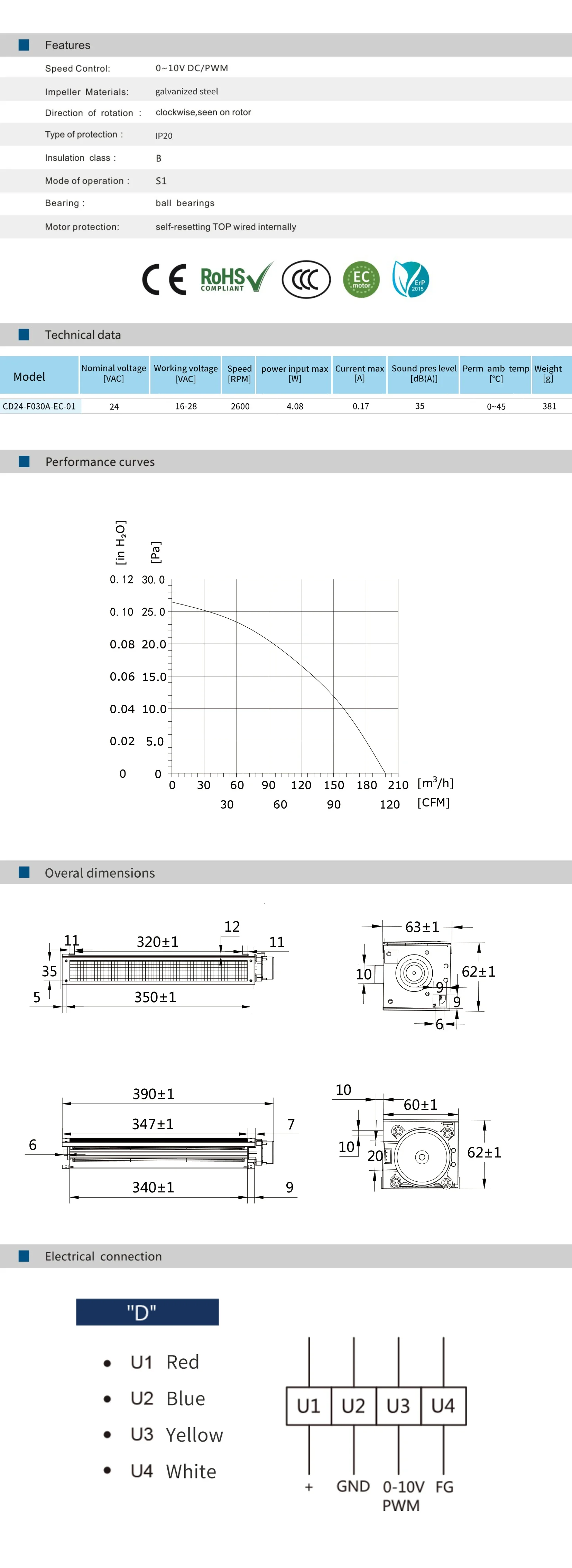

Technical Specifications
| Voltage | 24V |
|---|---|
| Blade Material | galvanized steel |
| Mounting | Duct Fan |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 2 Years |
| Place Of Origin | Jiangsu, China |
| Brand Name | Blauberg |
| Model Number | CD24-F030A-EC-01 |
| Name | Backward Curved Centrifugal fan |
| Application | General Machinery |
| Color | Picture |
| Selling Units | Single item |
| Single Package Size | 44X45X35 cm |
| Single Gross Weight | 5.000 kg |
|
Dimension:
|
390*63*60mm
|
Mode of operation:
|
S1
|
|
Materials Impeller:
|
aluminum alloy
|
Bearing:
|
ball bearings
|
|
Materials Housing:
|
SPCC+S45C
|
Motor protection:
|
self-resetting TOP wired internally
|
|
Direction of rotation :
|
clockwise,seen on rotor
|
Air Flow:
|
198M³/H
|
|
Number of Blades:
|
–
|
Static Pressure:
|
26Pa
|
|
Speed Control:
|
0~10VDC / PWM
|
Life Expectance:
|
50,000 Hours(L10)
|
|
Operating Voltage:
|
24 VDC
|
Operating Humidity:
|
5%-90% RH
|
|
Type of protection:
|
IP20
|
Signal Output:
|
FG (Frequency Generator)
|
|
Insulation class:
|
B
|
Authentication:
|
UL,CE,ROHS,CCC,ISO
|
|
1
|
Ventilation & Purification
|
7
|
Automobile Industry
|
|
2
|
Air Conditioning
|
8
|
Household Electric Appliances
|
|
3
|
Cold Storage and Cold Chain
|
9
|
Cloud Date Center
|
|
4
|
IT & Electronic Industry
|
10
|
Mechanical Equipment and Systems
|
|
5
|
Medical Industry
|
11
|
Energy-saving & Intelligent Retrofitting
|
|
6
|
Heating
|
|
1
|
Charging Column
|
9
|
Equipments Cooling Project
|
|
2
|
Kitchen smoke exhaust system
|
10
|
Ventilation Unit Project
|
|
3
|
FFU Project
|
11
|
AHU（Air Handing Unit）Project
|
|
4
|
Computer room cooling
|
12
|
Air Purifier Project
|
|
5
|
Air-conditioned fan for rail transit carriers
|
13
|
Heater Exchanger Project
|
|
6
|
Electrical appliances
|
14
|
Telecom Container Project
|
|
7
|
FanGrid Project
|
15
|
Data Center Cooling Project
|
|
8
|
Ventilation Equipments Project
|
Title goes here.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cross flow fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This cross flow fan is produced by Suzhou Blauberg Motoren Technology Co., Ltd.. Browse the full Suzhou Blauberg Motoren Technology Co., Ltd. range on HVACR Nexus.
