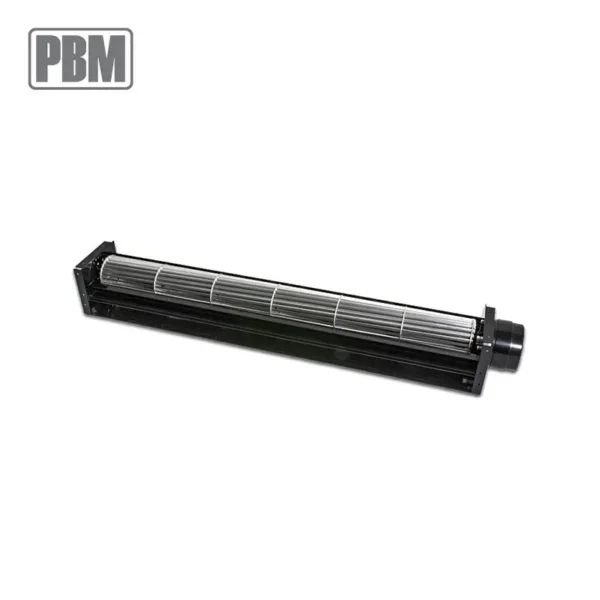

Blower — voltage 230 VAC, 288.37 CFM / 490 m3/H. The complete factory specification follows. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Blower
- Model Number: PC60B2A870L
- Voltage: 230 VAC
- Air Flow: 288.37 CFM / 490 m3/H
- Blade Material: Aluminium alloy
- Warranty: 5 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 230 VAC |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 5 year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC60B2A870L |
| Frequency | 50 Hz |
| Input Current | 0.21 A |
| Acoustical Noise | 40 dB(A) |
| Direction Of Rotation | Clockwise seen on rotor |

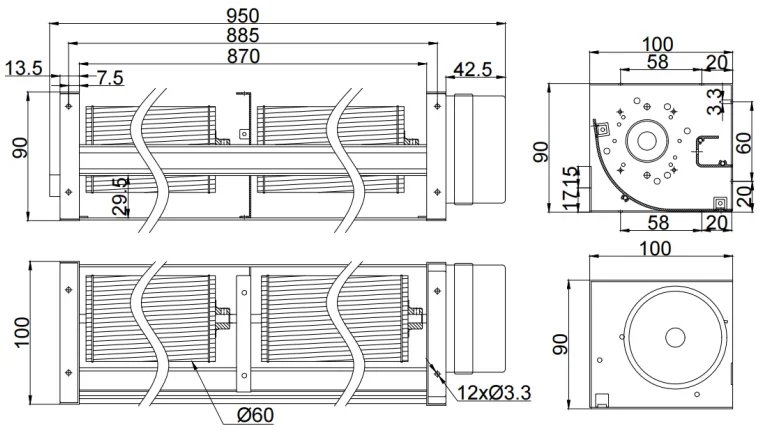

| Dimension | See dimension drawing |
| Air Flow | 288.37 CFM / 490 m3/H |

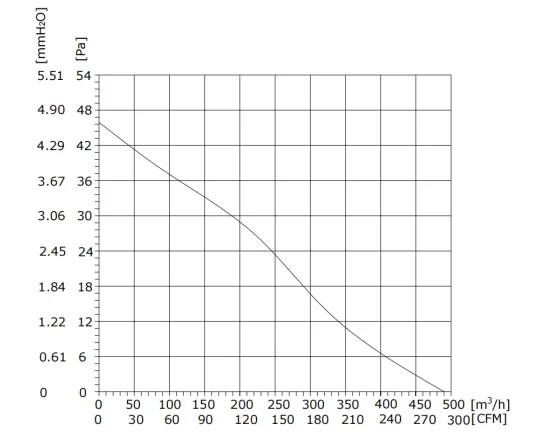

| Static Pressure | 4.69 mmH2O / 46 Pa |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| RoHS | All the material meets RoHS standard. |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 2.3 kg |
Product Details
Rated Voltage | 230 VAC | Life Expectance | 30,000 Hours. |
Frequency | 50 Hz | Direction of Rotation | Clockwise seen on rotor |
Rated Speed | 1500 RPM | Dimension | See dimension drawing |
Input Current | 0.21 A | Material of Impeller | Aluminum alloy |
Input Power | 50 W | Air Flow | 288.37 CFM / 490 m³/H |
Acoustical Noise | 40 dB(A) | Static Pressure | 4.69 mmH₂O / 46 Pa |
Operating Temperature | -20℃ to 70℃ | Storage Temperature | -40℃ to 80℃ |
Model Part No. | Rated Voltage VAC | Air Flow m³/H | Air Pressure Pa | Rated Speed RPM | Sound Level dB(A) | Total Length mm |
PC60B2A520L | 230 | 360 | 50 | 1900 | 43 | 600 |
PC60B2A610L | 230 | 420 | 50 | 1900 | 43 | 690 |
PC60B2A640L | 230 | 440 | 50 | 1900 | 43 | 720 |
PC60B2A700L | 230 | 450 | 48 | 1800 | 42 | 780 |
PC60B2A750L | 230 | 455 | 46 | 1700 | 42 | 830 |
PC60B2A870L | 230 | 490 | 46 | 1500 | 40 | 950 |
PBM Cross Flow Fan 30mm Blades
Heater.
PBM Cross Flow Fan 40mm Blades
PBM Cross Flow Fan 45mm Blades
PBM Cross Flow Fan 48mm Blades
PBM Cross Flow Fan 50mm Blades
PBM Cross Flow Fan 60mm Blades
PBM Cross Flow Fan 65mm Blades
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $48.09 / piece
- 500–999 piece: US $45.42 / piece
- 1000+ piece: US $44.19 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blower?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the blower be supplied for my local voltage?
The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Pbm Motor And Fan(suzhou) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Pbm Motor And Fan(suzhou) Co., Ltd. range on HVACR Nexus.
