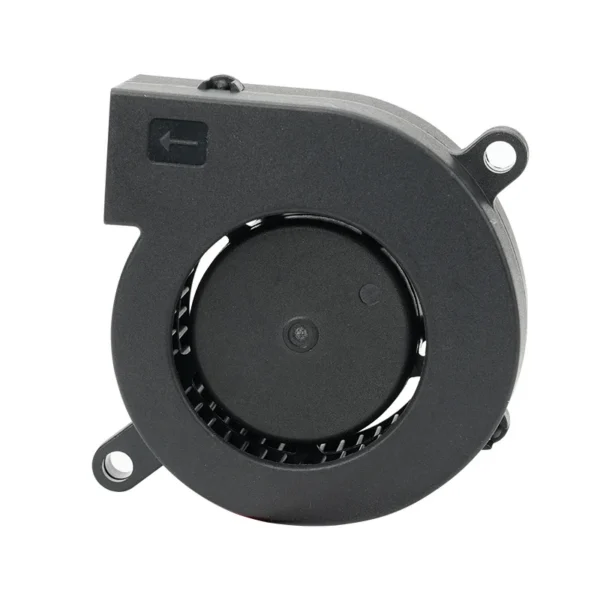

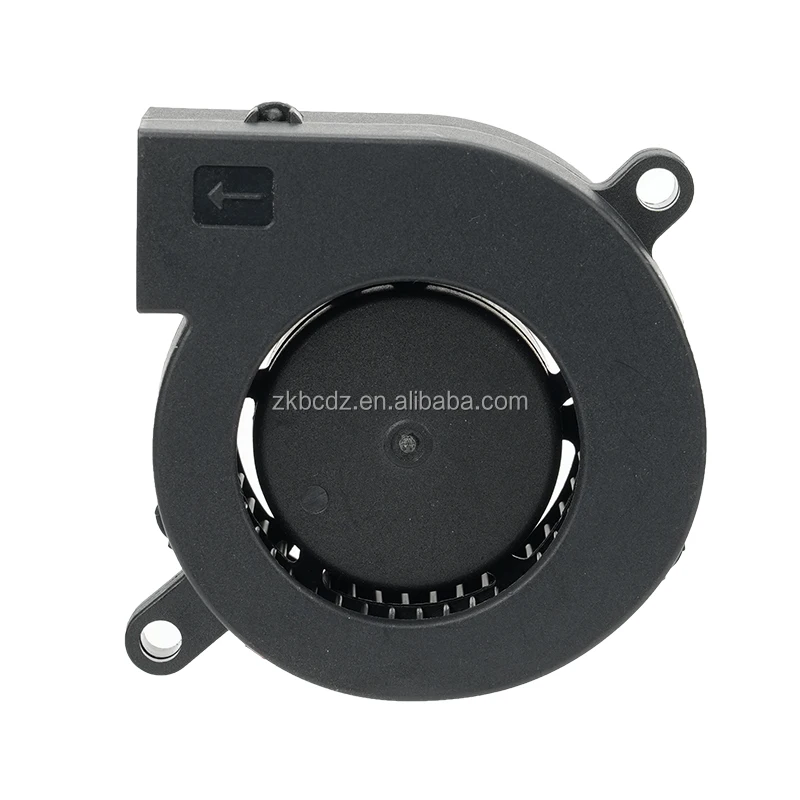

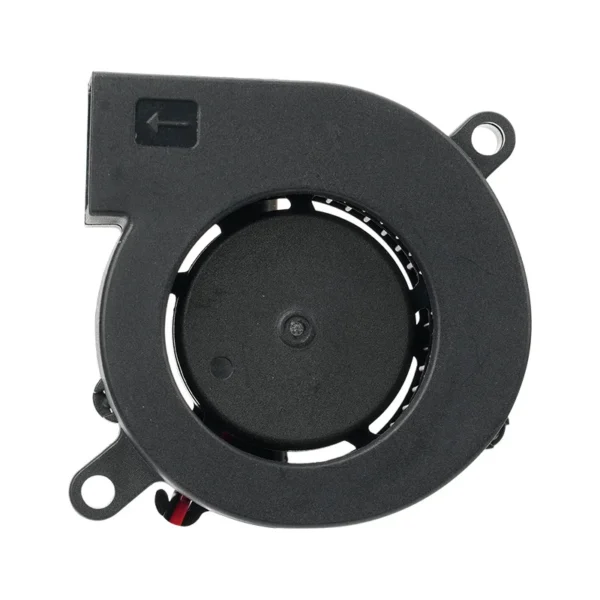

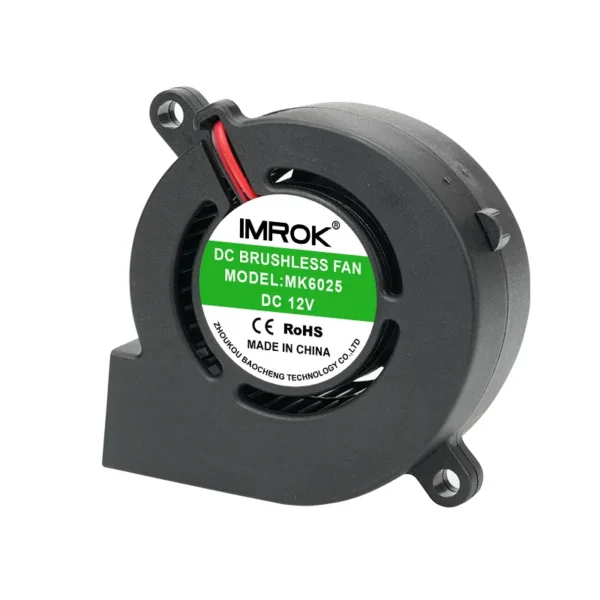

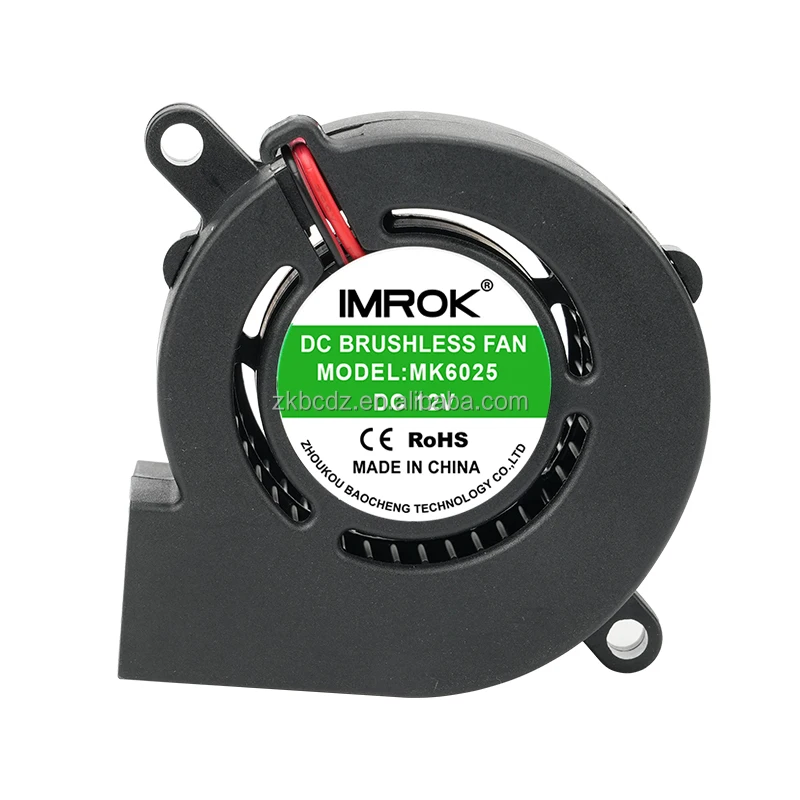

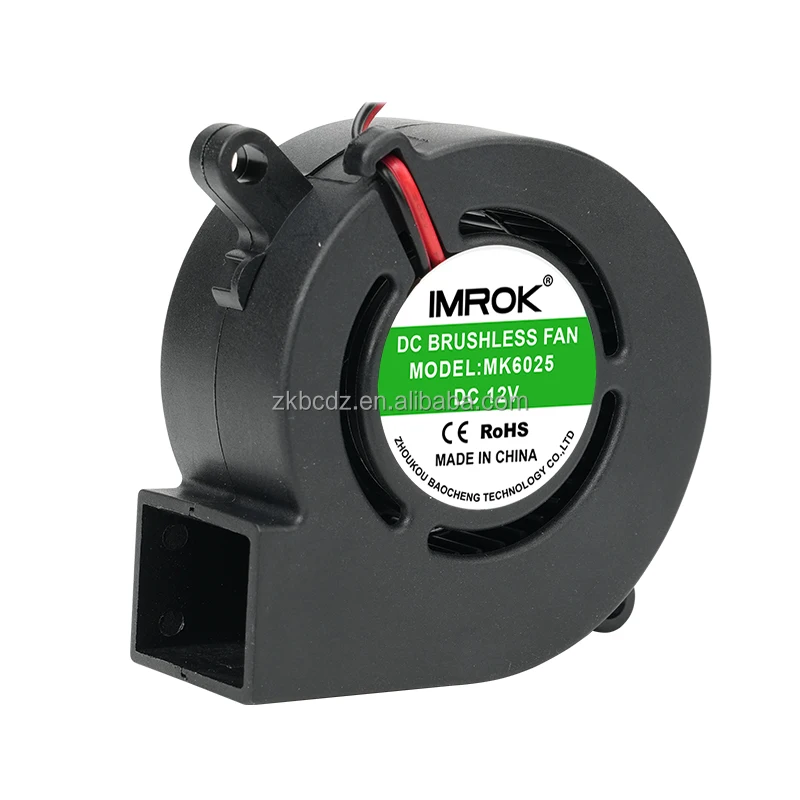

Blower, 60x60x25, 60mm, 5V, 12V, Plastic, MK6025

This blower is published with the manufacturer’s full specification — 12 V, 24 V, 5 V, power source Electric. Made by Zhoukou Baocheng Electronic Technology Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Blower

• Model Number: MK6025
• Power Source: Electric
• Voltage: 12 V, 24 V, 5 V
• Rated Voltage: 5V 12V 24V
• Material: Plastic
• Blade Material: Plastic

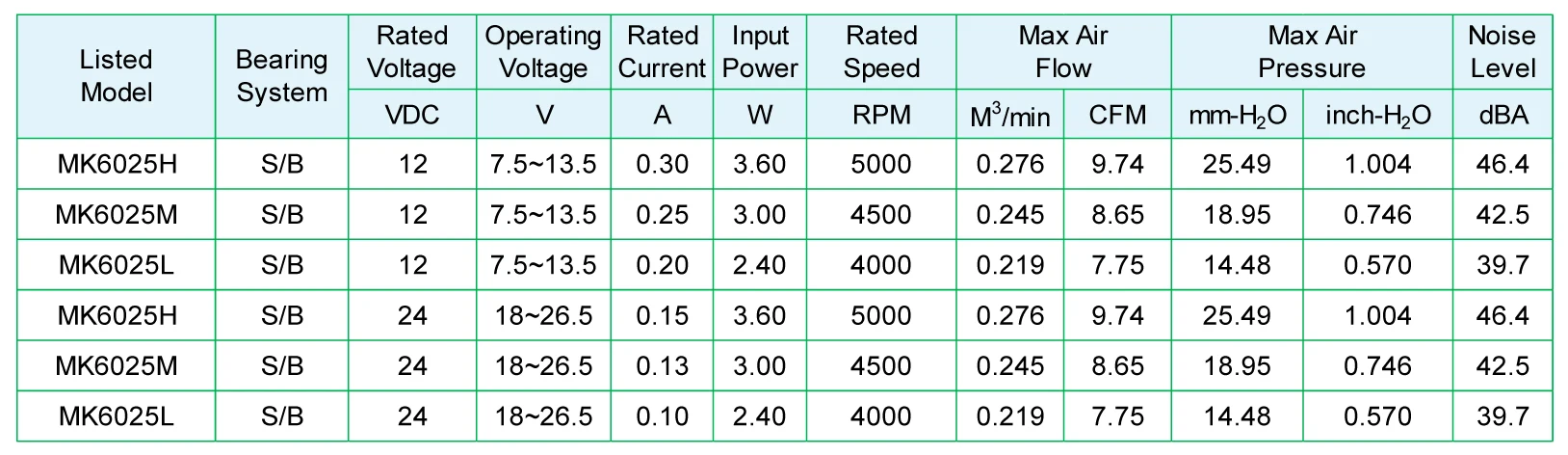

Technical Specifications

Product Details

Products Description

Type	Blower DC Fan

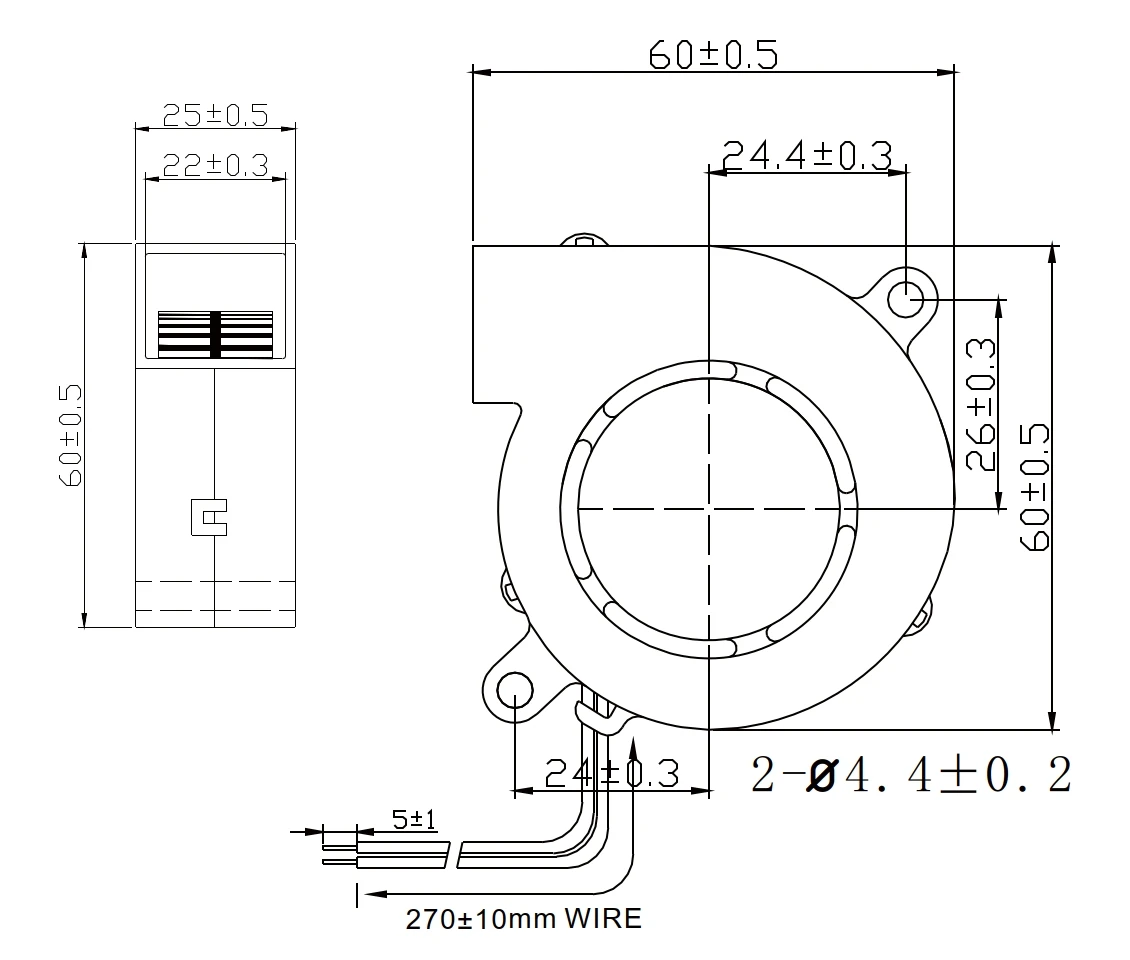

Dimensions	60mm x 60mm x 25mm
Model	MK6025
Specifications options	AS,RD,FG,PWM,Temperature Control ,IP56,IP68
Norminal Diameter Ranges	25mm – 130mm ;
Certification	CE/ROHS
Norminal Voltage	DC5V( 4.0 – 5.5 VDC) ;DC12V( 6 – 13.8 VDC) ;DC24V (12 – 27.6VDC);DC48V(24 – 56VDC) ;
Applications	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Advertising Company, Other

Speed Control : PWM VSP Temperature control fix speed with pressure intermittent ;
Out Signal : FG RD LD
Insulation Resistance : 10 MΩ/500V DC ;
Dielectric Strength : 2Min/500V AC /5mA

Factory Profile

ZHOUKOU BAOCHENG is a modernized factory specializing in fan production. We are committed to designing, manufacturing, and selling high-quality and high-performance fan products to provide customers with comfortable and healthy indoor air environments. Since our establishment, we have maintained a good reputation and customer trust. We have two advanced production lines and four efficient injection molding machines, allowing us to meet the large-scale production demands of various fan products. Whether it is DC cooling fans, AC cooling fans, or blowers, we can efficiently and effectively complete production with high quality.

Cooling Fan Manufacturing Process

DC Axial Flow Fan
Fan Series ( 20X20X6MM~172X150X50MM)

Size (MM)	Air Flow ( CFM)	Size (MM)	Air Flow ( CFM)
20X20X6	0.33~0.82	60X60X28	16.23~24.35
20X20X10	0.55~1.56	60X60X38	36.73~50.15
25X25X7	1.54~3.09	70X70X10	14.56~24.27
25X25X10	1.35~2.51	70X70X15	16.24~27.06
30X30X7	1.98~3.64	70X70X20	25.92~43.20
30X30X10	2.52~4.10	70X70X25	26.94~44.90
35X35X10	3.93~5.90	80X80X10	14.49~21.74
38X38X28	8.44~22.05	80X80X15	23.23~46.47
40X40X7	3.13~4.38	80X80X20	24.52~53.94
40X40X10	4.22~6.67	80X80X25	30.92~68.02
40X40X15	4.80~8.00	80X80X38	37.06~92.66
40X40X20	4.38~13.76	92X92X25	33.42~58.48
40X40X28	7.79~20.26	92X92X38	57.65~105.69
45X45X10	5.37~10.73	120X120X25	48.48~96.95
50X50X10	6.45~11.82	120X120X38	100.71~146.90
50X50X15	6.61~12.27	140X140X25	60.34~86.20
50X50X20	8.09~16.18	150X150X50	171.73~274.76
60X60X10	10.28~17.13	172X150X50	171.73~274.76
60X60X15	11.01~28.62
60X60X20	11.43~19.05
60X60X25	16.76~43.10

Applications

Wide range of applications, can be used in a variety of industry equipment：

3D printers, Stage lighting, VR equipment, Intelligent Manicure machine,Projector, High-speed camera, Head mounted display Automotive industry, Cabinet industry, Power industry, UAV application, Electric forklift, LED lighting industry, Hand held air detector, Charging machine,Nebulizer. Electromagnetic oven, Humidifier, Smart toilet, Intelligent household lampblack machine,Air purifier, Car GPS, Car LED lamp, Aromatherapy machine.CPU cooler, Case.

Computer power suppliesWelding equipment UPS power systemsCNC machines

Servers Computers Amplifier equipment Medical equipment

Certifications

Package & Delivery

Order Manufacturing

Knife Card Packaging

Suitable Carton Packaging

Cartons are neatly arranged

Winding film winding

Shipments on wooden pallets

FAQ

Q. Are you a factory? A.Yes, we are the professional cooling fan factory. We can provide cooling fans for you directly.

Q. Can I customize cooling fan parameters? A.Yes, we can customize cooling fans, size, voltage, current, speed, airflow, PWM, waterproof and etc. You can tell us anything you want to achieve on the cooling fan. Q. Can we get free samples? A, we can provide free samples at each model. Q. What I can do if I don't reach the MOQ 200pcs? A.We can accept small order below 200pcs, just contact us, the price will have no big difference from 200pcs. Q.What's your delivery date? A.Sample lead time:2-7 working days； Spot delivery time:2-14working days； The delivery time of customized products depends on the specific quantity and customization difficulty. Q: Can my order ship via UPS or DHL or FedEx or by Air or By Sea? And where is my order ship ? A.Yes, we can ship.All orders ship from our factory warehouse.

Contact :
Trevor Zhou
Zhoukou Baocheng Electronic Technology Co., Ltd
TEL/WECHAT/WHATSAPP:+8615238462426

Ordering and Pricing

• Minimum order quantity: 1000 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blower?

The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this blower carry?

It is supplied with Ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the blower be supplied for my local voltage?

The standard configuration is 12 V, 24 V, 5 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhoukou Baocheng Electronic Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhoukou Baocheng Electronic Technology Co., Ltd. range on HVACR Nexus.
