Key specification for this blower: voltage 24VDC, power source type Power supply. Everything below is reproduced from the factory data sheet. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blower
- Model Number: WS9250-24-240-X200
- Power Source Type: Power supply
- Voltage: 24VDC
- Rated Voltage: 24VDC
- Material: Stainless Steel, Plastic
- Blade Material: aluminum
Technical Specifications
| Mounting | screw |
|---|---|
| Voltage | 24VDC |
| Speed | 57m3/h, 33.54cfm |
| Material | Stainless Steel, Plastic |
| Blade Material | aluminum |
| Power Source Type | Power supply |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 59dba |
| Place Of Origin | Zhejiang, China |
| Brand Name | WONSMART |
| Model Number | WS9250-24-240-X200 |
| Product Name | micro dc blower fan |

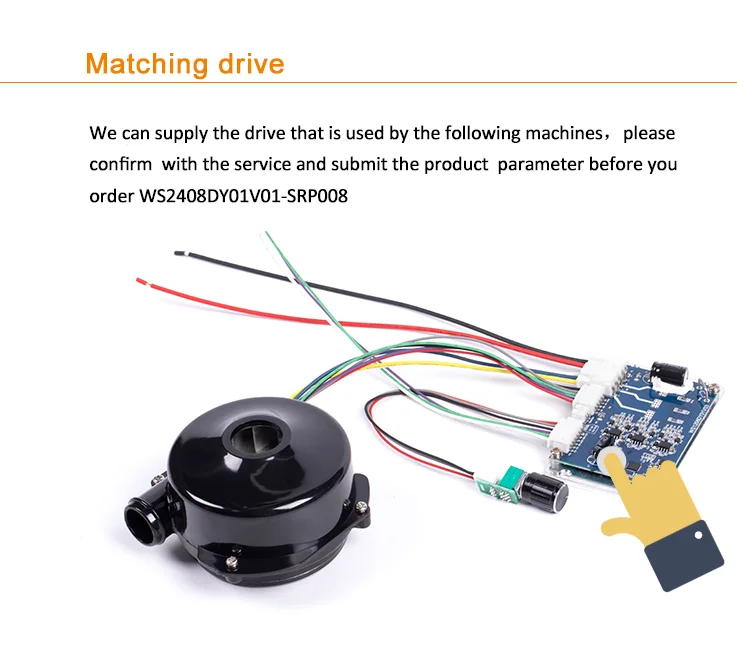

| Driver Board | External driver, WS2408DY01V01-SRP008 model |
| Motor Type | Three phase Brushless DC Motor |
| Size | 90*90*50mm |
| Bearing Type | NMB ball bearing |
| Application | fuel cell/air cushion machine/inflatables |
| Life Time | >20000hours(under 25 degree C) |
| Weight | 0.4KGS |
| Total Pressure(Pa) | 8000 |
| Rated Voltage | 24VDC |
| Selling Units | Single item |
| Single Package Size | 19X16X11 cm |
| Single Gross Weight | 2.000 kg |
Product Details
Product Description

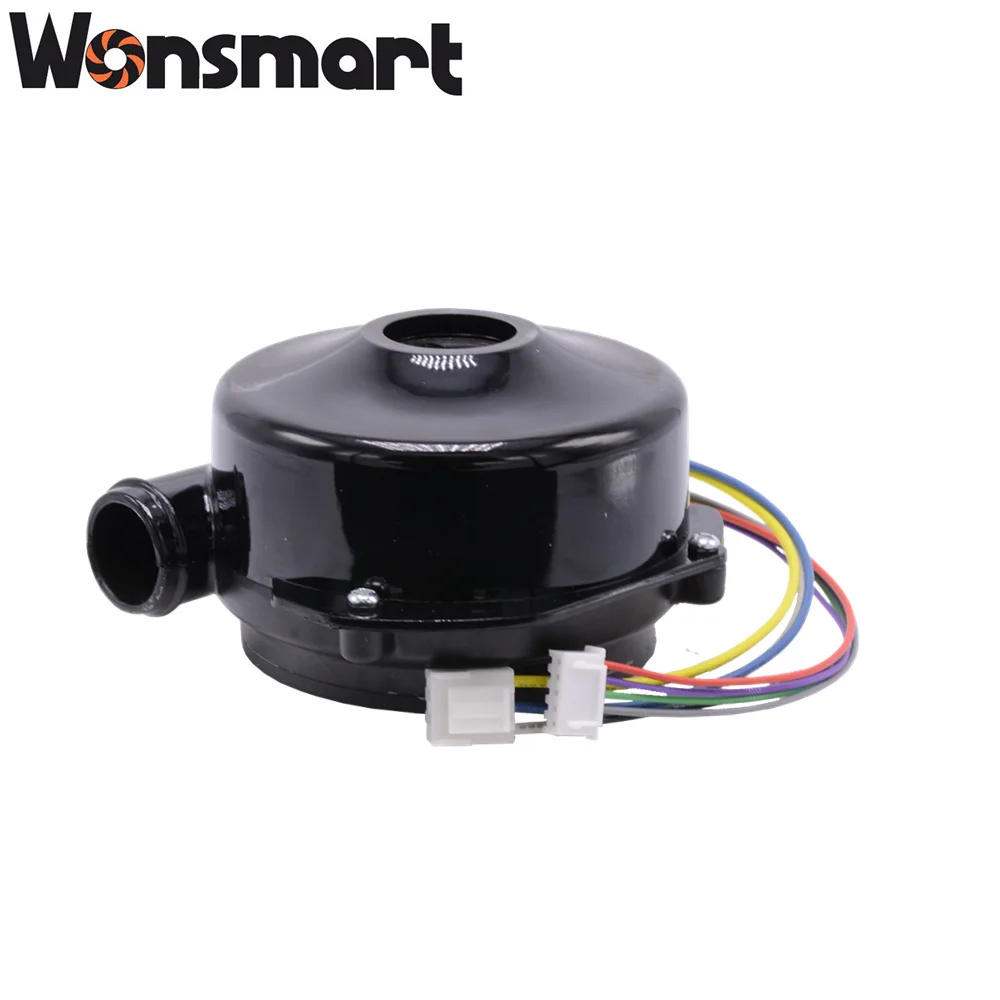

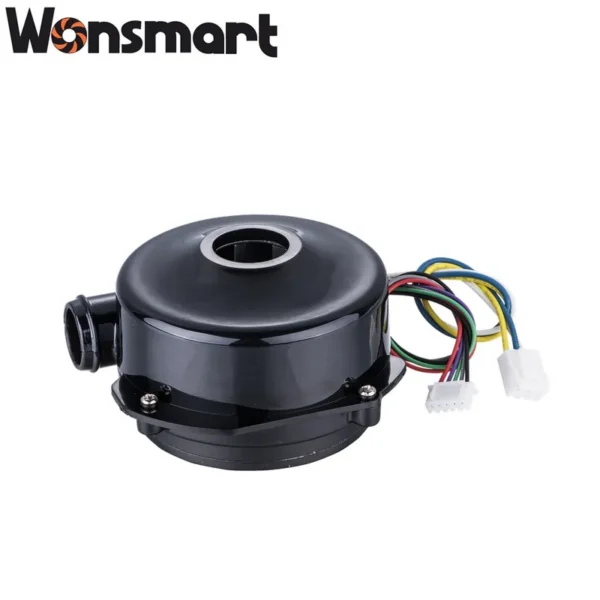

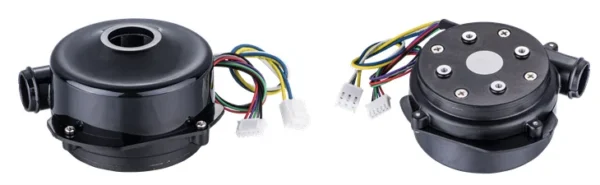

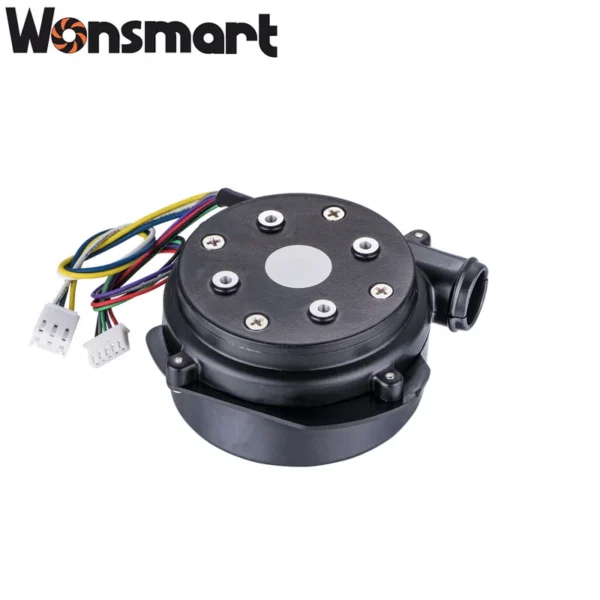

80mm small size 8kpa high pressure 28CFM air flow WS9250 brushless centrifugal soot micro dc blower fan.
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Part Name | micro dc blower fan |
Part No | WS9250-24-240-X200 |
Rated votlage | 24VDC |
Max power consumption | 160W |
Life time(MTTF) | >20,000hours |
Unit weight | 0.4kgs |
Bearing | NMB Ball bearing |
Unit size | D80*L57.5mm |
Insulation class | Class F |
Driver board | External |
Speed control | PWM or 0~5V |

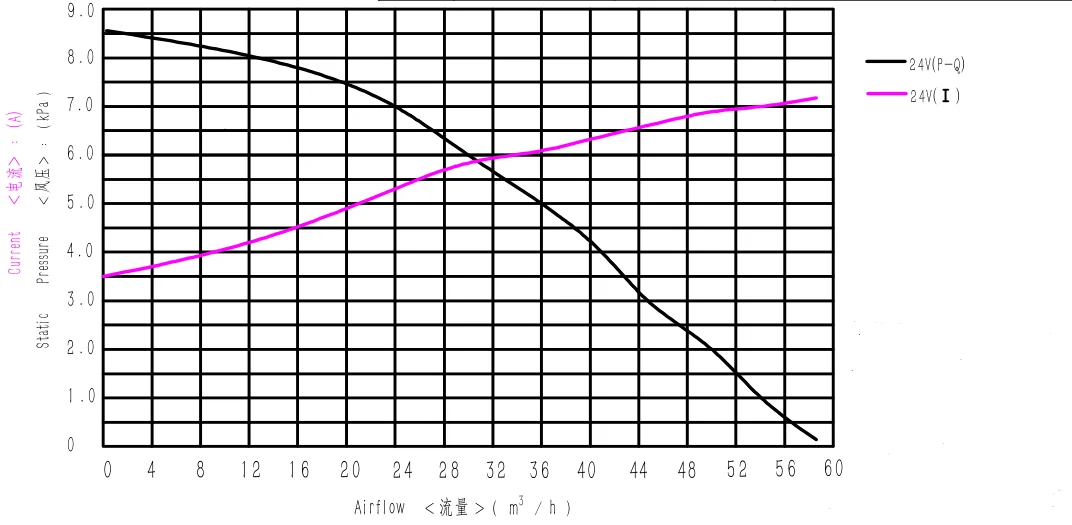

P-Q Curve for 48V dc brushless micro dc blower fan
WS9250-24-240-X200 blower fan airflow against air pressure performance curve as
left chart.
@Free blowing | @working point | @static pressure | ||||||||||||||
Speed | Current | Airflow | Speed | Current | Airflow | Pressure | Speed | Current | Pressure | |||||||
[rpm] | [A] | [m3/h] | [rpm] | [A] | [m3/h] | [kPa] | [rpm] | [A] | [kPa] | |||||||
24,141 | 6.32 | 44 | 26,172 | 5.03 | 21.1 | 6 | 30,000 | 2.65 | 8 | |||||||
Wiring diagram for driver controller
If you need to purchase multiple samples for testing, please contact us for more discounts.
Size Information

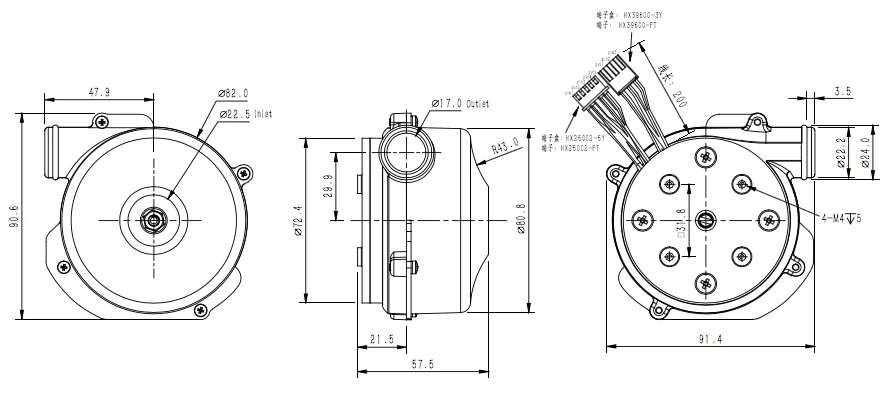

Product drawing as below:
Related Products

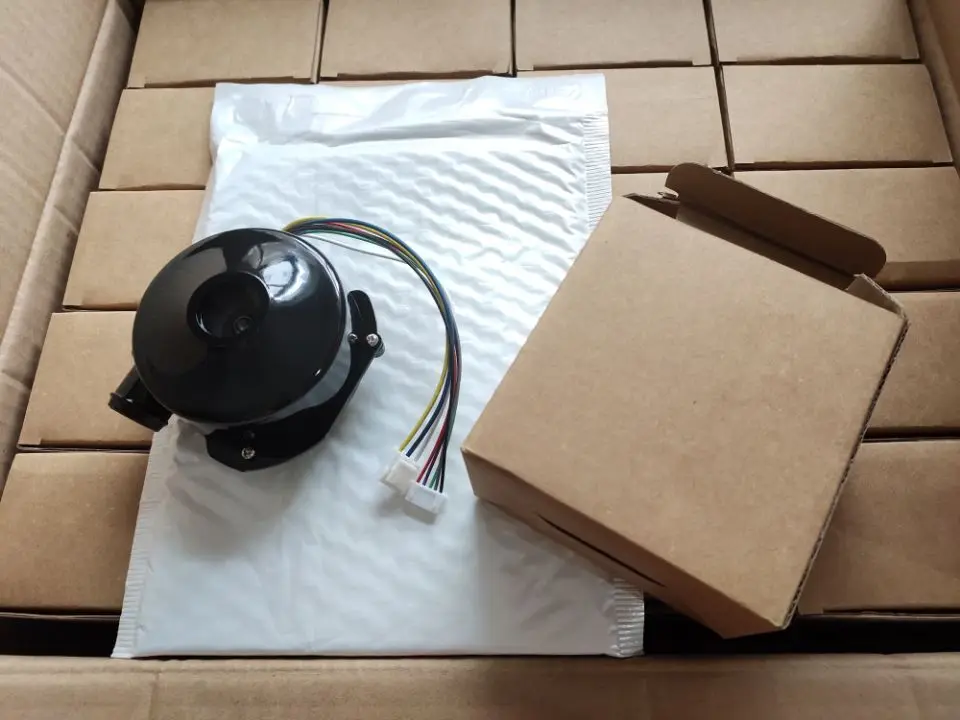

Packing&Shipping
Qty per Ctn: 40pc;
Ctn size:435*335*230mm;
G.W.: 15.5KGS;
N.W.:15KGS;
G.W.: 15.5KGS;
N.W.:15KGS;
Company Introduction
Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dc motors and brushless dcblowers. Our blower’s max airflow reaches 200 cubic meter per hour and a max pressure
of 30 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can
serve more than 20,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure
We are factory with 4,000 square meters and we have been focus on high pressure
BLDC blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

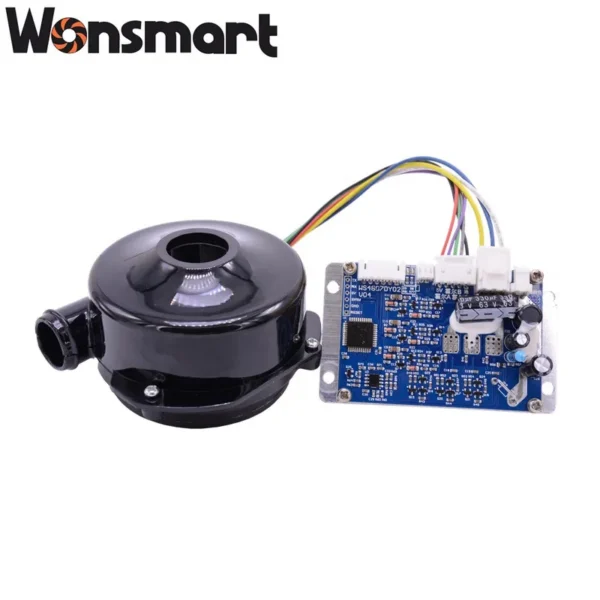

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
a potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
to choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can
ask us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to
insulate the blower noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $38.5 / piece
- 11–49 piece: US $32.9 / piece
- 50–99 piece: US $29.9 / piece
- 100+ piece: US $28.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
