Blower — voltage AC 220V-460V, power source type Battery Powered. The complete factory specification follows. Made by Dongguan Jufu Ventilation Equipment Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Blower
- Model Number: TP-Z
- Power Source Type: Battery Powered
- Power: 1.1-55kw
- Voltage: AC 220V-460V
- Material: Stainless Steel, Carbon Steel
- Blade Material: Stainless Steel/Carbon steel
Technical Specifications
| Duct Diameter | Customized according to customer requirements |
|---|---|
| Mounting | Free Standing |
| Voltage | AC 220V-460V |
| Motor Type | AC Motor |
| Speed | 1450-2900RPM |
| Material | Stainless Steel, Carbon Steel |
| Blade Material | Stainless Steel/Carbon steel |
| Power Source Type | Battery Powered |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Guangdong, China |
| Brand Name | JUFU |
| Model Number | TP-Z |
| Product Name | TP centrifugal fan |
| Air Volume | 822-21890m³/h |
| Air Pressure | 498-8944pa |
| Power | 1.1-55kw |
| Bearing Type | Japan series |
| Feature | High air volume and high air pressure |
| Color | Customers’ Requirements |
| Certification | ISO9001/CE |
| Frequency | 50~60Hz |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

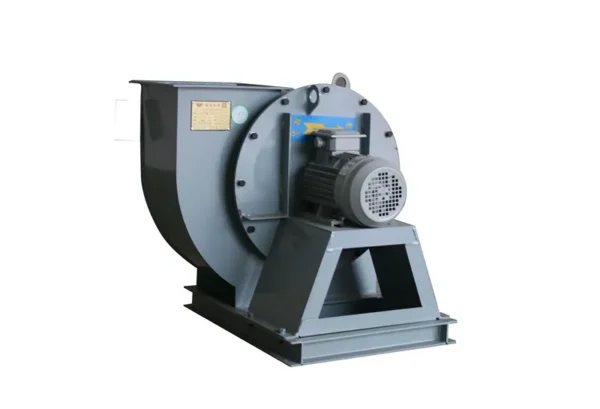

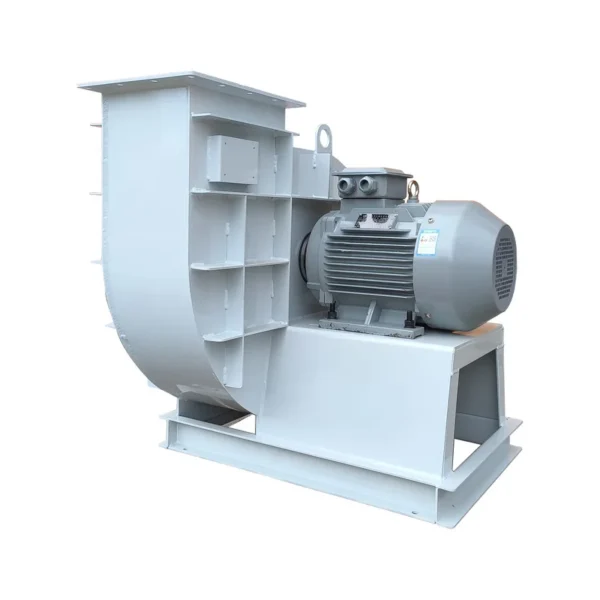

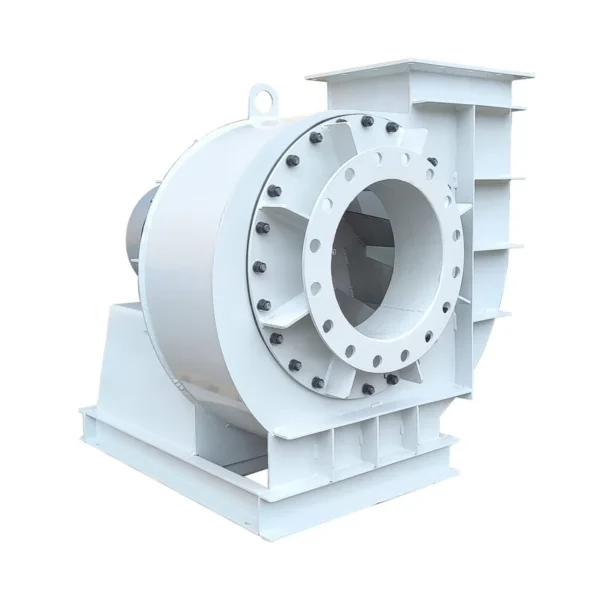

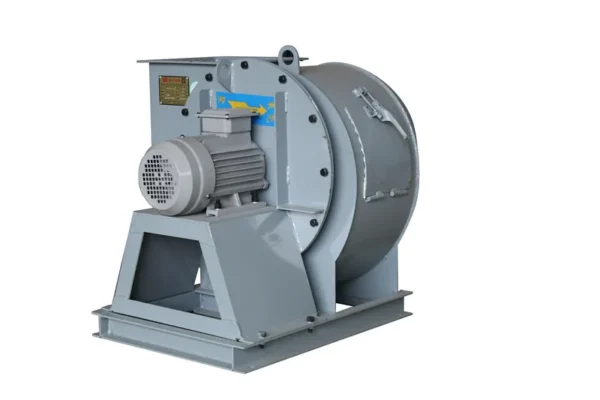

Toupu direct centrifugal fan
Type | Rotate speed(r/min) | Air volume(m3/h) | Air pressure(pa) | Power(kw) |
4A | 2900 | 1650-3570 | 2660-1990 | 2.2-3 |
1450 | 822-1783 | 663-498 | 1.1 | |
4.5A | 2900 | 2345-5080 | 3360-2520 | 4-5.5 |
1450 | 1172-2540 | 840-630 | 1.1 | |
5A | 2900 | 3220-6970 | 4290-3250 | 7.5-11 |
1450 | 1607-3486 | 1073-812 | 1.5 | |
5.6A | 2900 | 4520-9790 | 5380-4080 | 11-15 |
1450 | 2260-4895 | 1345-1020 | 2.2 | |
6.3A | 2900 | 6540-14185 | 7040-5335 | 22-30 |
1450 | 3105-6730 | 1585-1200 | 2.2-3 | |
7.1A | 2900 | 9366-20306 | 8944-6776 | 45-55 |
1450 | 4440-9635 | 2010-1530 | 5.5 | |
8A | 1450 | 6590-15370 | 2770-1990 | 11 |
9A | 1450 | 9380-21890 | 3500-2520 | 15-18.5 |
Q2：What is the MOQ of your company
A2：The minimum order quantity of our company's fan is one
Q3：Does your company support personalized customization
A3：Yes, as long as you provide us with relevant data, we can produce according to your requirements
Q4：Does your company have after-sales service
A4：Our company has a one-year warranty period, and we have a perfect after-sales team to provide you with corresponding technical support
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $900 / set
- 10+ set: US $600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this blower carry?
It is supplied with ISO9001/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the blower be supplied for my local voltage?
The standard configuration is AC 220V-460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Jufu Ventilation Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Jufu Ventilation Equipment Co., Ltd. range on HVACR Nexus.
