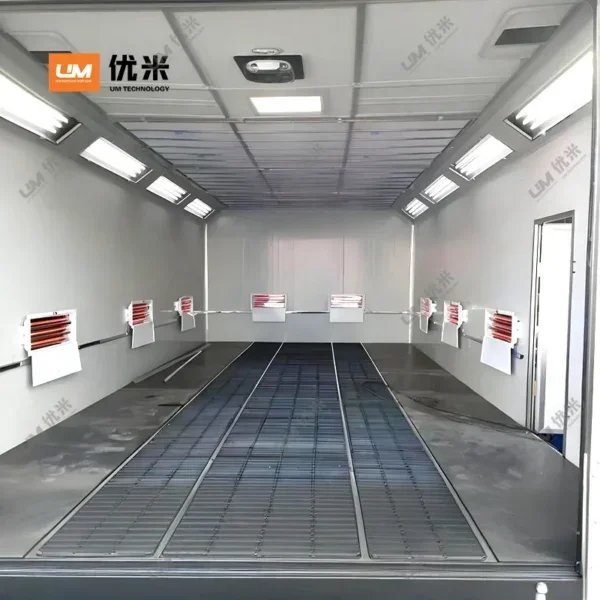

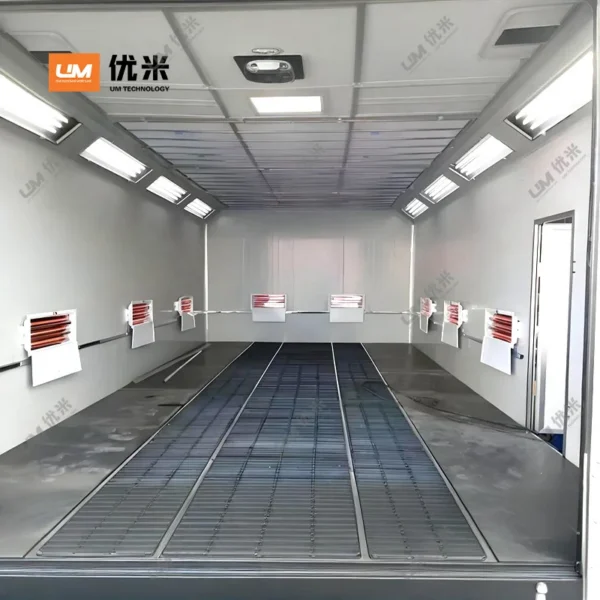

This booth with explosion-proof fan is published with the manufacturer’s full specification — 380v/3phase/50hz, 220v/380v/3phase/50hz, 35KW(46.94hp). Made by Shandong UM Technology Co., Ltd. (5 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Booth With Explosion-Proof Fan
- Model Number: UM-E94
- Power: 35KW(46.94hp)
- Voltage: 380v/3phase/50hz, 220v/380v/3phase/50hz
- Warranty: 24 months
- Place Of Origin: Shandong, China
- Application: Car Care Equipment
Technical Specifications
| Type | Spray Booths |
|---|---|
| External Size | 7000*4000*3250mm(275.59*157.48*127.95in) |
| Heating System | Electric Heating, riello diesel burner, Infrared Heating, natural gas burner, diesel burner |
| Power | 35KW(46.94hp) |
| Lighting System | energy saving led light |
| Place Of Origin | Shandong, China |
| Voltage | 380v/3phase/50hz, 220v/380v/3phase/50hz |
| Brand | UM |
| Model Number | UM-E94 |
| Warranty | 24 months |
| Product Name | Paint Booth |
| Color | Red/blue/white/orange or customized |
| Basement | Galvanized Non-slip Floor |
| Wall Panel | 50/75mm EPS / Rock Wool |
| Environmental Certificate | CE /ISO Certification |
| Filter System: | Environmental 3 Filter Process |
| Application | Car Care Equipment |
| MOQ | 1 Set |
| Selling Units | Single item |
| Single Package Size | 70X50X50 cm |
| Single Gross Weight | 30.0 kg |
Product Details
Product Description
Tired of compromising between quality, cost, and space? Meet the game-changer for auto refinishing professionals. Our state-of-the-art automotive paint booths are engineered to deliver superior performance, exceptional value, and unparalleled flexibility, ensuring a perfect finish every time while slashing your operational expenses.
SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTH | ||||||
Outer size (mm) | 7000*5150*3250mm | Inner size (mm) | 6900*3900*2600mm | |||
Gate (mm) | 2900*2570mm | Personal door (mm) | 700*1800mm | |||
Power | 35.5kw/11kw | Voltage | 380v/3ph/50hz or customized | |||

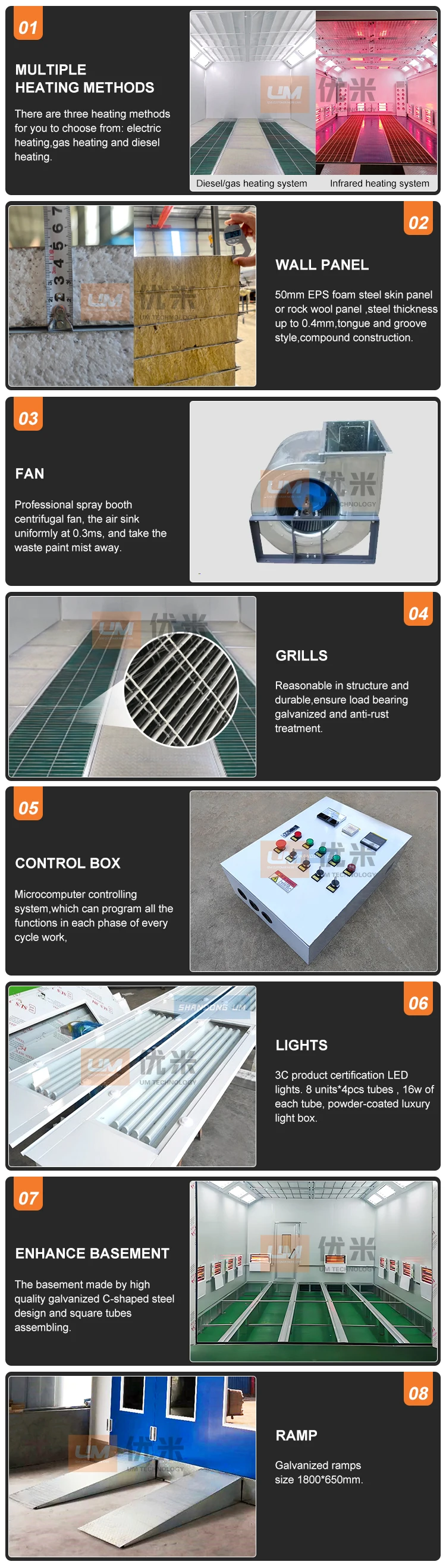

Cabinet system | Wall panel | EPS colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue & groove style,compound construction, galvanized steel roof panel. | ||||
Basement | The basement made by high quality galvanized C-shaped steel design and square tubes assembling. 2 rows of grills made by flat barand round steel,30*4mm. 3 rows of diamond plates, galvanized. | |||||

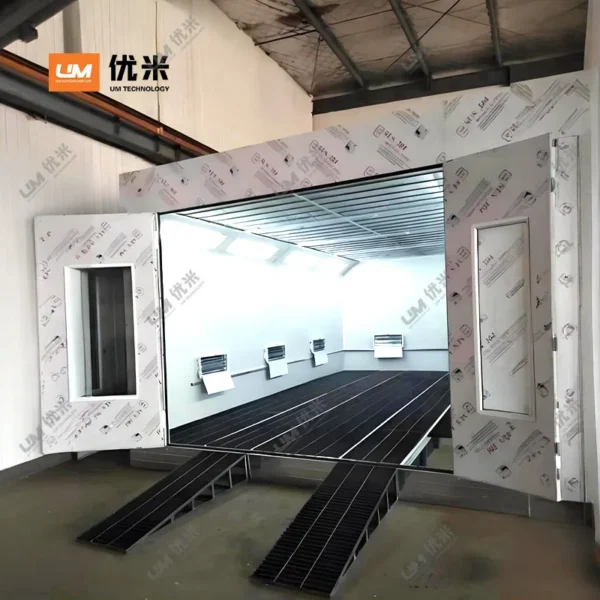

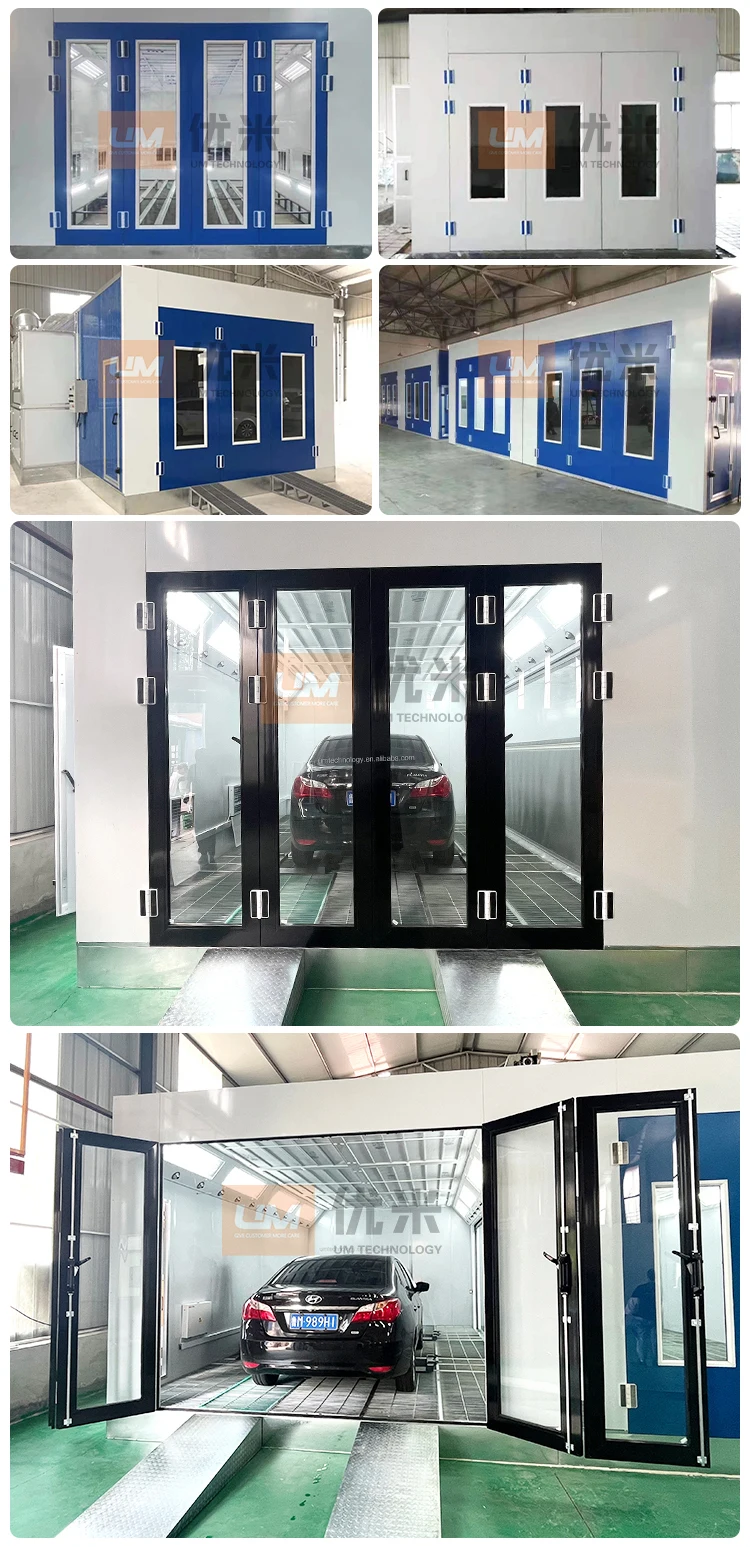

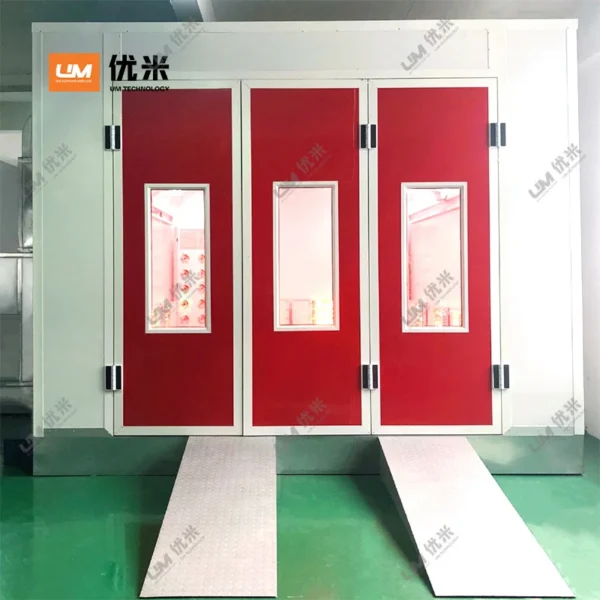

Entry door | Folding door, 3pcs, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window. | |||||
Personal door | Size 650mm(W)*1700mm(H), with 5mm thick tempered glass window. （There is a pressure lock on the door, which will automatically open when the indoor air pressure is too large.） | |||||
Ramp | One pair of galvanized ramps, size 1800*650mm. | |||||
Air circulation system | Intake fan | Two sets of 3KW Double-intake centrifugal fan, air capacity 20000m³/h in total. | ||||
Exhaust fan | One set of 4KW exhaust fan, air capacity 12500m³/h in total. | |||||
Fan cabinet | Fan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and professional flange. | |||||
Roof system | Beam | Made by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet. | ||||
2-layer structure | The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15 galvanized square tubes, powder-coated on the surface. | |||||
Purfication system | Intake filter | Intake filter is high quality imported filter, could capture the articles larger than 10μm. | ||||
Celling filter | High efficiency filters made in Italy, could capture the articles larger than 5μm. | |||||
Floor filter | The floor filter is fiberglass filter, TSP≤14mg/m³. | |||||
Heating system | Electric heating system | 8 groups infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover,total 24 tubes. Infrared heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. | ||||
Diesel heating system | RIELLO G10 diesel burner with heating exchanger, made of 1.5mm stainless steel SUS304. | |||||
Lighting system | Ceiling light | 8 Units, total 32pcs, 36w LED lamp, with Light Fixtures. | ||||
Control system | Switched Control Panel | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | ||||

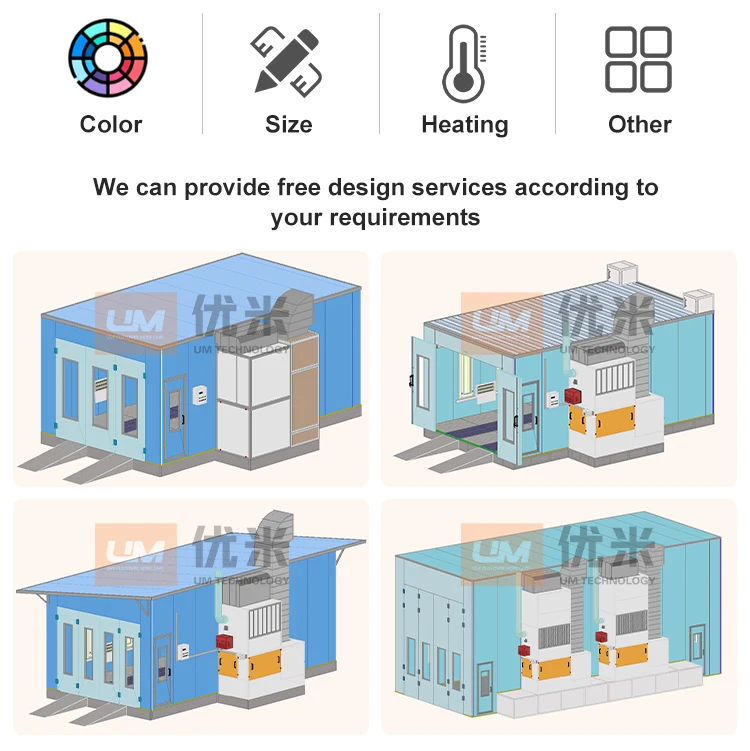

Customized Service
Customized Solutions For Professional Automotive Spray Booth
We provide customized paint booth solutions based on your workshop space, budget,and painting needs. Whether it's size, material, or functional configuration, they can be adjusted as needed to ensure a perfect fit for your work environment.
Product Details

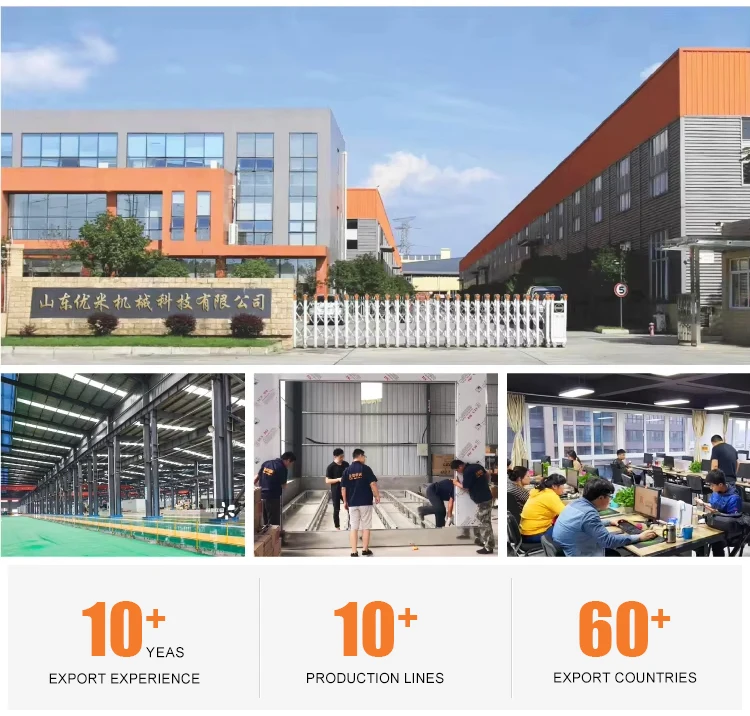

Company Profile
Shandong UM Technology Co.,Ltd is a professional manufacture of spray booth,powder coating line and environment protecting equipment. Our main products includes of car spray booth,furniture spray booth,bus/truck spray booth,powder coating line,powder coating oven,car lifts,car frame machine etc.
We not only supply good products but also good after-service, and we are always ready to serve our customers wholeheartedly.

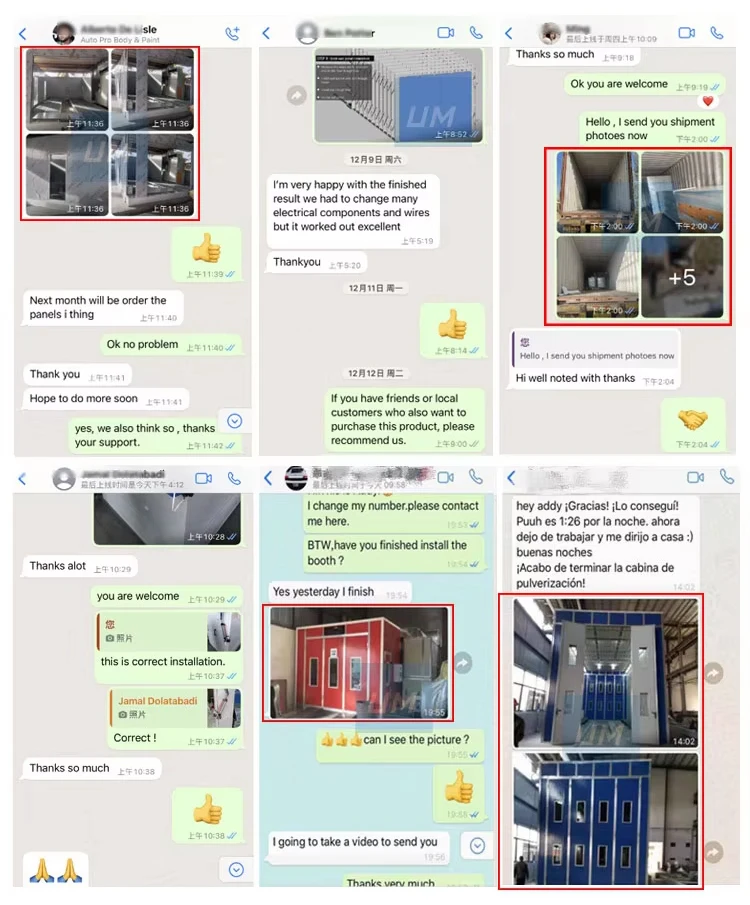

Customer Reviews

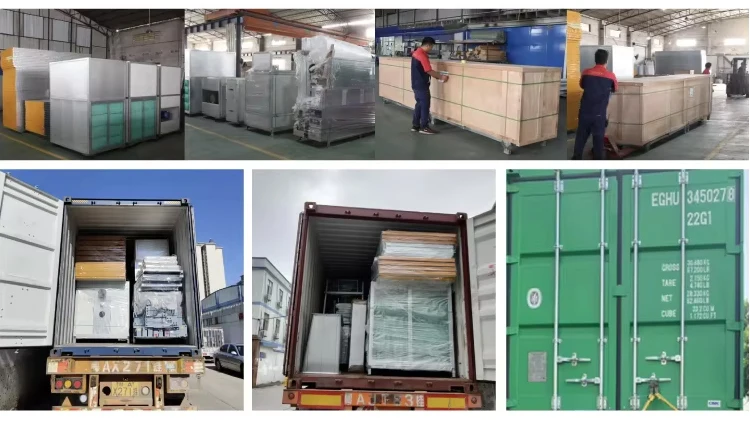

Product Packaging
Related Products
FAQ
Q: How do you ganrantee the production quality? A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment. Q: As for auto spray booth,what kind of heating system do you have? A: We have electric heating system,diesel heating system and gas heating system.It depends on which energy is more cheap in your local. Q: What is the advantages of inlet fans and exhaust fans? A：With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as possible.Pollution is small,it will be comfortable when people are working in the booth. Q: Can I open the ventilator and heating system at the same time? A: When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking. Q: May I know the Lead time? A:The lead time of our machine is 7-25 days. When you order more, we need to check the production schedule. Q: What is the regular color? May I order a special color I like? A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you. Q: Can you supply OEM service? A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market. Q: What is the warranty time? A: Warranty time is 24 months. Parts have free replacement when damaged during this time.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $4894 / set
- 3–4 set: US $4500 / set
- 5–9 set: US $4200 / set
- 10+ set: US $3694 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this booth with explosion-proof fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 24 months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this booth with explosion-proof fan carry?
It is supplied with CE /ISO Certification documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the booth with explosion-proof fan be supplied for my local voltage?
The standard configuration is 380v/3phase/50hz, 220v/380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
