The box bldc exhaust fan listed here carries 220V, power source Electric, documented exactly as the manufacturer publishes it. Made by Dongguan Minxin Industry Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Box Bldc Exhaust Fan
- Model Number: 800mm
- Power Source: Electric
- Voltage: 220V
- Rated Voltage: 220v
- Material: Stainless Steel
- Blade Material: galvanized Sheet
Technical Specifications
| Voltage | 220V |
|---|---|
| Speed | 466rpm |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | galvanized Sheet |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM, Private labeling |
| Place Of Origin | Guangdong, China |
| Brand Name | MINXIN |
| Model Number | 800mm |
| Fan Type | Industrial Exhaust Ventilation Box Cooling Fan |
| Motor | 100% Full Copper Motor |
| Size | 80*80*35cm |
| Rated Voltage | 220v |
| Function | Ventilation, Exhaust and Cooling |
| Mount Type | Through wall mount/ window mount |
| Product Keywords | greenhouse fan, ventilation fan industrial, poultri farm for sale |
| Feature | High Performance, Lower Cost, Large Air Volume |
| Application | Factory, Warehouse, Greenhouse |
| Selling Units | Single item |
| Single Package Size | 130X130X80 cm |
| Single Gross Weight | 50.000 kg |
Product Details
Related Products
Product Description

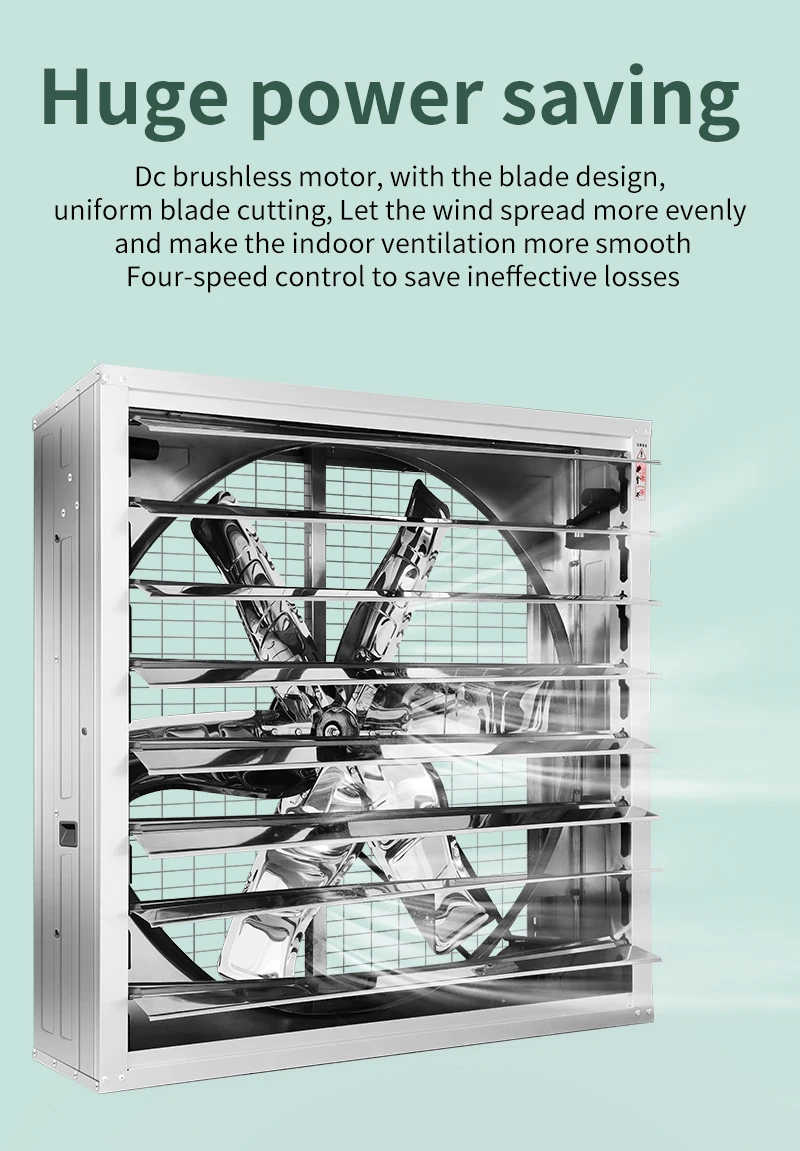

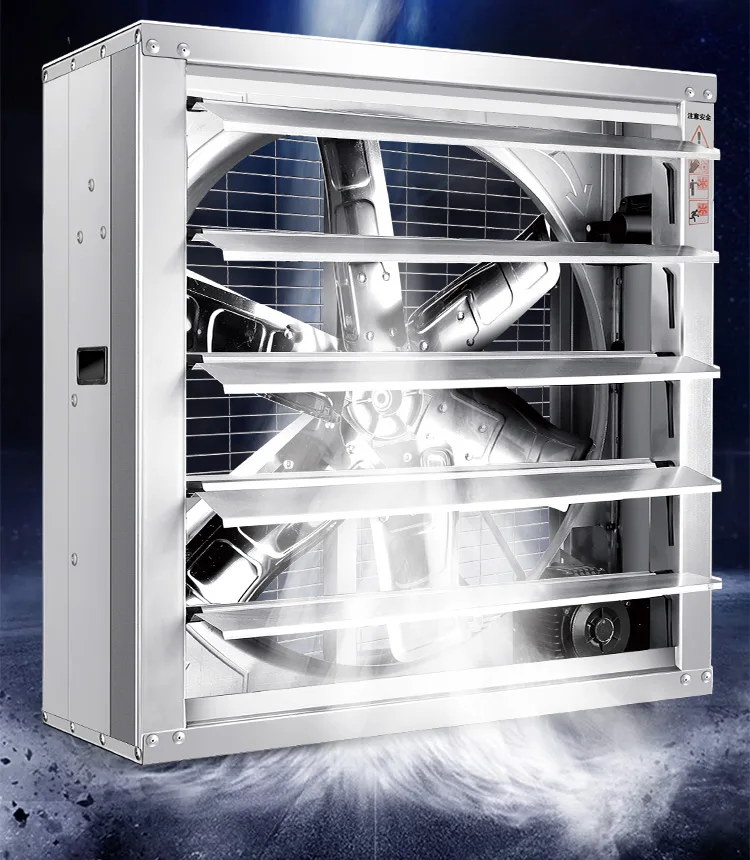

MX-900# 220V 50Hz Energy Electricity Power Saving 4 Speed Box BLDC Exhaust Fan Intelligent Inverter DC Fans with Remote Control
Details Images

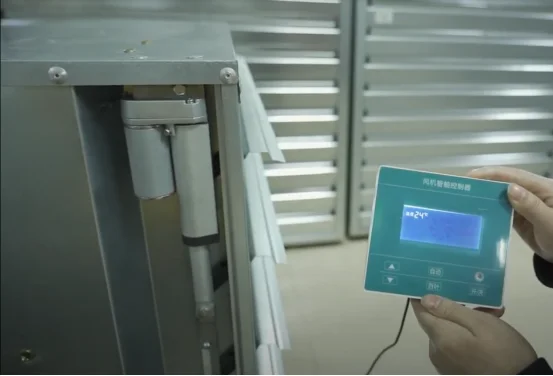

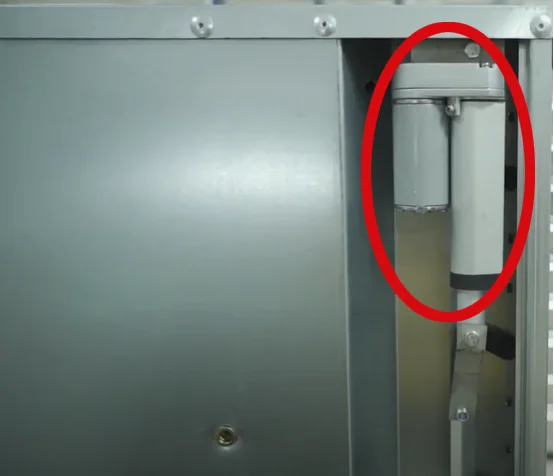

Shutters operated by linear actuators, which are ensured be entirely open or closed

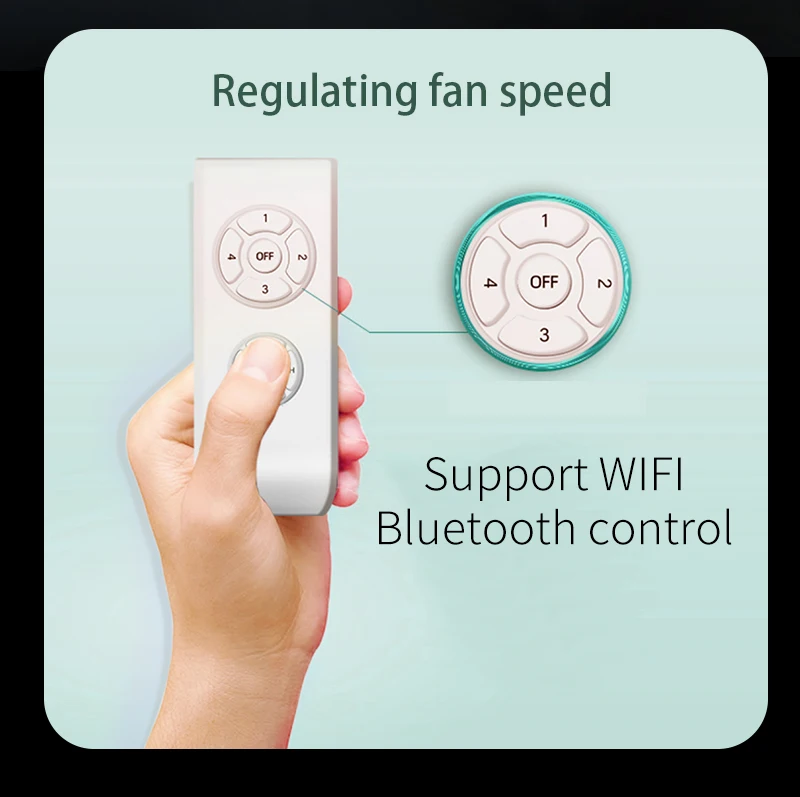

Coming with remote control, easily control the industrial exhaust fans which are installed high above

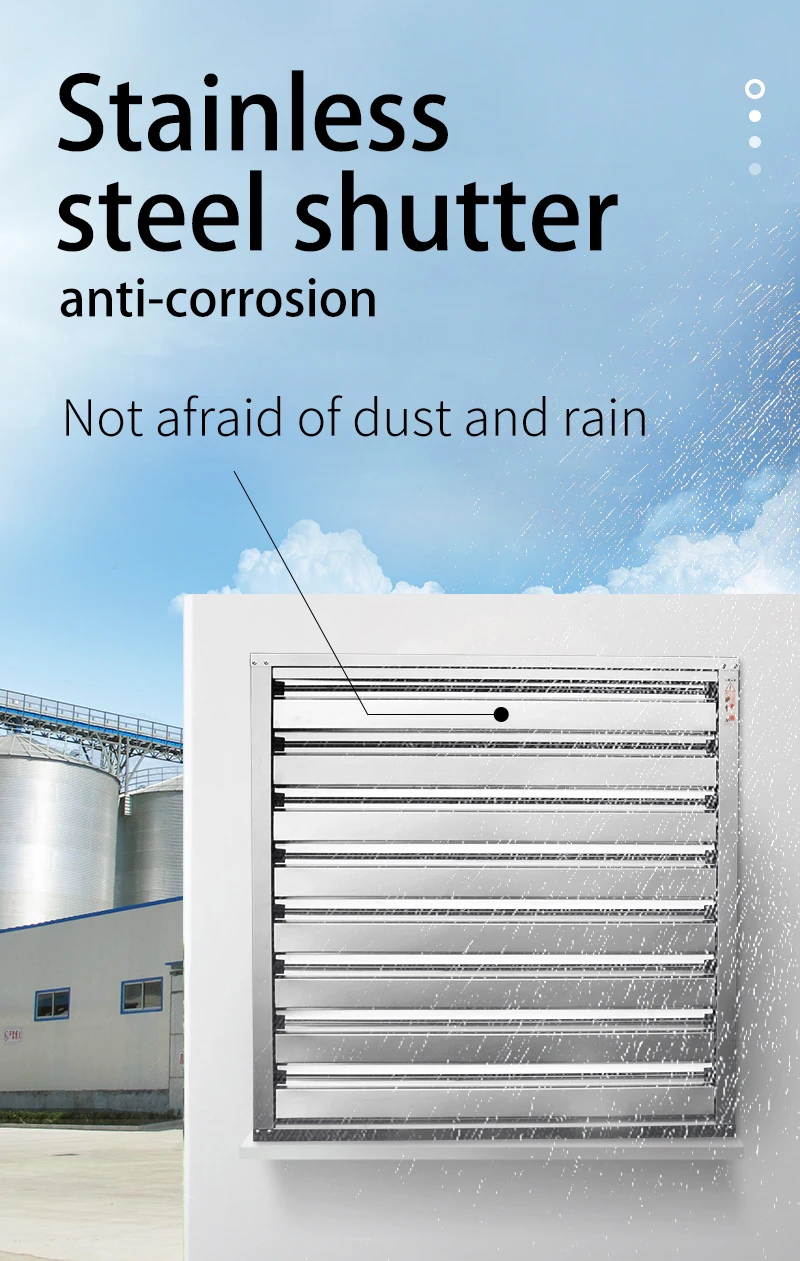

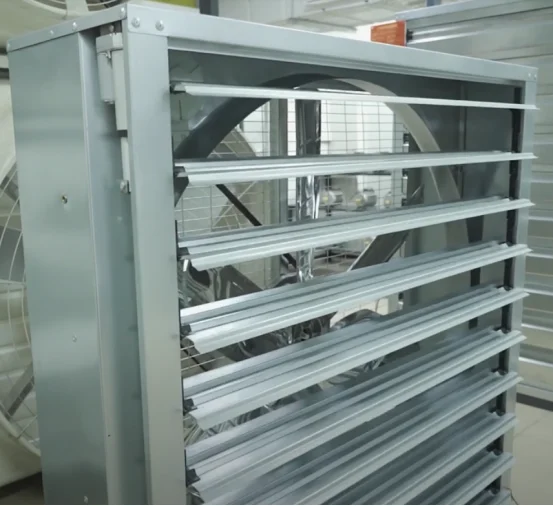

90° Fully Open Fan Louver
Shutters can be open or closed independently for natural ventilation.

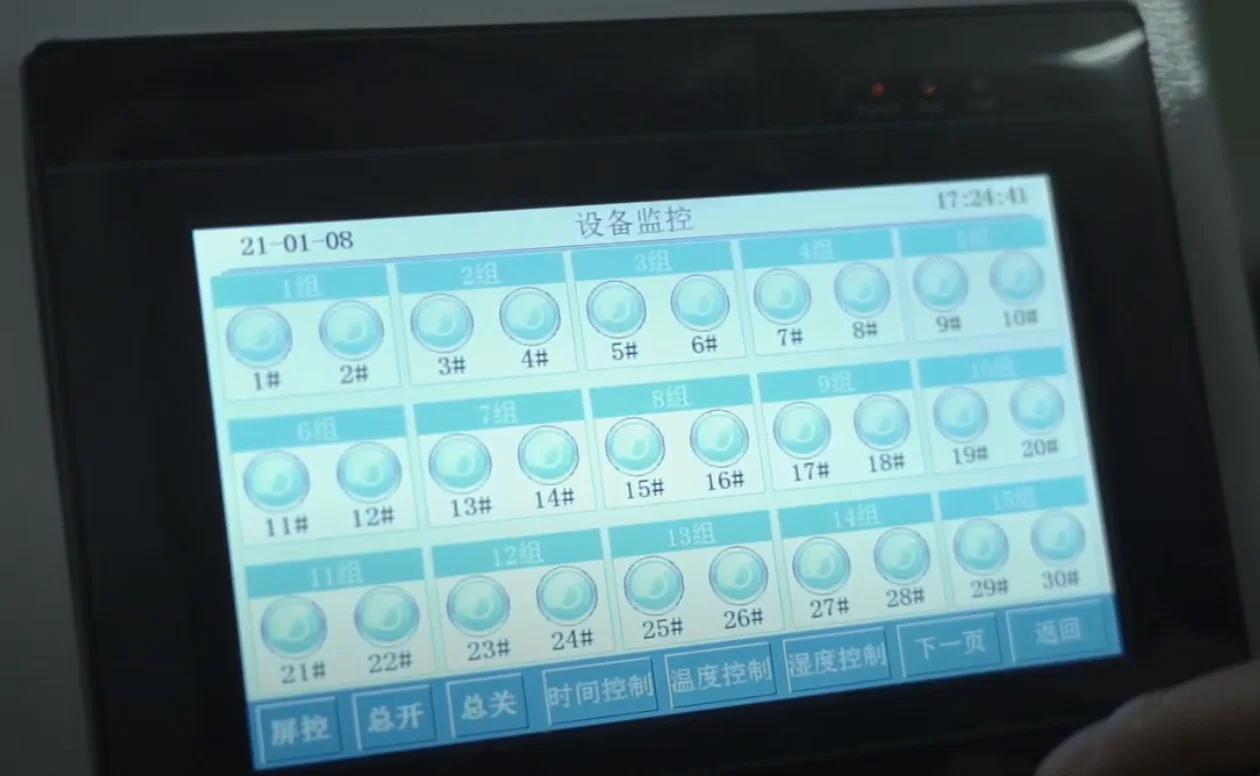

Themrostat Control System
Optional Minxin thermostat control system enables the users to open or close exhaust fans up to 30 sets. Exhaust fans can be set to operate automatically by temperature or humidity at set speed.

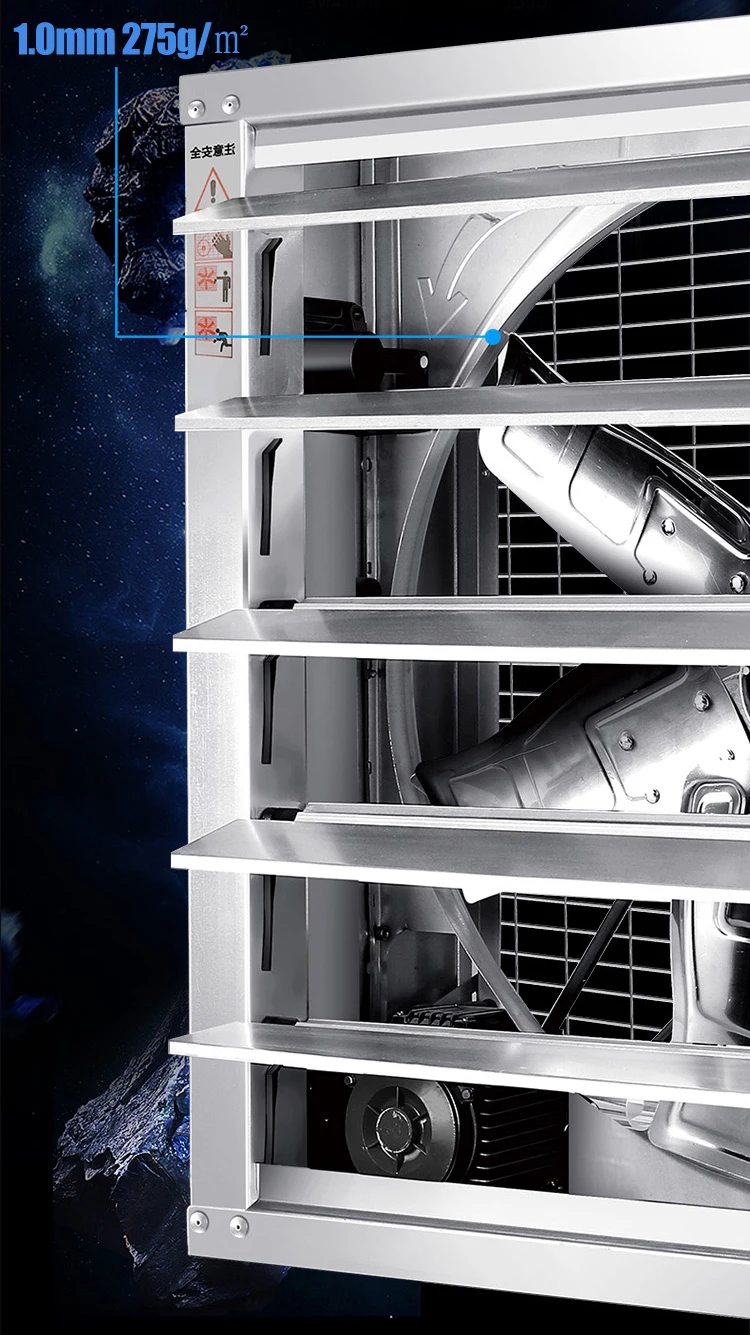

Robust material, 1.0mm 275g/㎡galvanized steel fan frame

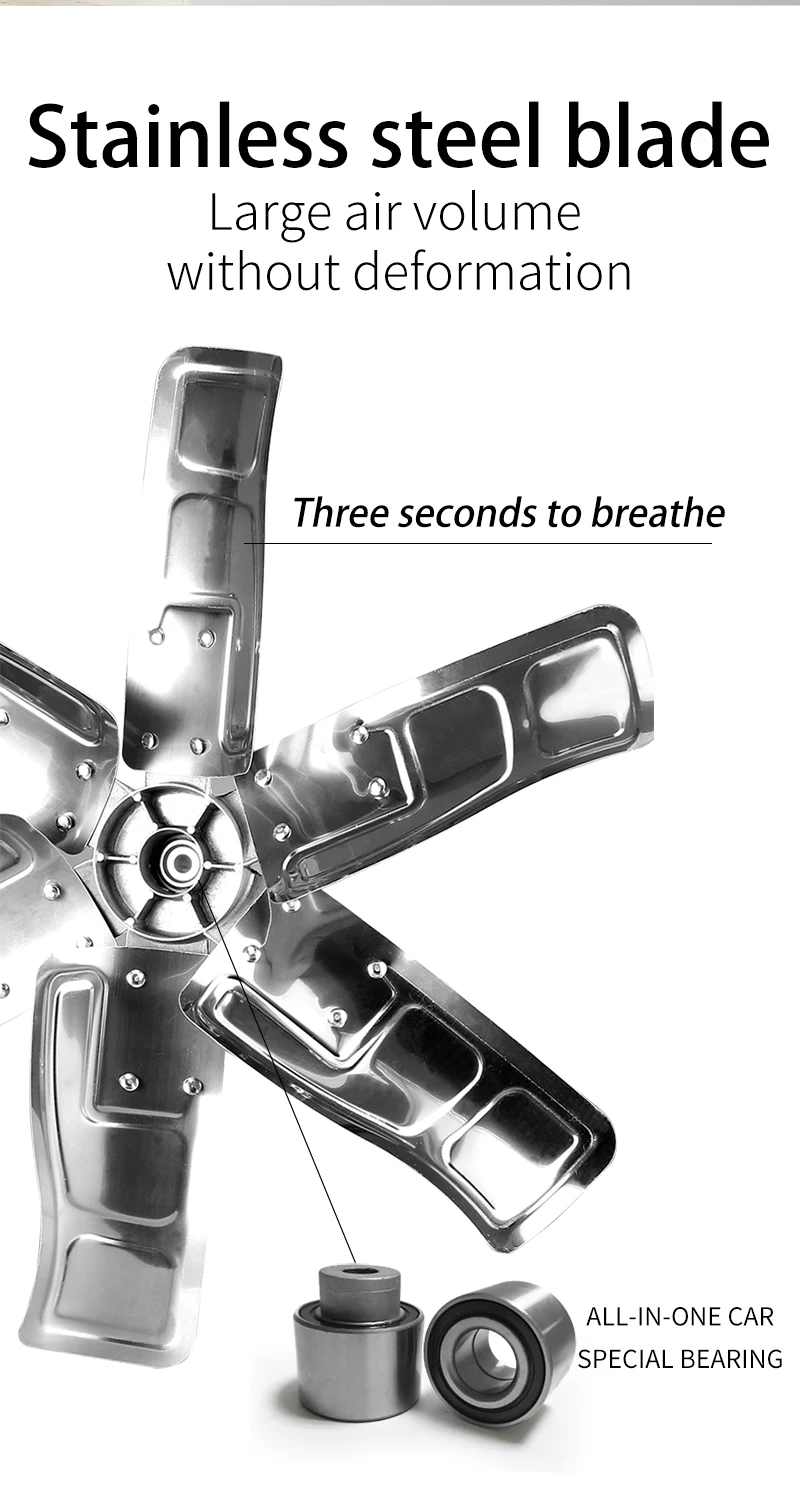

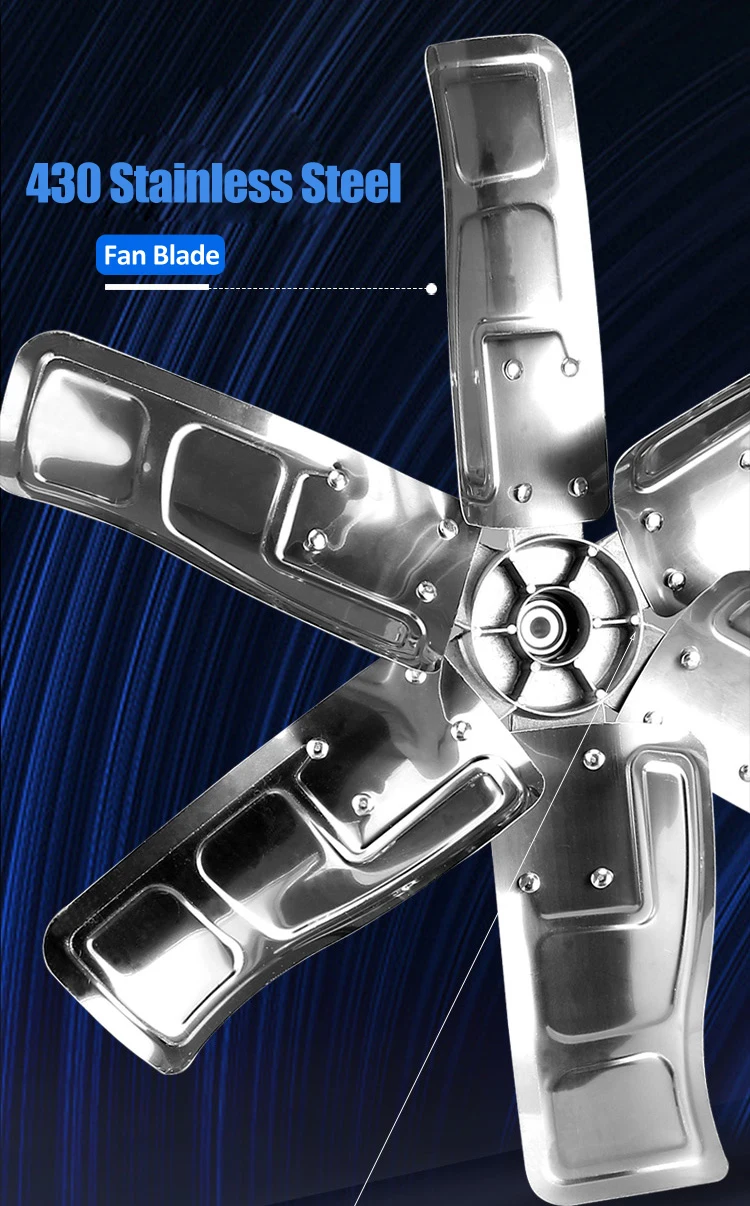

430 stainless steel fan blades, high durability up to 8 years
Large ventilation capacity

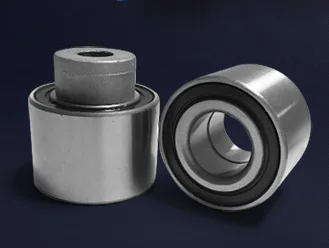

One Piece Durable Automatic Bearing

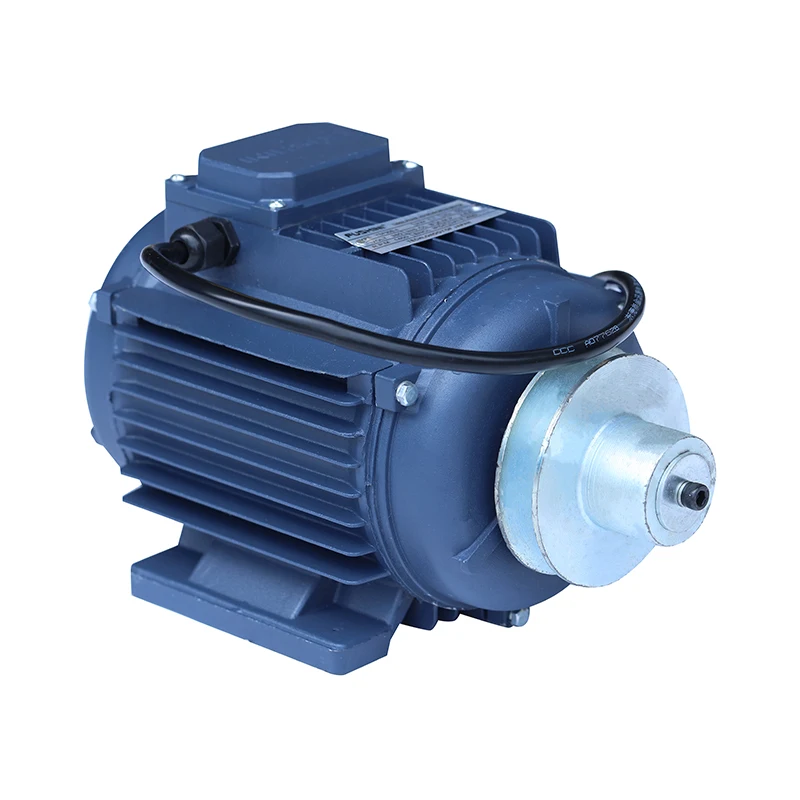

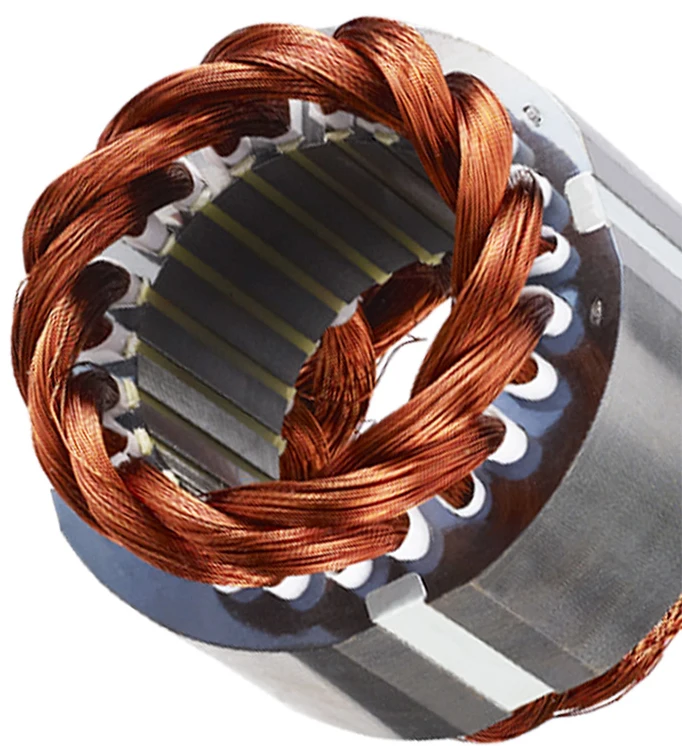

High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor
Size Information
Model | Dimensions | Air Flow | Power | Workable Areas | Fan Speed | Noise |
300# | 300mmx300mmx200mm | 1200CFM | 150W | 5~20㎡ | 2200rpm | <50db |
400# | 400mmx400mmx300mm | 1500CFM | 250W | 20~40㎡ | 1400rpm | <55db |
500# | 500mmx500mmx300mm | 3000CFM) | 250W | 25~50㎡ | 1400rpm | <55db |
600# | 600mmx600mmx300mm | 4700CFM | 250W | 50~60㎡ | 960rpm | <55db |
700# | 700mmx700mmx300mm | 6000CFM | 250W | 60~70㎡ | 960rpm | <60db |
800# | 800mmx800mmx300mm | 7650CFM | 250W | 70~80㎡ | 960rpm | <60db |
800# | 800mmx800mmx350mm | 13000CFM | 370 W | 70~80㎡ | 450rpm | <60db |
900# | 900mmx900mmx350mm | 16000CFM | 370 W | 80~90㎡ | 450rpm | <55db |
1000# | 1000mmx1000mmx350mm | 17650CFM | 550 W | 90~100㎡ | 450rpm | <60db |
1060# | 1060mmx1060mmx350mm | 19000CFM | 550 W | 100~120㎡ | 450rpm | <60db |
1100# | 1100mmx1100mmx350mm | 20000CFM | 550 W | 110~130㎡ | 450rpm | <60db |
1220# | 1220mmx1220mmx350mm | 22000CFM | 750 W | 120~140㎡ | 450rpm | <60db |
1380# | 1380mmx1380mmx350mm | 26000CFM | 1100 W | 140~160㎡ | 450rpm | <65db |
1530# | 1530mmx1530mmx400mm | 32800CFM | 1500W | 160~200㎡ | 450rpm | <70db |
1750# | 1750mmx1750mmx450mm | 40000CFM | 1800W | 180~220㎡ | 350rpm | <70db |
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Steel coil sliding and cutting line, steel pipe cutting line
Aluminum Die Cast Tooling & Casting
Plastic Molding & Injection workshop
Motor Copper Coil Winding Line
Motor Assembly Workshop
Stamping Workshop
Wire Guard Welding
Fan Parts CNC Machining
Laser Cutting
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $200 / set
- 2–99 set: US $190 / set
- 100+ set: US $180 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this box bldc exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the box bldc exhaust fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
