Key specification for this cassette air conditioner: power supply 220-240V/1Ph/50(60)Hz, 2.8KW-16KW. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cassette Air Conditioner
- Model Number: Cassette Air Conditioner
- Power Supply: 220-240V/1Ph/50(60)Hz
- Power Input: 17-201W
- Cooling Capacity: 2.8KW-16KW
- Heating Capacity: 3.2KW-18KW
- Refrigerant: R-410A
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Ceiling Mount |
| Compressor Brand | GMCC |
| Fan Motors Type | AC |
| Motor Type | DC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Hospital, Hotel, Home, School, Warehouse, Office, Apartment, Mall |
| Key Selling Points | Explosion-proof, Low Maintenance Cost, Easy To Operate, High Safety Level, High Productivity, Famous Brand Low Voltage Components, Remote Monitoring, Energy Saving, Famous Brand Motor, Individual louver control |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump, Engine, Condenser, Compressor |
| Place Of Origin | Foshan ,Guanghzou |
| Weight (Kg) | 30 |
| Brand Name | Midea |
| Model Number | Cassette Air Conditioner |
| Dimension(L*W*H) | cassette air conditioner |

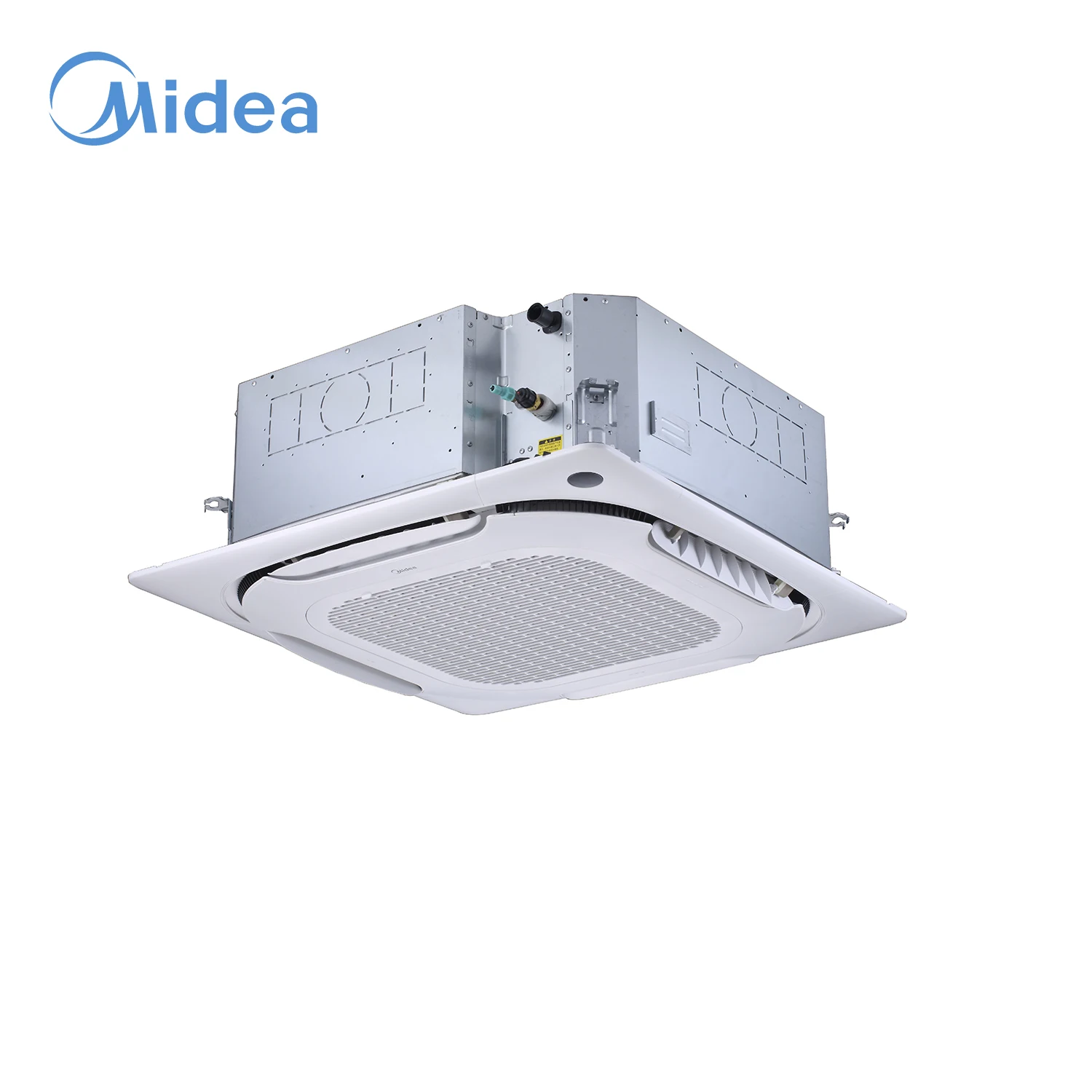

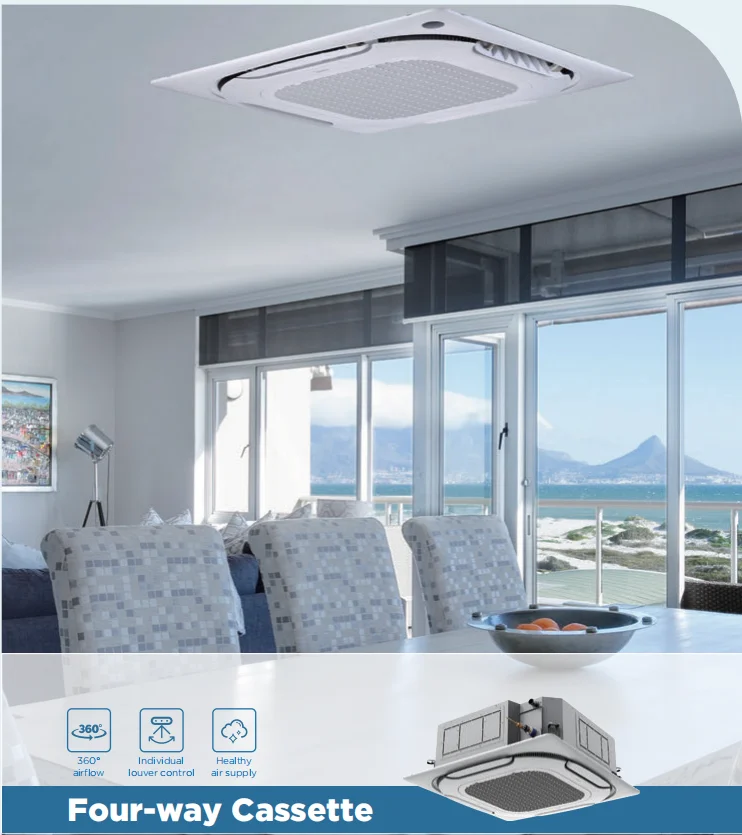

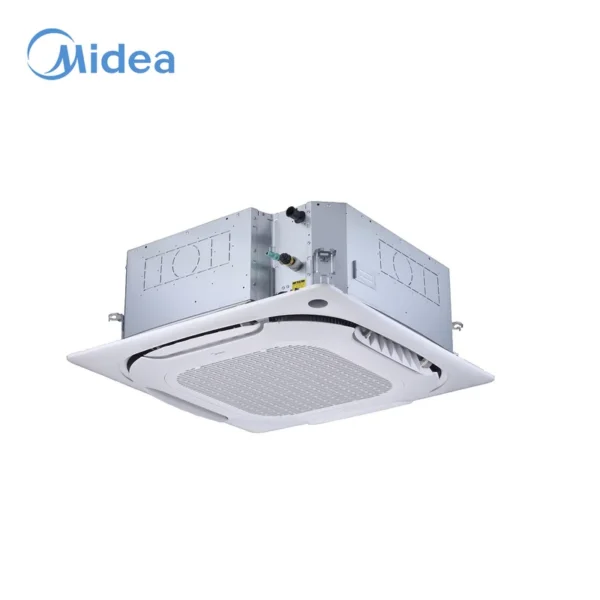

| Product Name | Midea V8 Indoor Unit Four-way Cassette Air Conditioner |
| Power Supply | 220-240V/1Ph/50(60)Hz |
| Function | Heating and cooling |
| Cooling Capacity | 2.8KW-16KW |
| Heating Capacity | 3.2KW-18KW |
| Sound Pressure Level4 | 42.5/41/39/37/35/32/30dB(A) |
| Refrigerant Type | R410A/R32 |
| Power Input | 17-201W |
| Brand | Midea |
| Selling Units | Single item |
| Single Package Size | 100X100X9 cm |
| Single Gross Weight | 8.0 kg |
Product Details

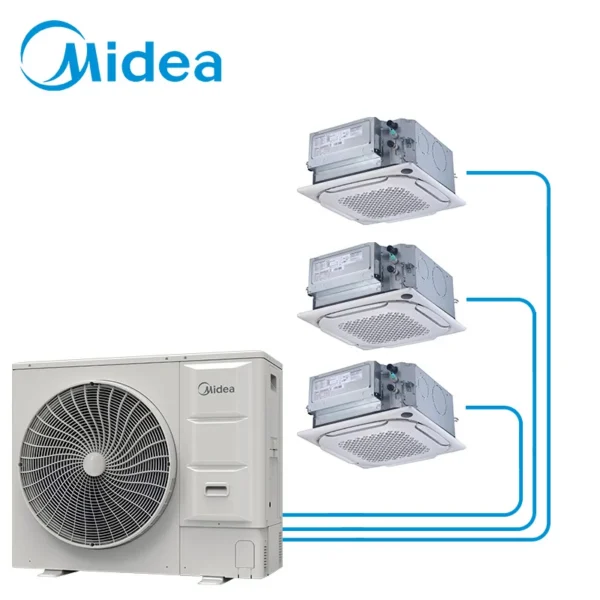

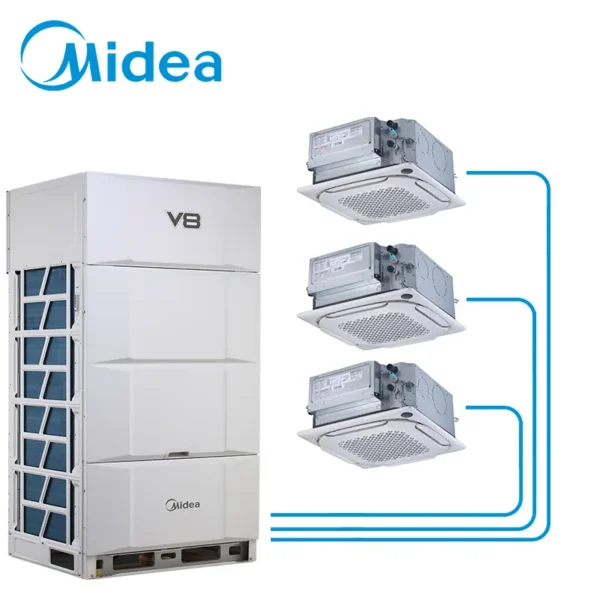

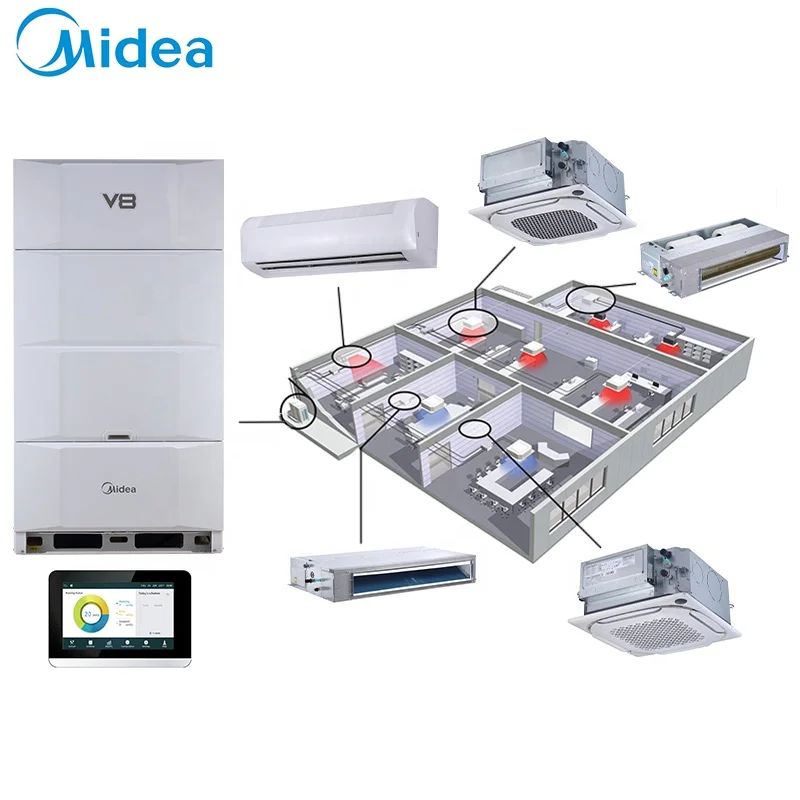

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.

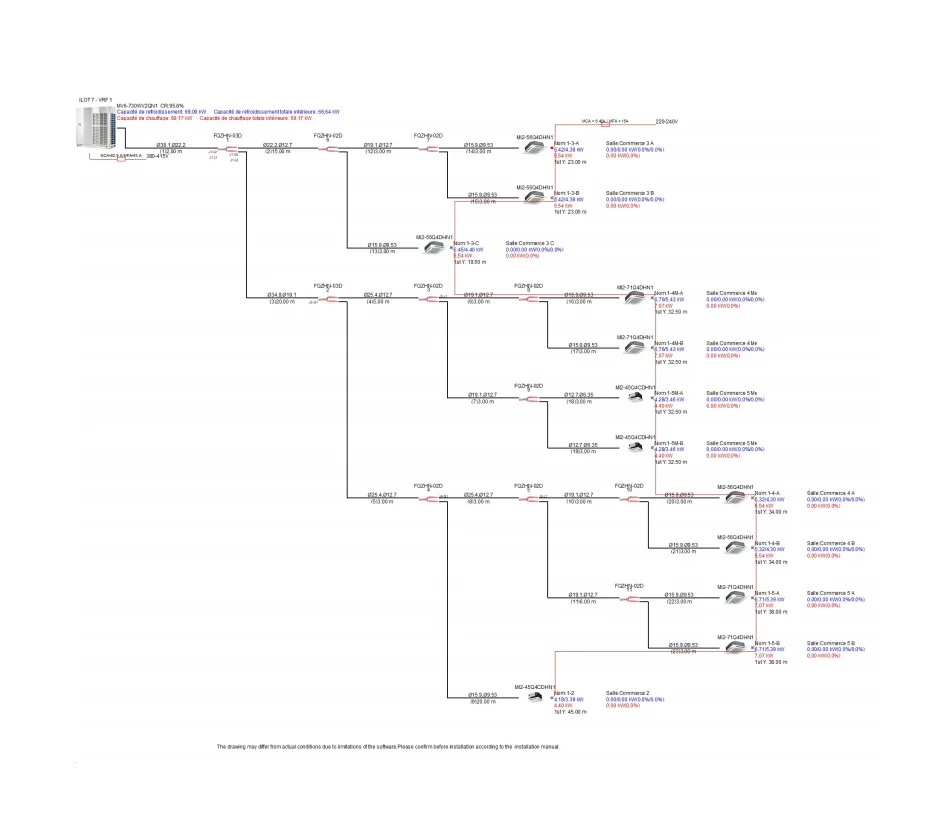

Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
Why Choose Us
1.Experience
More than 50 years of overseas HVAC project experience，we have successfully completed hundreds of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design

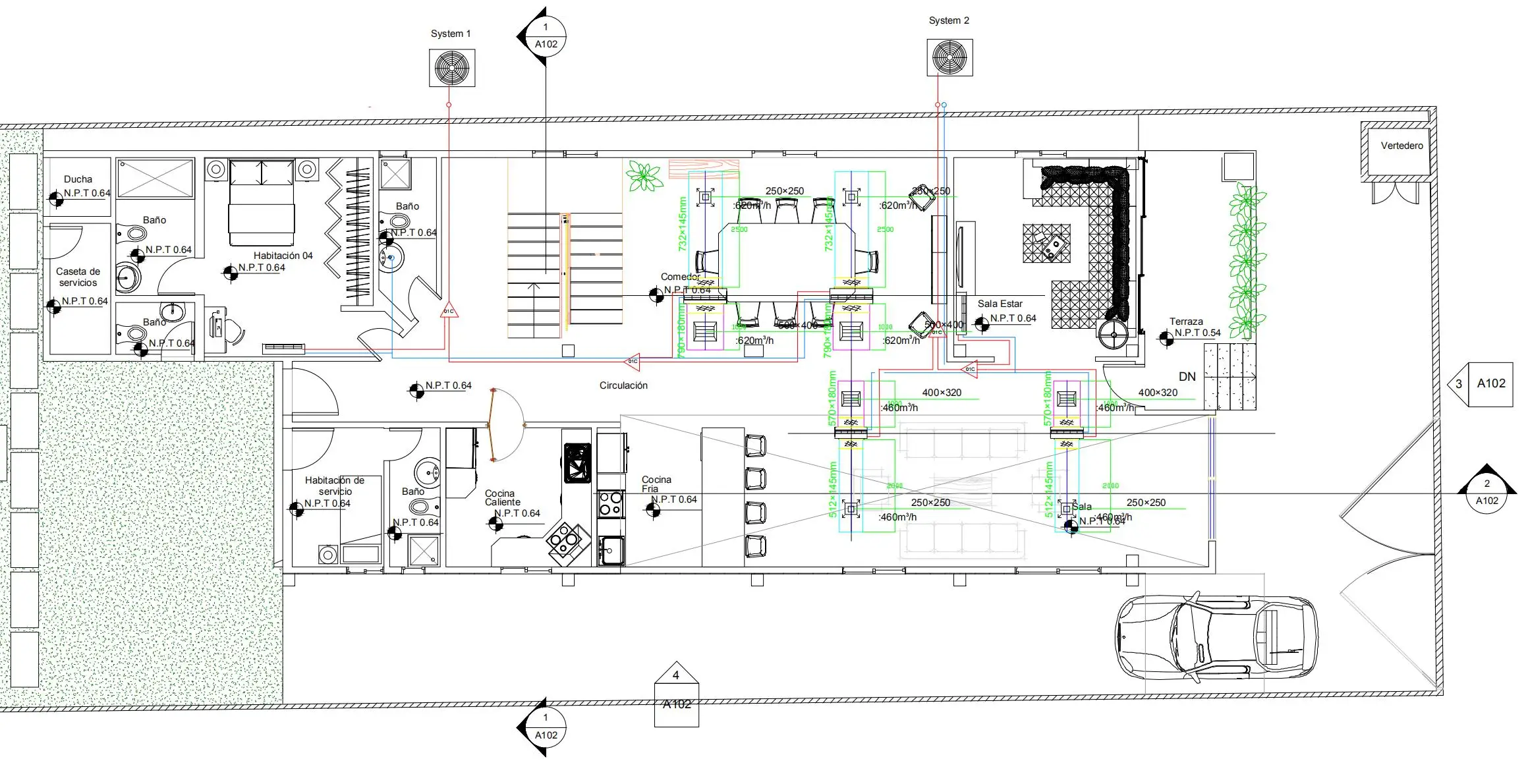

Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint. in this case, you do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you !
3.Professional selectoion
Based on Midea diversified commercial air conditioning system, we can select the most suitable model for your project according to the drawings.
4.Providing One-Stop Solution of HVAC System

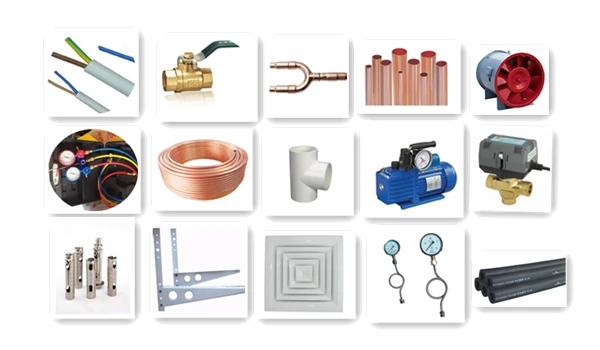

One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control system, installing accessories(refrigerant copper pipe, UPVC pipes, rubber insulation, hoist,brackets, communication wire etc), refrigerant tools(vacuum pump, cutter,expansion tools etc), ventilation grill & diffuser etc.
5.Technical Support

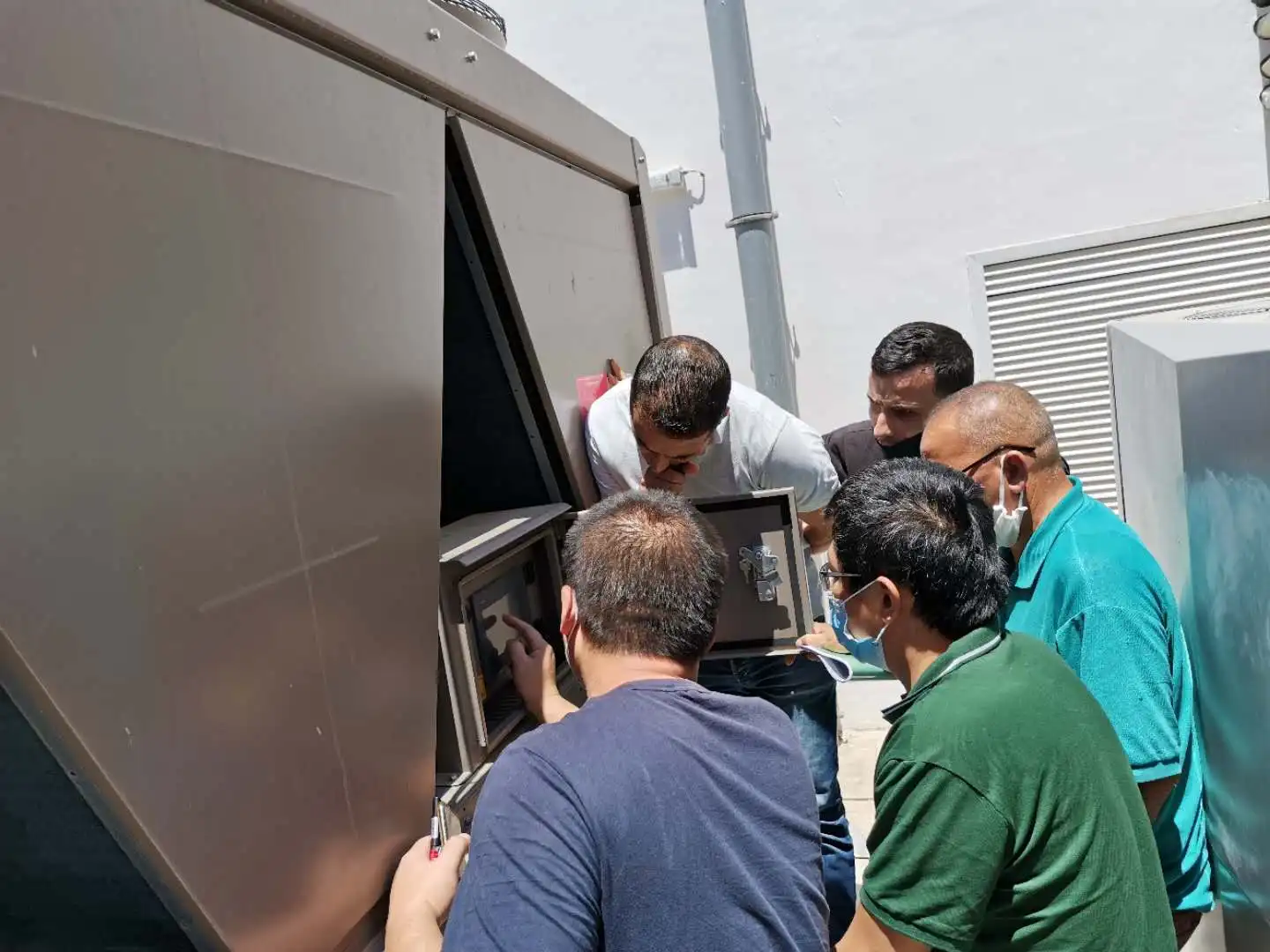

HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise service. Ensure your after-sales worry-free.
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc. 3.Expected shipping date of this project. 4.Project type: tender or self-owned.

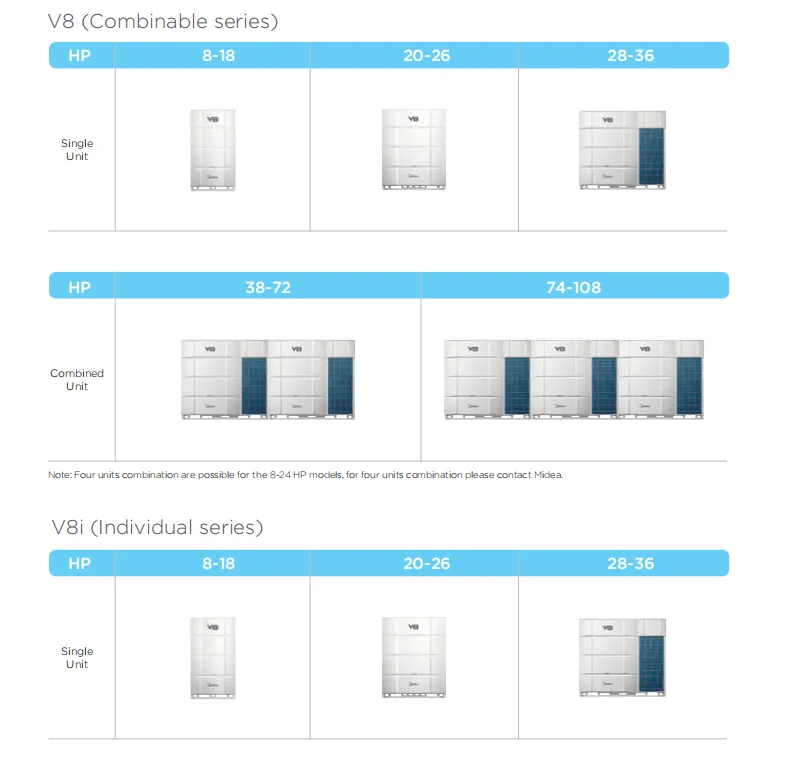

Product Line
Product name | Midea V8 Indoor Unit Four-way Cassette Air Conditioner | ||||||
Power supply | 220-240V/1Ph/50(60)Hz | ||||||
Cooling1 | Capacity | 2.8KW-10KW | 9.6-34.1KBtu/h | ||||
Input | 17-74W | ||||||
Heating2 | Capacity | 3.2KW-11.2KW | 10.9-38.2KBtu/h | ||||
Input | 17-74W | ||||||
Airflow rate 3 | (m3 /h) | 790/706/662/621/577/533/492-1470/1360/1256/1143/1031/922/811 | |||||
Sound pressure level 5 | dB(A) | 43-25 | |||||
Refrigerant type | R410A/R32 | ||||||
Drain pipe | mm | OD Ф25 | |||||
Notes:
1.Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2.Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3.Air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4.Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.5m below the unit in an anechoic chamber.
5.Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.
1.Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2.Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3.Air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4.Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.5m below the unit in an anechoic chamber.
5.Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.
COMFORT

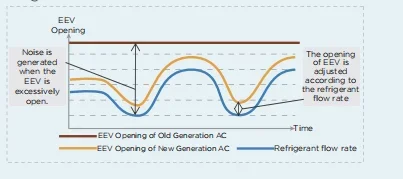

EEV automatic adjustment
When in heating standby mode, the indoor unit
automatically adjusts the EEV opening according
to the load to eliminate noise of refrigerant
flowing.
automatically adjusts the EEV opening according
to the load to eliminate noise of refrigerant
flowing.

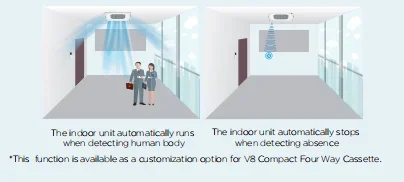

Human Detect Sensor*
Using millimeter-wave radar sensor controller
automatically turns indoor units on or off upon
detecting that the room is occupied or
unoccupied, ensuring climate control whilst
minimizing energy consumption.
automatically turns indoor units on or off upon
detecting that the room is occupied or
unoccupied, ensuring climate control whilst
minimizing energy consumption.
Two thermistors control
The indoor temperature can be
checked using the thermistor in the
remote controller as well as from the indoor
unit
checked using the thermistor in the
remote controller as well as from the indoor
unit
Auto Cooling-heating Changeover
Automatically selects cooling or heating
mode to achieve the set temperature
mode to achieve the set temperature
AIR FLOW

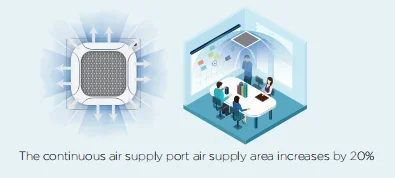

360° Airflow
New design, round airflow path ensures uniform airflow and temperature distribution.
New design, round airflow path ensures uniform airflow and temperature distribution.
Multiple Steps Vertical Swing
The Four-way Cassette unit has a wide range of
airflow angles from 40° to 70° and is equipped
with a 5-step louver control and auto swing mode
to better meet the needs of different customers
airflow angles from 40° to 70° and is equipped
with a 5-step louver control and auto swing mode
to better meet the needs of different customers
Individual Louver Control
The Individual louver control can control the
motors separately, making it possible to control
all four louvers independently
motors separately, making it possible to control
all four louvers independently
Soft Wind Mode
Supplies air against the ceiling to create windless
environment.
environment.
HEALTH
Mildew proof of heat exchanger
When the indoor unit is turned off in cooling
mode, the fan is still on, and dry the heat
exchanger to avoid mold on the heat exchanger.
mode, the fan is still on, and dry the heat
exchanger to avoid mold on the heat exchanger.
Silver Ions drain pan (optional)
Slow-released nano-silver ions can keep the drain
pan free of mold for a long time.
pan free of mold for a long time.
EASY INSTALLATION

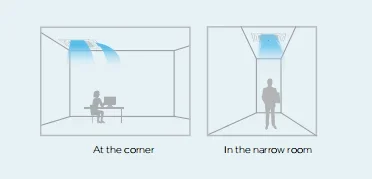

Air baffle fittings for irregular rooms
Some air discharge ports can be blocked with air baffle to optimize air distribution in irregular shaped rooms. Air outlets can be blocked with accessories, which can be found in the packing material.

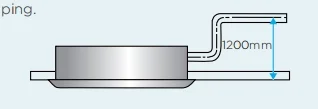

High-lift drain pump
A drain pump with a 1200mm raise height is fitted
as standard, simplifying installation of the drain
piping.
as standard, simplifying installation of the drain
piping.
Water level switch
When the drain pipe is blocked or the drain pipe
is poor, the water level switch is turned off, and
there is no need to worry about overflowing the
ceiling.
is poor, the water level switch is turned off, and
there is no need to worry about overflowing the
ceiling.
Company Profile
Product Package
Packing Details:
1.VRF Air Conditioning Outdoor Unit: Midea standard pallet package with film covered. 2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package. 3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet. Leading time: Generally 25-60 days( peak-time and off-time).
Contact US
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $2400 / set
- 50–99 set: US $2000 / set
- 100+ set: US $1200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cassette air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cassette air conditioner be supplied for my local voltage?
The standard configuration is 220-240V/1Ph/50(60)Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
