This cbb60 industrial fan is published with the manufacturer’s full specification — 250V – 450V, type Polypropylene Film Capacitor. Made by Foshan Shunde Hongye Electrical Appliance Co., Ltd. (5 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cbb60 Industrial Fan
- Model Number: CBB60 AC Motor Capacitor
- Rated Voltage: 250V – 450V
- Test Voltage: 2.0Un(VAC)(5S)
- Dielectric Material: metallized polypropylene film
- Certification Standards: CQC,TUV,CE,UL,BIS
- Place Of Origin: Shunde,Guangdong,China

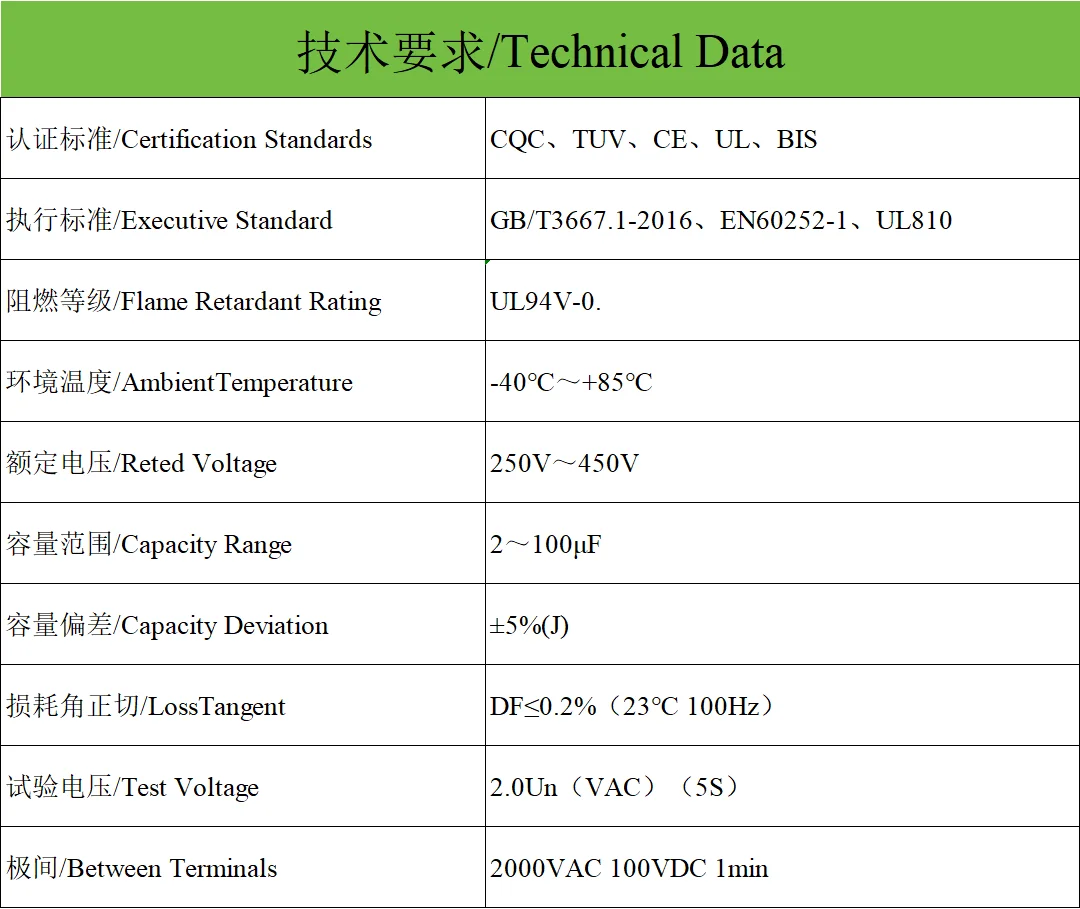

Technical Specifications
| Dielectric Material | metallized polypropylene film |
|---|---|
| Model Number | CBB60 AC Motor Capacitor |
| Rated Voltage | 250V – 450V |
| Brand Name | Hongye |
| Packaging Type | Carton |
| Manufacturing Date Code | / |
| Capacitance | 2uf-100uf |
| Place Of Origin | Shunde,Guangdong,China |
| Description | CBB60 Motor Starting Series |
| Specification | 2 ~ 100uf |
| Application | Water Pump,Washing Machine,Industrial Fan,Motor Ru |
| Package / Case | Plastic Shell |
| Series | CBB60 Wire Capacitor( Motor Series) |
| Features | With Lead |

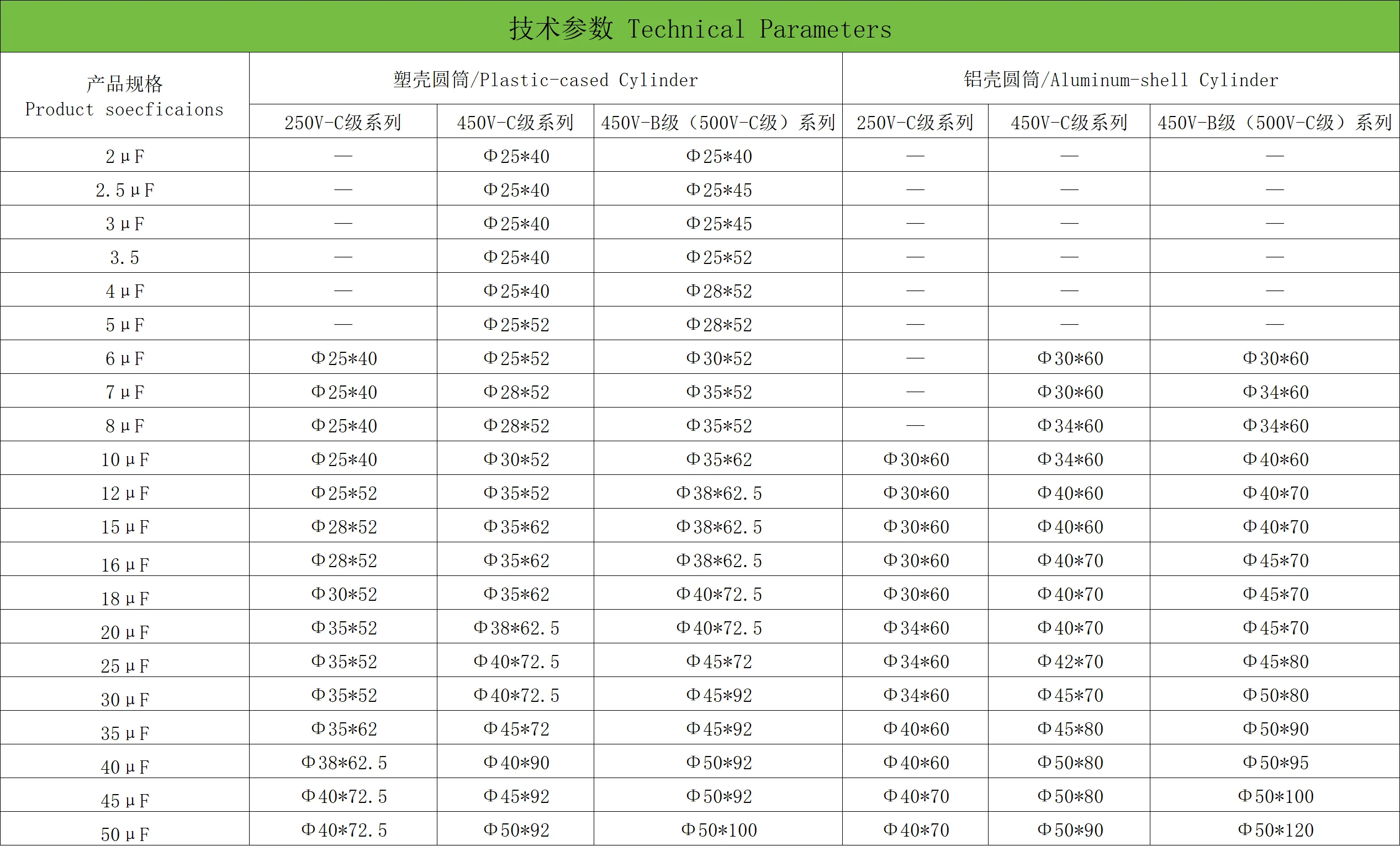

| Size / Dimension | The size depends on the capacitance specification. |
| Operating Temperature | -40°C-85°C |
| Tolerance | ±5%(J) |
| ESR (Equivalent Series Resistance) | / |
| Product Name | CBB60 Motor Run Capacitor |
| Certification Standards | CQC,TUV,CE,UL,BIS |
| Executive Standard | GB/T3667.1-2016,EN60252-K,UL810 |
| Ambient Temperature | -40°C-85°C |
| Loss Tangent | DF≤0.2%(23℃ 100Hz) |
| Test Voltage | 2.0Un(VAC)(5S) |
| Between Terminals | 2000VAC 100VDC 1min |
| Type | Polypropylene Film Capacitor |
| Package Type | Carton |
| Applications | Water Pum,Industrial Fan,Submersible Pump,Washing Machine,AC Motor Run |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 1.000 kg |
Product Details

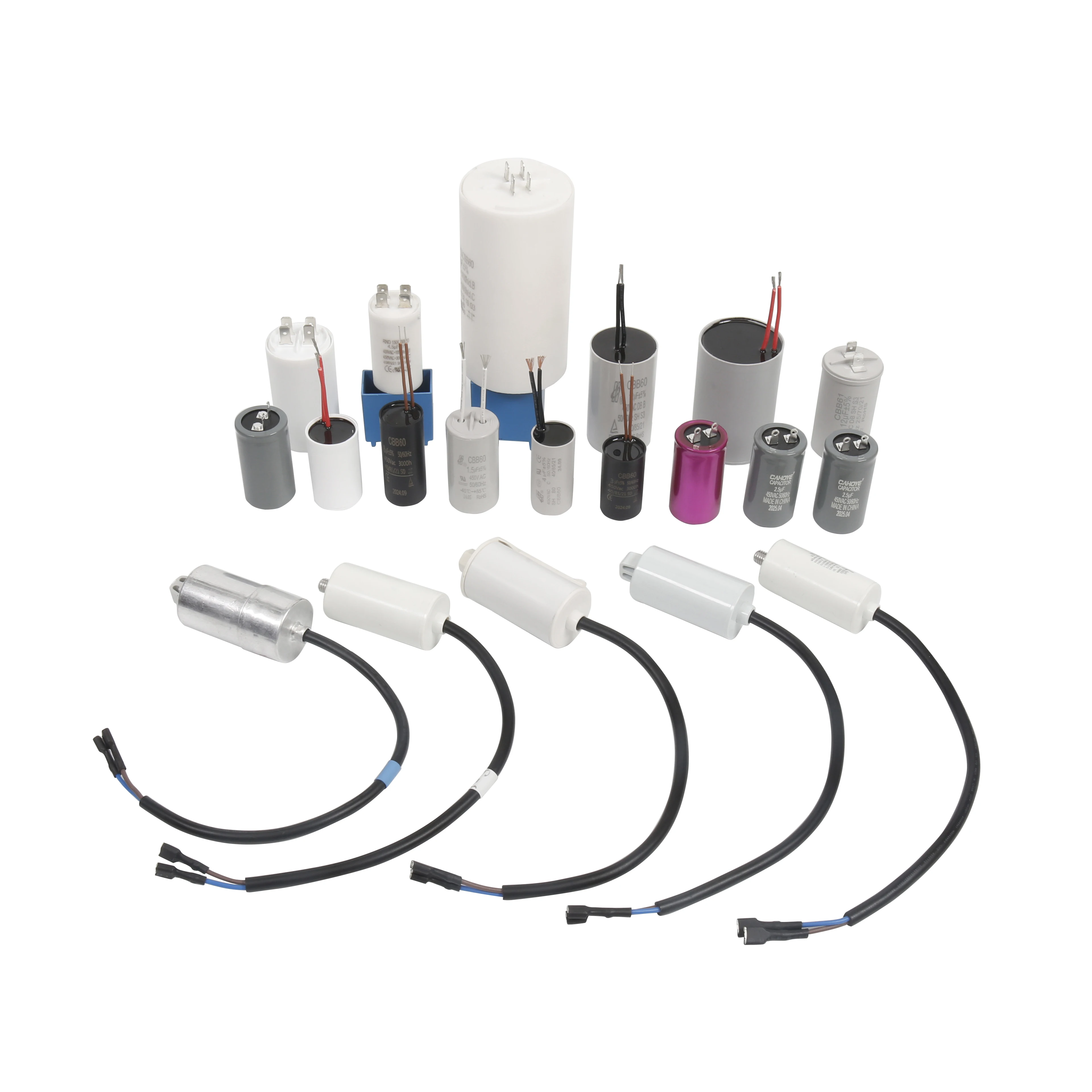

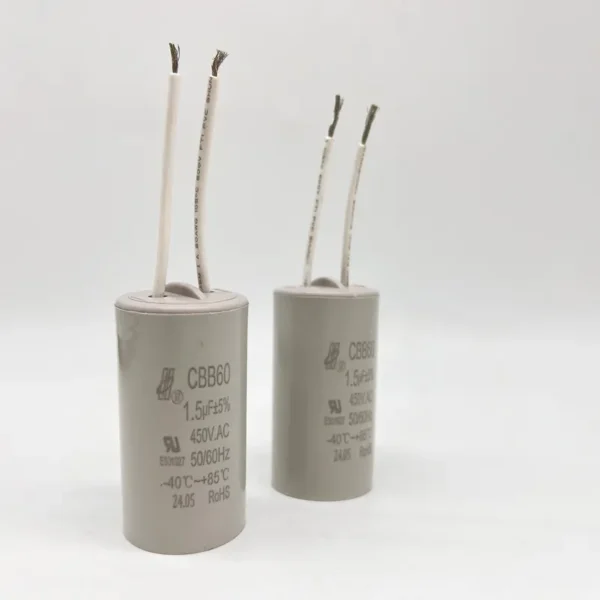

- CBB60 thin film ac motor start run capacitor-wire type
- Non-inductive winding, with metallized propylene film as the electrode lead-out. Multiple cores are encapsulated in a flame-retardant plastic cylindrical case using flame-retardant epoxy resin, with lead-out options including single-strand wires, multi-strand wires, sheathed wires, etc.
- Made in China Guangdong Shunde Reliable.Capacitor Factory
- Available in multiple specifications:2-100μF(2uf 2.5uf 3uf 3.5uf 4uf 5uf 6uf 7uf 8uf 10uf 12f 15uf 16uf 18uf 20uf 25uf 30uf 35uf 40uf 45uf 50uf)
- Reted Voltage:250V-450V
- Certification Standards:CQC/TUV/CE/UL/BIS
- Grade:Class B/Class C
- Be suitable for Water Pump,Industrial Fan,Washing Machine,Electric Brake,Submersible Pump,Deep Well Pump
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cbb60 industrial fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this cbb60 industrial fan carry?
It is supplied with CQC,TUV,CE,UL,BIS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cbb60 industrial fan be supplied for my local voltage?
The standard configuration is 250V – 450V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hongye Electrical Appliance Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hongye Electrical Appliance Co., Ltd. range on HVACR Nexus.
