Ceiling Fan, 14FT, 15FT, 16FT, 4200mm

The ceiling fan listed here carries 220v/380v, 0.4KW, documented exactly as the manufacturer publishes it. Made by Guangzhou Qixiang Industry Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ceiling Fan

• Model Number: HVL–H4200
• Power:: 0.4KW
• Power Supply: 220v/380v
• Voltage: 220v/380v
• Blade Material: Aluminum alloy
• Noise Level: 35.0-39.0db

Technical Specifications

Product Details

Specification

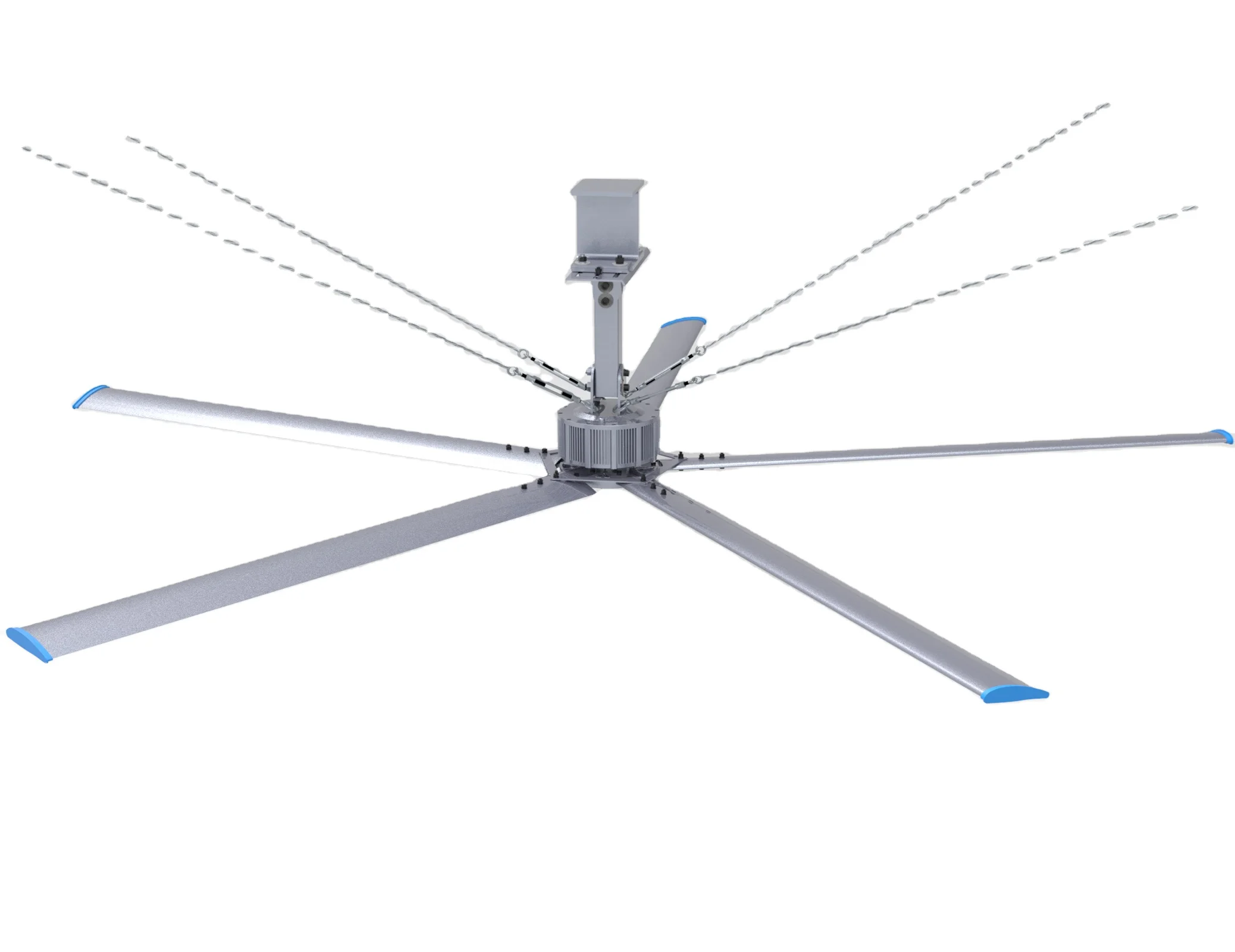

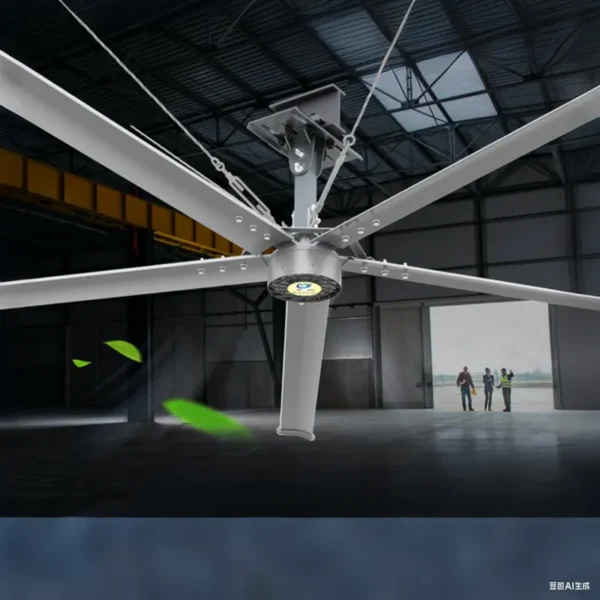

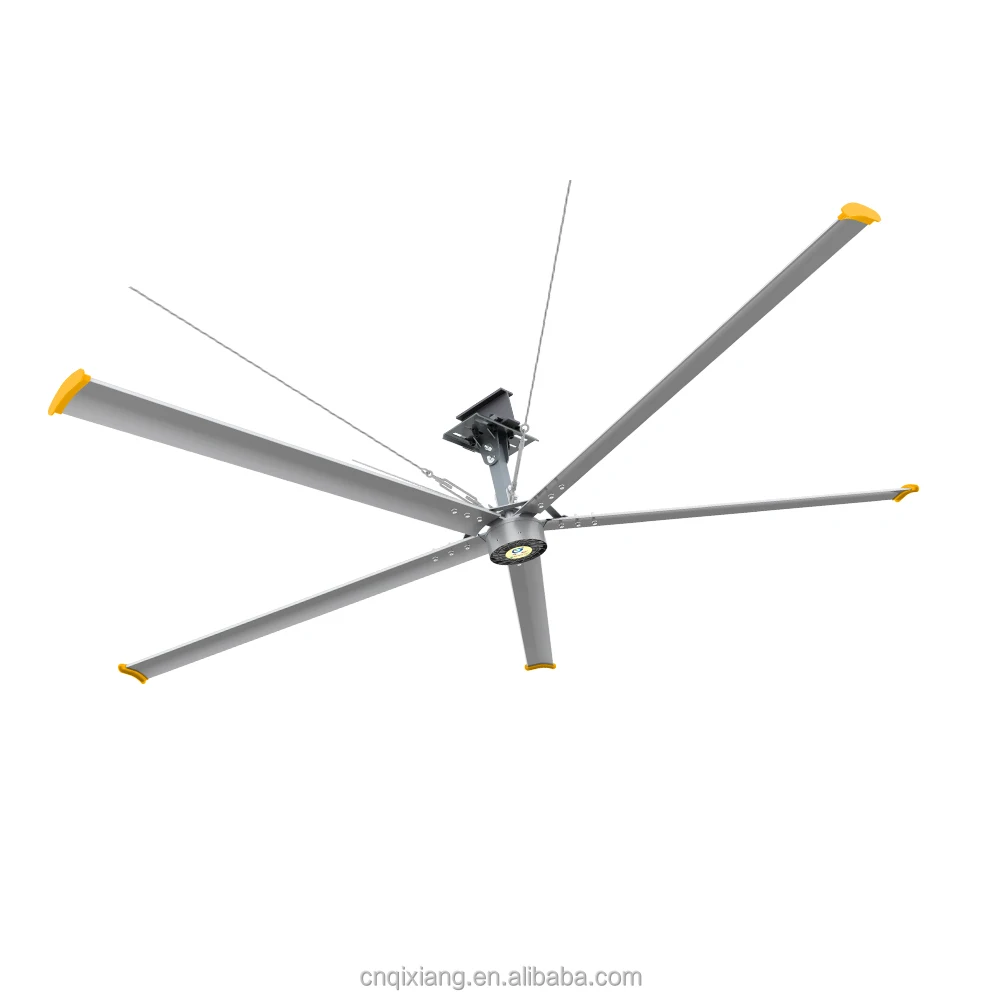

QX Large Diameter 14FT 15FT 16FT 4200mm 4500mm 5000mm Big Wind HVLS Industrial Ceiling Fan for Warehouse School Gym Air Cooling

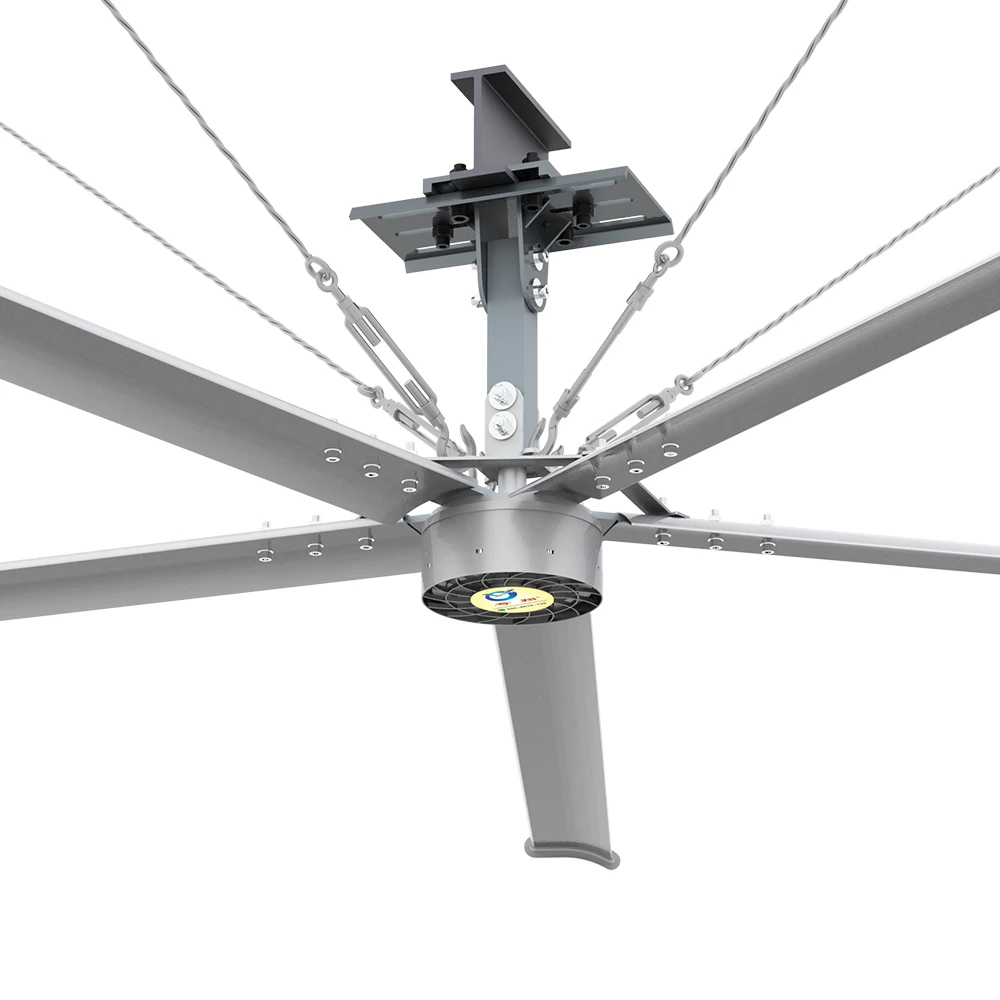

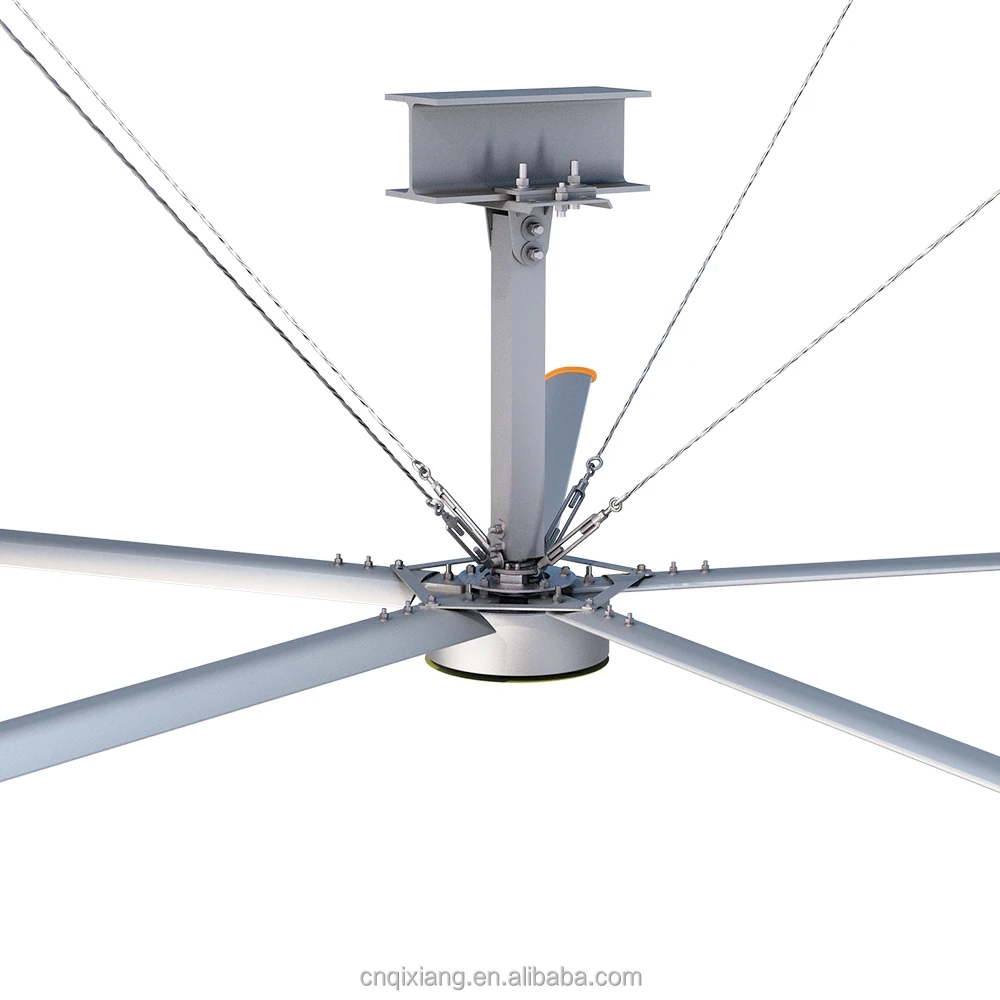

Gearless direct drive hvls ceiling fan specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process , the diameter is from 2.4-7.2 meters, with coverage 14860m3/min. Only using the efficient direct drive motor, it can creat plenty of comfortable natural wind. It's only 880W/660W. 16 hours will spend only 14 kwh, and because it's no gearbox reducer, there is no need to maintenance , it's servo and can used more thaN 15 years.

Model

HVD-H7200

HVD-H6200

HVD-B5500

HVD-S5200

HVD-S4200

HVD-S3600

HVD-S3000

Size

7.2m/24ft

6.2M/20ft

5.5m/18ft

5.2m/17ft

4.2m/14ft

3.6m/12ft

3m/10ft

Blades

5 pcs/Aluminum alloy

Weight

115kg

95kg

80kg

70kg

63kg

55kg

53kg

Powder

1.5kw

1.3kw

0.75kw

0.75kw

0.4kw

0.4kw

0.4kw

Voltage

220V

220V

220V

220V

220V

220V

220V

Max speed

60PRM

60PRRM

65PRM

70PRM

80PRM

100PRM

120PRM

Volume (m³/min)

15000

10250

8000

7060

5000

3100

2200

Certificated

Certified by CE, ISO9001, and CCC

package

Reinforced wooden crate packaging

shipping

Sea, Train, Air

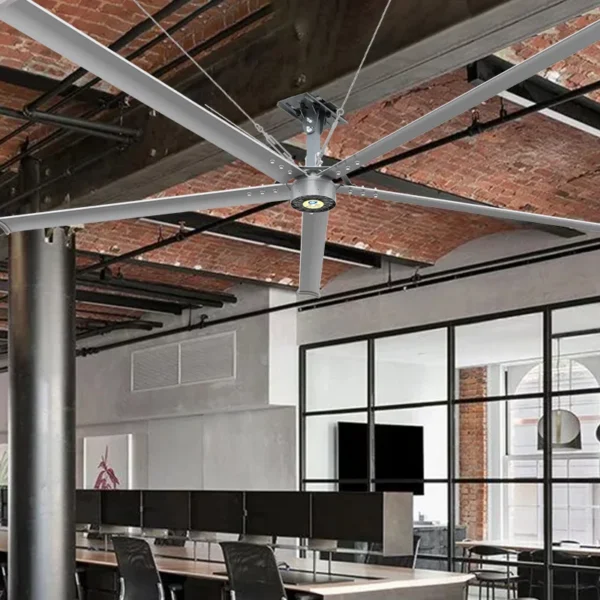

Application Scenario

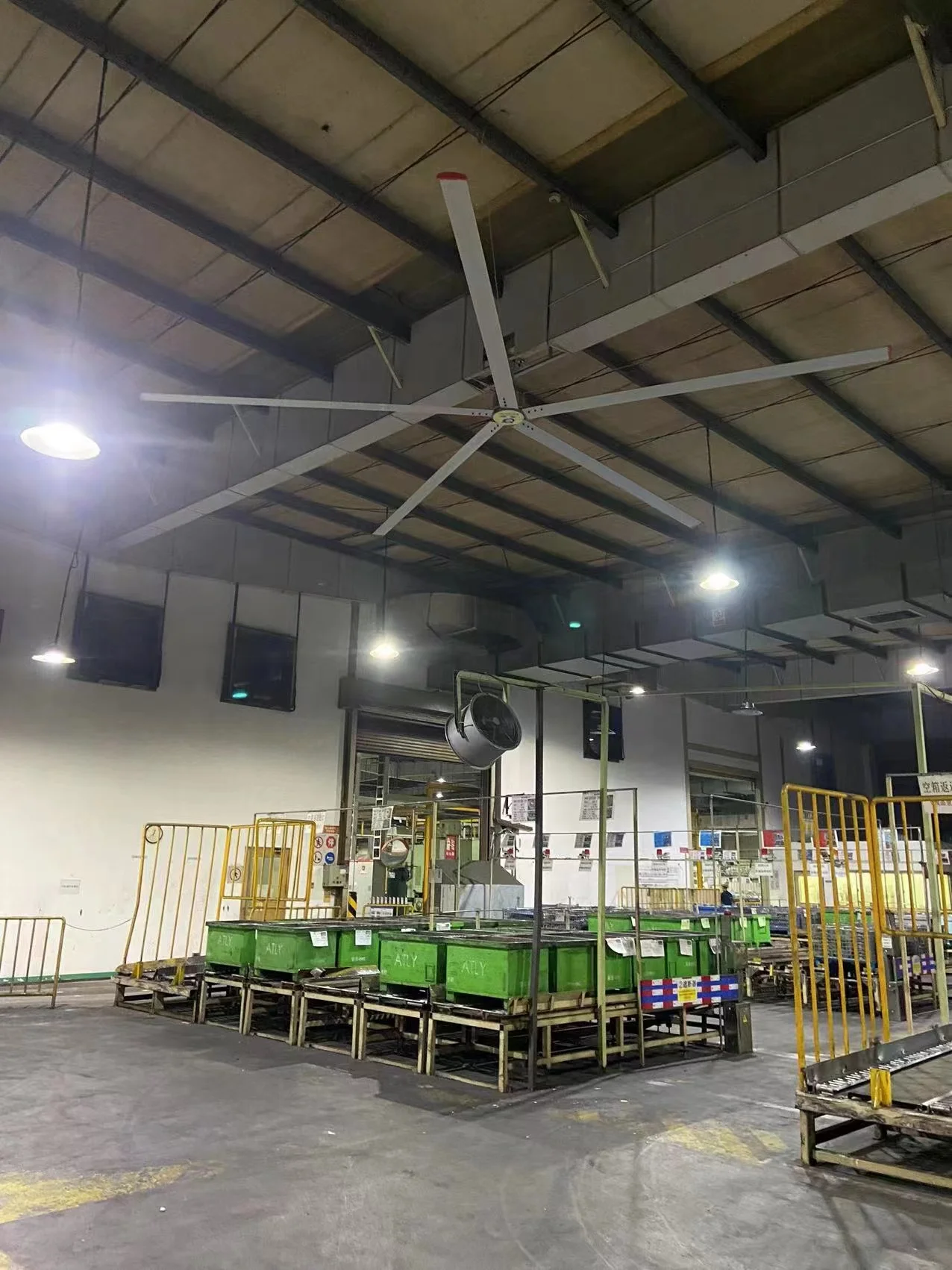

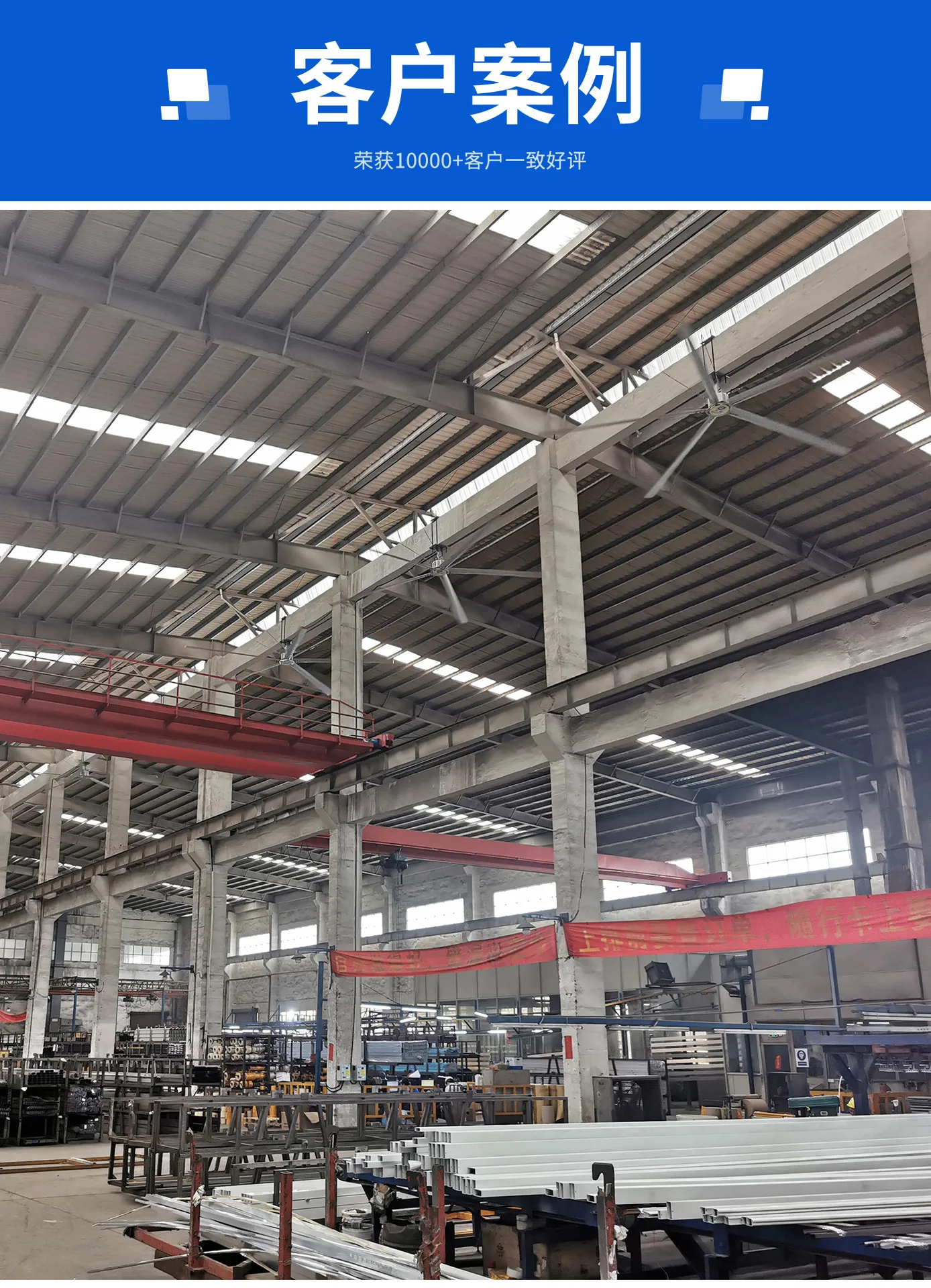

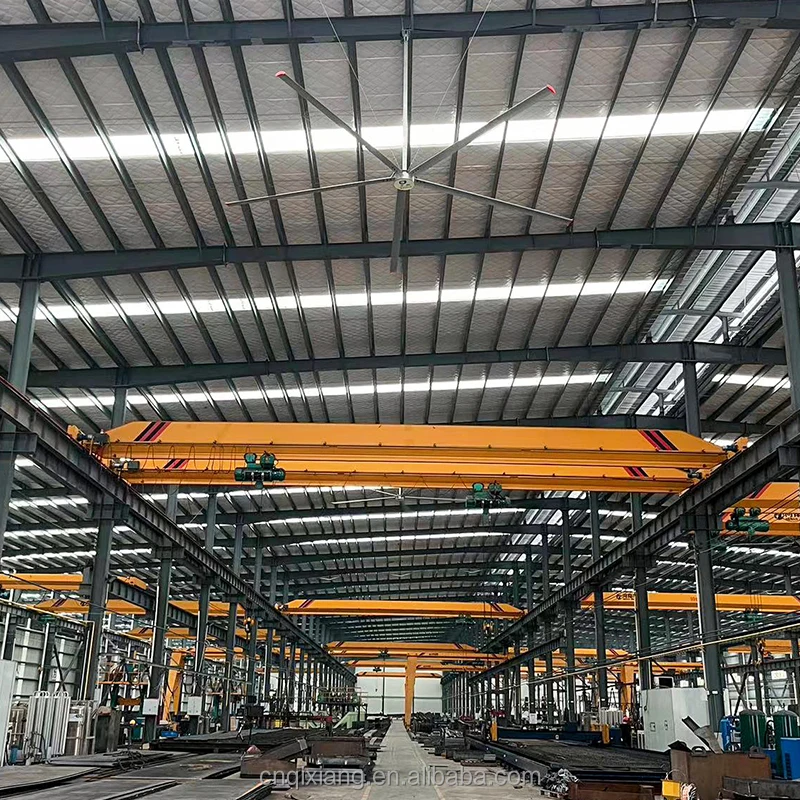

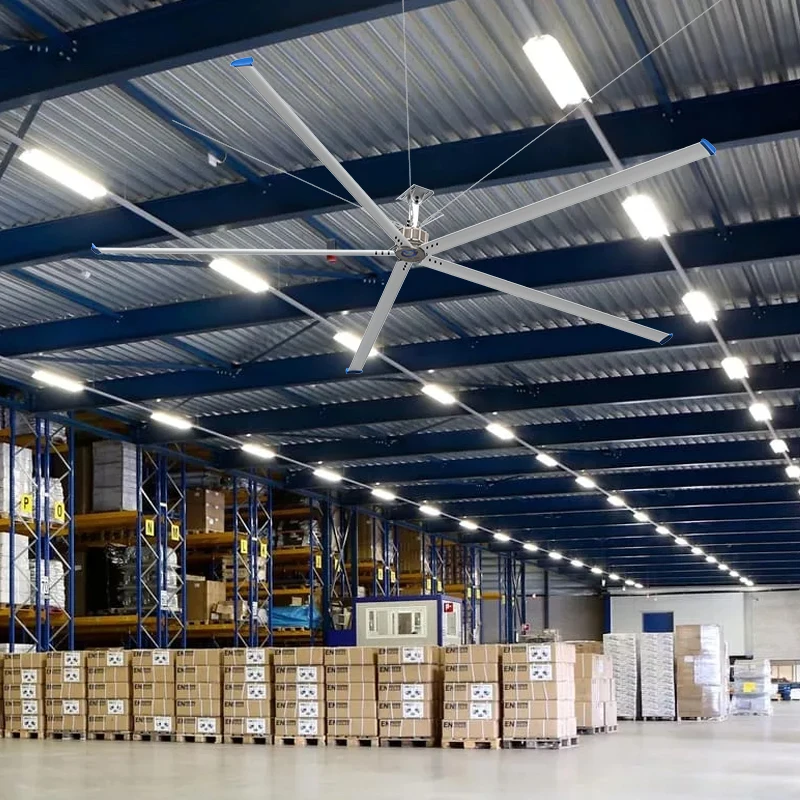

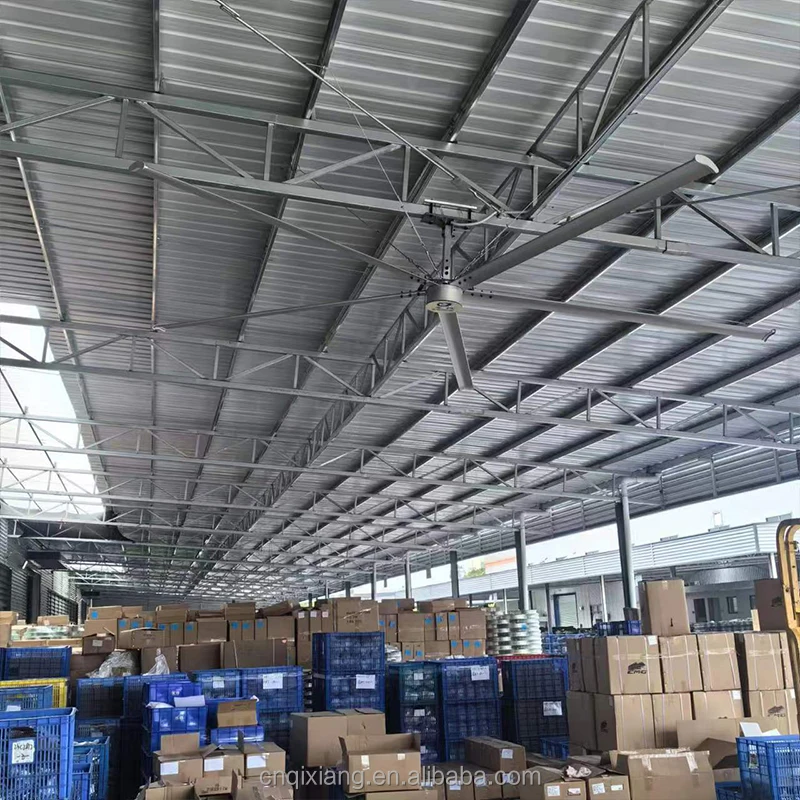

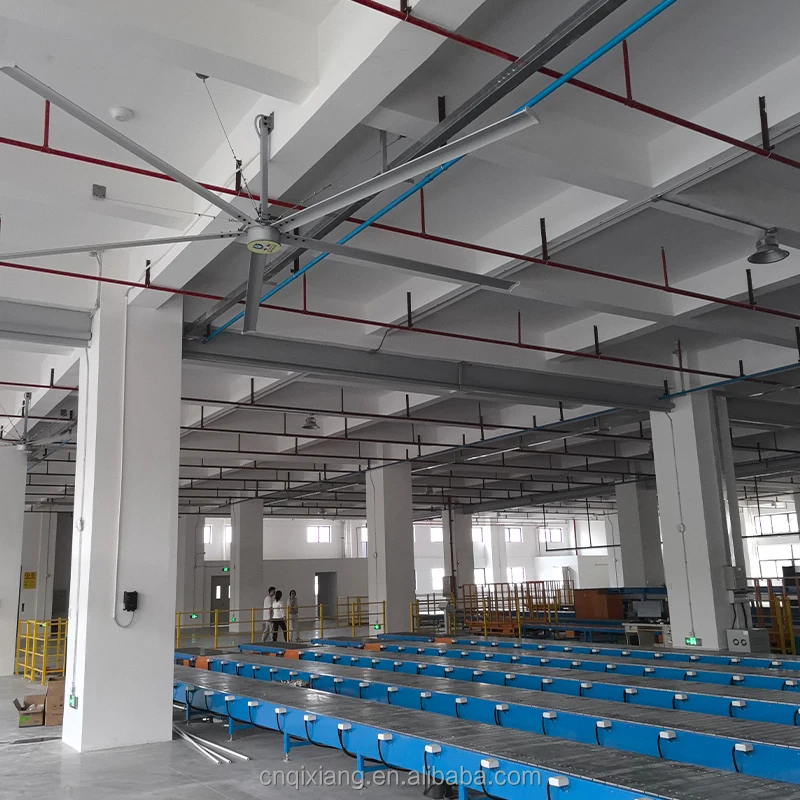

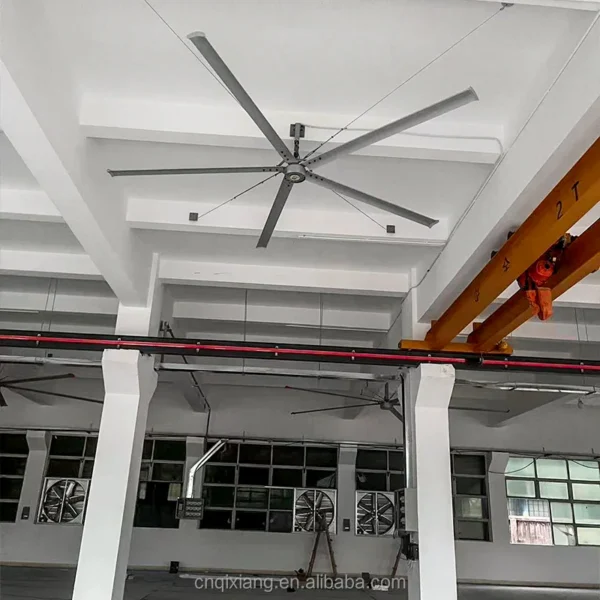

Warehouse/Store

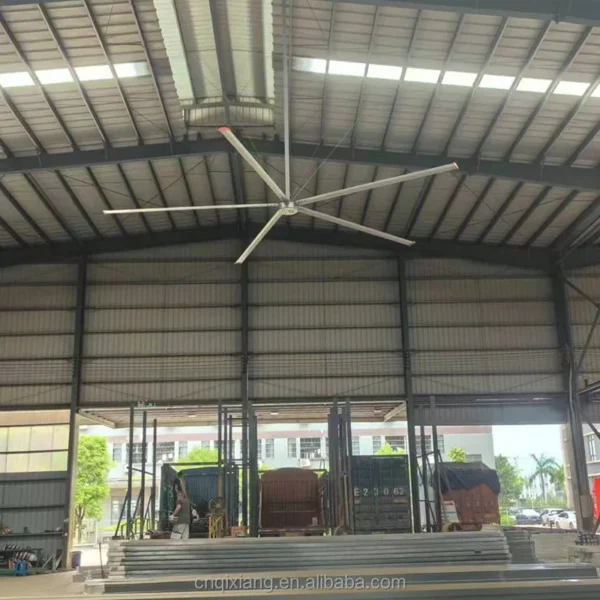

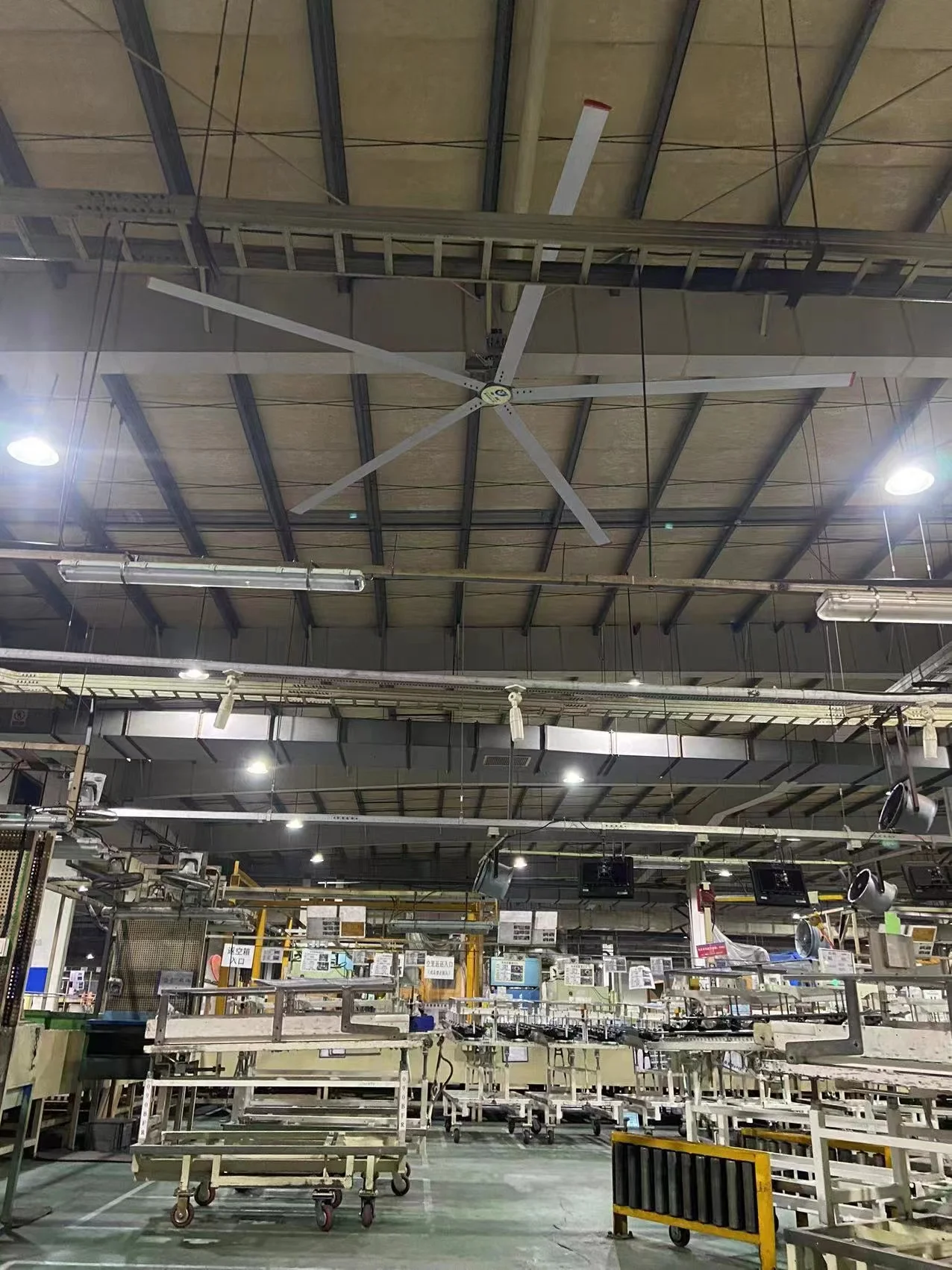

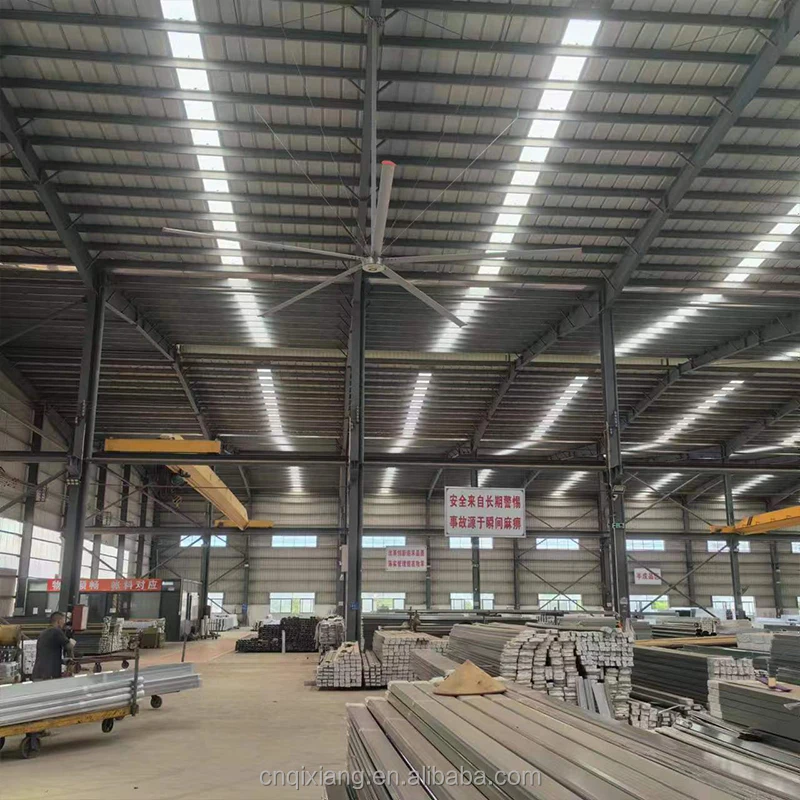

Factory workshop

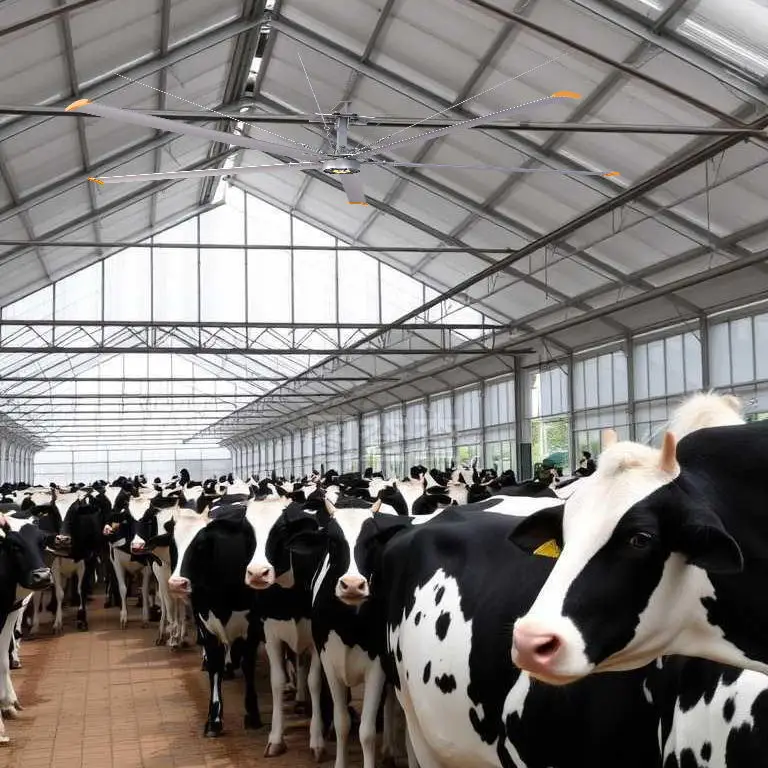

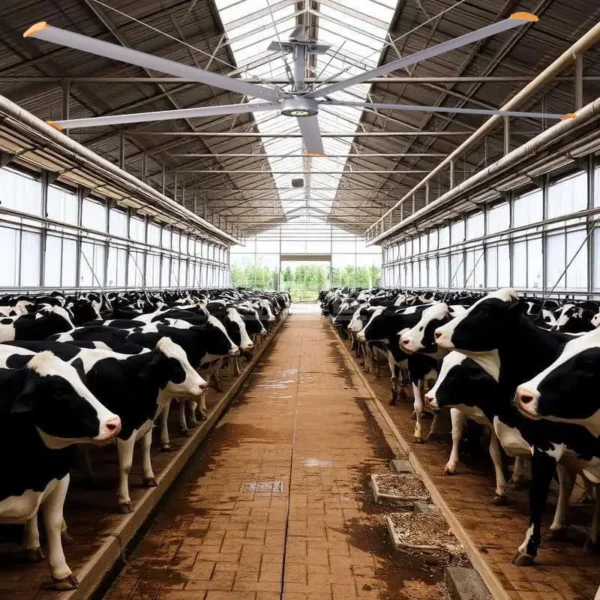

Farm

Public hall

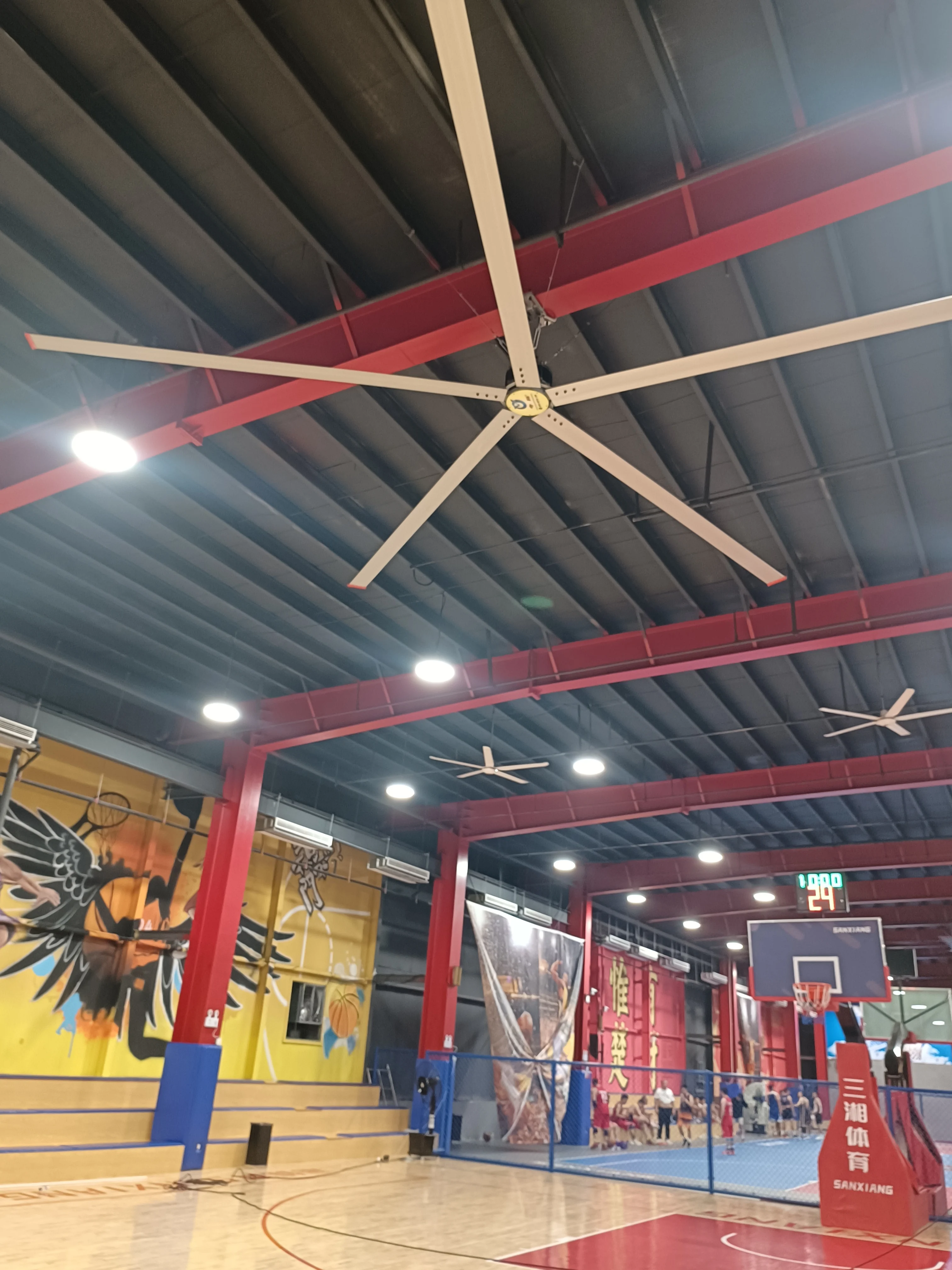

Gym hall

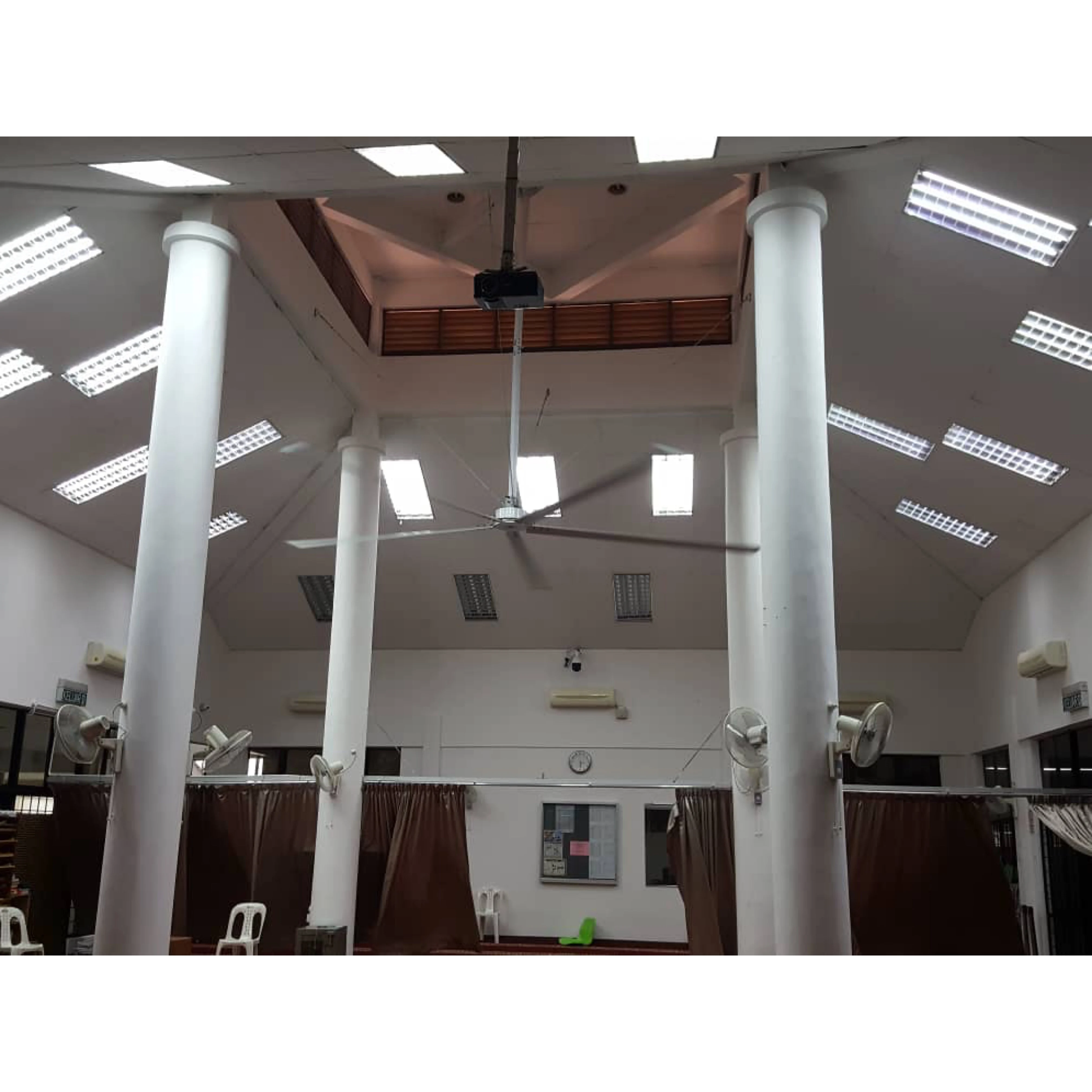

Chapel

Related Accessories

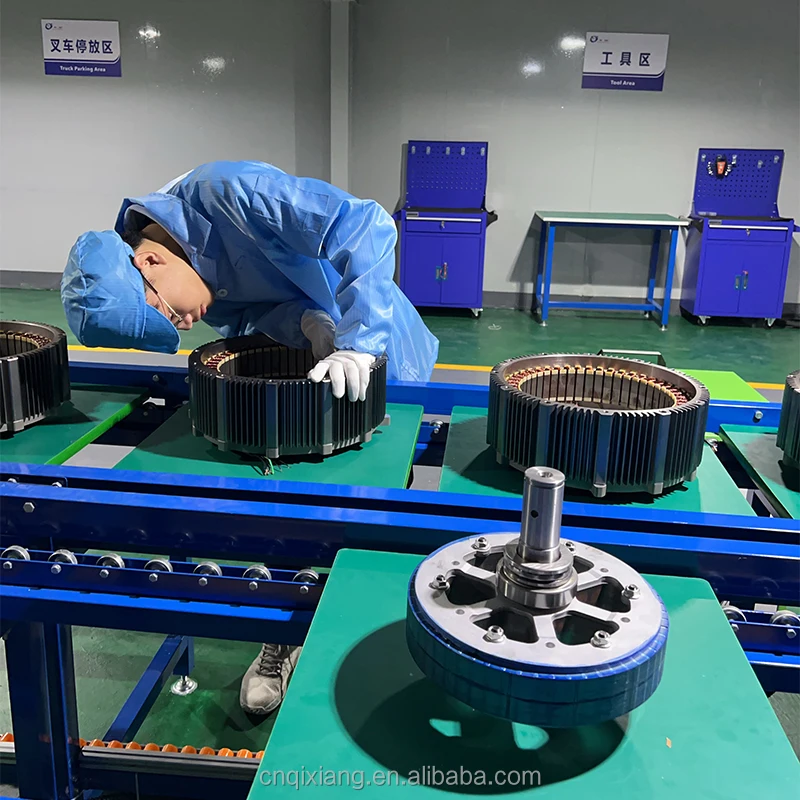

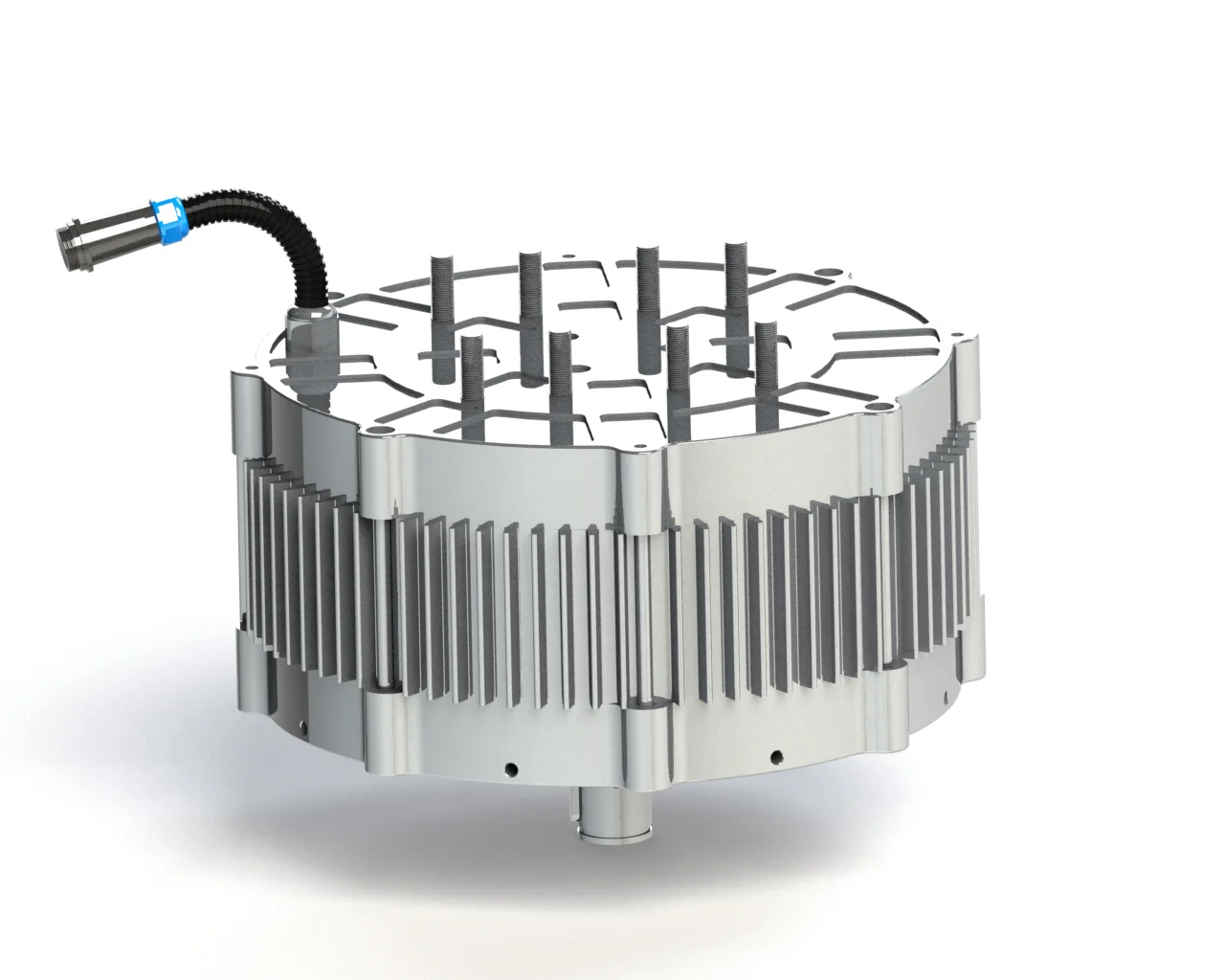

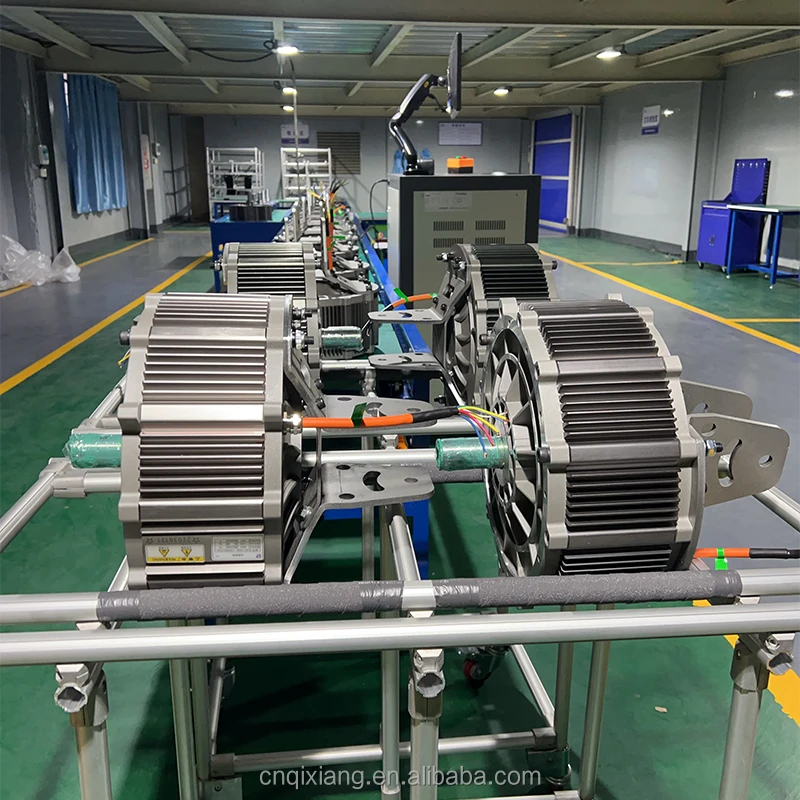

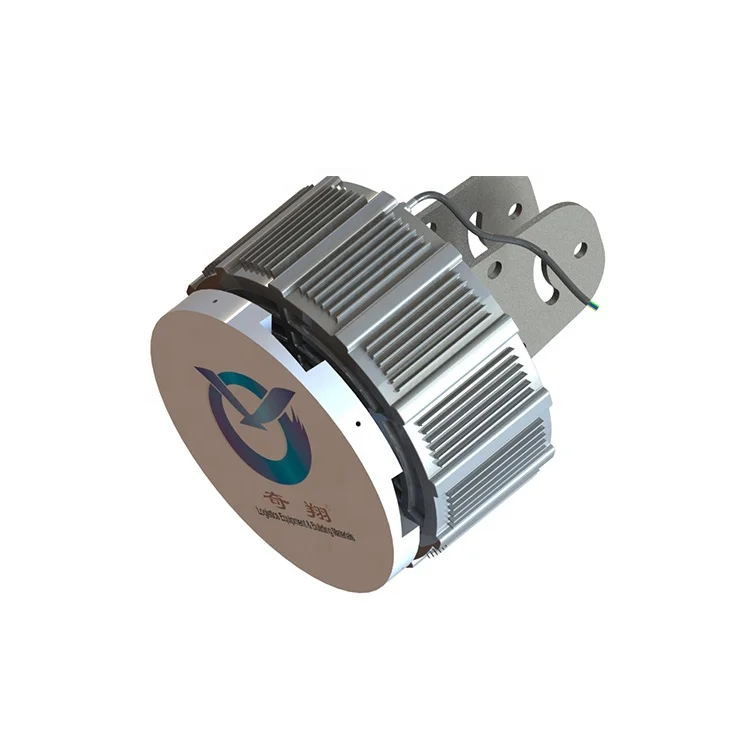

1. Permanent magnet synchronous brushless servo direct-drive motor

The permanent magnet synchronous brushless servo direct-drive motor has the characteristics of high control accuracy, high torque density, high stability, low noise, small size, high efficiency, low power density, low temperature rise, and fast startup.

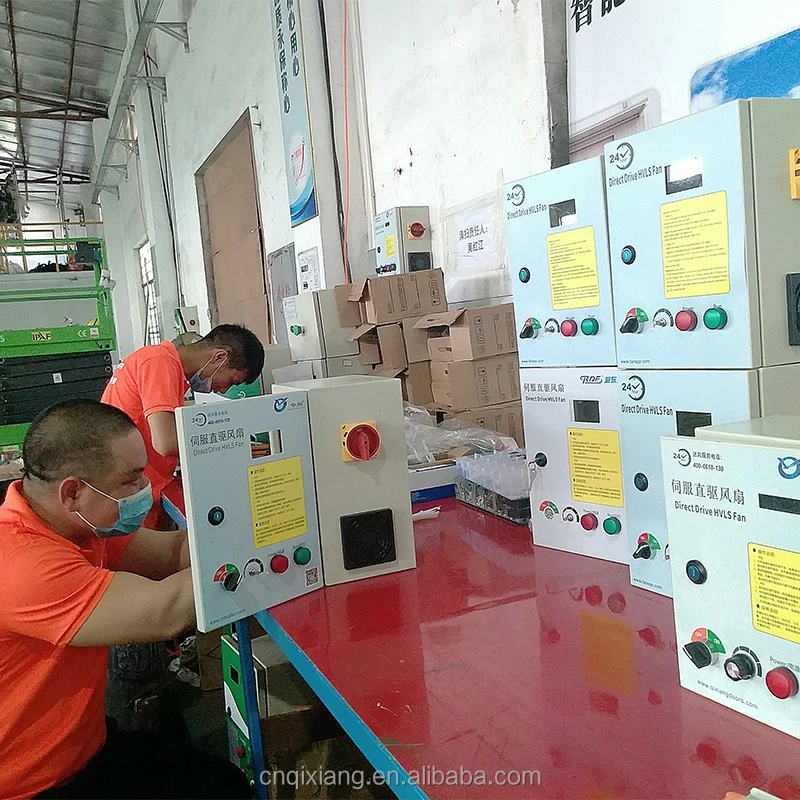

2.Smart control system

Equipped with SCC Smart Central Control for automated temperature and humidity management, it supports up to 30 fans and offers. Customizable intelligent control. Certified with CE and RoHS, ensuring compliance with EU safety standards and enhancing market

access.

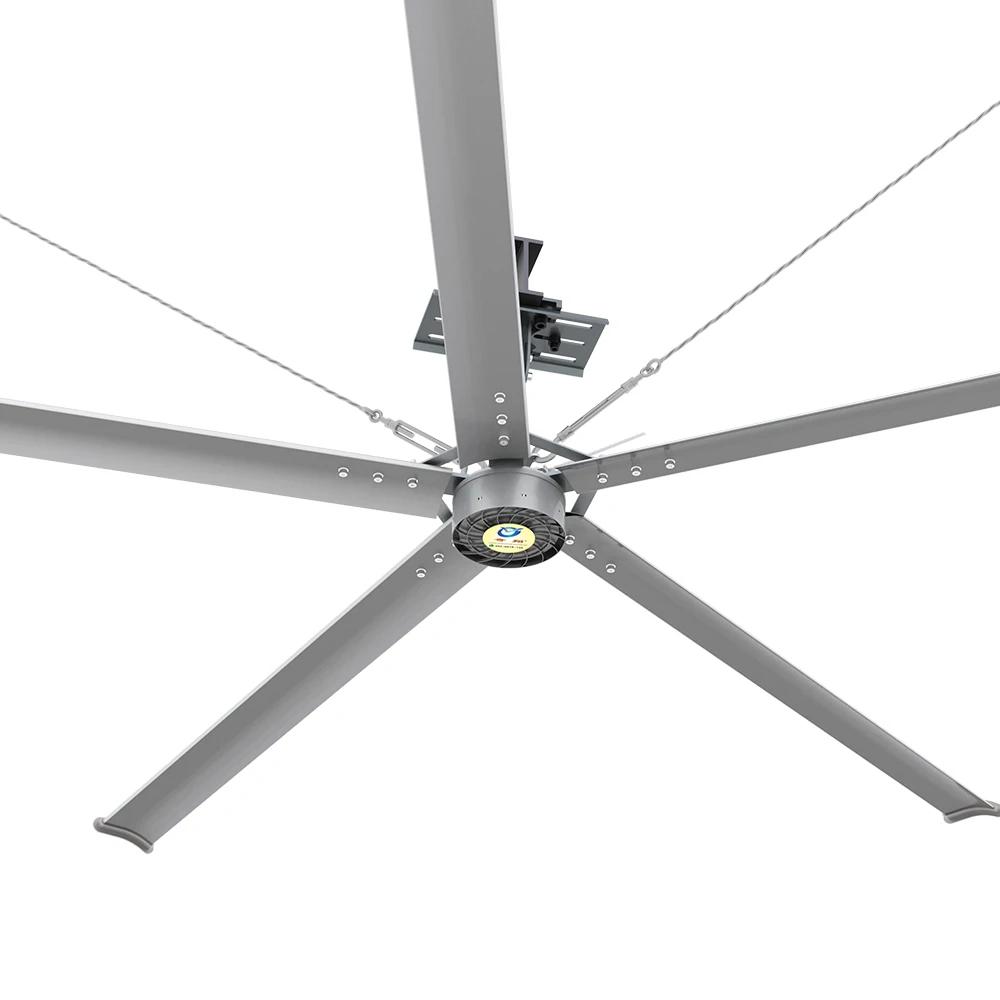

3. Odd-numbered fan blades

The blade shape is based on the design principle of helicopter propellers. The odd-numbered blade design has an asymmetric axis and achieves better dynamic balance. The odd-numbered blade design is more efficient and reasonable compared to the even-numbered design, providing greater stability and safety, less prone to shaking, reducing bearing wear, extending service life, and lowering maintenance costs.

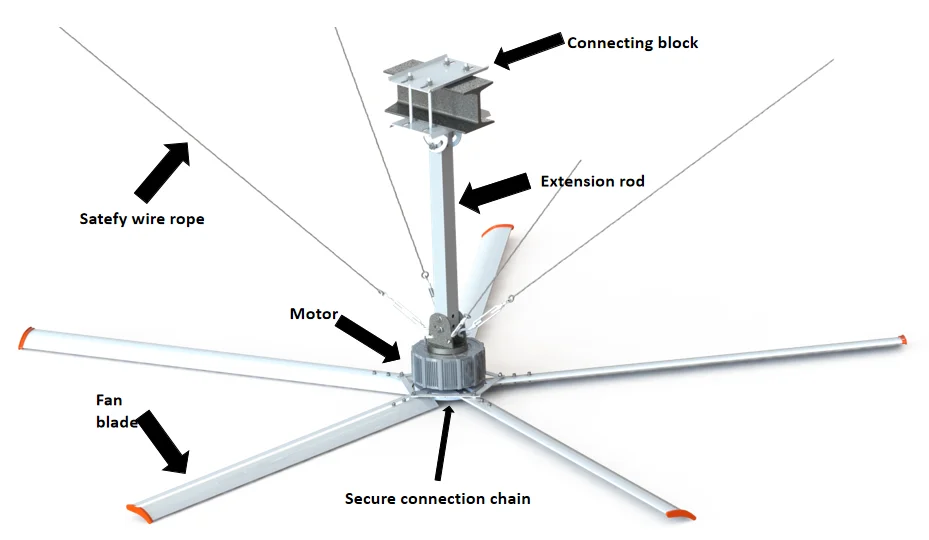

4：Fan blade and base plate connection design

Fan blade and base plate connection design: The fan blade and the base plate are connected with 45# steel, with a tensile strength of 600 MPa, a yield strength of 355 MPa, and a hardness of up to 197 HB. They are not prone to deformation or fracture. The blade stem is made of a 340x90x10mm steel plate, which can effectively resist deformation and fracture during collisions. The connection gap between the fan blade and the base plate is filled with a tight insert strip gasket, ensuring a tight bond between the fan blade and the base plate. The inner surface of the blade stem and the rainwater cavity are seamlessly adhered to three bolts for fixation.

Our Team & customers

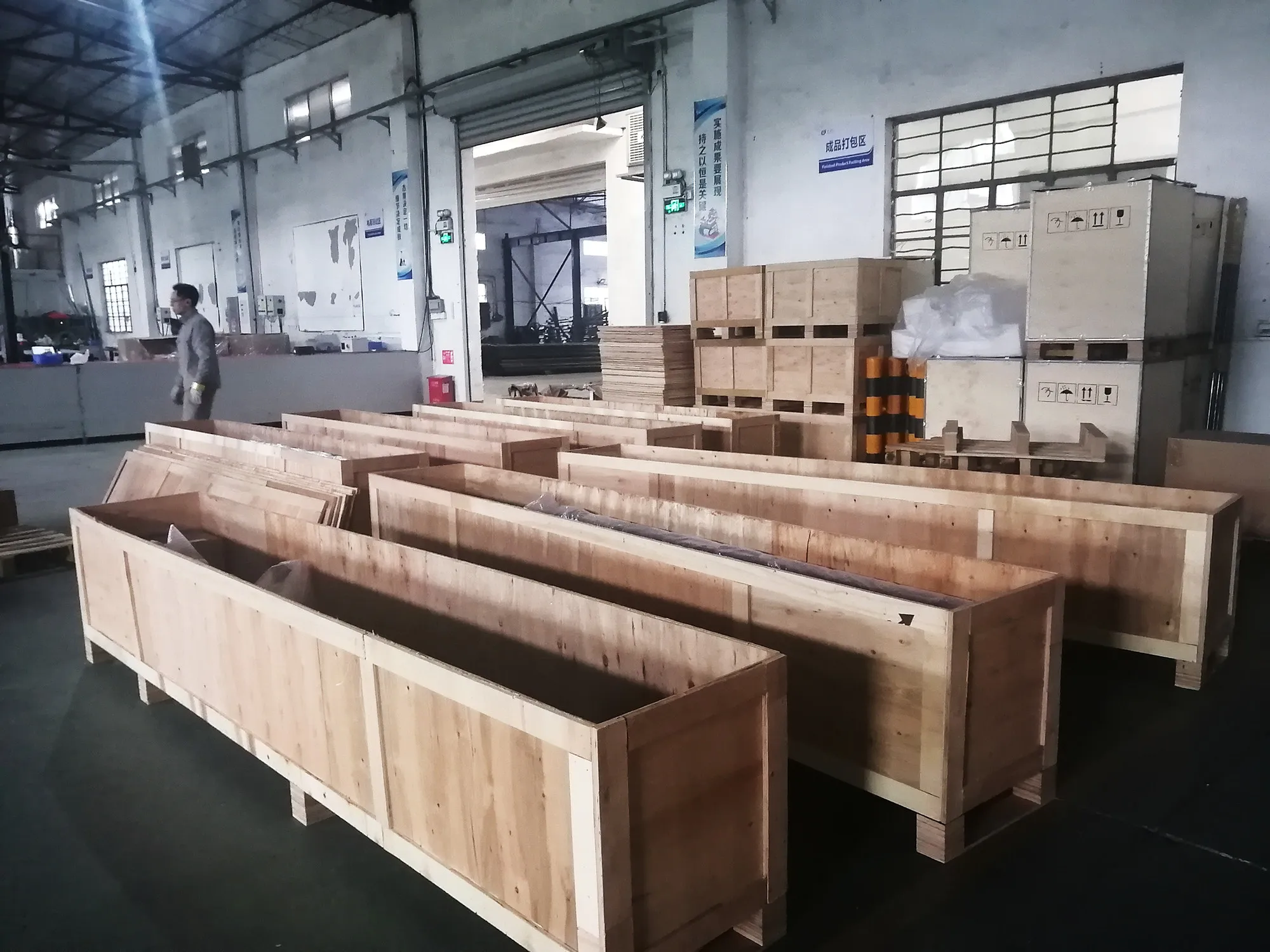

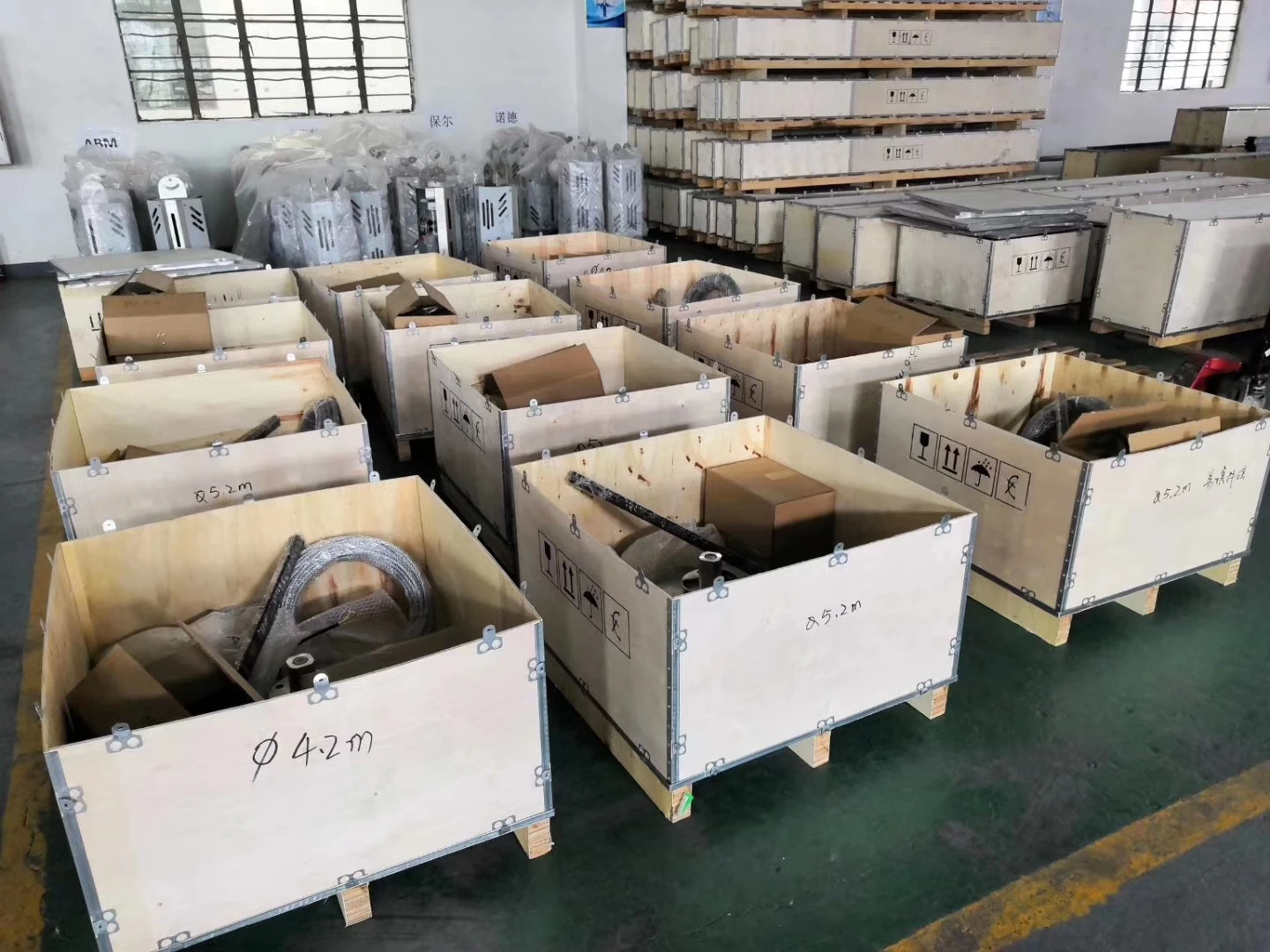

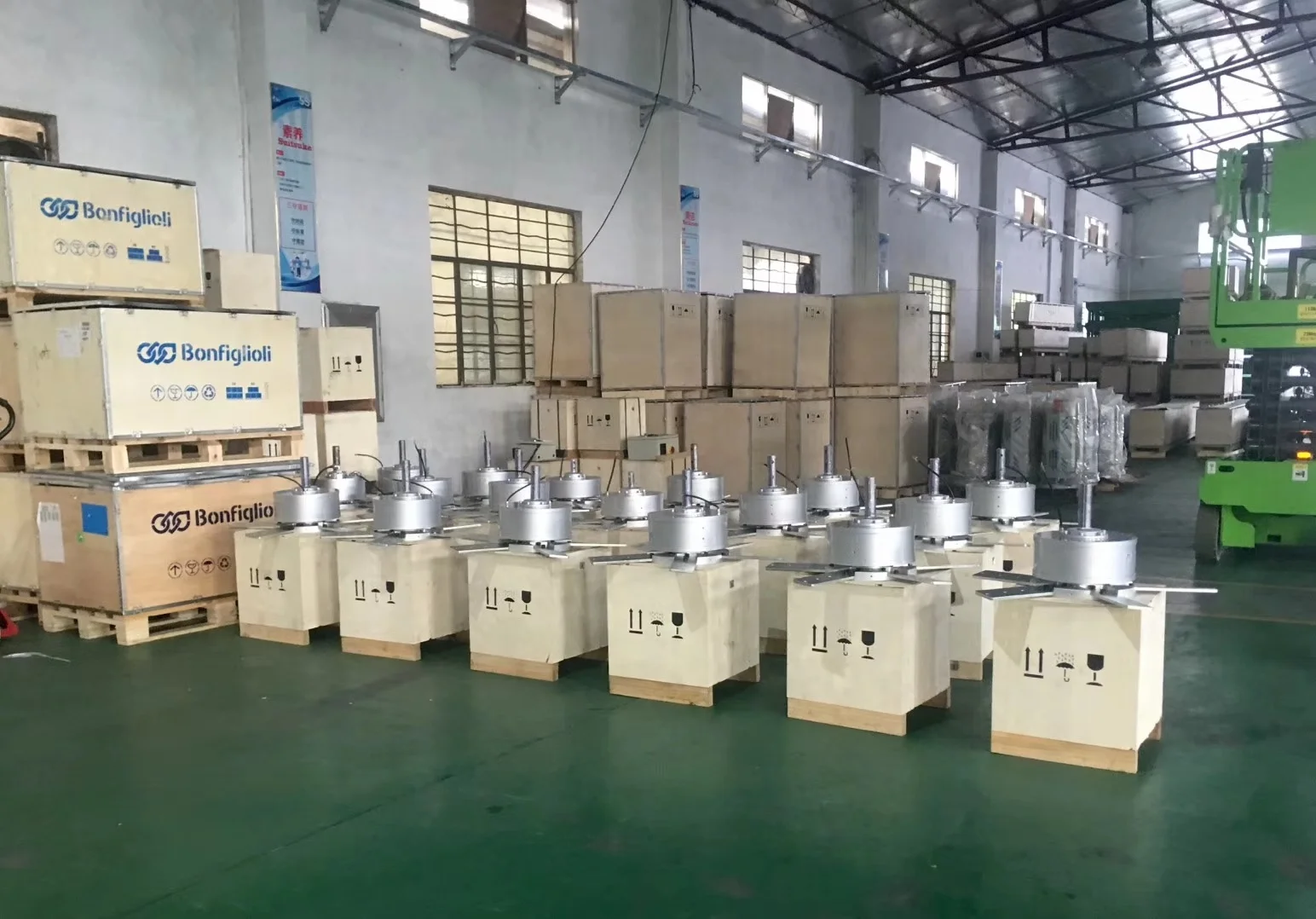

Packing

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–49 unit: US $685 / unit
  • 50+ unit: US $642 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ceiling fan?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ceiling fan carry?

It is supplied with CE,RoHS,ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the ceiling fan be supplied for my local voltage?

The standard configuration is 220v/380v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Qixiang Industry Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Qixiang Industry Co., Ltd. range on HVACR Nexus.
