Ceiling fan — voltage 380-480v, 441200CFM. The complete factory specification follows. Made by Goodwind LLC (2 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Model Number: YBA05506EC6460BWWMA5
- Input Power: 1000w
- Voltage: 380-480v
- Max Airflow: 441200CFM
- Blade Material: Aluminum Alloy
- Noise Level: ≤36.0db
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 380-480v |
| Speed | 72r/min |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 18 ft |
| Noise Level | ≤36.0db |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Control Method | App |
| Core Components | Motor |
| Place Of Origin | Texas, United States |
| Brand Name | Bonawind |
| Model Number | YBA05506EC6460BWWMA5 |
| Max Airflow | 441200CFM |
| Air Volume/W | 12.5m³/min |
| Rotation Speed | 72r/min |
| Motor | Outer rotor permanent magnet brushless DC motor |
| Size | 18FT |
| Installation | Adaptable to various roof types with different clamps |
| Current | 2.4A |
| Input Power | 1000w |
| Selling Units | Single item |
| Single Gross Weight | 112.000 kg |
Product Details
BONAWIND HVLS CEILING FANKEY UPGRADES AND FEATURES
1.Design: Large-diameter design with sleek aluminum frame, delivering maximum coverage, modern appearance, and long-lasting durability. 2.Motor Performance: High-efficiency permanent magnet brushless motor, energy-saving, ultra-quiet, stable, and reliable. 3.Blade Material: Aerodynamically designed aluminum alloy blades, lightweight yet strong, ensuring smooth airflow and extended service life. 4.Control System: Compatible with the Bonawind IoT APP system for intelligent speed control, real-time monitoring, and convenient adjustments. 5.Installation: Ceiling-mounted design, easy to install with minimal maintenance required.
Product Name | Power | Air Flow@0.00″SP | Rotation Speed | CFM/Watt | Remote Contral |
24FT Ceilling fan | 1500W / 2.0HP@3PH 460V | 530000 CFM | 55 RPM | 353 | RS485/0-10v MoonetAPP |
20FT Ceilling fan | 1200W / 1.6HP@3PH 460V | 494000 CFM | 65 RPM | 412 | RS485/0-10v MoonetAPP |
18FT Ceilling fan | 1000W / 1.4HP@3PH 460V | 441000 CFM | 72 RPM | 441 | RS485/0-10v MoonetAPP |
16FT Ceilling fan | 1000W / 1.4HP@3PH 460V | 406000 CFM | 79 RPM | 406 | RS485/0-10v MoonetAPP |
14FT Ceilling fan | 600W / 0.8HP@3PH 460V | 212000 CFM | 79 RPM | 353 | RS485/0-10v MoonetAPP |
12FT Ceilling fan | 600W / 0.8HP@3PH 460V | 198000 CFM | 110 RPM | 330 | RS485/0-10v MoonetAPP |

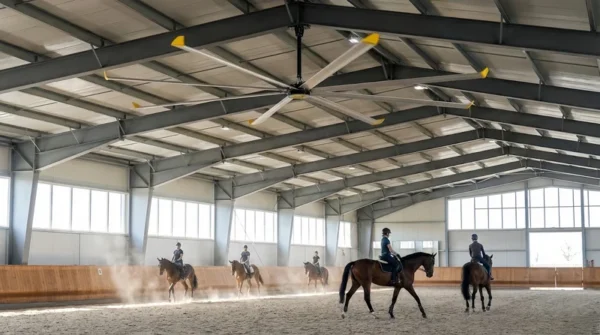

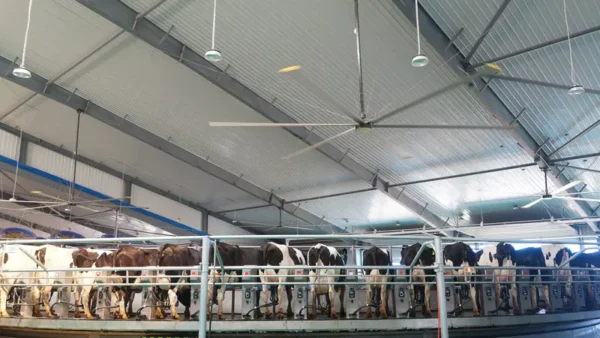

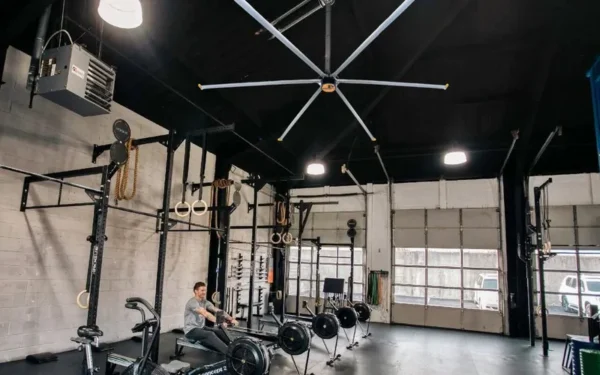

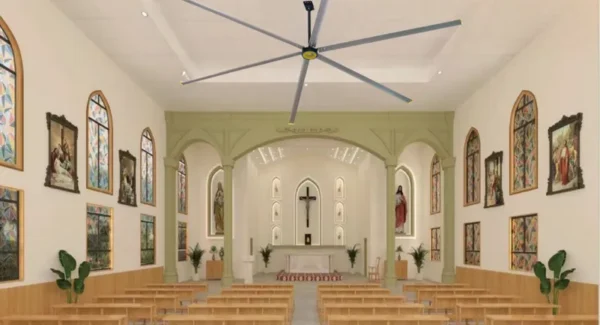

1.Can be equipped with a manually controlled VFD. 2.Outer rotor permanent magnet brushless DC motor. 3.Ventilation and cooling with three-dimensional natural airflow, creating a relatively cool, comfortable, and aesthetically pleasing environment. 4.The fan blade profile surface is designed using a large-scale fluid mechanics simulation to optimize the air supply effect. The wall thickness is increased, and reinforcing ribs are added in the inner cavity, significantly enhancing resistance to bending and breaking. 5.Widely applicable: It provides effective ventilation and cooling in various settings, including dairy farms, industrial facilities, malls, cafeterias, waiting rooms, and sports arenas.
With Bonawind’s versatile engineering, our HVLS Ceiling Fan can be customized to meet your specific requirements,
including different diameters, motor options, and control systems tailored to the needs of your facility.
You may also select blade materials, colors, and installation methods to match your environment.
Please contact us to share your requirements,and we will gladly provide the most suitable solutions.
''Bonawind'' brand established in 2002, recognized for high-quality industrial ventilation solutions.The advantages can be summarized as follows:
Fair Price All products are sold directly from the manufacturer, eliminating middlemen and giving customers maximum cost-effectiveness. Stable Quality With over 23 years of experience, Bonawind has an expert technical team, mature production processes, and reliable suppliers to ensure consistent product quality. Professional Service Our enthusiastic sales team is available 24/7, with responsive after-sales staff ready to provide efficient and comprehensive support. Independent Spare Parts Support Bonawind operates its own spare parts service, offering fast and comprehensive parts procurement to save your time. 100% full inspection of every fan, 23 quality inspection processes, which include noise, vibration, blade speed, air volume, concentric performance, efficiency, etc.
Good heat dissipation, high efficiency, large torque, and more durable.
Driven by innovation, we hold over 20 patents and serve customers in more than 110 countries. Our commitment to excellence is reinforced by a rigorous in-house quality management system, ensuring top-tier standards in every product.
Goodwind has actively participated in exhibitions in the USA, Germany, and other European countries. We are committed to serving all esteemed industries all over the world.
We sincerely hope to work together with you and establish a win-win cooperation in the future. Thank you very much for visiting our website, and we hope you find products you like. When you contact us, we will provide the following professional and enthusiastic services:
Q: Are your fans manufactured by the original factory? A: Yes, Bonawind is the official leading manufacturer of high-quality industrial and commercial fans in the USA. Q: What is the delivery time? A: Delivery is usually made within 30 working days after receiving the deposit. Q: What payment terms are acceptable? A: Typically, we accept a 30% advance payment by T/T, and the remaining 70% is payable after the fan is completed. Q: What is the transportation method? A: Our fans are mainly transported by sea or land, depending on your location and order quantity. Q: Why should I purchase from Bonawind instead of other suppliers? A:We are a factory, reducing intermediary costs and lowering your procurement expenses. We continuously innovate, adopt new technologies, and develop new fan models to meet market demands. Bonawind products are recognized for high quality and reliability, with many models certified by CE and ISO.
Our fans have been sold globally, covering Europe, North America, South America, and Southeast Asia, and are widely trusted by customers. Q: What is the warranty period? A: 3-year warranty. Q: Do you accept customized fans? A: Yes, we accept customized fans, including options for size, voltage, motor type, blade material, and OEM/ODM branding.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $2610 / piece
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 380-480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
