Key specification for this ceiling fan: rated voltage 200-500VAC, type Polypropylene Film Capacitor. Everything below is reproduced from the factory data sheet. Made by Shantou Xin Hua Xiong Electronics Industry Co.,Ltd. (9 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan

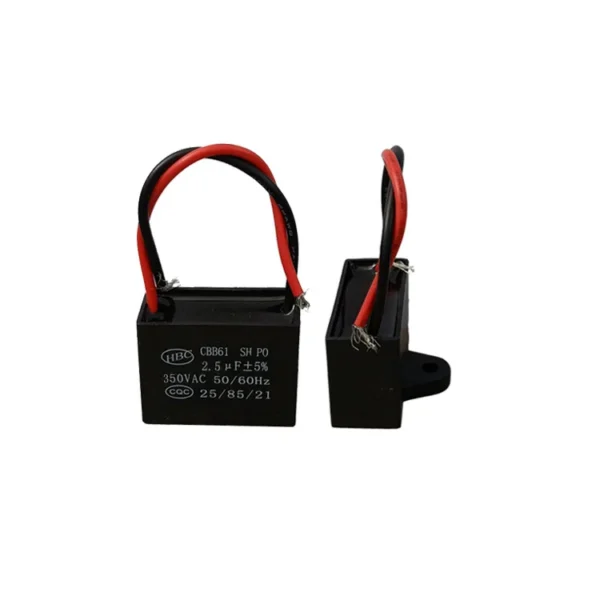

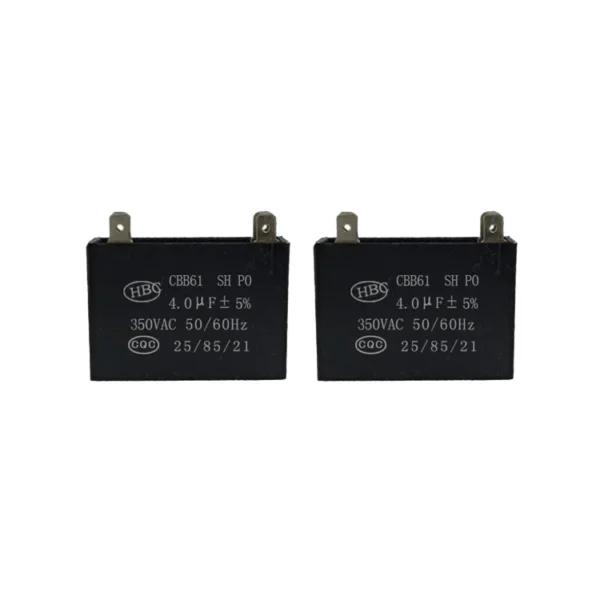

- Model Number: CBB61
- Rated Voltage: 200-500VAC
- Test Voltage Terminal To Case Utc: 2000VAC-50Hz for 60 seconds
- Voltage – Rated: 350V
- Place Of Origin: Guangdong, China
- Application: FAN
Technical Specifications
| Model Number | CBB61 |
|---|---|
| Rated Voltage | 200-500VAC |
| Brand Name | HBC KAY |
| Place Of Origin | Guangdong, China |
| Operating Temperature | -40°C- +85°C |
| Item | fan capacitor |
| Capacitance Tolerance | ±5% |
| Reference Standards | GB/T 3667.1 (IEC60252-1) |
| Climatic Category | 40/70/20 |
| Dissipation Factor | 20×10-4 (100Hz,20℃ |
| Test Voltage Terminal To Case Utc | 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ.μF(100Hz,20℃,1min) |
| Capacitance | 2.5uf |
| Type | Polypropylene Film Capacitor |
| Supplier Type | original manufacturer, ODM |
| Media Available | datasheet, Photo |
| Package Type | Through Hole |
| Application | FAN |
| Description | HBC |
| Voltage – Rated | 350V |
| Packaging Details | Customized carton |
| Port Of Dispatch | Shenzhen/ShanTou/HK |
| Selling Units | Single item |
| Single Package Size | 75.77X50X50 cm |
| Single Gross Weight | 0.050 kg |
| Supply Ability | 50000 pieces per Day fan capacitor 2.5 uf |
Product Details
Features:
*Low dissipation factor*High insulation resistance
*Good self-healing character
*Steady performance
*Resisting flowing current
*High carrying capability
Rated Voltage | 350VAC/450VAC 50/60Hz |
Class of operation | Class C |
Capacitance Range | 0.4µF~15µF |
Climatic Category | 40/85/21 |
Voltage Proof Between Terminals | 2.0UN(2S) |
Voltage Proof Between Terminals And Case | 2.0UN+1000VAC≤2000VAC(60S) |
Capacitance Tolerance | ±5% ±10% |
Dissipation Factor | ≤0.0020 ( 20℃ 100HZ) |
Insulation Resistance | ≥3000 S |
Maximum Permissible Voltage | 1.1UN |
Maximum Permissble Current | 1.3 IN |
Class of safety Protection | S0 (P0) |
Which type you need?
Q: Are you trading company or manufacturer ?
A: We are the professional factory in China.
Q: What is the material of your products?
A: The material is metallized film for capacitors used Grade A+. We can also choose material as customers' requirement.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need!
Q: How does your factory do regarding quality control?
A: "Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;SGS authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by fifteen years.
Q: What is the delivery time?
A: Normally,the time is 7~30days as we can;we must do our best to do it much quickly.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 200-500VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
