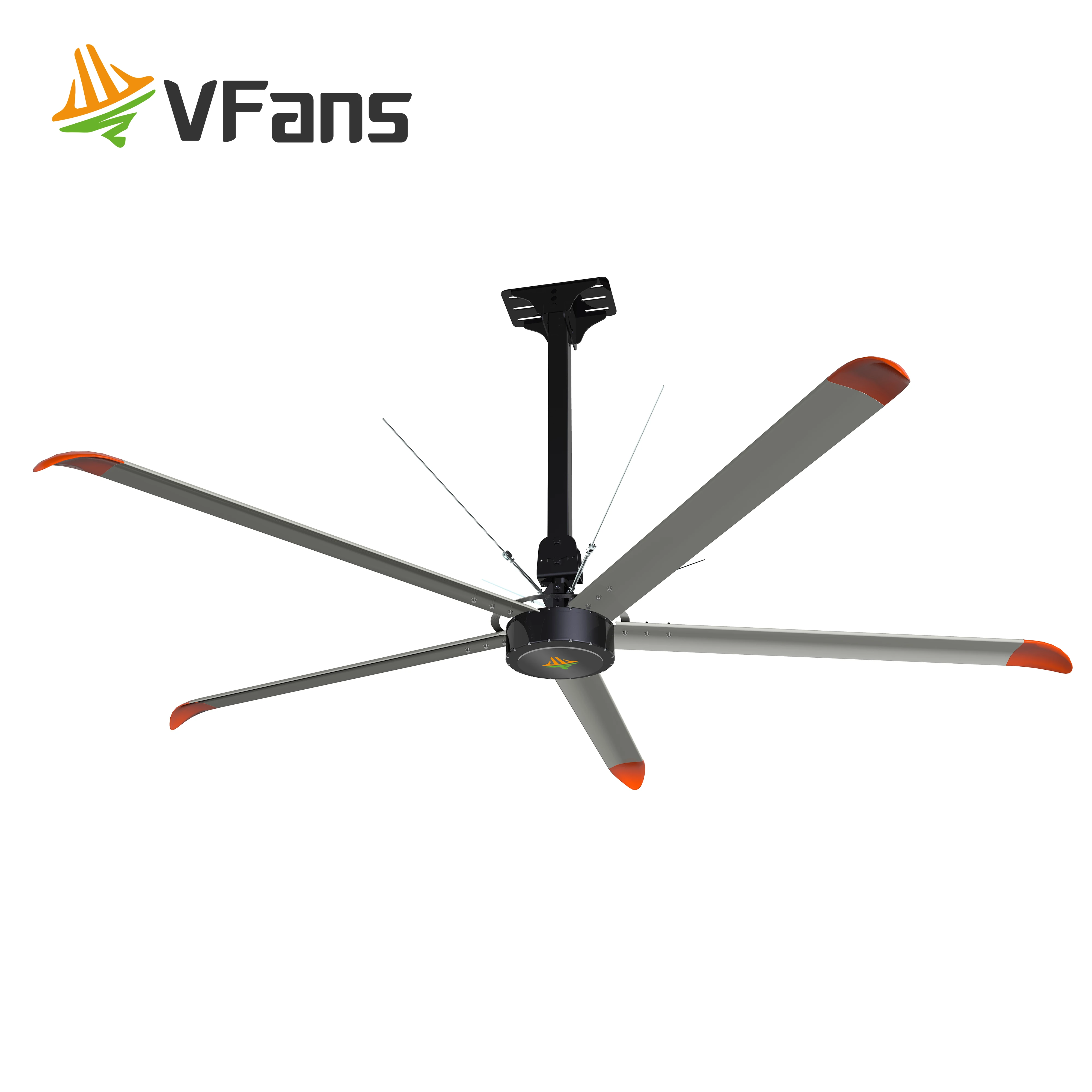

Ceiling Fan — 220V / 380V, 50-60Hz, Single Phase, power source Electric. Verified manufacturer, factory pricing, full data sheet on request. Material: Aluminum Alloy. Type: Ventilation Fan.
The ceiling fan listed here carries 220V / 380V, 50-60Hz, Single Phase, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangdong Aikerong Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
Model Number: v350e
Power Source: Electric
Power Supply: 220V / 380V, 50-60Hz, Single Phase
Material: Aluminum Alloy
Blade Material: 5 Aliuminum Blades
Speed: 60rpm-75rpm
Technical Specifications
Application
Commercial, Household, Outdoor, Garage, Hotel
Type
Ventilation Fan
Motor
DC Motor
Material
Aluminum Alloy
Power Source
Electric
Number Of Blades
5
Control Method
Wall Controller
App-Controlled
No
Place Of Origin
Guangdong, China
Brand Name
VFans
Model Number
v350e
Product Name
Industrial Hvls Large Ceiling Fan
Usage
Industrial Ventilation
Control Type
Wall Controller
Logo
Logo Customized
Blade Material
5 Aliuminum Blades
Power Supply
220V / 380V, 50-60Hz, Single Phase
Speed
60rpm-75rpm
Size
18-24ft
Color
Silver/Grey
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details

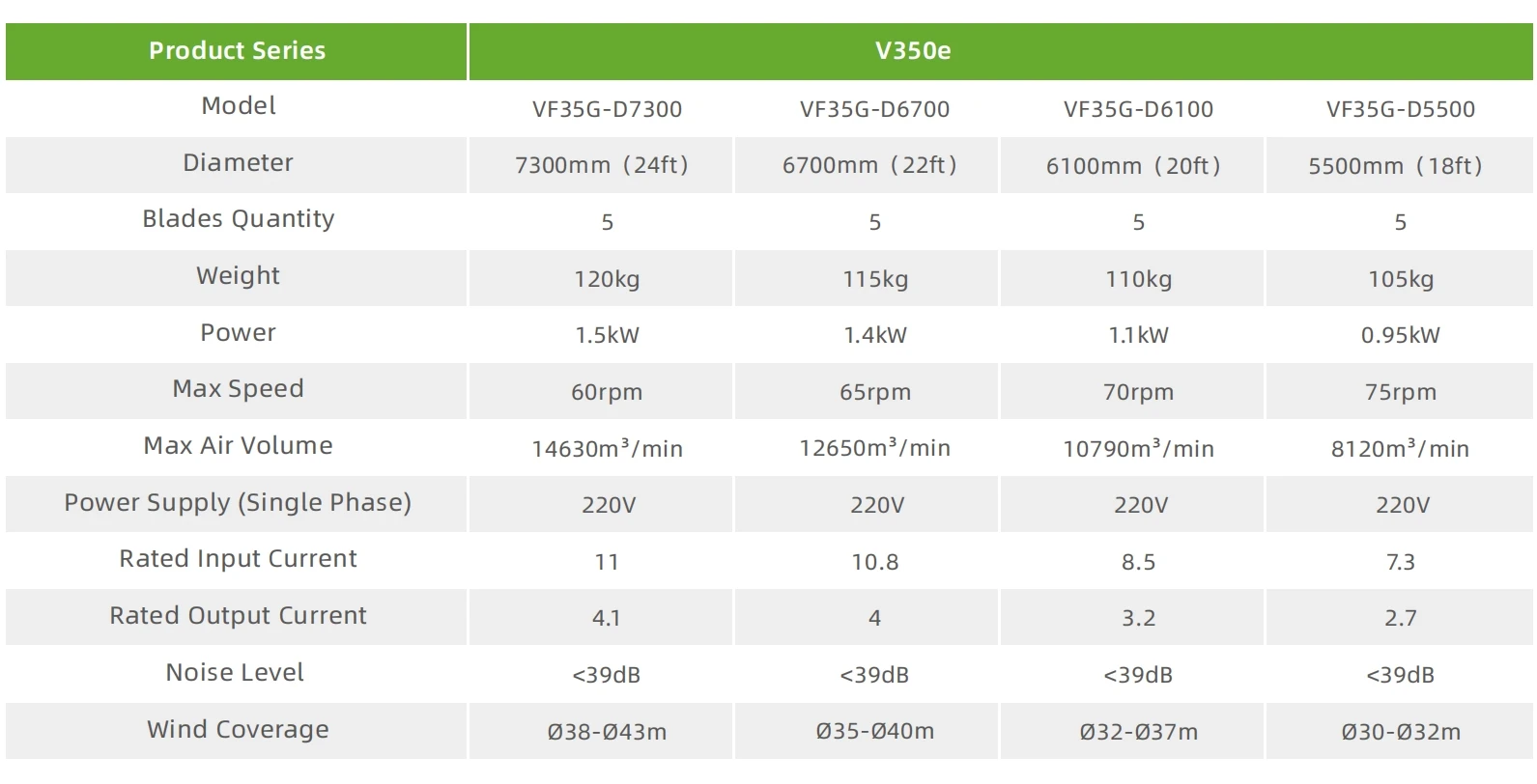

Product Paramenters

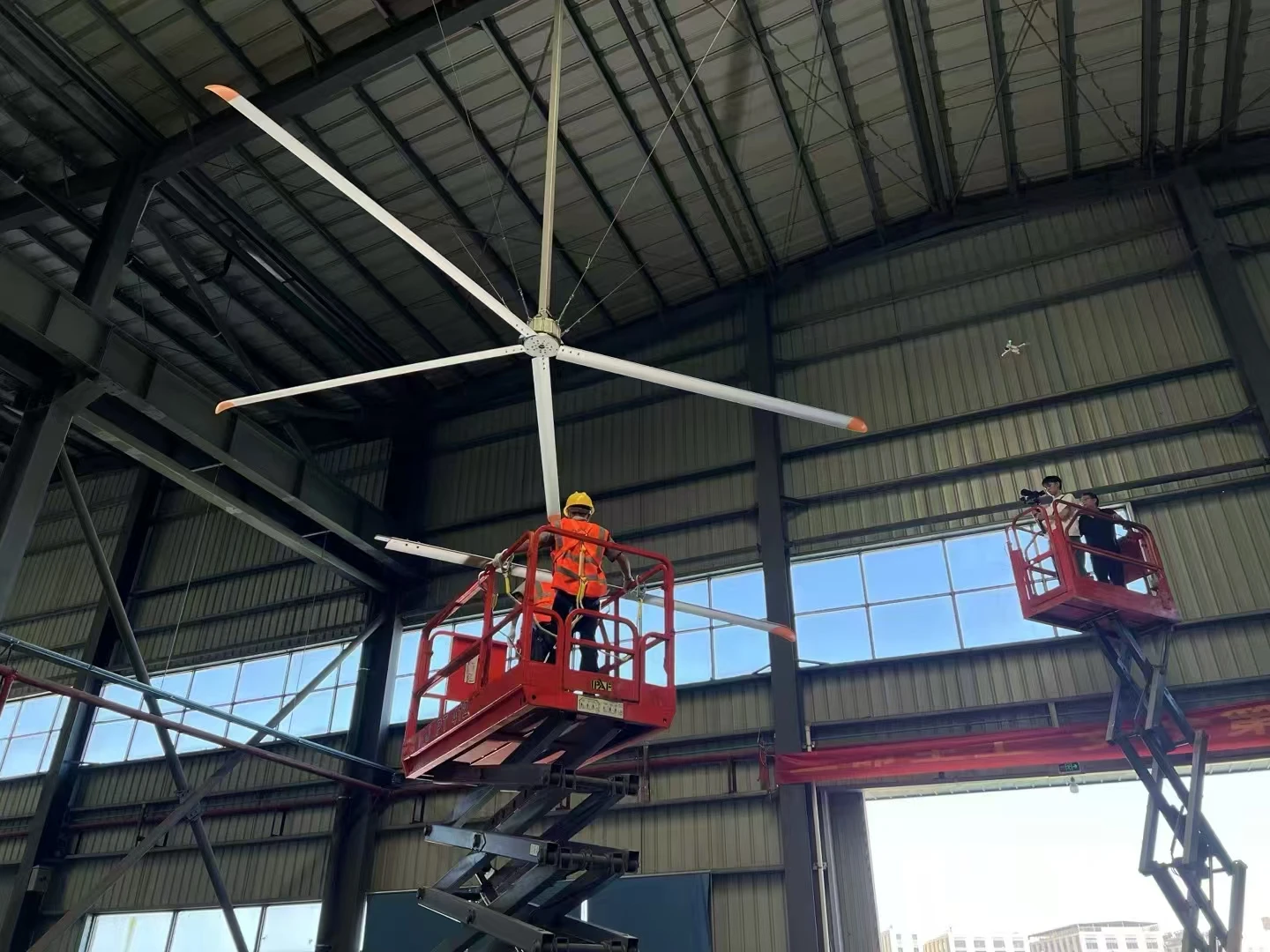

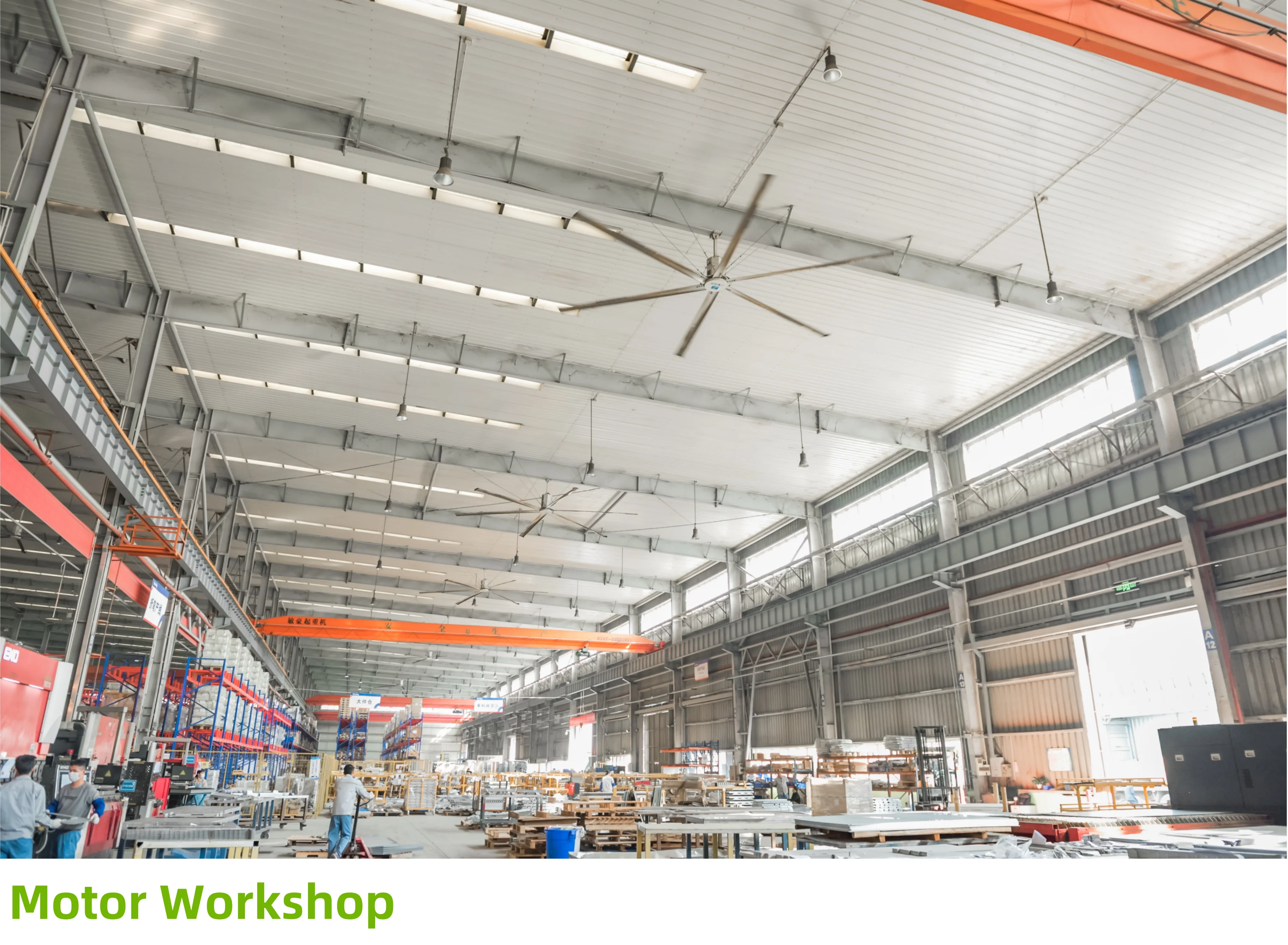

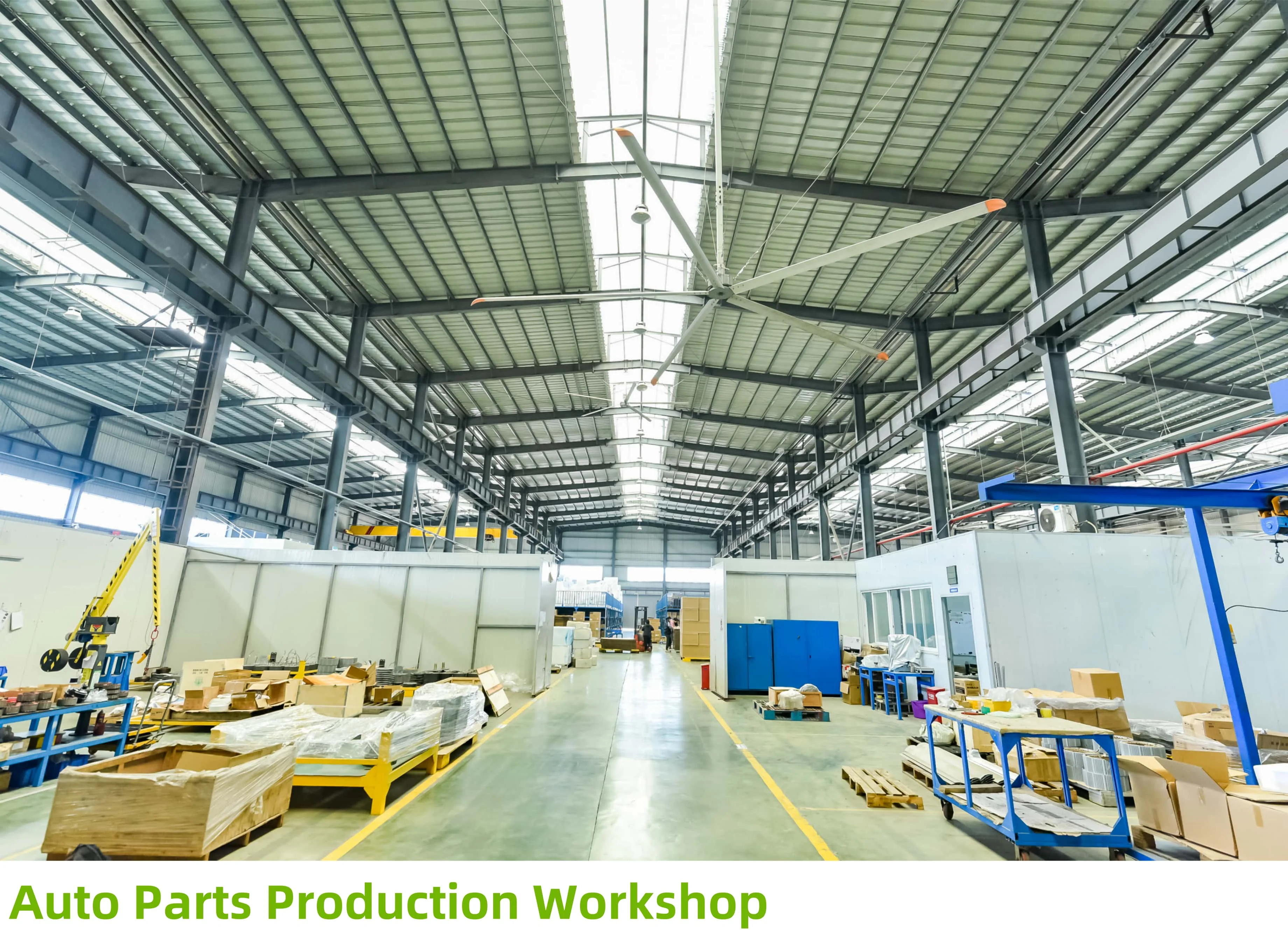

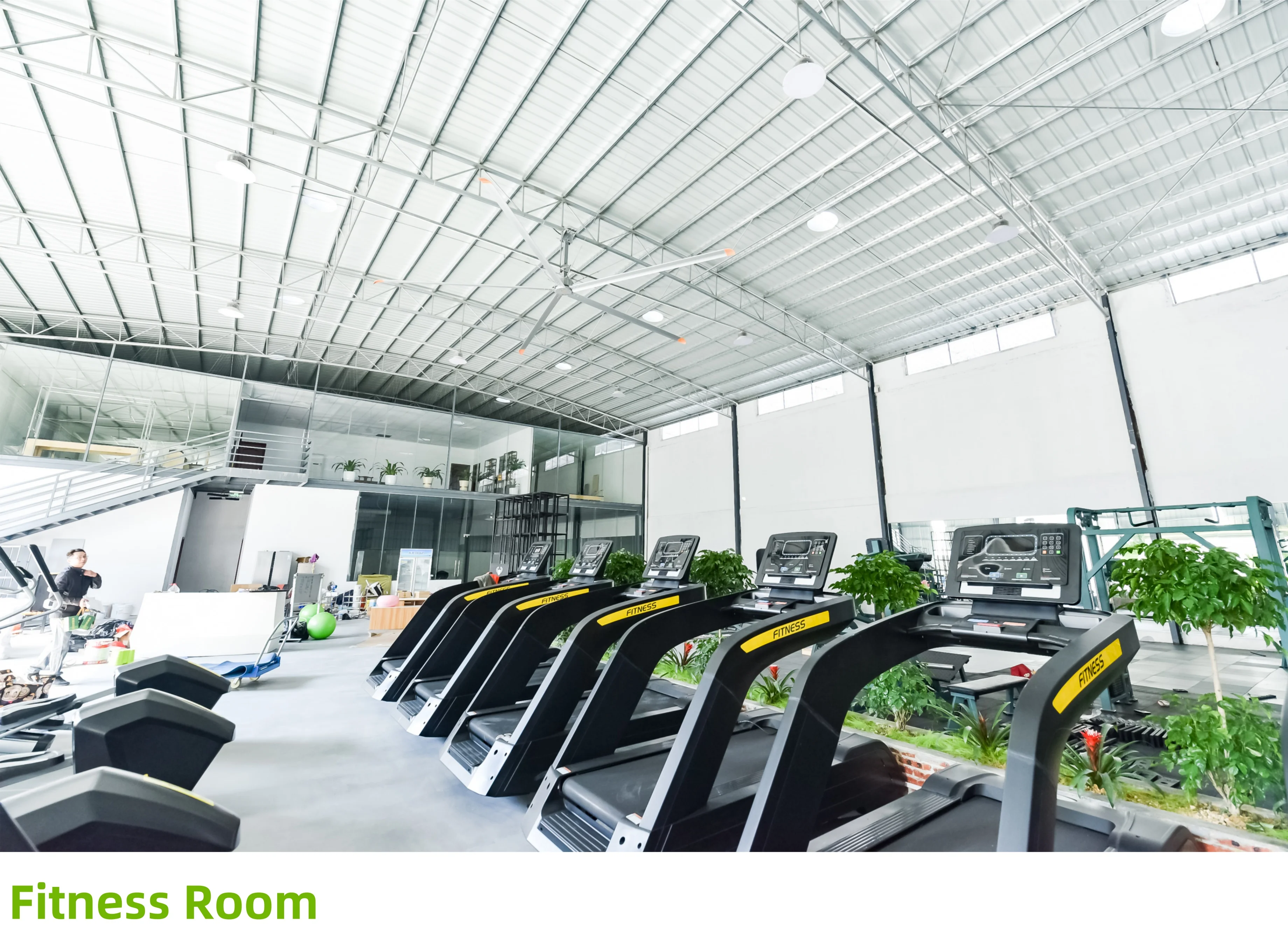

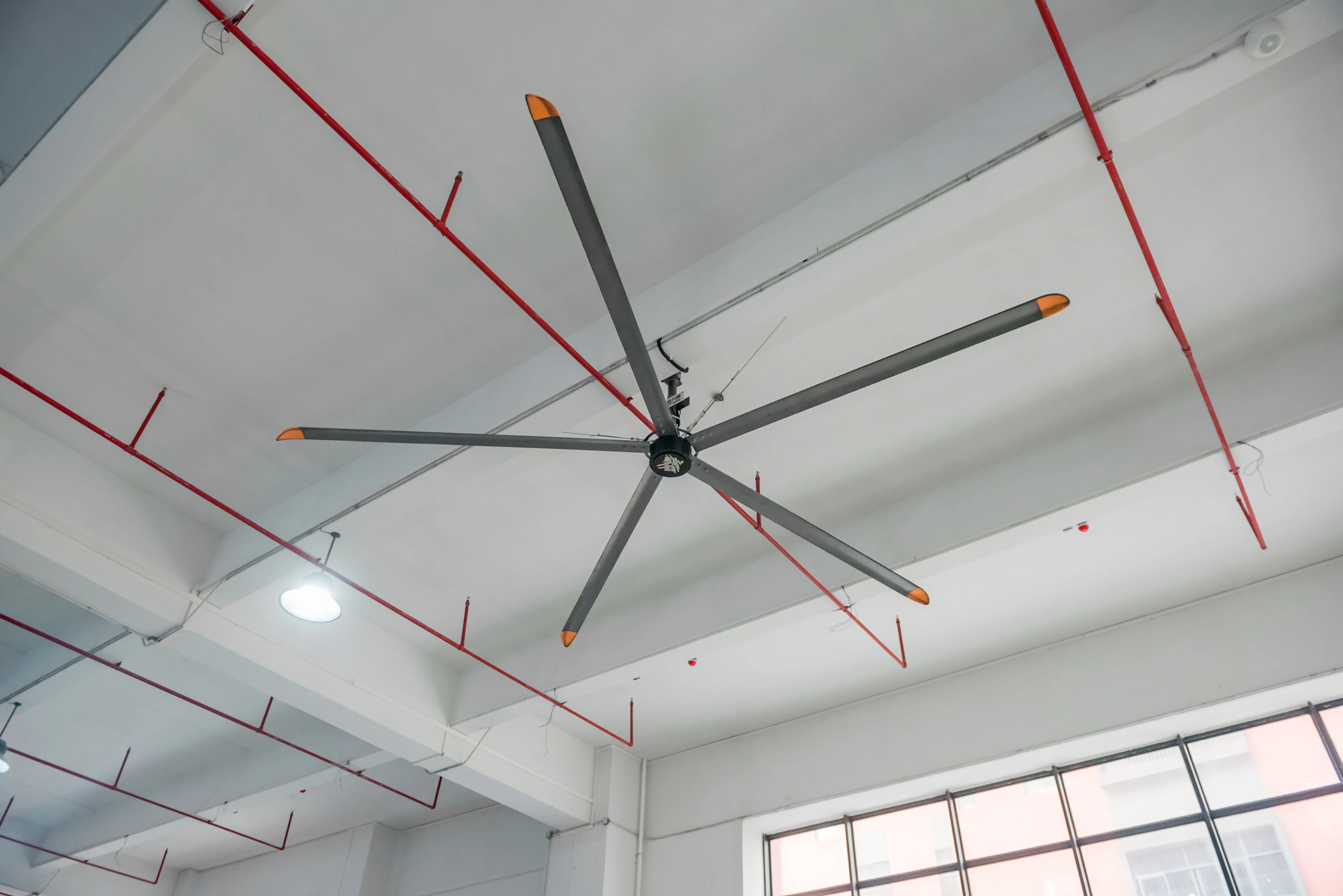

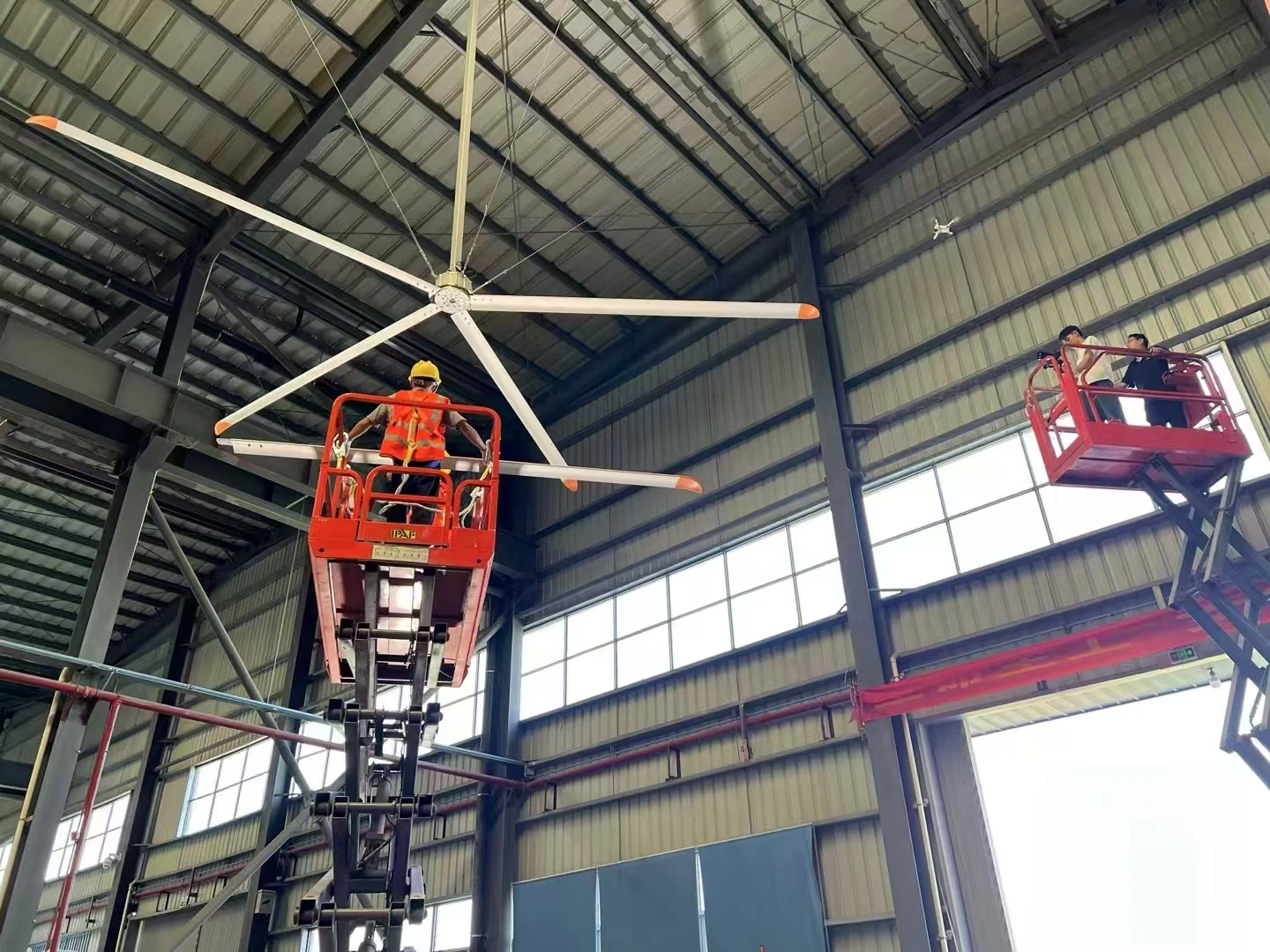

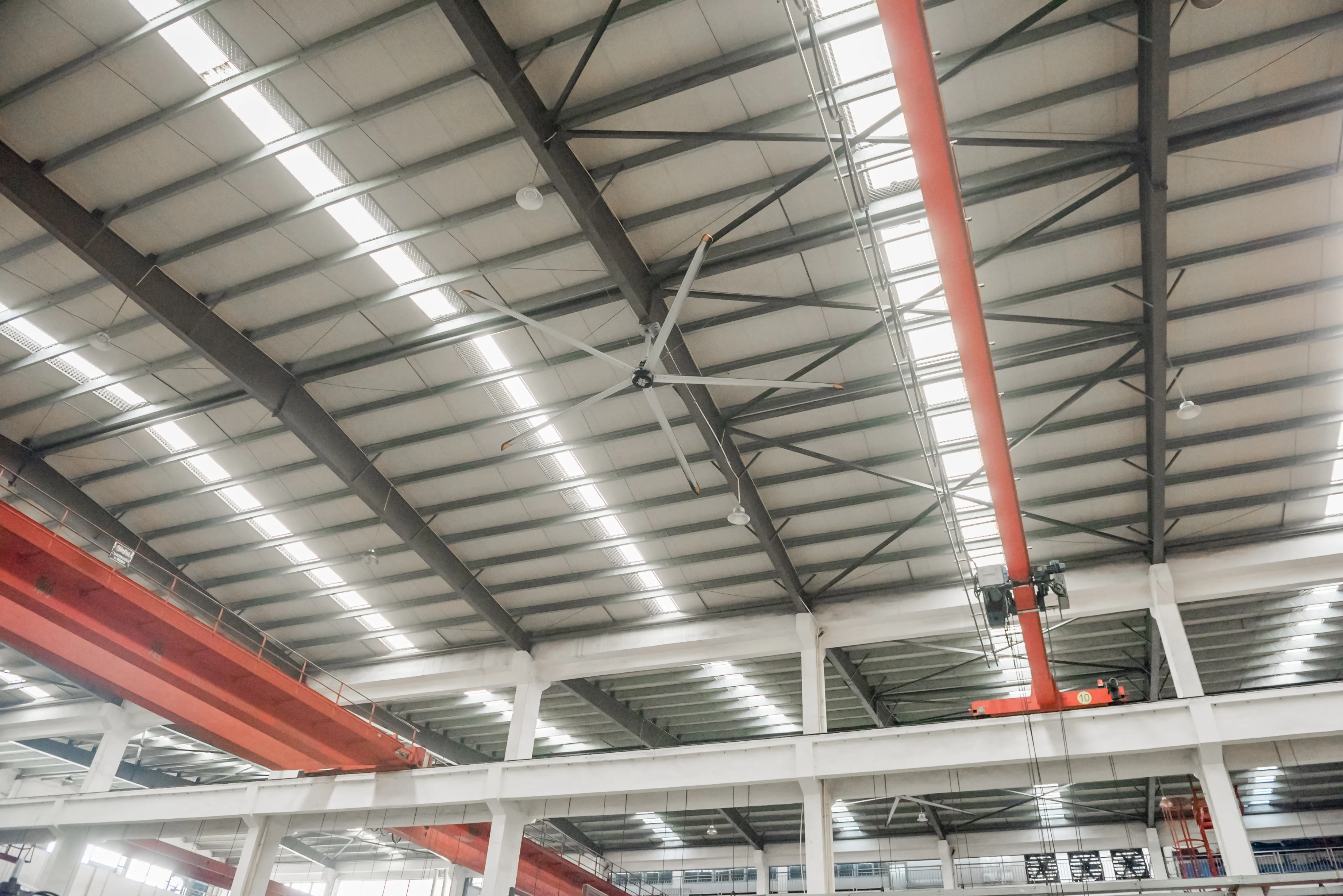

Installation cases

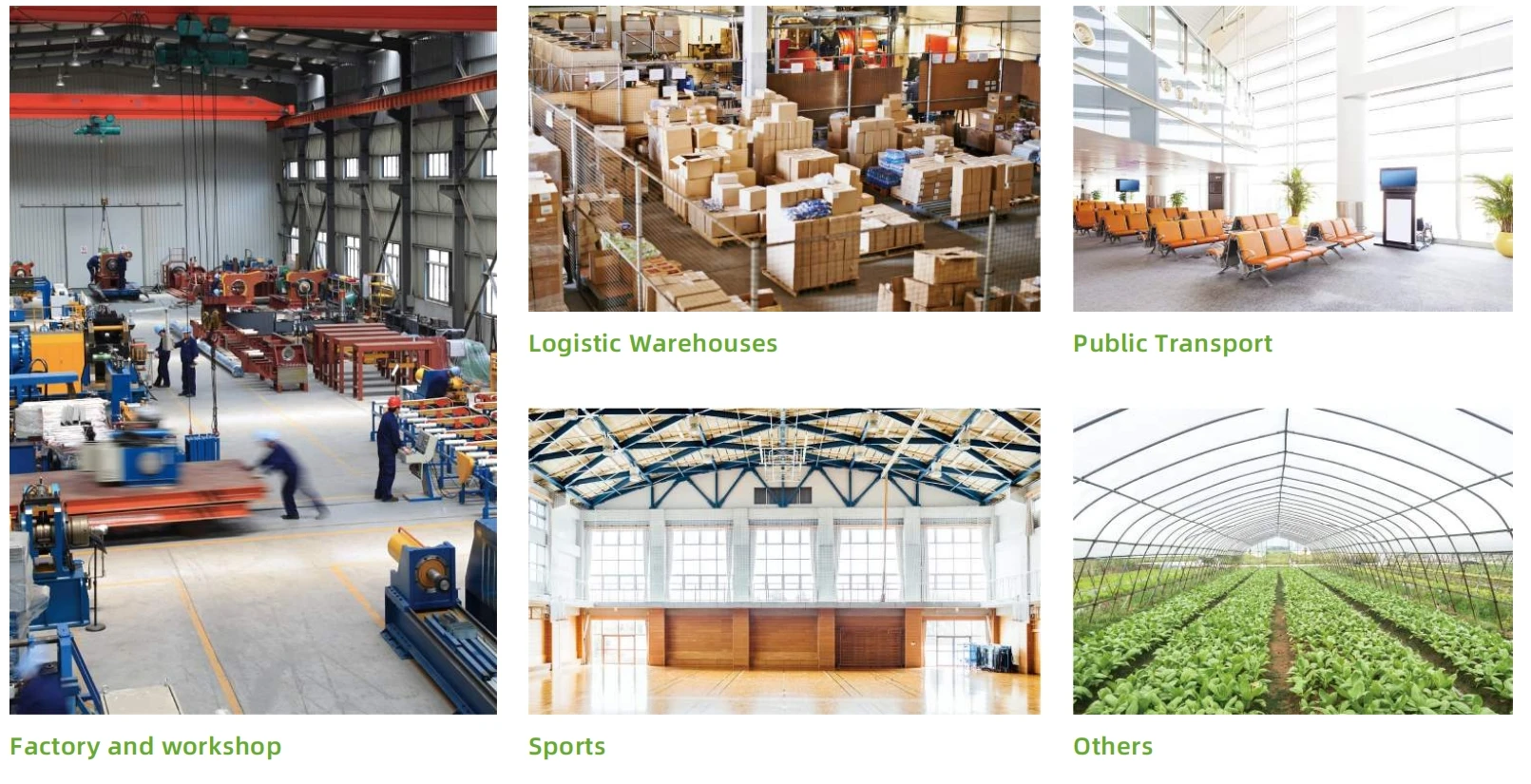

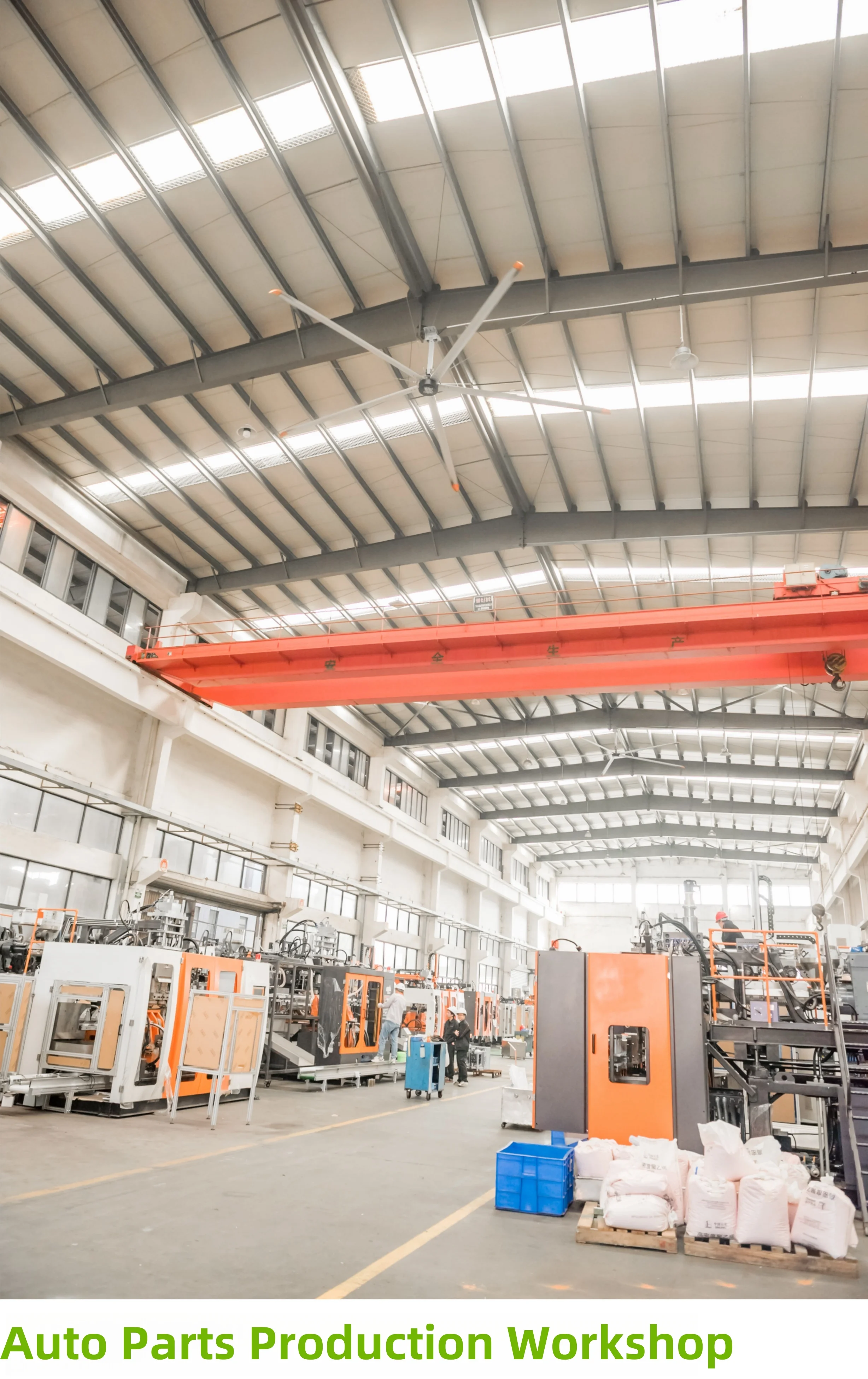

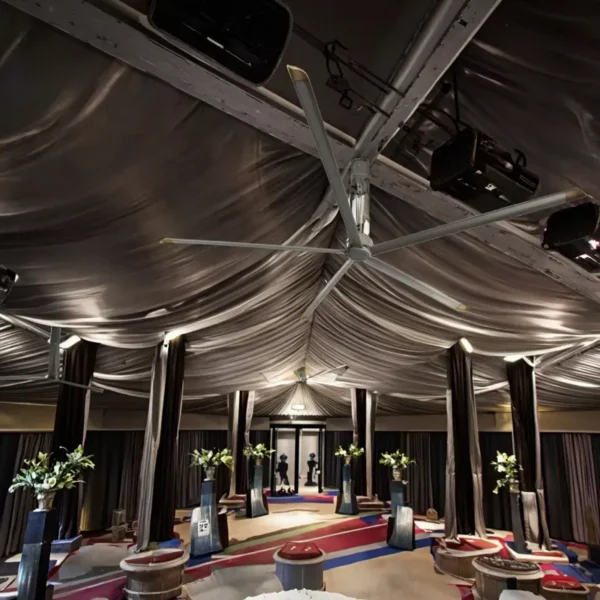

Application Area
Details Images
01 Drive system

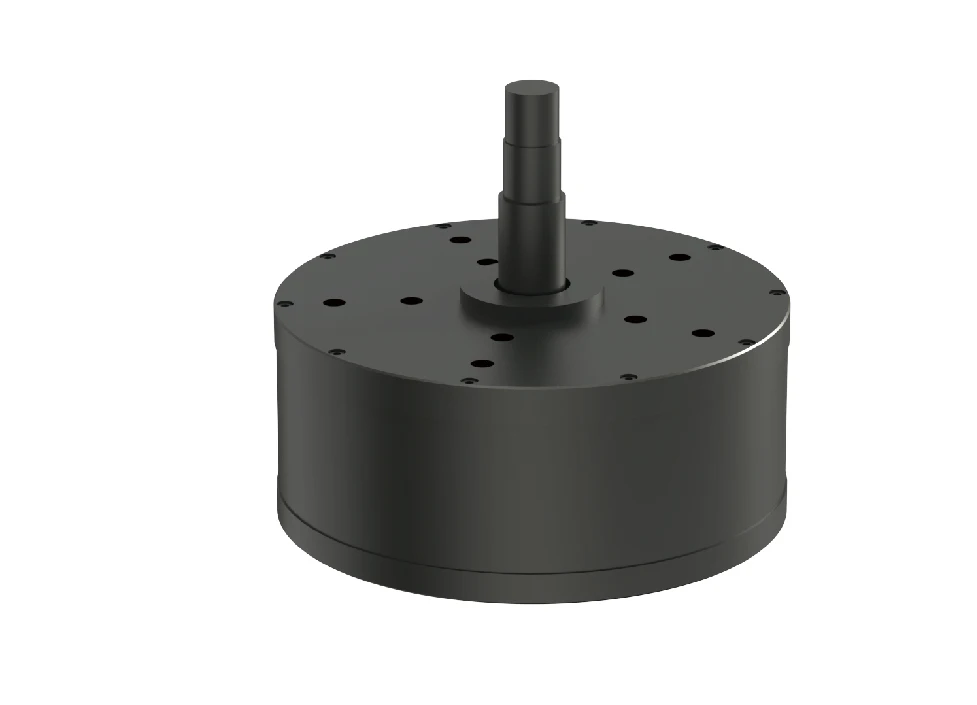

· Inner rotor permanent magnet synchronous motor (PMSM)
· Triple-layer nickel plating, corrosion-
resistant, high thermo-stability magnetic steel, with a temperature resistant of 150℃
· High quality temprature and pressure resistant enameled copper wire, with a temperature resistance of 180℃
· Ultra efficient silicon steel sheet with high magnetic induction and low iron loss
· Protection level IP64, insulation level F
` Motor winding vacuum impregnation and vacuum sealing technology, thermal conductivity, insulation, long service life, motor temperaturerise<65K
`Direct drive structure, long service life, maintenance free, energy-saving and environmentally friendly
`
02 Control system
· Special integrated controller, easy to operate, durable and reliable
· Controller and motor are matched automatically by self- learning, automatic initial position detection
· The fan starts and stops smoothly and gently, effectively eliminating motor noise and vibration
`Multiple safety detection protection of the controller, automatic shutdown in distress, effectively prevent accidents

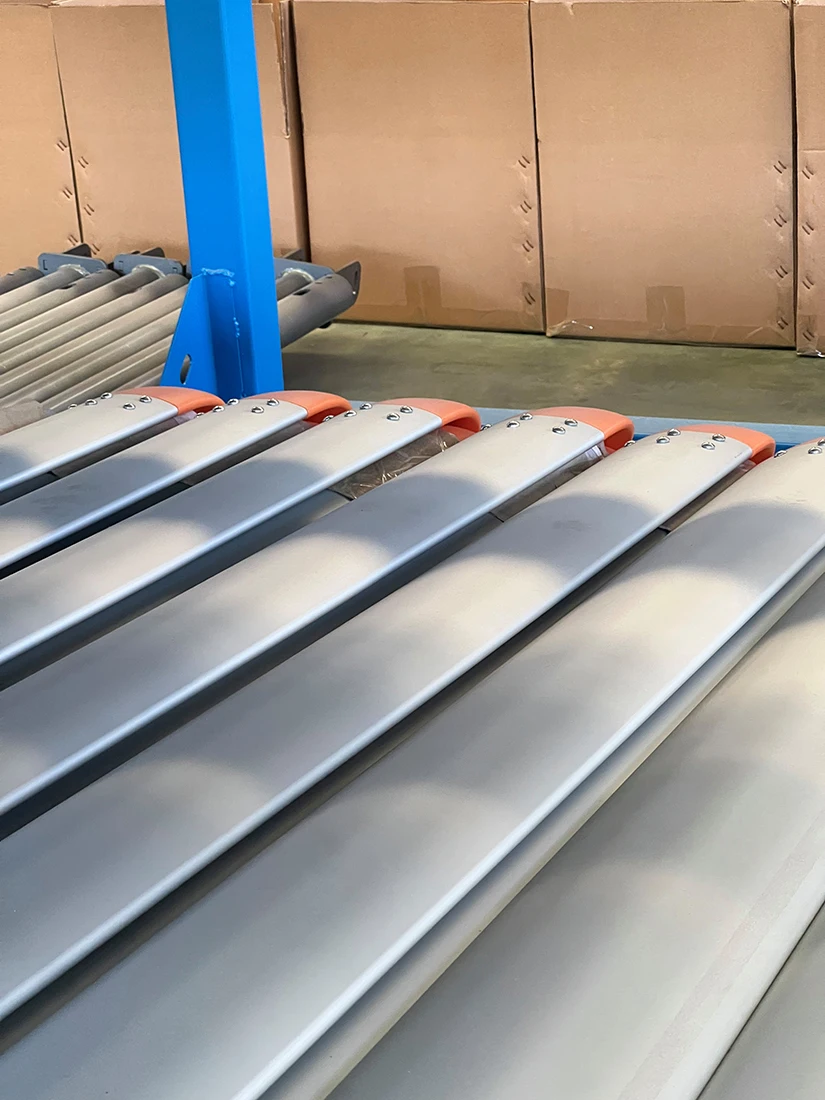

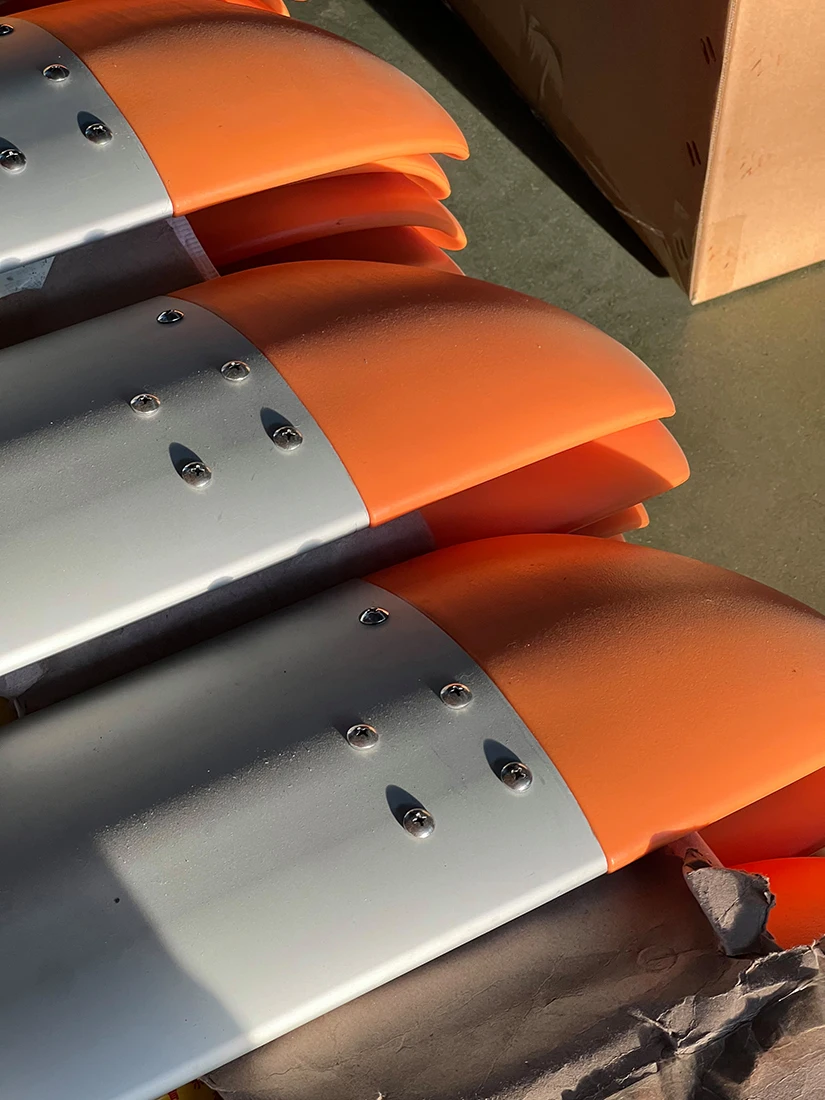

03 Fan blade system
· The fan blades are integrally extruded by using an aviation grade aluminum magnesium alloy 2000T extruder, and thesurface is anodized for corrosion resistance
· Wing shaped cross-section, with a main wall thickness of 2.5mm and a main reinforcing rib wall thickness of 3.1mm; also with 11 built-in reinforcing ribs, has a high strength
· The plug-in board is made of high-strength steel plate with a yield strength that ≥900Mpa, and is installed in an embedded manner

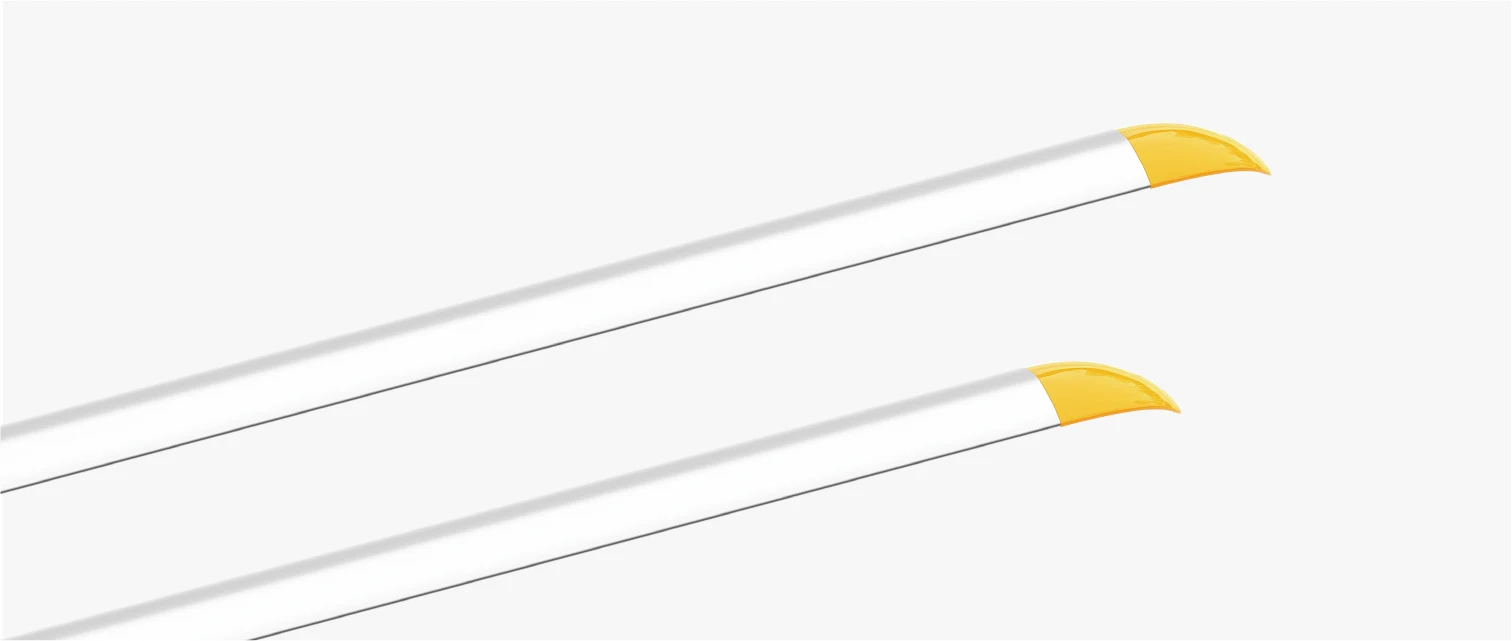

· Biomimetic tail wing has been awarded a national utility model patent as it concentrates the wind and brings better wind effect
04 Safety system

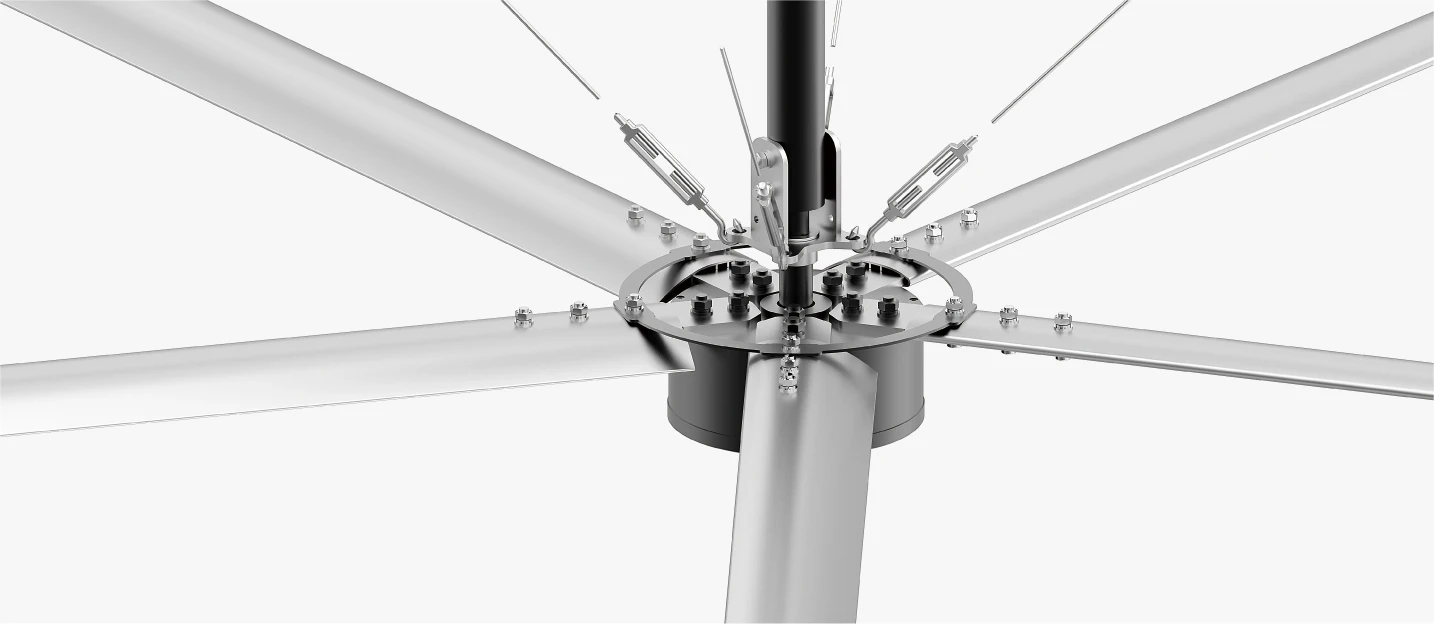

·National utility model patent, the motor is integrated with lifting ring, a steel wire rope directly hangs the motor body to prevent accidental motor falling
· The hanger is made of high-strength steel and has a frame structure with high strength
· The steel wire rope wraps around the main lifting beam and extends from the suspension rod to the motor hanger, protecting the overall structure
· Four 304 stainless steel wire ropes for traction and fixation,with good strength and corrosion resistance
· All fastening pieces are high-strength grade 12.9 screws with nickel plating treatment on the surface, which hasexcellent rust prevention effect
`All fasteners are added with specialized adhesive to prevent screws from loosening
Why Choose Us

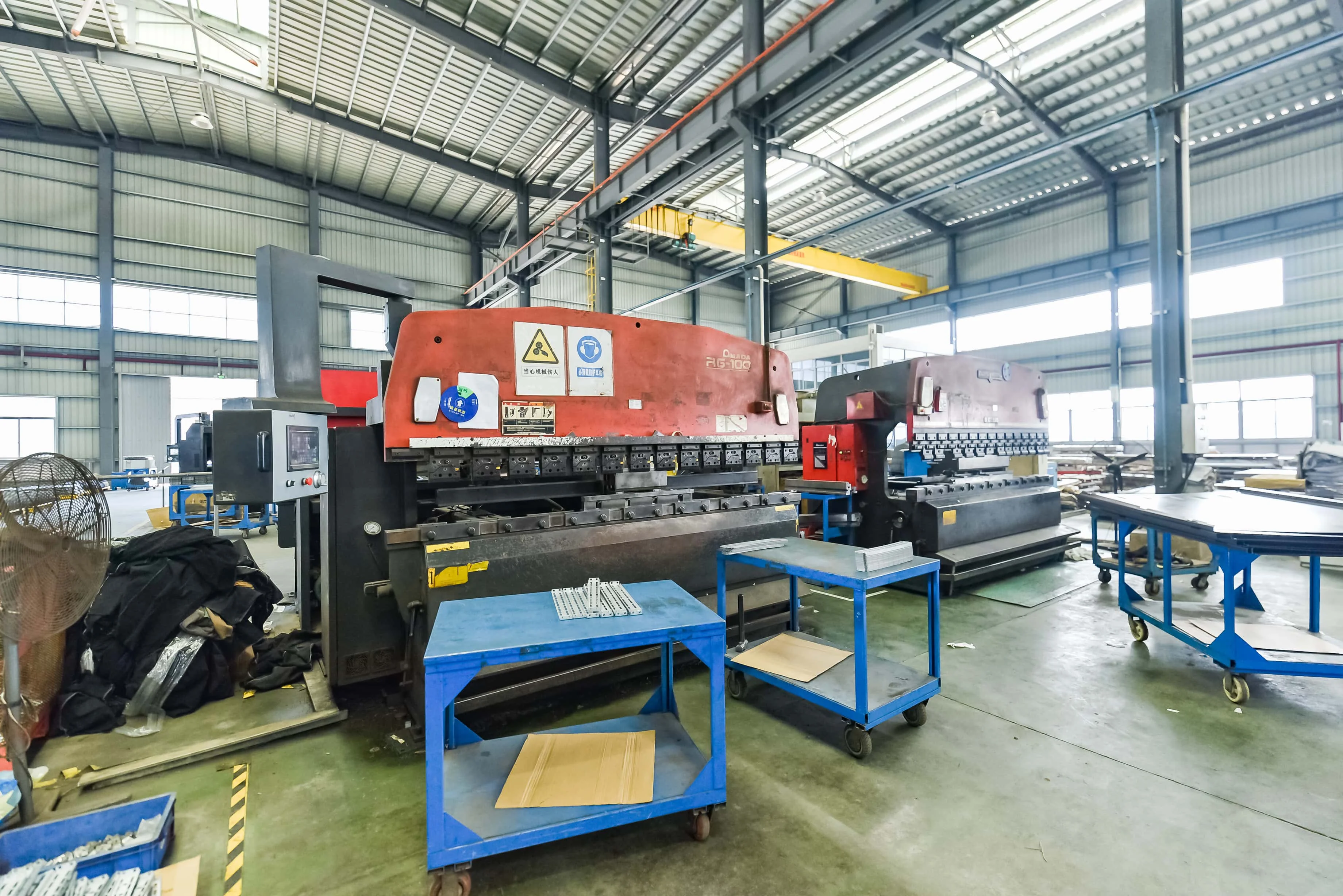

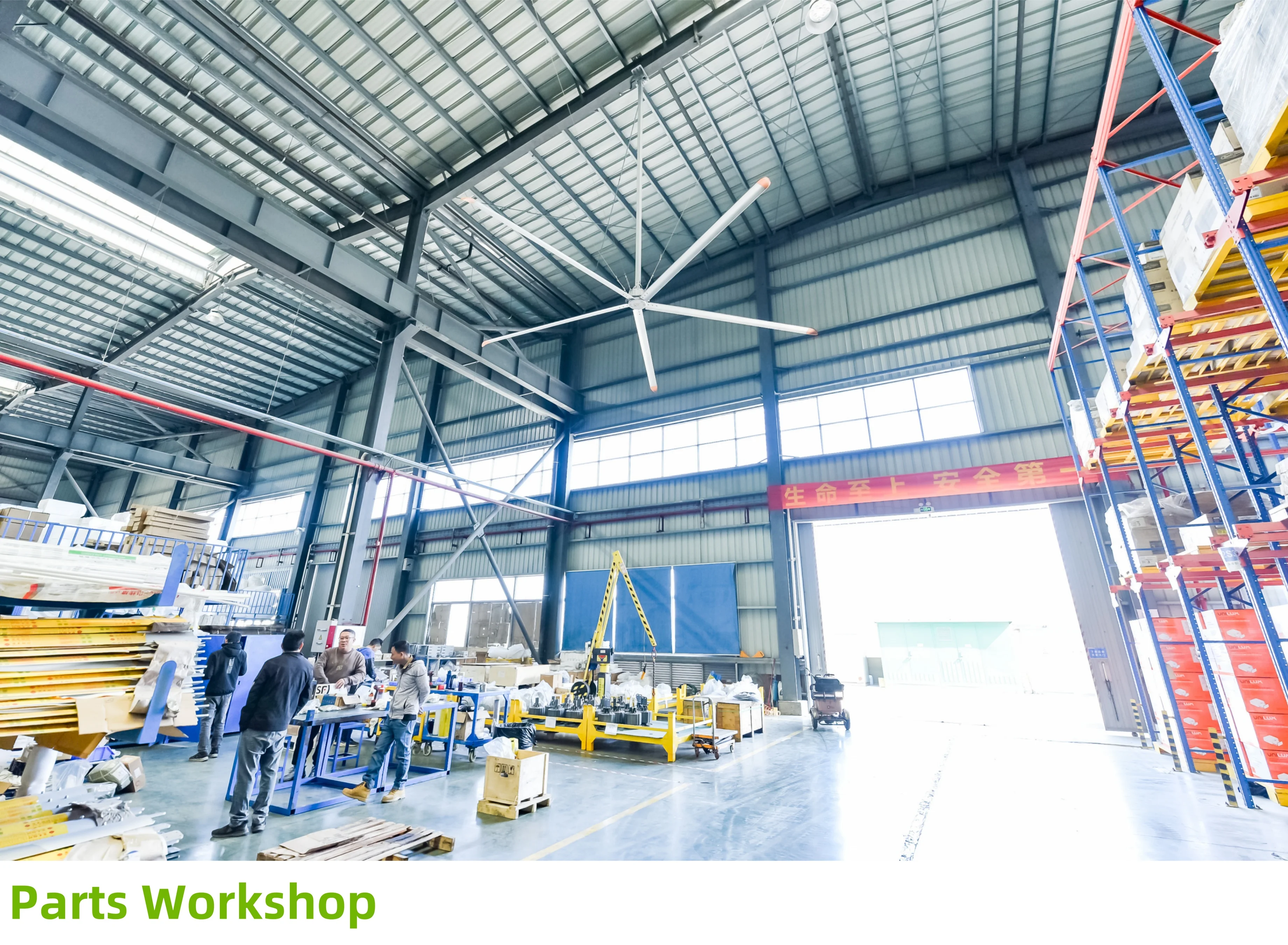

Our Factory
Certifications
HONOR AND QUALIFICATION
Formerty known as Foshan Shunde Yongfeng Electromechanical Equipment Co., Ltd., the company built its first factory in 1993 and moved to Cuishanhu Districtin 2014. The new production base covers an area of 33 acres, while having over 70,000m factory buildings. Yongfeng is a high-tech enterprise who has passed ISO9001:2015,ISO14001:2015management system, OHSAS18001 occupational health and safety management system,CQC、CE product certification system and so on.
Ordering and Pricing
Minimum order quantity: 2 set
Volume pricing:
2–9 set: US $2300 / set
10–19 set: US $2200 / set
20+ set: US $2100 / set
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 220V / 380V, 50-60Hz, Single Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Aikerong Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Aikerong Technology Co., Ltd. range on HVACR Nexus.
