This ceiling fan is published with the manufacturer’s full specification — max. airflow 260m³/min (9,182 CFM, Industry Grade), 39 W. Made by Guangdong Qinggu Shihe Biotechnology Co., Ltd. (1 year on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ceiling Fan
- Model Number: TA56-M334, TA56-M335, TA56-M336
- Power (W): 39 W
- Power Source: Electric
- Max. Airflow: 260m³/min (9,182 CFM, Industry Grade)
- Material: Metal
- Blade Material: Powder Coated Anti-rust Pure Iron
Technical Specifications
| Application | Commercial, Garage, Hotel, Household |
|---|---|
| Type | Air Cooling Fan |
| Dimensions | 56 Inch |
| Lighting | Not Equipped |
| Motor | DC Motor |
| Wind Speed | Nine |
| Energy Efficiency Rating | Class A++ |
| Control Type | Remote Control |
| Feature | Energy Saving, Quiet Design, BLDC Motor, Reversible Airflow |
| Material | Metal |
| Noise Level | 30–34 dB |
| Number Of Blades | 3 |
| Power (W) | 39 W |
| App-Controlled | No |
| Timer | Yes |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Power Source | Electric |
| Operating Language | English |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Factory OEM |
| Model Number | TA56-M334, TA56-M335, TA56-M336 |
| Name | Indoor Ceiling Fan |
| Downrod Length | 30cm Downrod mount (Customizable, from 15cm to 100cm) |
| Motor Temperature Rise | ≤65k |
| Winding | 100% Copper Wire |

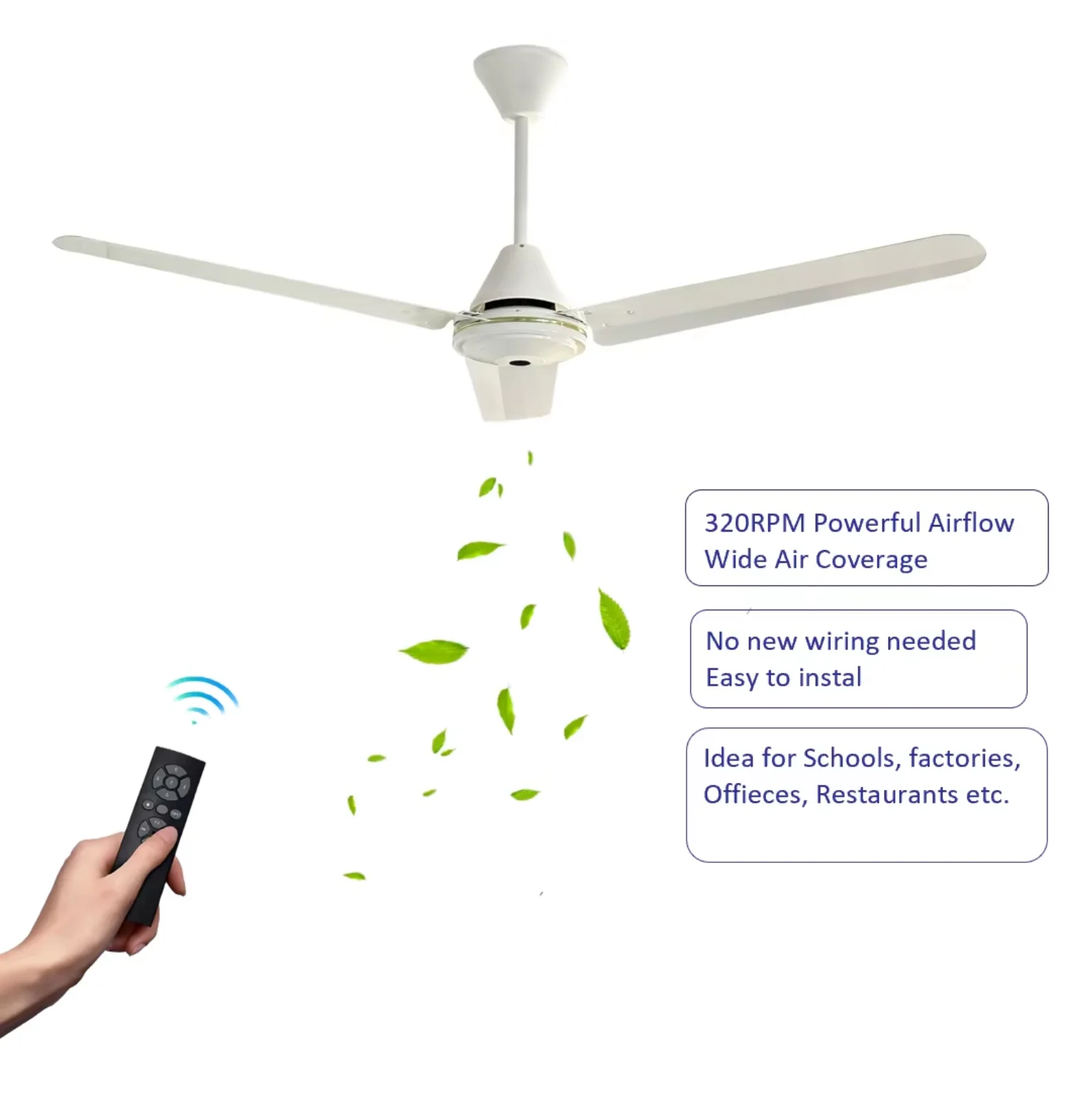

| Revolution/Min | 320RPM±10% |
| Reversible | YES |
| Max. Airflow | 260m³/min (9,182 CFM, Industry Grade) |
| Blade Length | 61cm ( 24inch) |
| Blade Material | Powder Coated Anti-rust Pure Iron |
| Applicable Space | 322.92-430.56sq ft |
| Selling Units | Single item |
Product Details
PRODUCT HIGHLIGHTS

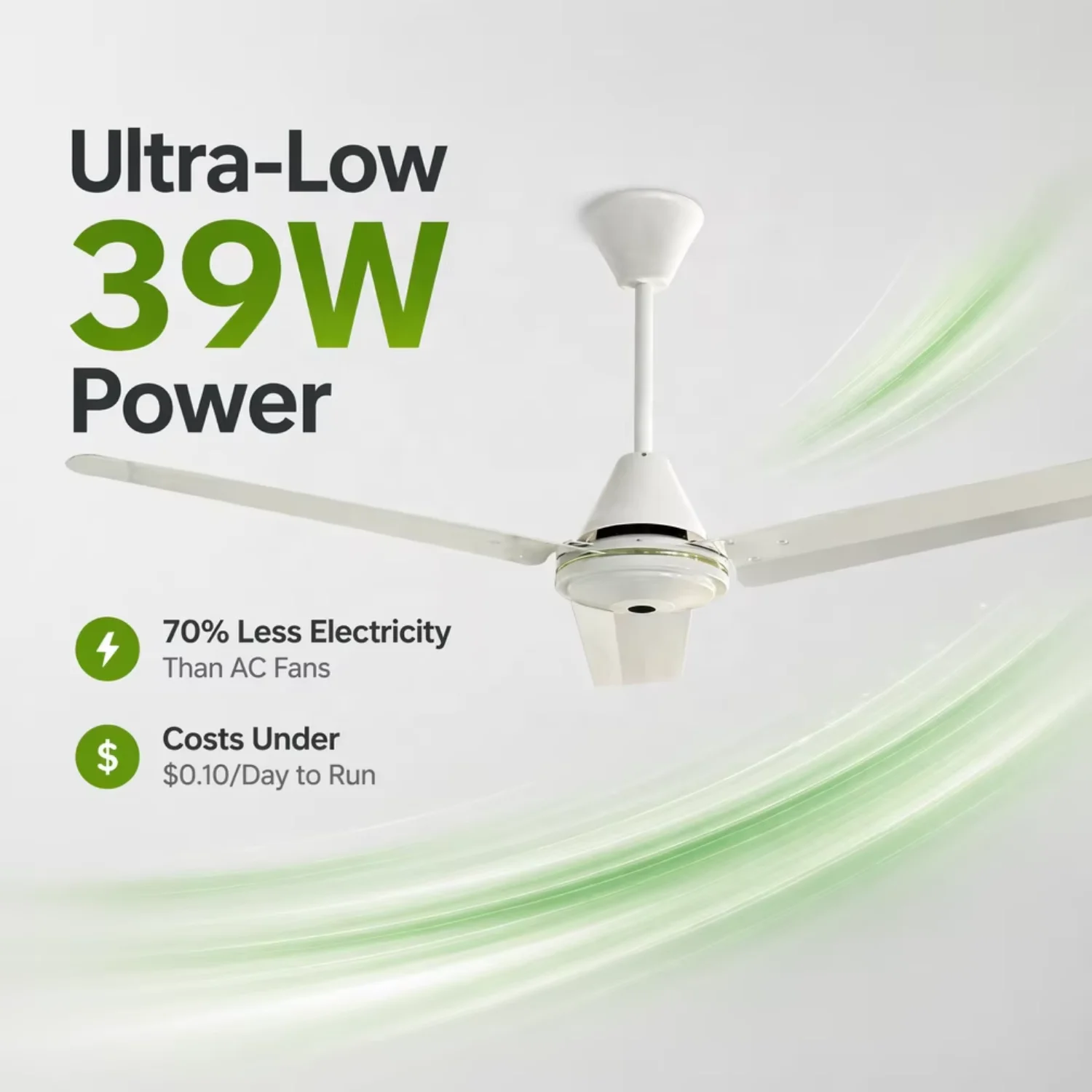

- 39W Ultra-Low Power Consumption — Save Up to 70% Electricity vs Traditional AC Fans. One Fan Costs Less Than $0.10/Day to Run. Suitable for hotel/warehouse which needs all-day run.
- 9182 CFM Industrial-Grade Airflow — Covers 322-430 sq.ft Per Fan. Effectively Cools Large Workshop, Warehouse & Hotel Lobby with Just One Unit.
- Library-Quiet 30dB Operation — Quieter Than a Whisper. Perfect for Hotel Rooms, Restaurants & Offices Where Noise is Not an Option.
- 100% Pure Copper BLDC Motor — Temperature Rise ≤65K, Rated for 50,000+ Hours. Backed by 3-Year Warranty for Complete Peace of Mind.

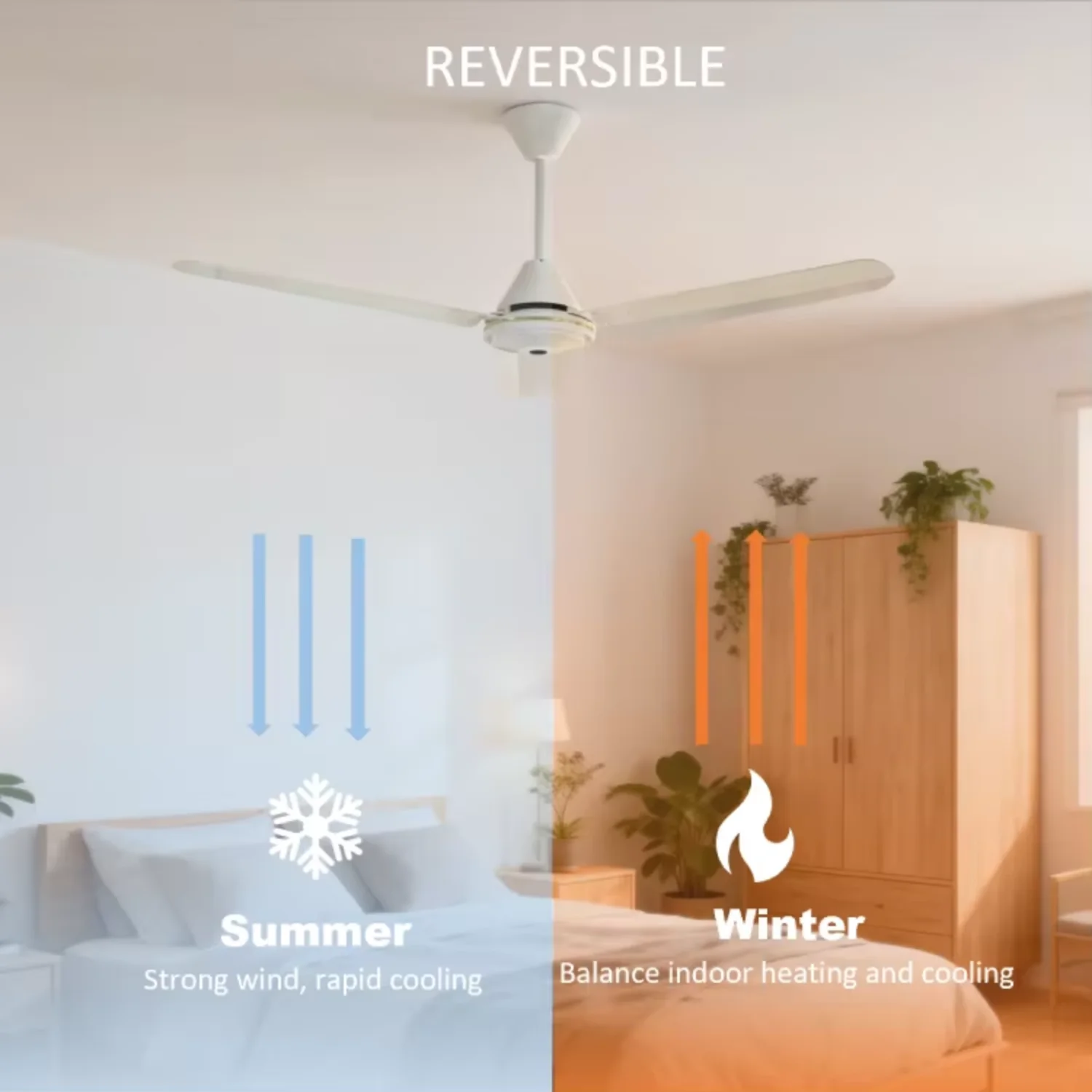

- 9-Speed Remote Control with Reversible Airflow — Summer Cooling + Winter Air Circulation in One Fan. Year-Round Value for Your Customers.
标题
Strong Air Delivery: 56-inch blade span for wide air coverage. High speed strong airflow , suitable for hot climates. Proven,
simple structure, low failure rate. Designed for large rooms, workshops, halls, shops
simple structure, low failure rate. Designed for large rooms, workshops, halls, shops
标题

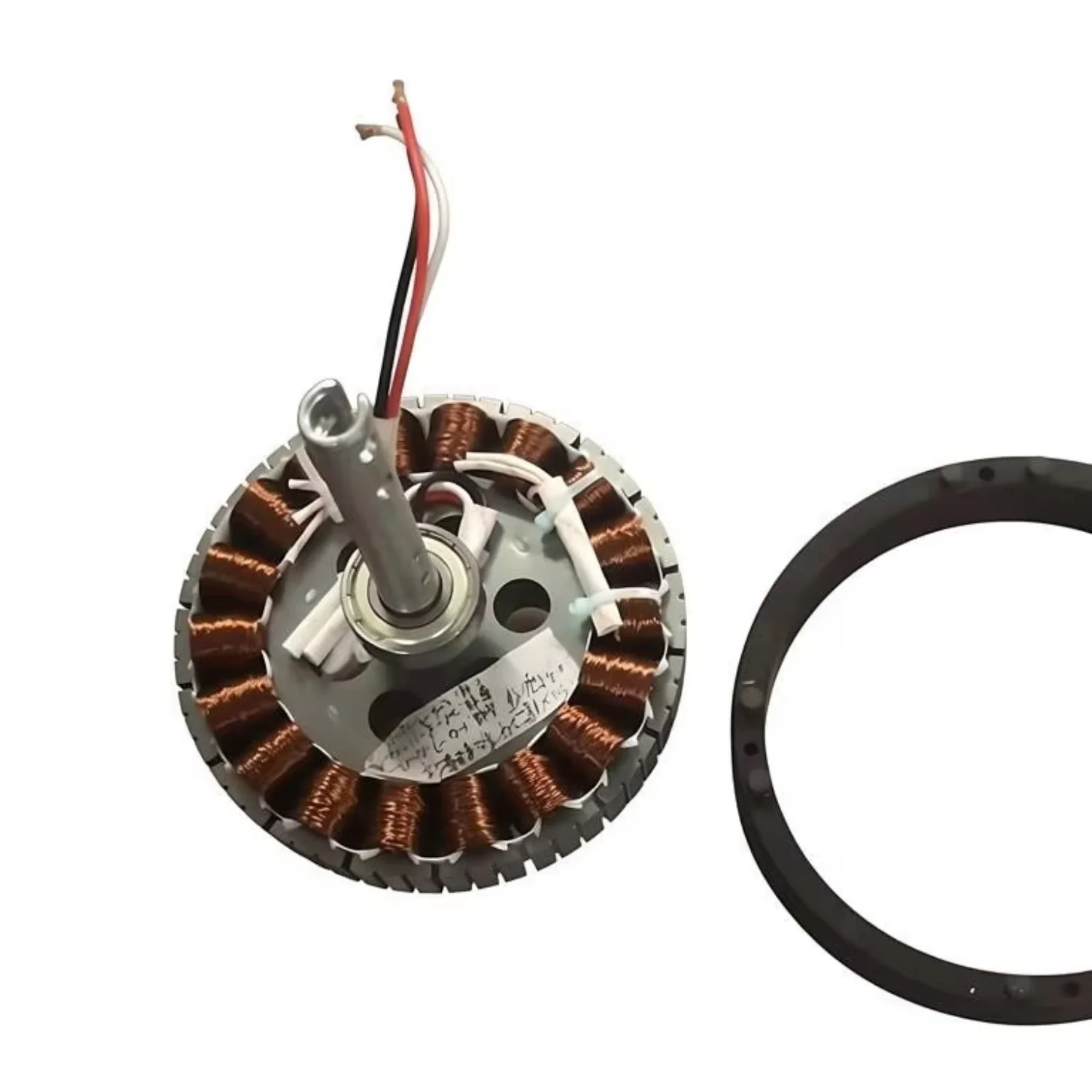

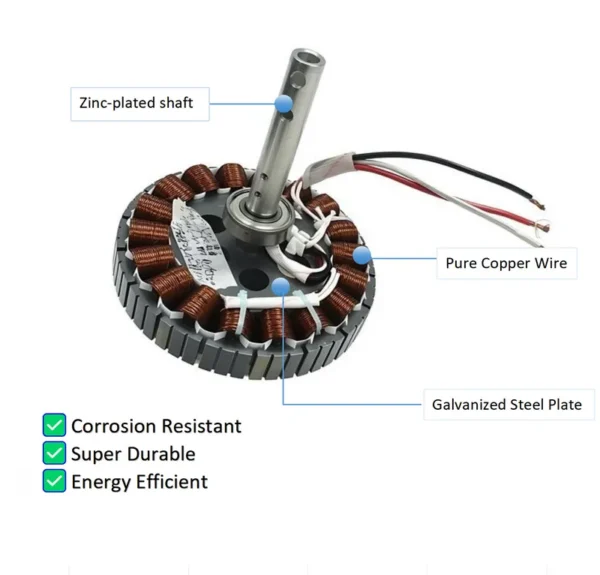

Double ball bearings, high-grade silicon steel laminations, full capacity pure copper wire. Anti-rust workmanship from inside out.
Perfect for long-time continuous operation.
Perfect for long-time continuous operation.
标题

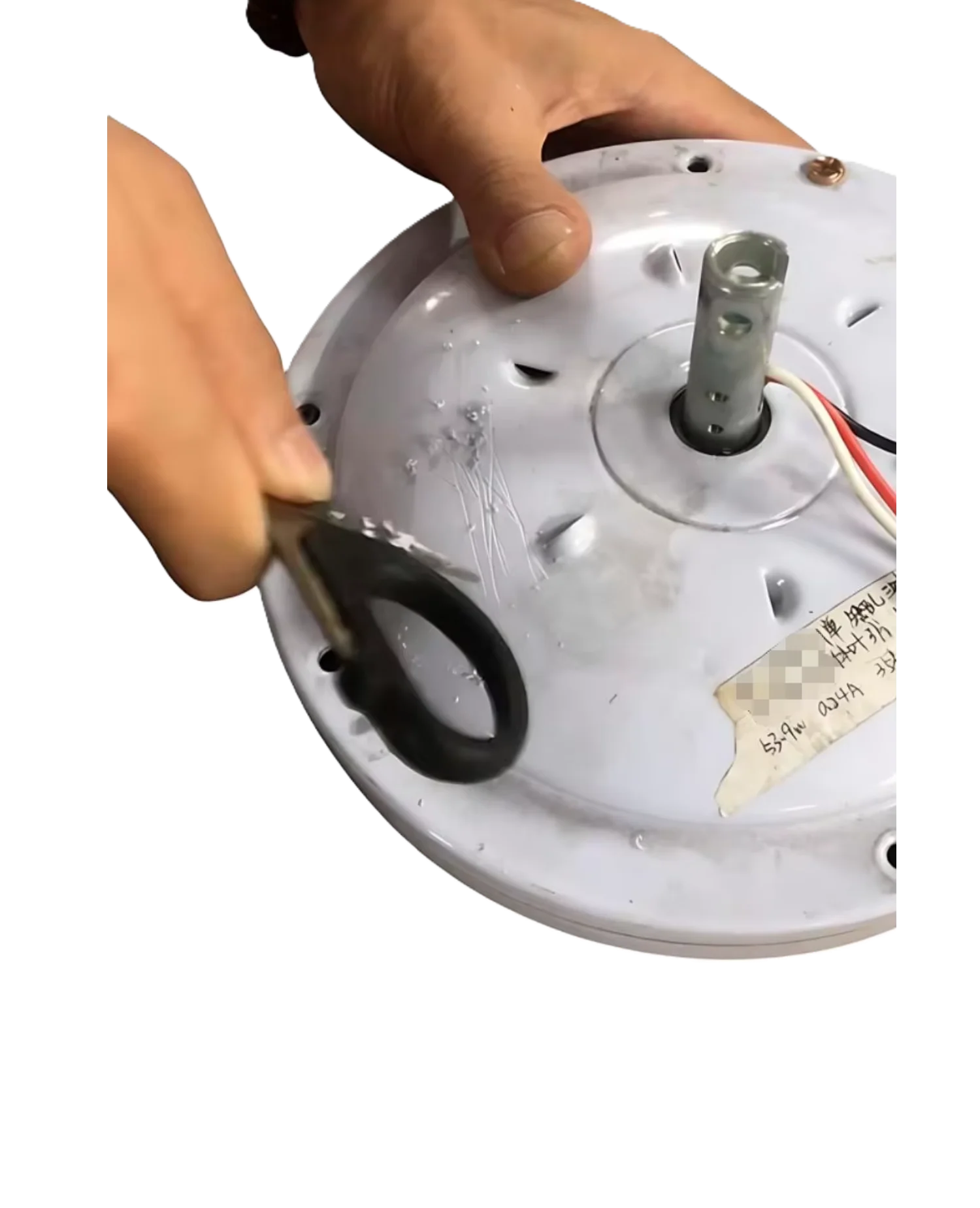

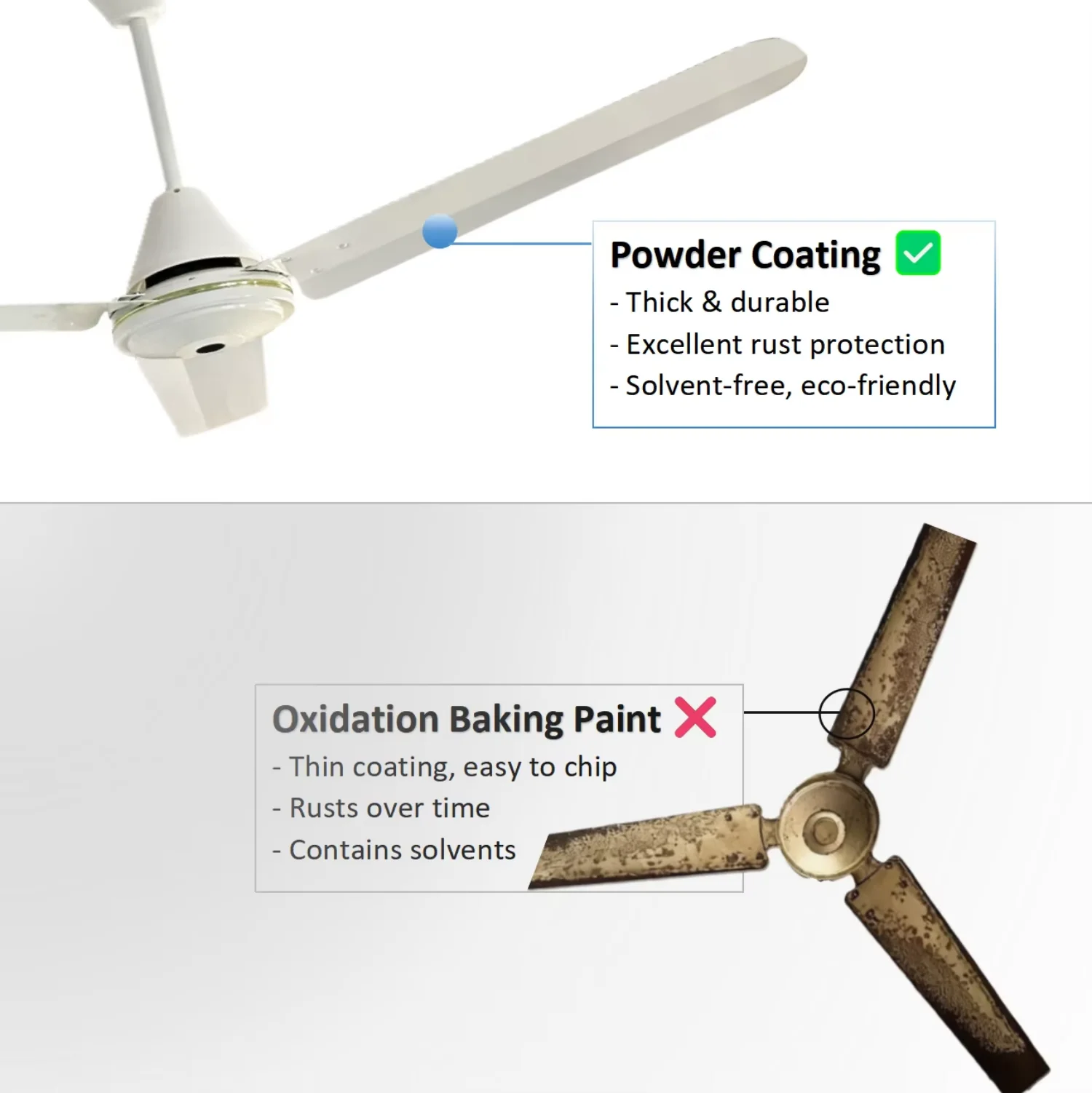

Powder coating for motor casing and metal blades, even when use sharp objects scraping it, the surface cannot be peeled off.
Provides a durable, scratch-resistant, Anti-rust and resistant to chemical corrosion, environmentally friendly finish.
Provides a durable, scratch-resistant, Anti-rust and resistant to chemical corrosion, environmentally friendly finish.

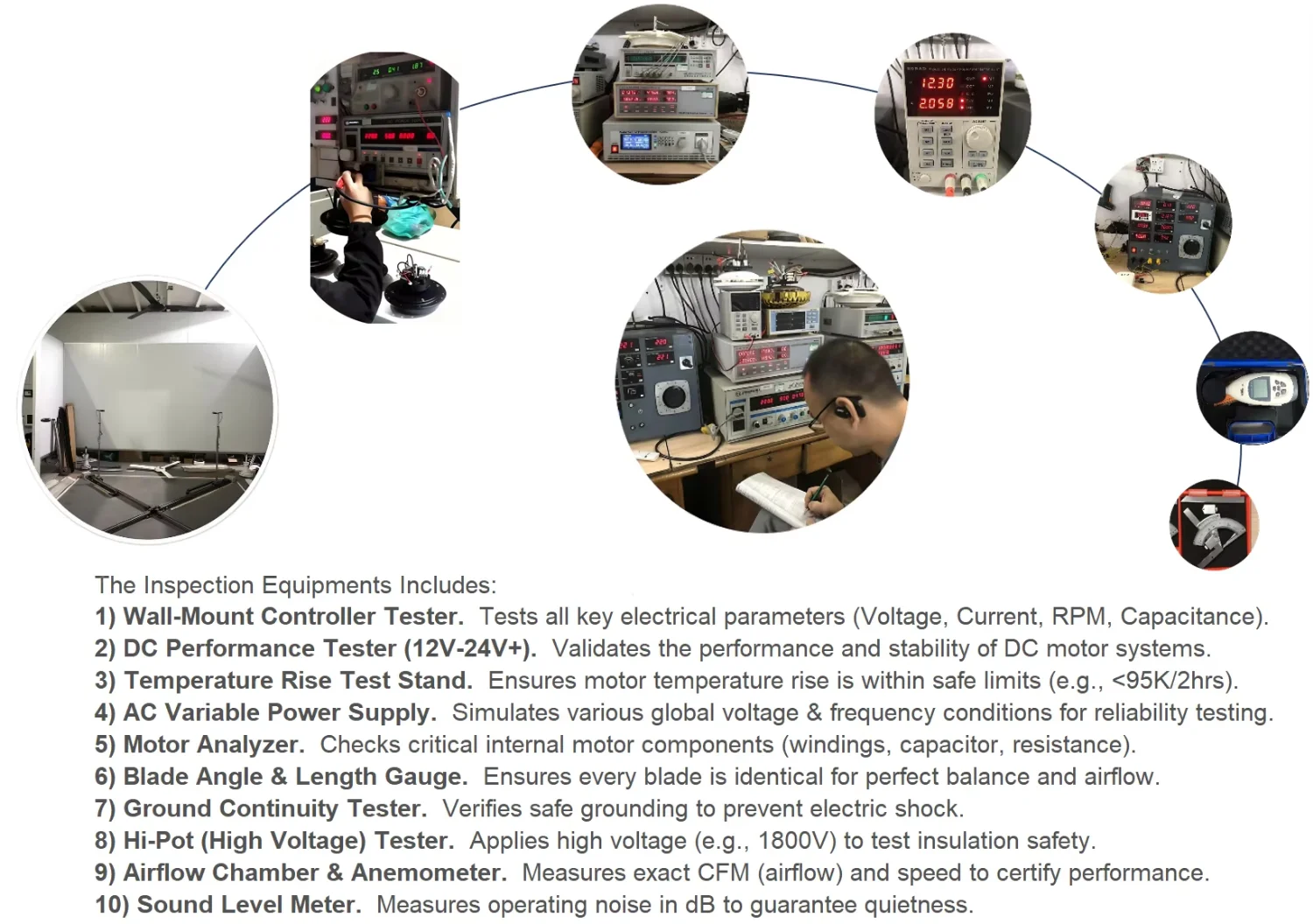

We believe quality is not inspected in, but built in. Every ceiling fan goes through a strict multi-stage inspection process supported by professional equipment and experienced engineers. These instruments don't collect dust. They collect data. In addition to conducting tests on each individual ceiling fan during the production process, the engineer in our lab will also conduct re-tests on each batch of fans that come off the line. Data that we stand by, and that you can trust.

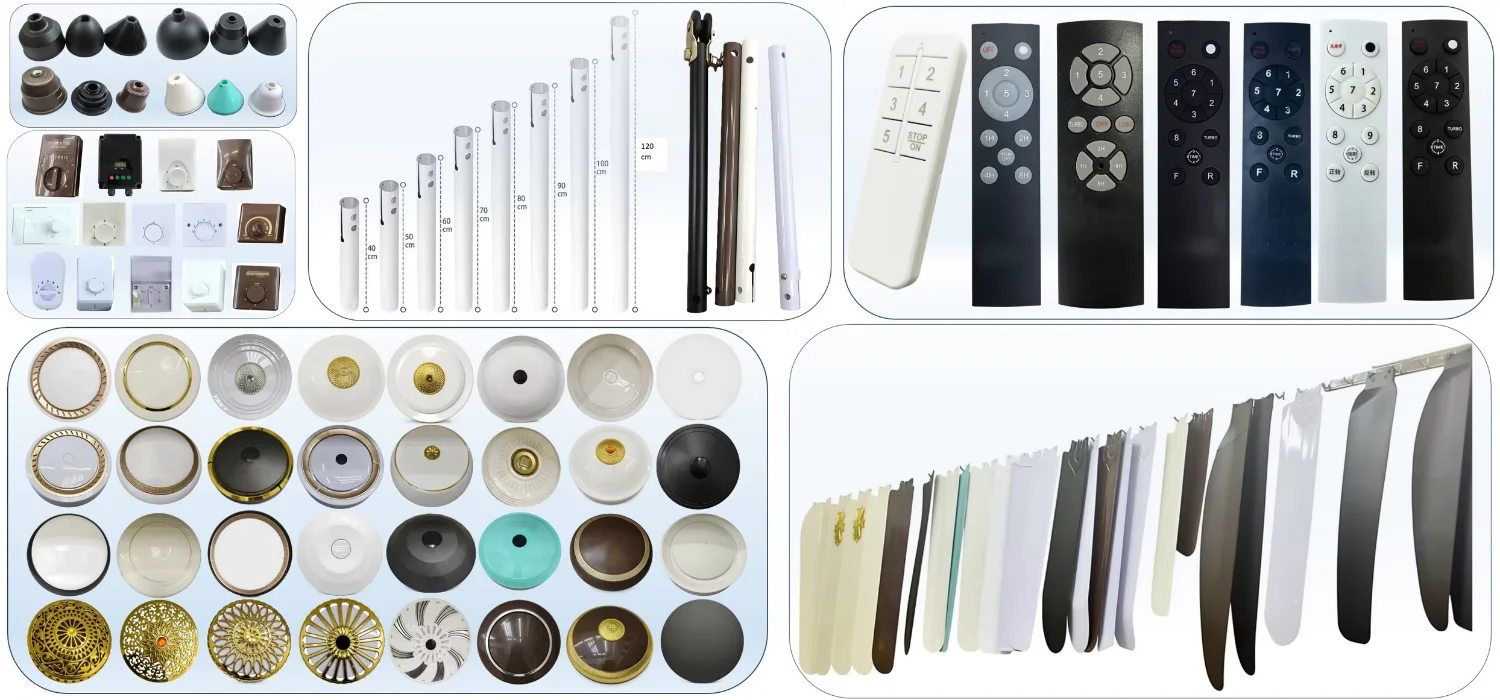

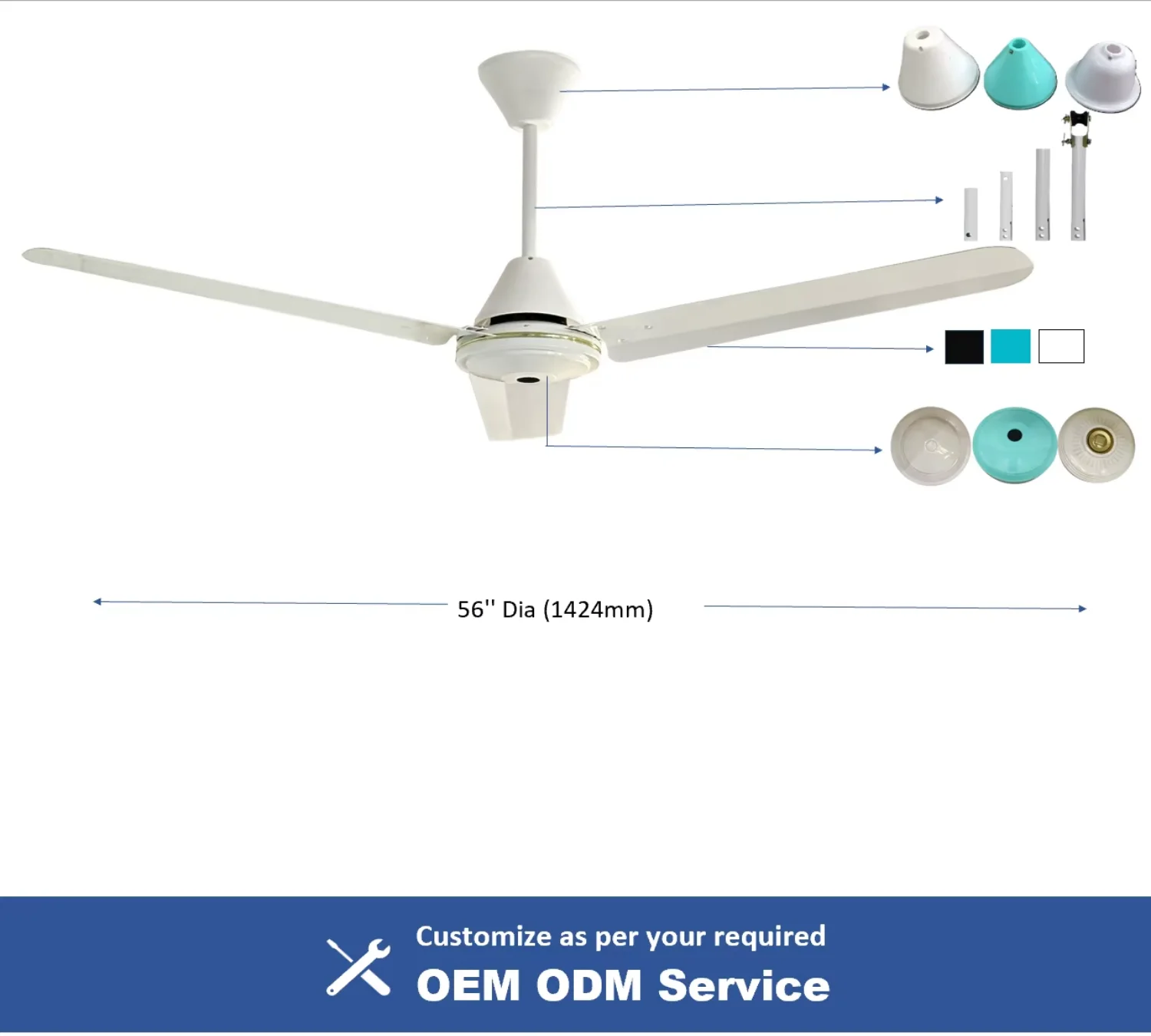

We offer flexible customization according to your needs: 1) Ceiling plate (Style, color, material); 2) Downrod (Length, color); 3) Control Type (Wall/Remote, Style, Color) 4) Motor (Style, Color) 5) Blades design & customization 6) Packaging customization…… Just contact us, and we will do it for you!
FAQs
Can we do OEM?
Yes, we offer full OEM/ODM Customization: Custom Logo, Color, Packaging & Voltage (100-240V). Low MOQ 300 pcs for Logo. We Build Your Brand.
How large an area can one fan cover?
Covers 322-430 sq ft (30-40 m²) per fan, with a max airflow of 9,182 CFM (260 m³/min). Ideal for workshops, warehouses, hotel lobbies, and large commercial spaces.
Is the motor really pure copper? What about durability?
Yes, 100% pure copper winding. Motor temperature rise is ≤65K, rated for 50,000+ hours. We back it with a 3-year warranty.
Do this product on stock?
Yes, it's on stock. But with Chinese version remote. We can ship in 2 days.
What is the minimum order quantity (MOQ)?
3 pieces for sample/testing. 300 pieces for custom logo. 500 pieces for custom packaging. Mixed models accepted.
What's the production lead time?
3-7 days for customization sample. 15-45 days for bulk order after details confirmed.
What's your order process?
Step 1: Confirm the order details (Design/art-work, Material, Color, Shape, Configuration, Quantity etc.)
Step 2: Pay the deposit
Step 3: Start production
Step 4: Finish production and quality checking
Step 5: Arrange the balance
Step 6: Ship out goods and provide shipping details( ETA date, tracking no.)
Step 7: Receive the goods
Step 8: Give feedback (In order to improve our production and services)
What payment terms do you accept?
T/T, and Alibaba Trade Assurance for secure payment. 30% deposit, 70% balance before shipment.
Ordering and Pricing
- Minimum order quantity: 3 piece
- Volume pricing:
- 3–299 piece: US $35.65 / piece
- 300–499 piece: US $28.3 / piece
- 500–999 piece: US $25.7 / piece
- 1000+ piece: US $23.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 3 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
