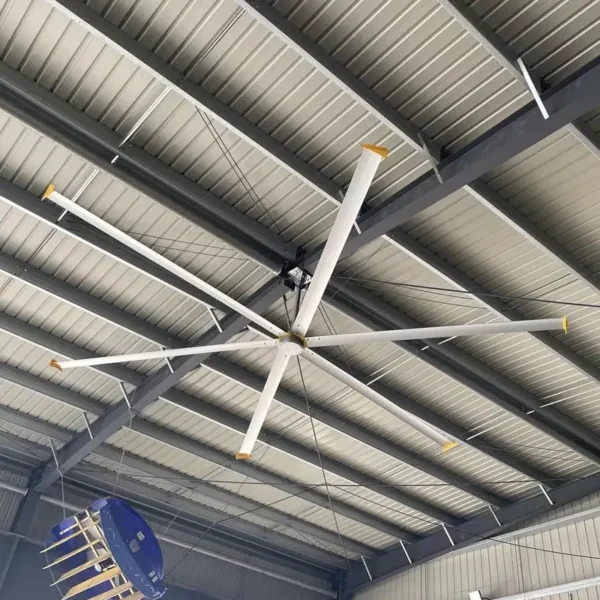

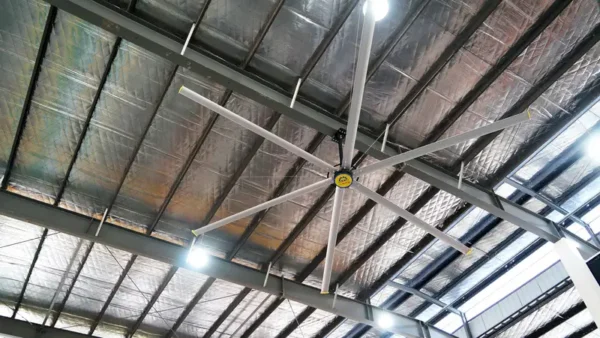

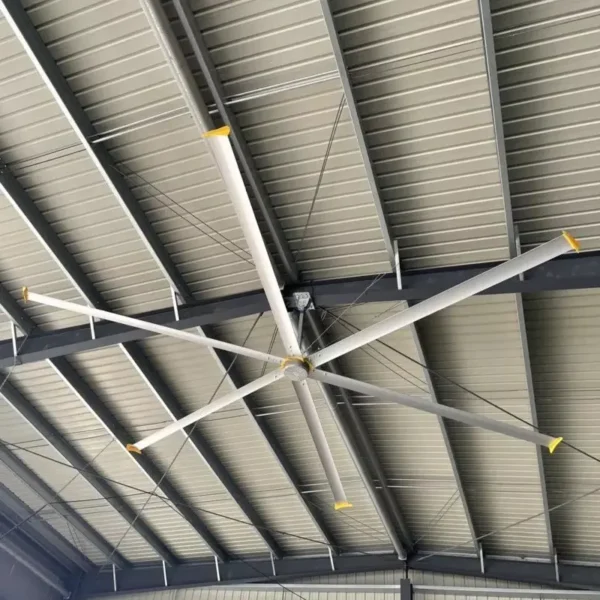

Ceiling fan — 380 V, air flow 14300m³/min. The complete factory specification follows. Made by SHANGHAI TERRUI INTERNATIONAL TRADE CO., LTD. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Input Power: 1500w
- Voltage: 380 V
- Air Flow: 14300m³/min
- Blade Material: Aluminum Alloy
- Noise Level: 35.0-39.0db
- Speed: 280rpm
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 380 V |
| Speed | 280rpm |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 24 ft |
| Noise Level | 35.0-39.0db |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Control Method | Remote Control |
| Core Components | Motor |
| Place Of Origin | Jiangsu, China |
| Brand Name | Terrui |
| Application | Poultry house,gym,factory |
| Motor | EC motor |
| Fan Type | HLVS Ceiling fan |
| Blade | 6 |
| Air Flow | 14300m³/min |
| Input Power | 1500w |
| Drive Mode | Direct |
| Noise | ≤38 |
| Blade Size | 7300mm/24ft |
| Selling Units | Single item |
| Single Package Size | 7300X2185X885 cm |
| Single Gross Weight | 70.000 kg |
Product Details
Feature
The ceiling fan motor adopts an advanced external rotor permanent magnet synchronous motor, which is efficient, energy-saving, quiet, stable, and maintenance-free for life, and the operating efficiency is more than 80%. Large-scale fluid mechanics simulation design of the blade surface, increased wall thickness, 4 stiffeners in the inner cavity, high-performance aluminum alloy, electrostatic spray treatment on the surface, wear-resistant and easy to clean. Cooperate with the control system to make the fan control more intelligent.

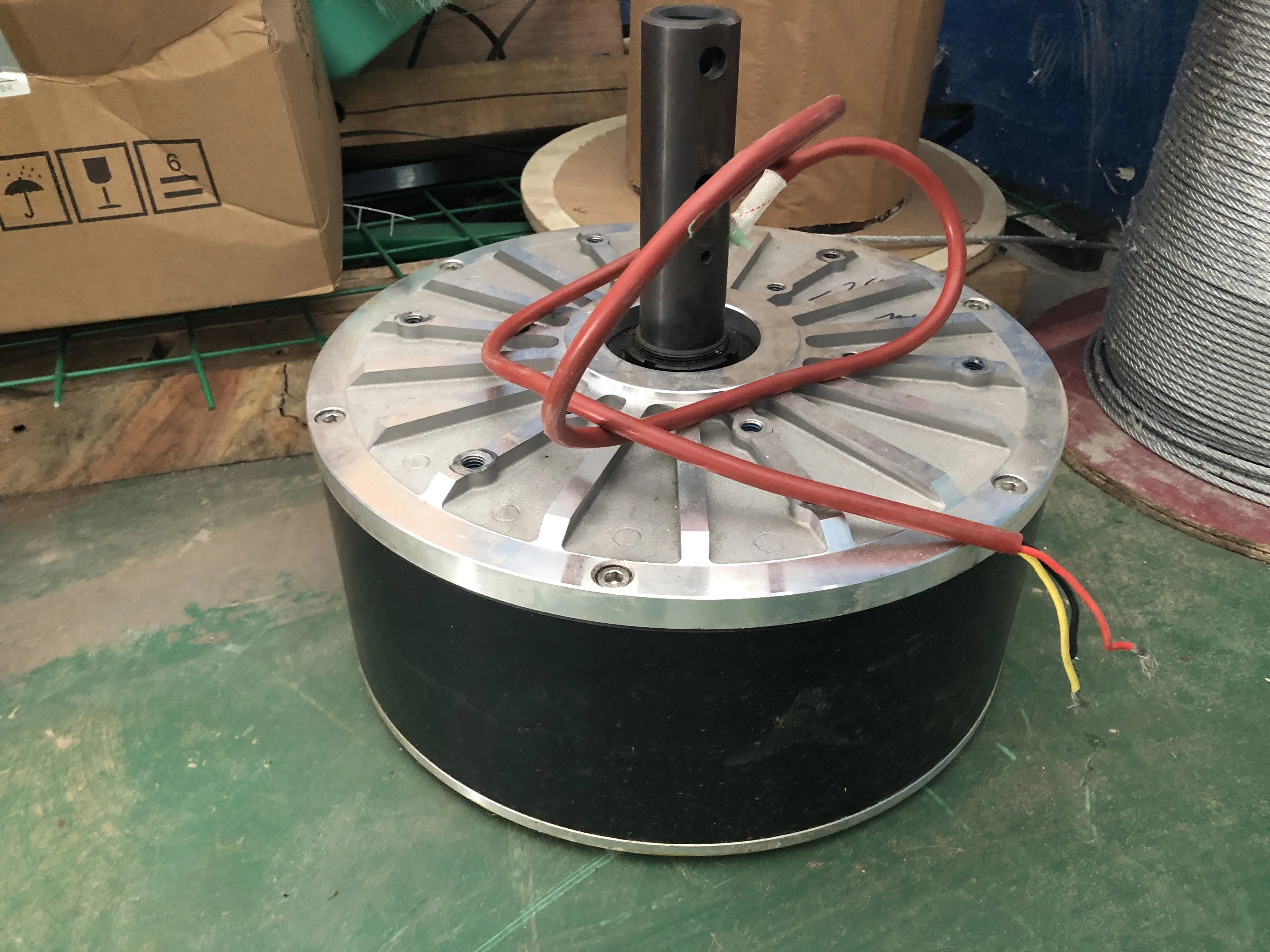

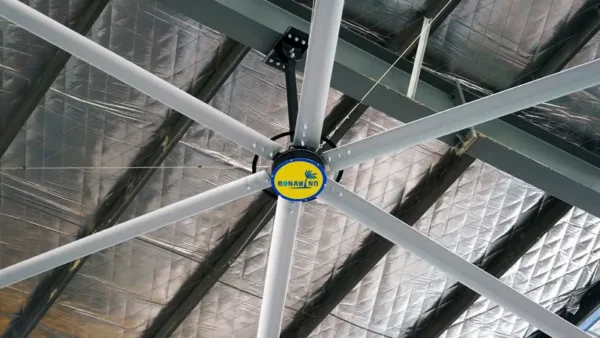

Advanced permanent magnet motor
Ceiling fan motor adopts advanced external rotor permanent magnet synchronous motor, all copper core winding, good heat resistance, moisture resistance, impact resistance, high efficiency, energy saving, silent, stable operation, lifelong maintenance-free.

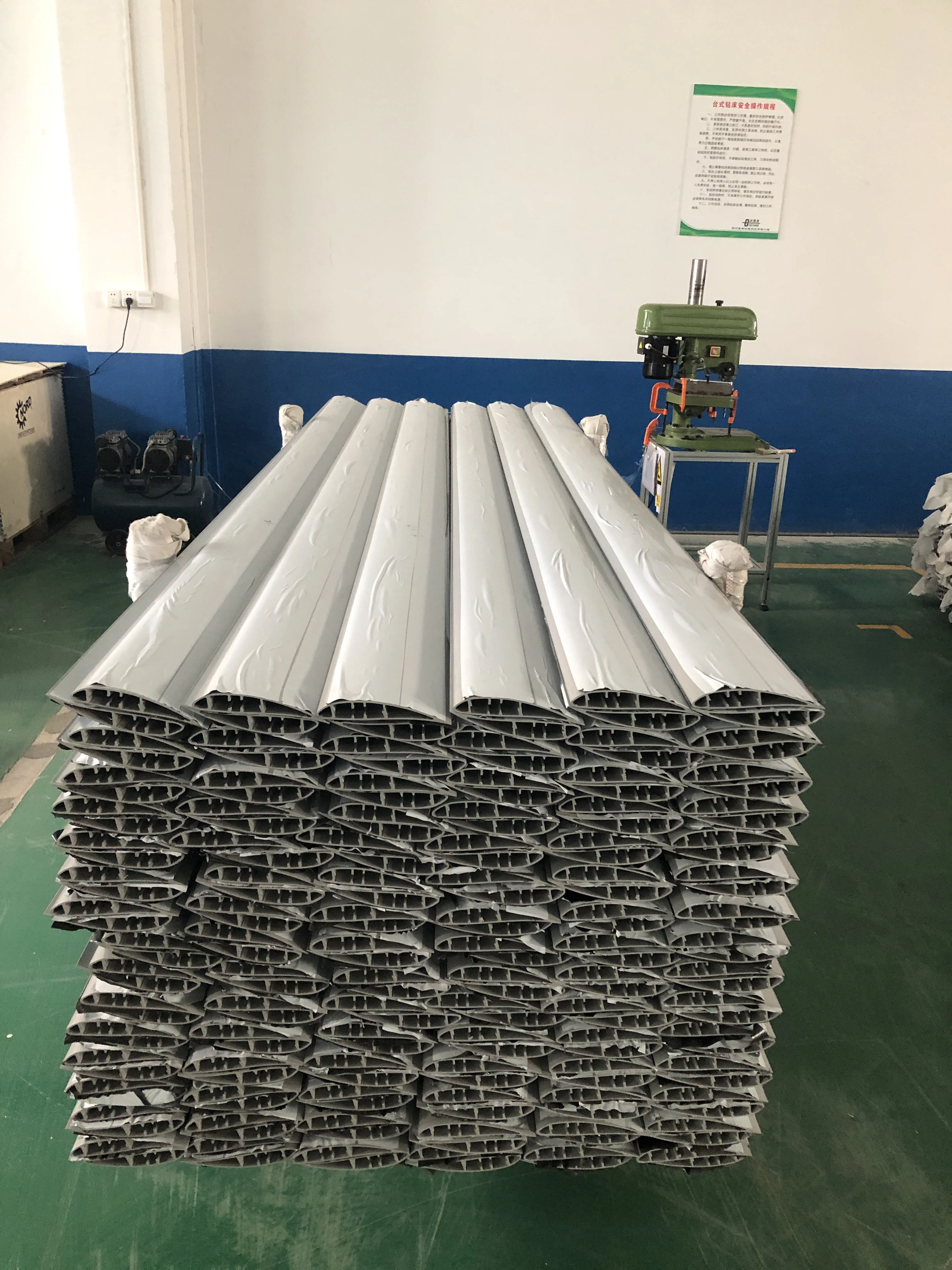

High-performance aluminum alloy fan blades
Large-scale fluid mechanics simulation design fan blade curved surface, the best air supply effect; increased wall thickness, 4 stiffeners added to the inner cavity, greatly improved anti-bending and breaking performance; high-performance aluminum alloy; surface electrostatic spray treatment, easy to wear clean.

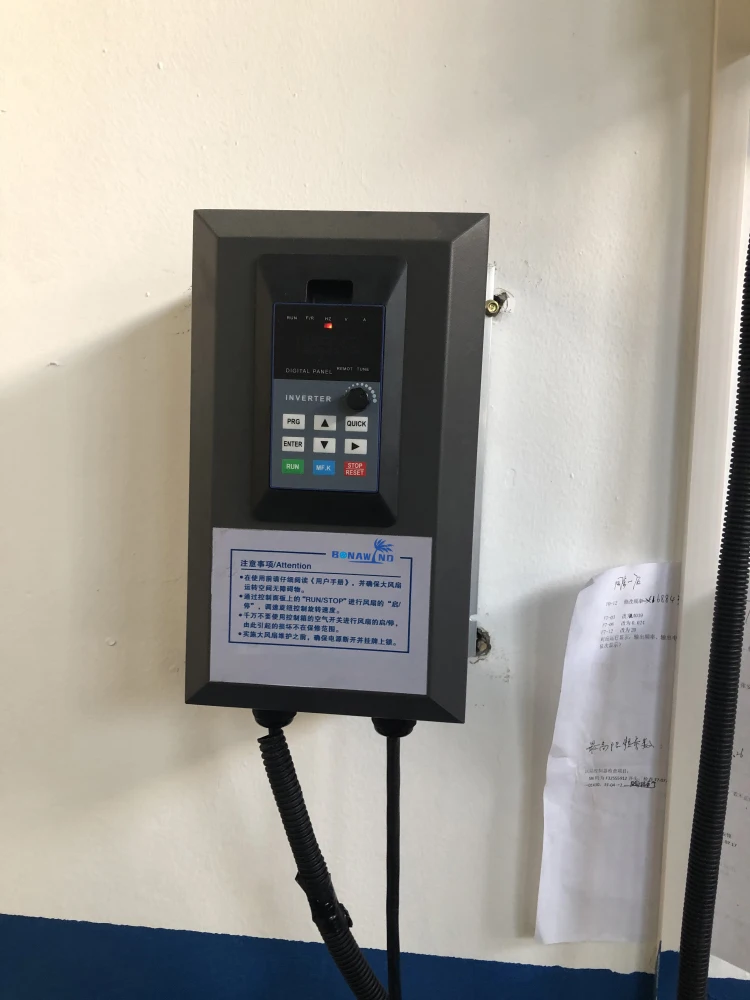

Professional controller
Professional industrial large fan controller, multiple protections such as electronics and logic operation, super heat dissipation device, provide the most perfect guarantee for the safe, stable and efficient operation of the fan.

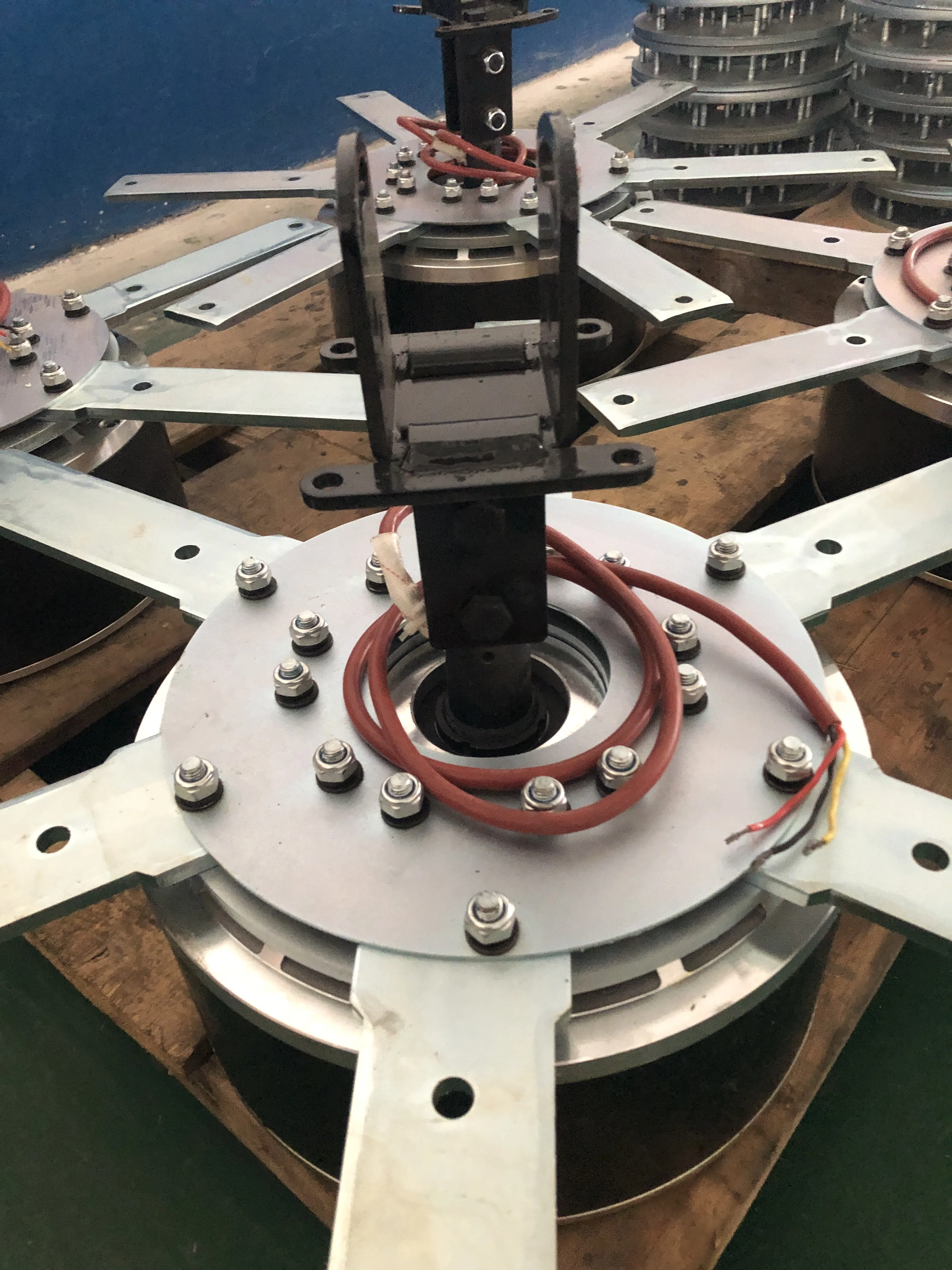

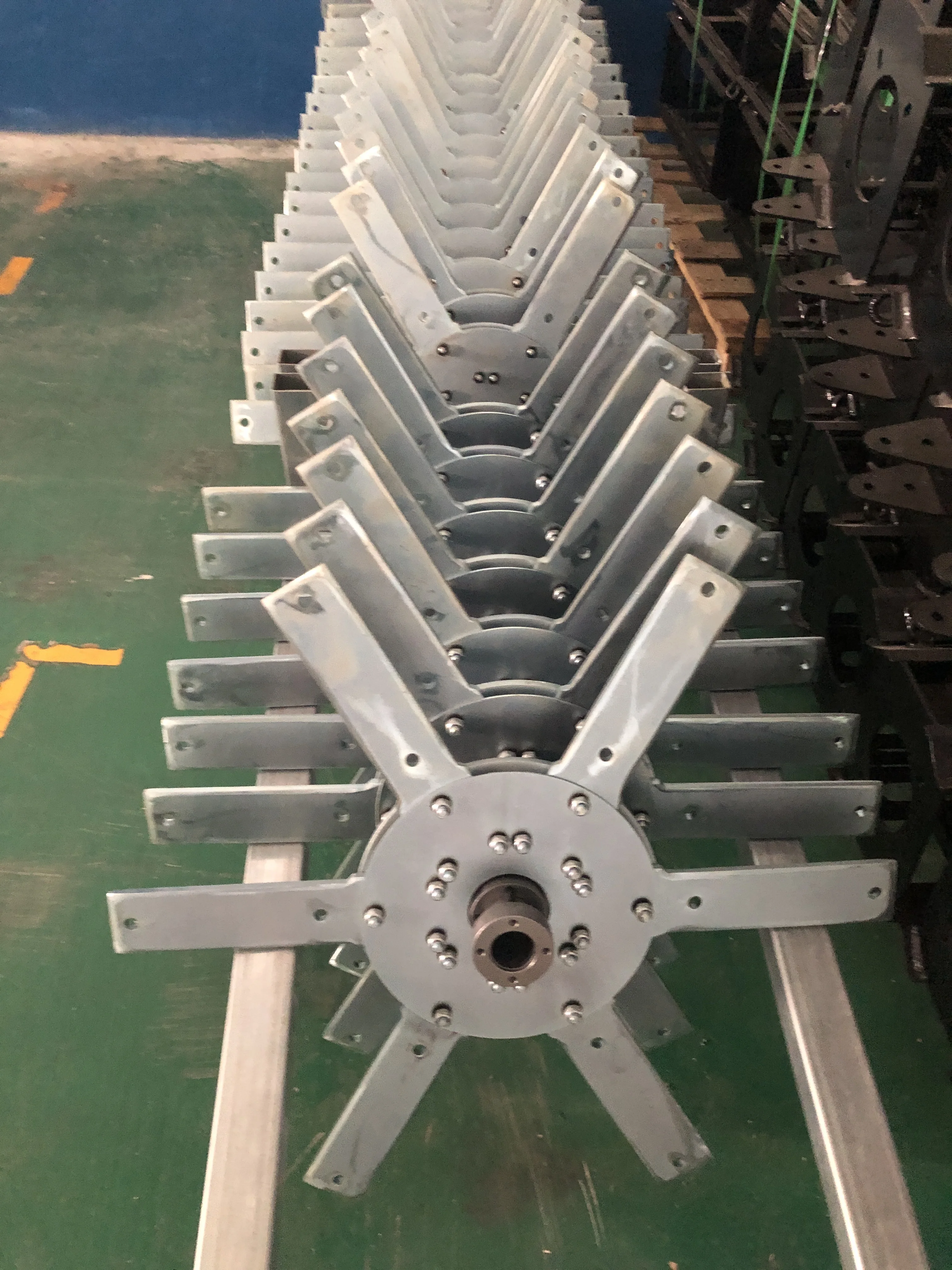

Rugged chassis
The chassis is made of high-performance structural steel; the upper and lower double chassis are clamped by 12 high-strength bolts, so that all the fan blades are connected as a whole to prevent looseness and noise.
High-strength bolts
All 12.9/8.8 grade high-strength bolts are used to ensure quality; mechanical locking nuts are used to prevent loosening; with glue, permanent locking without hidden dangers.
Model | Name | Power(W/hp) | Air Flow(m³/min) | Blade Size(mm/feet) |
YBA073AL06EC | 24FT ceiling fan with 6 blades | 1500/2 | 15000 | 7300/24FT |
YBA060AL06EC | 20FT ceiling fan with 6 blades | 1200/1.6 | 14000 | 6100/20FT |
YBA055AL05EC | 18FT ceiling fan with 5 blades | 1000/1.4 | 12500 | 5500/18FT |
YBA048AL05EC | 16FT ceiling fan with 5 blades | 1000/1.4 | 11500 | 4900/16FT |
Six-fold safety protection:
1. The flanges on both sides of the connecting plate between the fan and the installation beam are formed into a [shape to prevent deformation and bending; 2. The connecting splint and the beam mounting plate are locked with a deep sawtooth structure to prevent falling off; 3. The connection of each part of the fan is L hook connection or tenon and tenon connection with full welding, double protection; 4. After the installation of the fan is completed, use 4 steel wire ropes to tighten and fix it on the building to prevent shaking; 5. A wire rope connection is added between the motor shaft and the building beam for multiple protection; 6.The control system has complete overload, overcurrent, and overheat protection.
Terrui International CO.,LTD
Terrui International Co.,Ltd was founded in 2002 which is specialized in the development, manufacture and sales of livestock equipment.It has become one of the leading suppliers of drinking waterer, circulation fan, calf hutch and pen, veterinary accessories, plastic free stall and feeding fence and electric fencing in the domestic and world market.Since establishment, we have developed more than 100 products and got 25 patents. We have beening focusing on our product quality, and set up our own quality management system. The company operation is abliged by ISO 9001-2008 QMS after 2013.So far our products are prized all over the world and has been sold to more than 60 countries.Our goal is to make livestock healthier and more comfortable.
Dear friends, we strongly believe that we are able to support your business by the following ways:
1. High quality products and competitive prices;
2. Multiple new-design model options;
3. Strict quality control, fast delivery and good after-sales service;
4. We welcome OEM and ODM orders;
Sincerely we hope to work together with you and get a win-win cooperation relationship in the future！ Welcome to Shanghai Terrui International Co., Ltd!
2. Multiple new-design model options;
3. Strict quality control, fast delivery and good after-sales service;
4. We welcome OEM and ODM orders;
Sincerely we hope to work together with you and get a win-win cooperation relationship in the future！ Welcome to Shanghai Terrui International Co., Ltd!
We are committed to Serving for all esteemed dairies all over the world
Welcome to our factory Sincerely we hope to work together with you and get a win-win coop-eration relationship in the future!
Welcome to our factory Sincerely we hope to work together with you and get a win-win coop-eration relationship in the future!
Thank you very much for visiting our website and hope we have the products you like. When you contact us, we will provide you with the following services professionally and enthusiastically:
1. 24-hour product service for professional business personnel
2. The most up-to-date product catalogue
3. Accurate quotation of products you like
4. Free ODM & OEM sample service
5. Provide one-stop purchasing service for related products free of charge
6. One-stop customs clearance service to support all trade terms
7. Free visit to the factory reception service
8. Full order tracking data visualization service and free after-sales technical service.
9. International product sales consultant market analysis, planning, marketing and other services
9. International product sales consultant market analysis, planning, marketing and other services
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $960 / piece
- 10–49 piece: US $950 / piece
- 50+ piece: US $936 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
