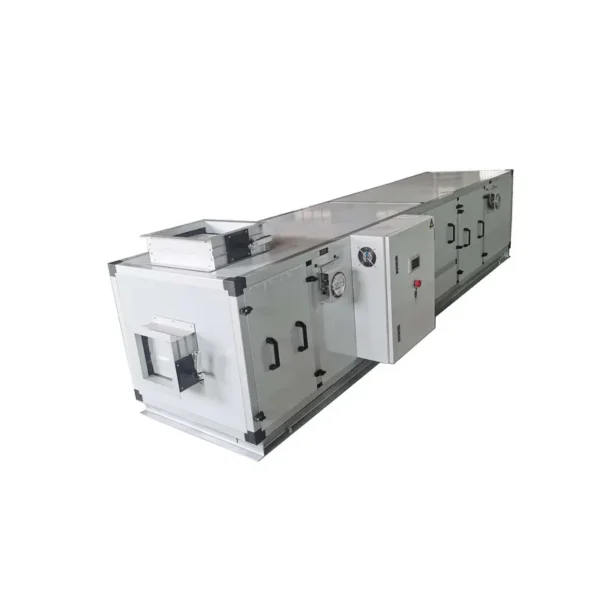

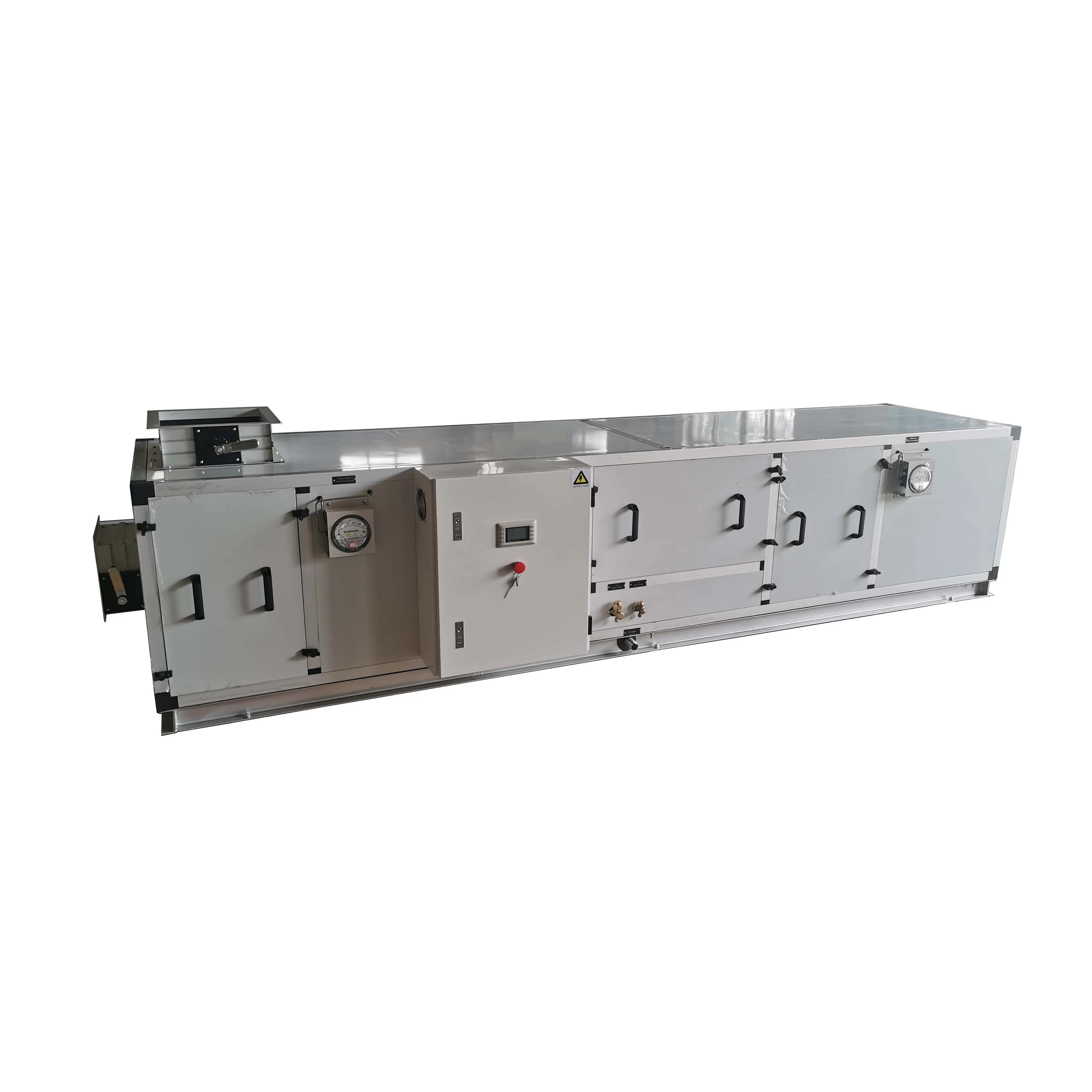

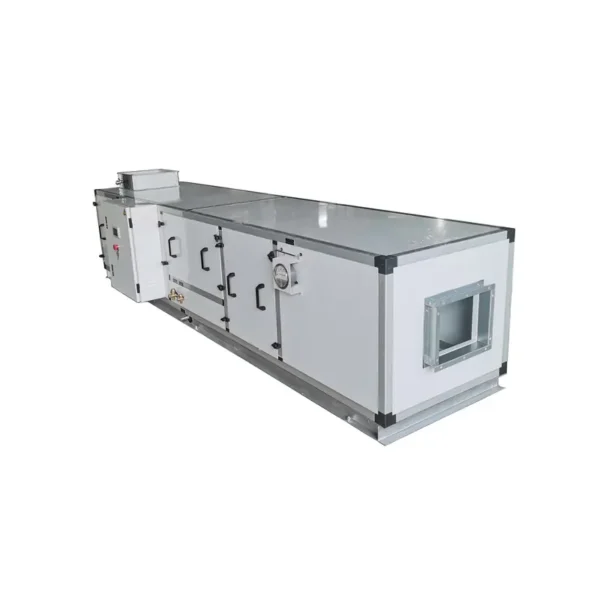

Central Industrial Air Conditioner, R407C

Key specification for this central industrial air conditioner: cooling capacity 10-200kW (Customized Cap.), refrigerant R407C/R410A/R134A. Everything below is reproduced from the factory data sheet. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Central Industrial Air Conditioner

• Cooling Capacity: 10-200kW (Customized Cap.)
• Heating Capacity: 9-180kW (Customized Cap.)
• Humidifying Capacity: 12-42kg/h (Customized Cap.)
• Refrigerant: R407C/R410A/R134A
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

Central Industrial air Conditioners Clean Room AHUs Backward Curved Blower Fan air Conditioning Evaporator Condenser Split A/C

Clean Room Air Handler HEPA Filter Air Purifying ISO Class 7 Factory Price

IAQ (Indoor Air Quality)

Telewin, focuses on the technical innovation, especially on the application of environmental protection and energy saving, supplies Plate type and Rotary Wheel heat recovery energy saving units, energy saving dehumidifier unit with heatpipe heat recovery and provides various clean air handling units of modular multi-function to remove harmful gas, VOCs and reduce PM2.5 on the indoor air quality (IAQ) applications .

Modular Fabricating Clean Air Handling Unit

Fresh Air Intake	Primary Filter	Cooling Coil	Fan and Motor	Air Diffusing Chamber
1. Manual Air Damper	1. G4 Plate Type, Non-Woven Fabrics.	1. Copper Tubes hydrophilic Aluminum Fins	1. International Brand and Chinese Brand	1. Air Diffuser (Galvanised Iron or stainless steel Optional)
2. Motor-Driven Proportional Air Damper (Optional)	2. Carbon Filter (Optional)	2. DX Type or Chiller water type Cooling Coil (Optional)	2. Belt-Driven Centrifugal Fan, EC fan (Optional)	2. Custom Design Acceptable
3. Air Mixing Chamber	3. Electrostatic Precipitator (Optional)	3. Copper tubes copper fins (Optional)	3. VFD Motor (Optional)	3. Access Door

Medium Filter	HEPA Filter	Casing Frame	Base Frame	condensate Drain Pan

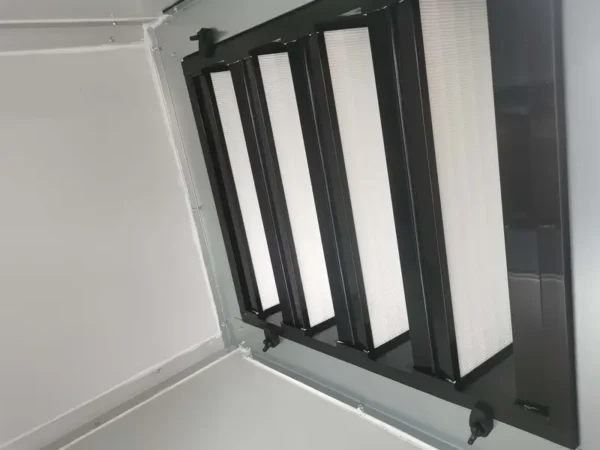

1. Bag Type F7/F8 Medium Filter, Non-Woven Fabrics	1. Box Type H13 Hepa Filter	1. Cold Bridge Effect Free Aluminum Frame	1. Hot-Dipped Galvanised Channel Steel	1. Inclined drain line design
2. Internaltional Brand or Chinese Brand	2. International Brand or Chinese Brand	2. Thermal Insulation Panel (Double Steel skin with foam PU core)	2. Maintenance Free	2. Stainless Steel or Anti-Microbial Drain Pan (Optional)
3. Differential Pressure Gauge	3. Differential Pressure Gauge	3. Anti-leakage Plastic Strip insulation	3. Special Vibration-Adsoption Design	3. Foam PU Insulation beneath

Detailed Images

Intelligent Control Console

• Auto control each section of the unit to make sure the  temperature, humidity and cleaness
• High quality and international brand electrical elements to  ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate  follow-up circuit repair and maintenance
• Screen touch panel, with setting, display and memory function
• DDC and PLC available

Energy Saving Refrigerating System

• DANFOSS scroll hermetic compressor
• Advanced design, low running noise, energy saving, safety and  long service life
• Multi-circuits design, running reliably and energy-saving
• COPELAND, DAIKIN compressor available

Frame

• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame

• Superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available

Casing Panel and Insulation

• Double skin construction is provided by sandwich type panels  comprising inner and outer painted steel skins and polyurethane  foam with minimum 48kg/m3 density, providing a good thermal  and acoustical performance
• The gasket liner between the panels and frame ensures the air  leakage rate to comply with GB/T 14294 clean air conditioning  requirement
• The factory painted steel sheet covered with 6 insulation  coatings, complies to 500h salt spray testing, showing an  excellent corrosion protection performance

High Efficiency Cooling and Heating Coil

• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
   -Cooper tube with cooper fins coil
   -Epoxy coated fins coil
   -Electrophoresis fins coil
   -Heresite coated coil

Safety Electric Heater

• Stable electric heating capacity

• Three stages intelligent control, energy saving and safety
• Anti-corrosion

Electrode Humidifier

• Cylinder monitor system ensures more efficiency, better energy saving and stable result
• Drainage pump ensures the humidifying process accurate and stable
• Clog protection system ensures to avoid water overflow
• Water temperature control system makes sure the drainage pipe won't be damaged by hot water
• Anti-electric leakage system makes operation and maintenance safe and secure

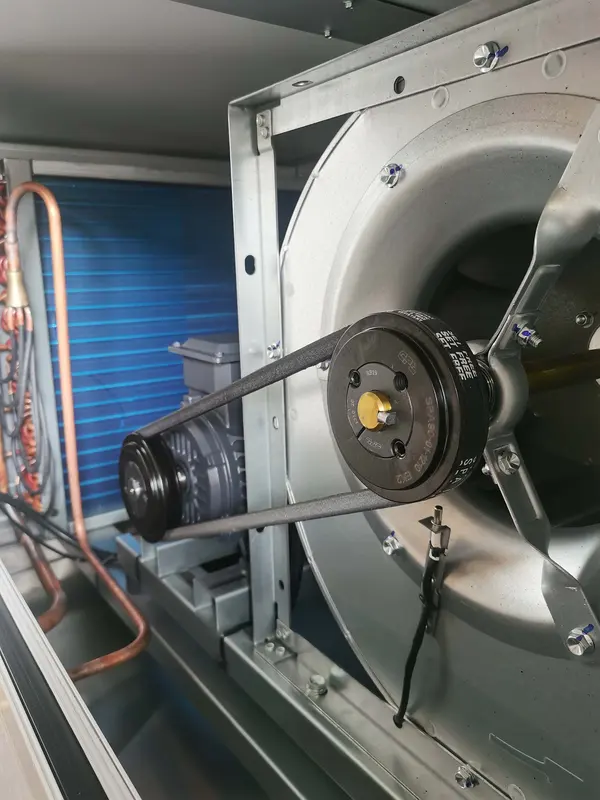

Famous Brand Blower and Motor

• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option

Vibration Eliminator

• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame

• The complete base frame is isolated by deflection type spring isolators

• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation

Stainless Steel Drain Pan

•Slop type design, no drain water carryover

•Avoid the micro-organisms growth inside the drain pan

Antimicrobial Drain Pan available upon application
•SteriTouch technology Dust Free Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7

Packing & Delivery

Telewin supplies Air Conditioning products to oversea and domestic markets

▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable

Certifications

Client List

FAQ

1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.

2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.

3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.

4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.

5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.

6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!

7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.

8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $5000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this central industrial air conditioner?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
