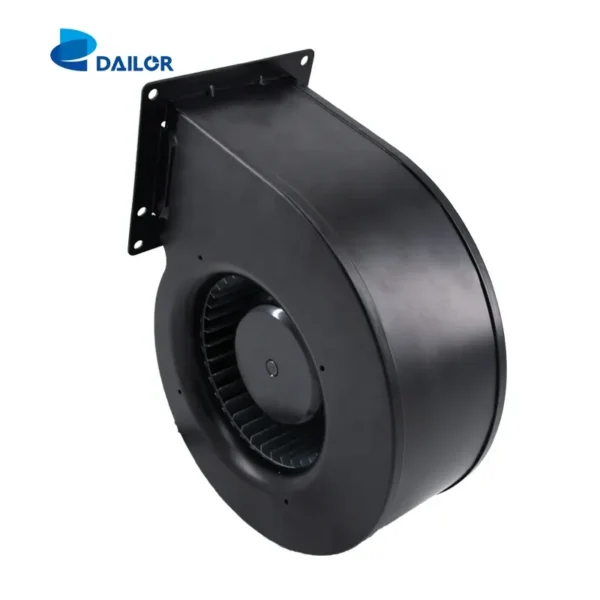

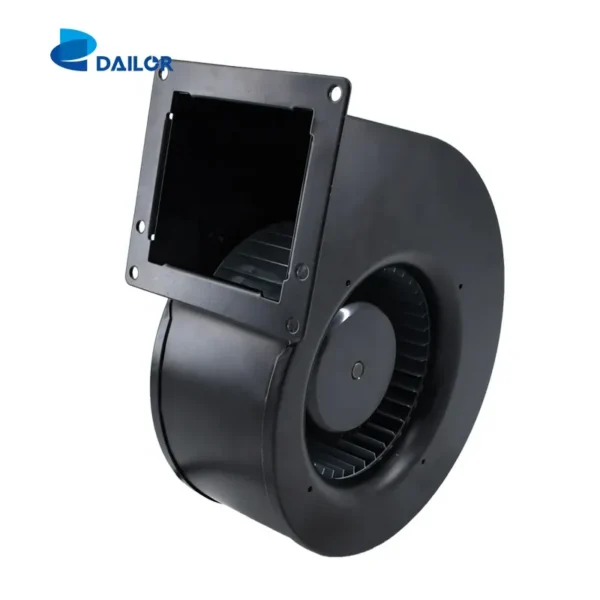

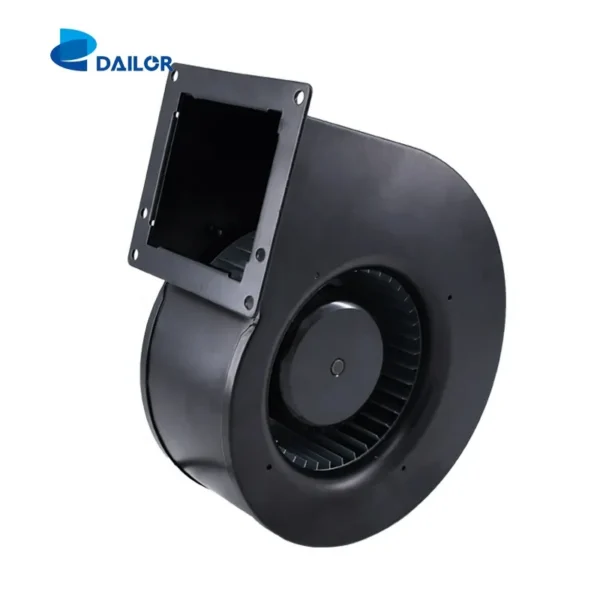

Key specification for this centrifugal blower: rated voltage 110-120V/200-240V, blade material SGCC. Everything below is reproduced from the factory data sheet. Made by Zhongshan Pengfei Electrical Appliance Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Voltage: Other
- Rated Voltage: 110-120V/200-240V
- Blade Material: SGCC
- Warranty: 1 Year
- Certification: CE, CCC, RoHS, Other
- Place Of Origin: Guangdong, China
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | Other |
| Blade Material | SGCC |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Dailor |
| Product Name | Industrial Centrifugal Blower |
| Application | Industrial Ventilation |
| Size | 150mm |
| Motor | 100% Copper Wire |
| Impeller | Galvanized Plate |
| Feature | Low Noise Power Saving |
| Color | Black |
| Bearing Type | Maintenance-Free Ball Bearings |
| Usage | Warehouses Ect |
| Rated Voltage | 110-120V/200-240V |
| Certification | CE, CCC, RoHS, Other |
| Packaging Details | 1.Carton box with wooden frame 2.Protection Individual foam 3.Specification label |
| Port Of Dispatch | Zhongshan port or Xiaolan port |
| Selling Units | Single item |
| Single Package Size | 24X24X14 cm |
| Single Gross Weight | 3.900 kg |
| Supply Ability | 800000 pieces per Year |

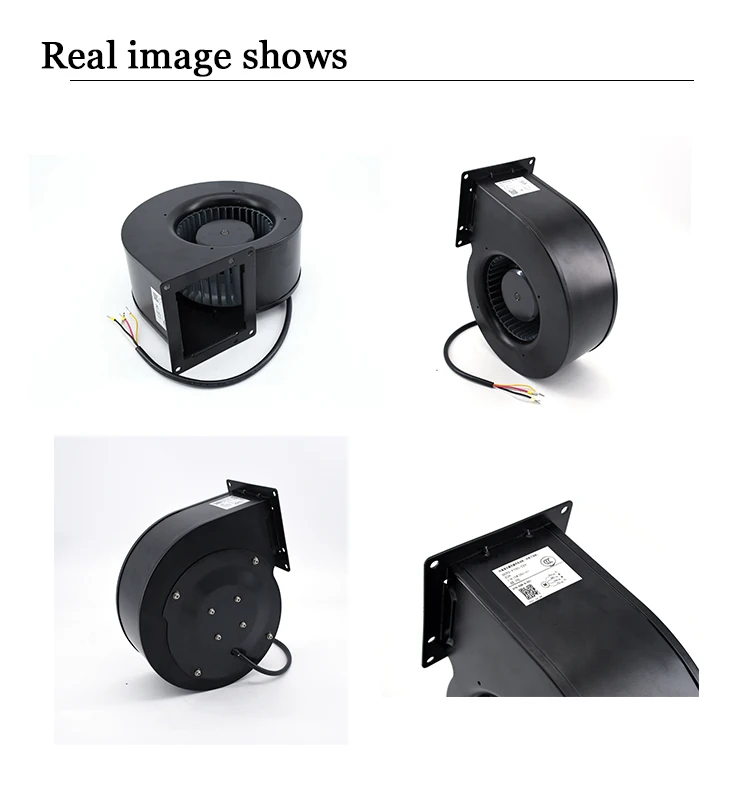

Product Details
Model No. | Voltage V | Frequency Hz | Current A | Input power W | Speed RPM | Air Flow (m³H/CFM) | Noise dB(A) | ||||||
YWF.F2S-150-070AA2A | 110/120 | 60 | 1.9 | 225 | 2400 | 500/288 | 72 | ||||||
YWF.F4S-150-070AA2A | 110/120 | 60 | 0.64 | 75 | 1650 | 380/220 | 65 | ||||||
YWF.F2S-150-070AA20 | 220/230 | 50 | 0.72 | 157 | 2280 | 495/291 | 69 | ||||||
220/230 | 60 | 0.92 | 200 | 2150 | 455/267 | 67 | |||||||
Working temp (℃) | -30/+60 | ||||||||||||
IP Class | IP44 | ||||||||||||
Insulation Class | F | ||||||||||||
Certificate | CCC CE RoHs | ||||||||||||
Warranty | 1 Year | ||||||||||||

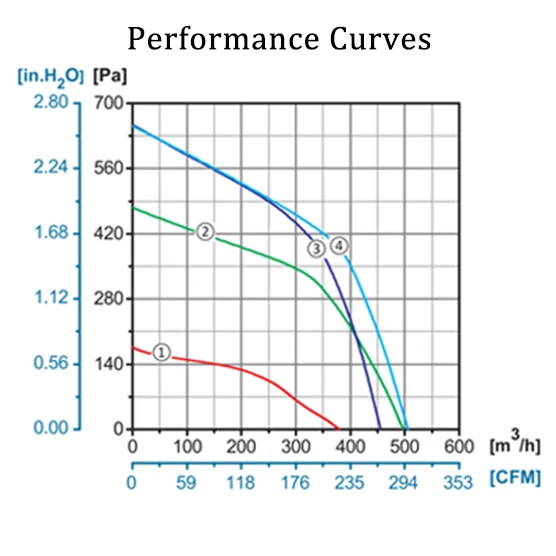

Model No. | Curve No. |
YWF.F2S-150-070AA2A | ④ |
YWF.F4S-150-070AA2A | ① |
YWF.F2S-150-070AA20 | ③ |
② |
FAQ
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15 days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalogue.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $45.9 / piece
- 50–499 piece: US $44.9 / piece
- 500–999 piece: US $42.9 / piece
- 1000+ piece: US $40.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with CE, CCC, RoHS, Other documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Pengfei Electrical Appliance Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Pengfei Electrical Appliance Co., Ltd. range on HVACR Nexus.
