Key specification for this turbo blower: 5V;12V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Tengkai Special Electrical Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Turbo Blower
- Model Number: BA3510H12B-A221111
- Power Source: Electric
- Rated Voltage: 5V;12V
- Voltage: 5/12v
- Blade Material: Plastic
- Material: Plastic Cover
Technical Specifications
| Application | Fan Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 5V;12V |
| Electric Current Type | DC |
| Blade Material | Plastic |
| Pressure | Low Pressure |
| Warranty | 1 years |
| Customized Support | OEM, ODM |
| Place Of Origin | GuangDong,CHINA |
| Brand Name | TKFAN |
| Model Number | BA3510H12B-A221111 |
| After-Sales Service Provided | Overseas third-party support available |
| Certification | ce |
| Product Name | DC Brushless Blower |
| Color | Black |
| MOQ | 1 PCS |
| Material | Plastic Cover |
| Voltage | 5/12v |

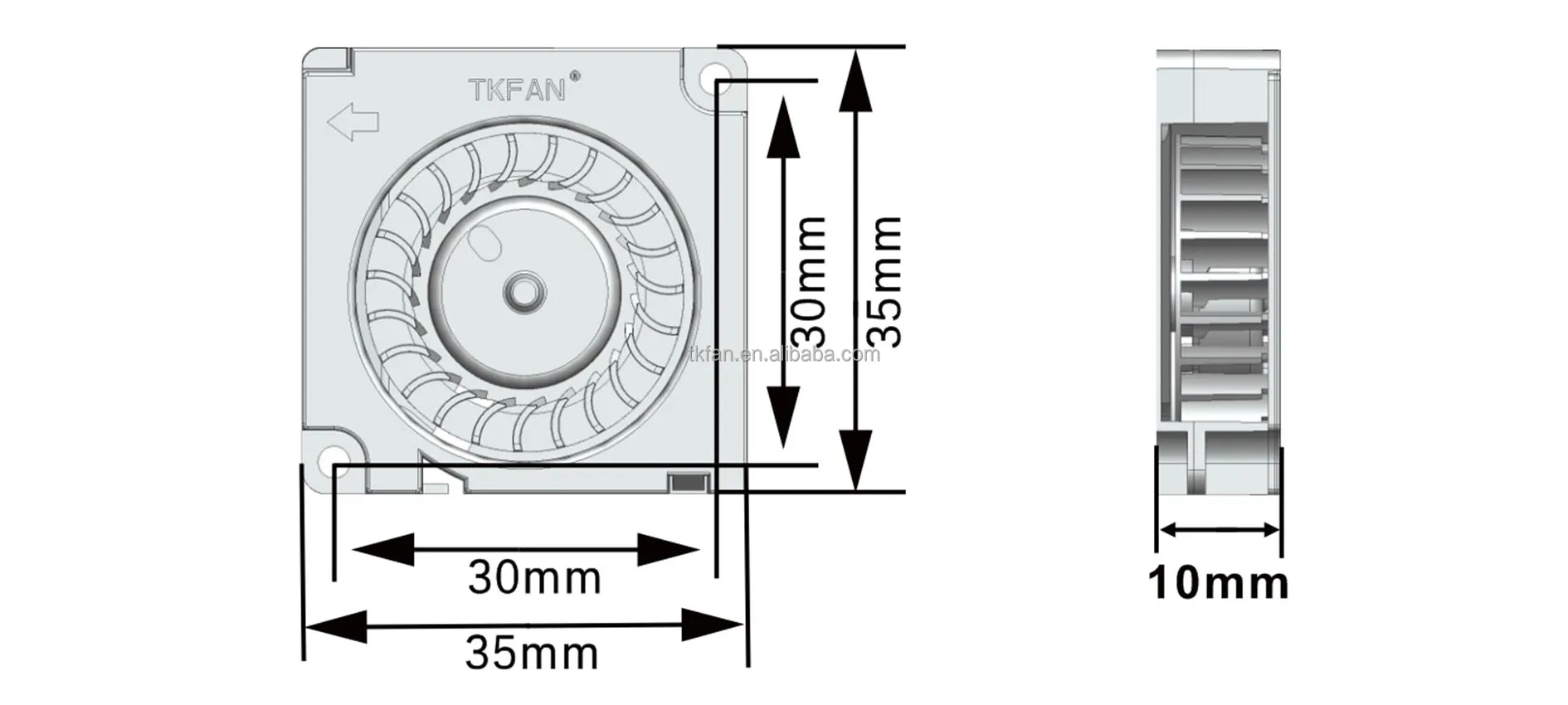

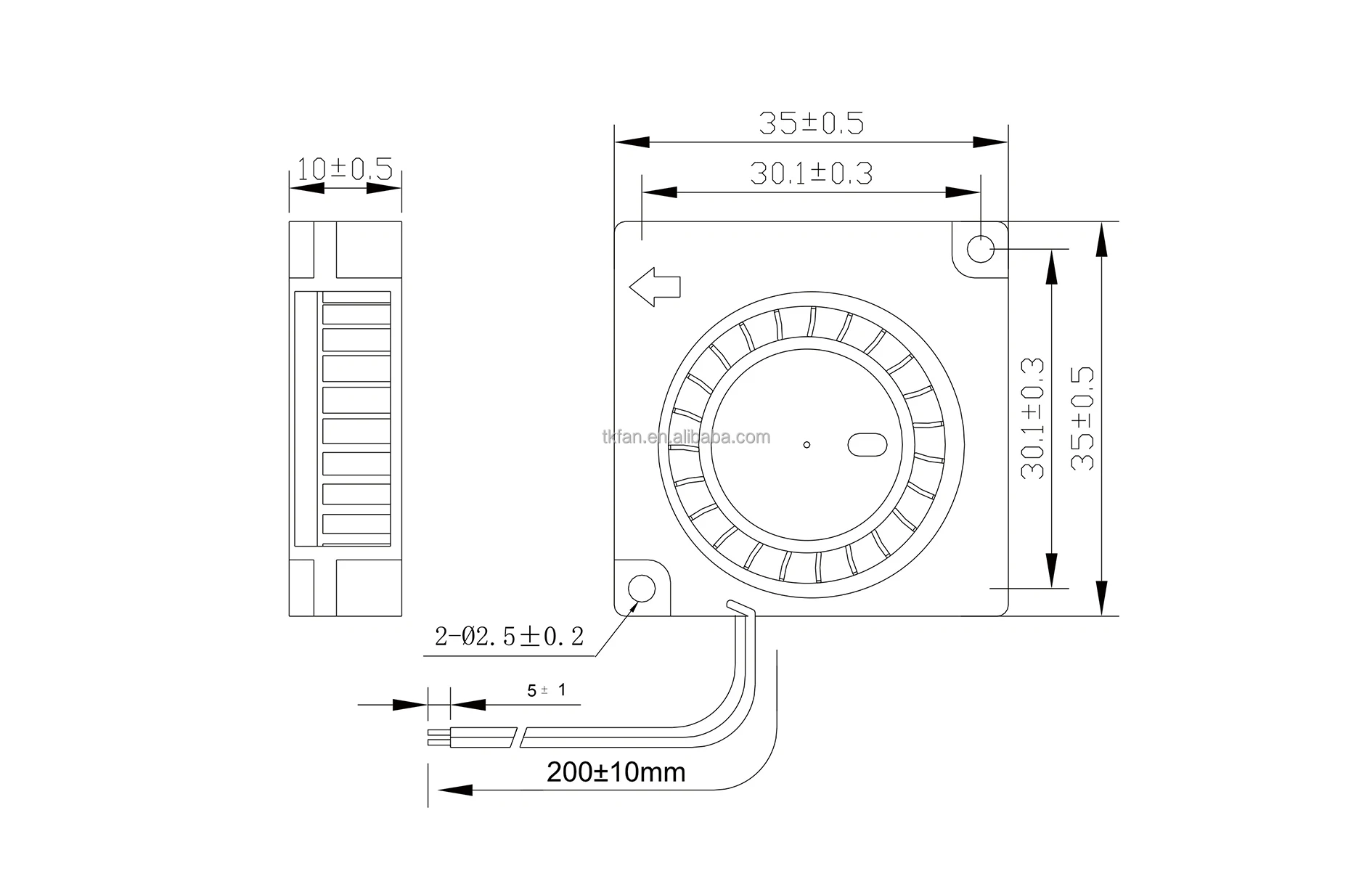

| Size | 35x35x10mm |
| Brand | TKFAN |
| WEIGHT | 8.5g |
| Selling Units | Single item |
| Single Package Size | 5X5X5 cm |
| Single Gross Weight | 0.500 kg |
Product Details

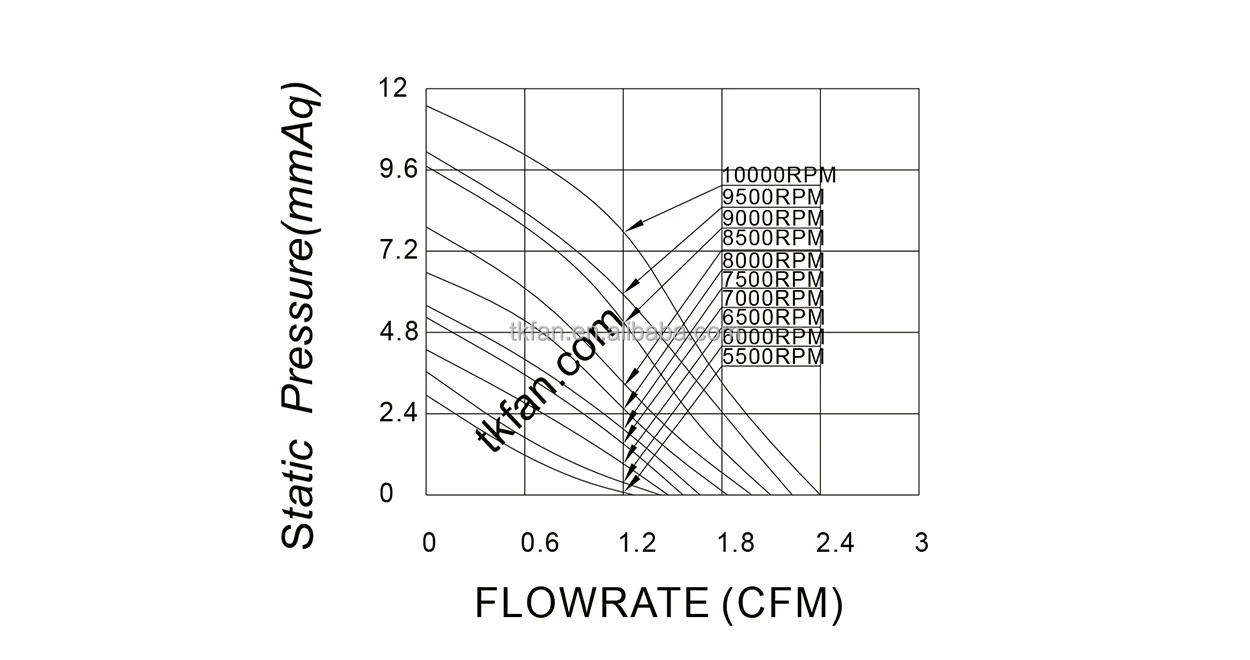

Model | P/N Code | Voltage | Current | Speed | Air Flow | Air Pressure | Noise |
PART.NO. | AY | VDC | Amp | R.P.M | CFM | mmH2O | dB-A |
BA3510LL05B | 5 | 0.10 | 5500 | 1.25 | 2.67 | 25.4 | |
BA3510L05B | 5 | 0.12 | 6000 | 1.42 | 3.62 | 27.5 | |
BA3510LV05B | 5 | 0.13 | 6500 | 1.45 | 4.25 | 29.6 | |
BA3510M05B | 5 | 0.14 | 7000 | 1.60 | 5.20 | 31.7 | |
BA3510MV05B | 5 | 0.16 | 7500 | 1.67 | 5.87 | 33.5 | |
BA3510VM05B | 5 | 0.18 | 8000 | 1.86 | 6.92 | 34.9 | |
BA3510H05B | 5 | 0.2 | 8500 | 1.98 | 8.05 | 36.1 | |
BA3510HH05B | 5 | 0.22 | 9000 | 2.14 | 9.10 | 37.4 | |
BA3510HV05B | 5 | 0.25 | 9500 | 2.27 | 10.18 | 39.1 | |
BA3510VH05B | 5 | 0.28 | 10000 | 2.38 | 11.58 | 40.1 | |
BA3510LL12B | 12 | 0.042 | 5500 | 1.25 | 2.67 | 25.4 | |
BA3510L12B | 12 | 0.05 | 6000 | 1.42 | 3.62 | 27.5 | |
BA3510LV12B | 12 | 0.054 | 6500 | 1.45 | 4.25 | 29.6 | |
BA3510M12B | 12 | 0.058 | 7000 | 1.60 | 5.20 | 31.7 | |
BA3510MV12B | 12 | 0.067 | 7500 | 1.67 | 5.87 | 33.5 | |
BA3510VM12B | 12 | 0.075 | 8000 | 1.86 | 6.92 | 34.9 | |
BA3510H12B | 12 | 0.083 | 8500 | 1.98 | 8.05 | 36.1 | |
BA3510HH12B | 12 | 0.092 | 9000 | 2.14 | 9.10 | 37.4 | |
BA3510HV12B | 12 | 0.104 | 9500 | 2.27 | 10.18 | 39.1 | |
BA3510VH12B | 12 | 0.117 | 10000 | 2.38 | 11.58 | 40.1 |
Company Profile
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–9 piece: US $3.7 / piece
- 10+ piece: US $3.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this turbo blower?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this turbo blower carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the turbo blower be supplied for my local voltage?
The standard configuration is 5V;12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Tengkai Special Electrical Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Tengkai Special Electrical Co., Ltd. range on HVACR Nexus.

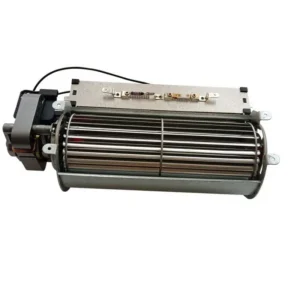

See more in Cross Flow Fans on HVACR Nexus.
