Key specification for this centrifugal blower: 40CFM, power source Electric Blower. Everything below is reproduced from the factory data sheet. Made by Ningbo Leison Motor Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Model Number: LS-13075
- Power Source: Electric Blower
- Power: 156W
- Rated Voltage: Other
- Normal Voltage: 12v/24v/48V/220V
- Max Air Flow: 40CFM
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric Blower |
| Rated Voltage | Other |
| Pressure | High Pressure |
| Warranty | 1 year |
| Place Of Origin | Zhejiang, China |
| Brand Name | LEISON |
| Model Number | LS-13075 |
| Normal Voltage | 12v/24v/48V/220V |
| Max Pressure | 6.5 Kpa |
| IP Rating | IP54 |
| Max Air Flow | 40CFM |
| Noise | 42dB |
| Power | 156W |
| Speed | 16000 rpm |
| Keywords | high speed centrifugal blower |
| Packaging Details | 1 Ctn size:28*30.5*13cm 2 120pcs/ctn, 30pcs/layer(foam packing) 3 N.W.: (3-5)kgs, G.W.: (4-5.5)kgs |
| Port Of Dispatch | Ningbo |
| Selling Units | Single item |
| Supply Ability | 50000 pieces per Month |
Product Details

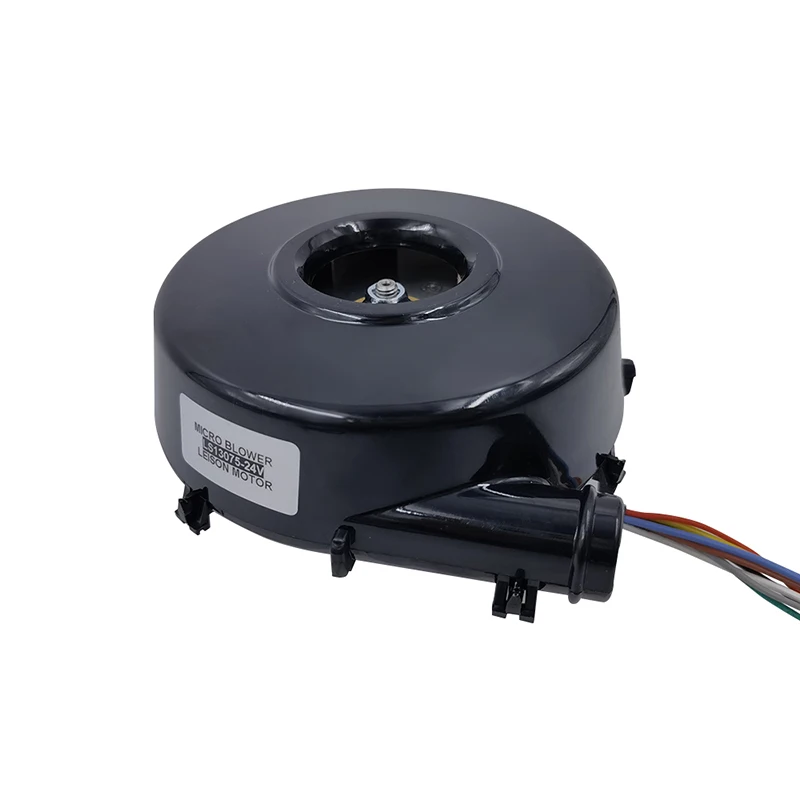

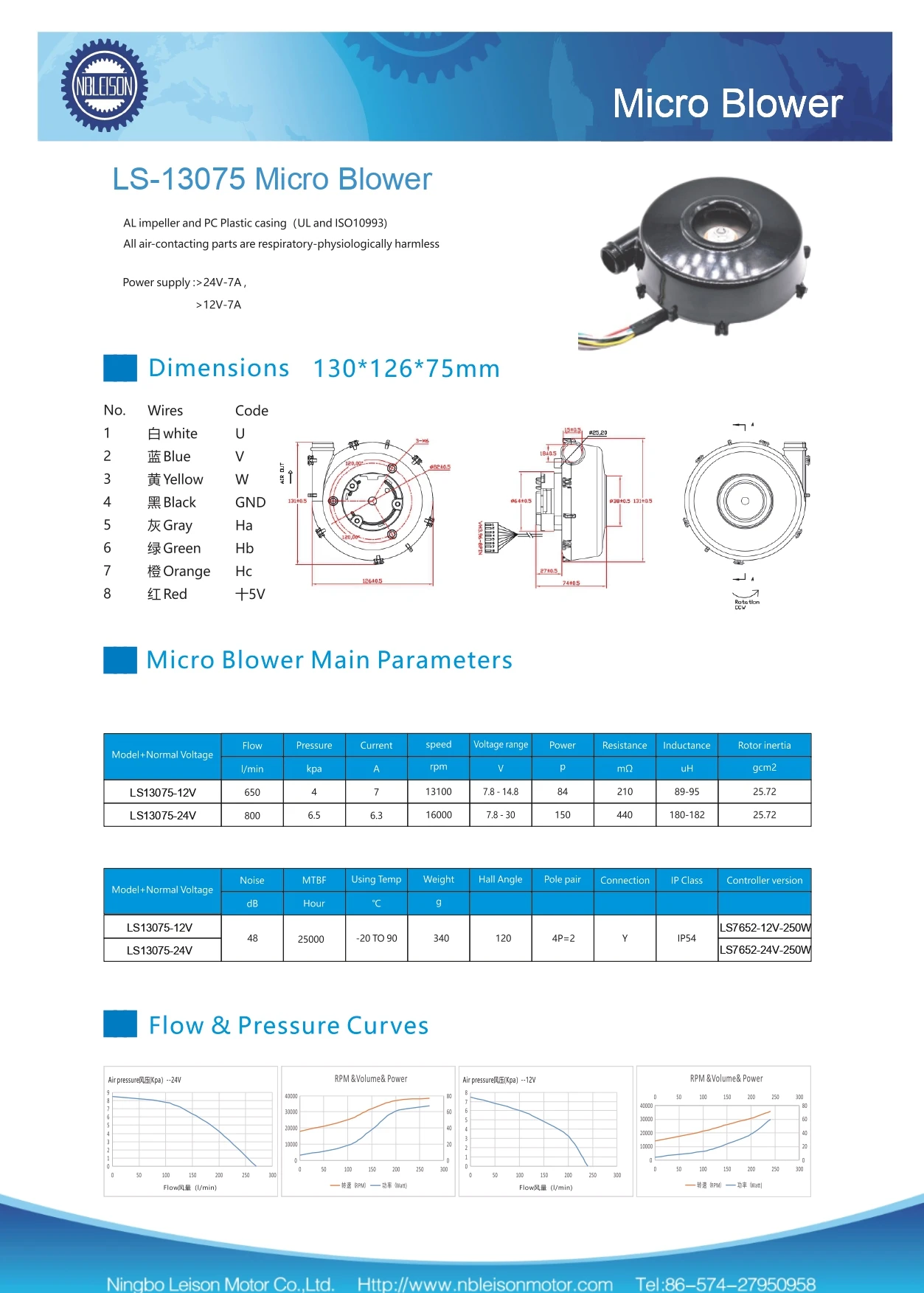

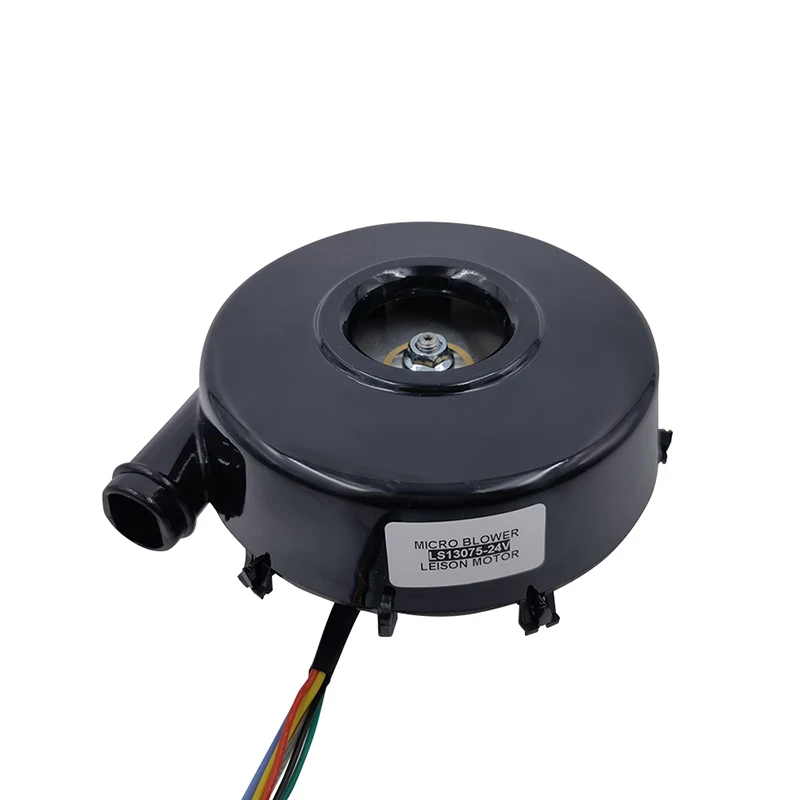

13075 24V Brushless Blower Fan Very Low Noise 42dB High Speed Centrifugal Blower for Sputum evacuator | ||||||
Model Number | LS-13075 | Max Air Flow (Air pressure=0) | 40CFM | |||
Material | PA66+30%GF plastic impeller and casing (UL and ISO10993) | Max Pressure (Air flow=0) | 6.5Kpa | |||
Normal voltage | 12v/24v/48v/220v | Speed | 13100rpm/16000rpm | |||
Power | 84W/150W | Noise | 42dB | |||
Lifespan | 25000 hours | Using temperature | -20 to 90℃ | |||
IP rating | IP54 | Weight | 600g | |||
Warranty | 12 months | Certification | CE | |||
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3) DC Planeary Gear Motor: 10-82mm diameter, 0.1-100W output power
4) Brushless DC Motor: 28-110mm, 5-1500W output power
5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q:What certifications do you have?
A:We currently have CE and ROSH certifications.
Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.
Q:Can I visit your company?
A:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetingsduring the day you visit us.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
