The pressure blower listed here carries 12V, power source Electric, documented exactly as the manufacturer publishes it. Made by Ningbo Leison Motor Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Pressure Blower
- Model Number: LS-7040
- Power Source: Electric
- Rated Voltage: 12V
- Blade Material: Plastic
- Material: PA66+GF+Aluminium
- Speed: 37500+/-5%rpm
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 12V |
| Electric Current Type | DC |
| Blade Material | Plastic |
| Pressure | High Pressure |
| Warranty | 3 Years |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Model Number | LS-7040 |
| Phase | 3 Phase |
| Speed | 37500+/-5%rpm |
| Certification | CE and ROHS |
| Material | PA66+GF+Aluminium |
| Usage | air cushion machine,cooling equipment |
| Selling Units | Single item |
| Single Package Size | 10X10X12 cm |
| Single Gross Weight | 0.5 kg |
Product Details

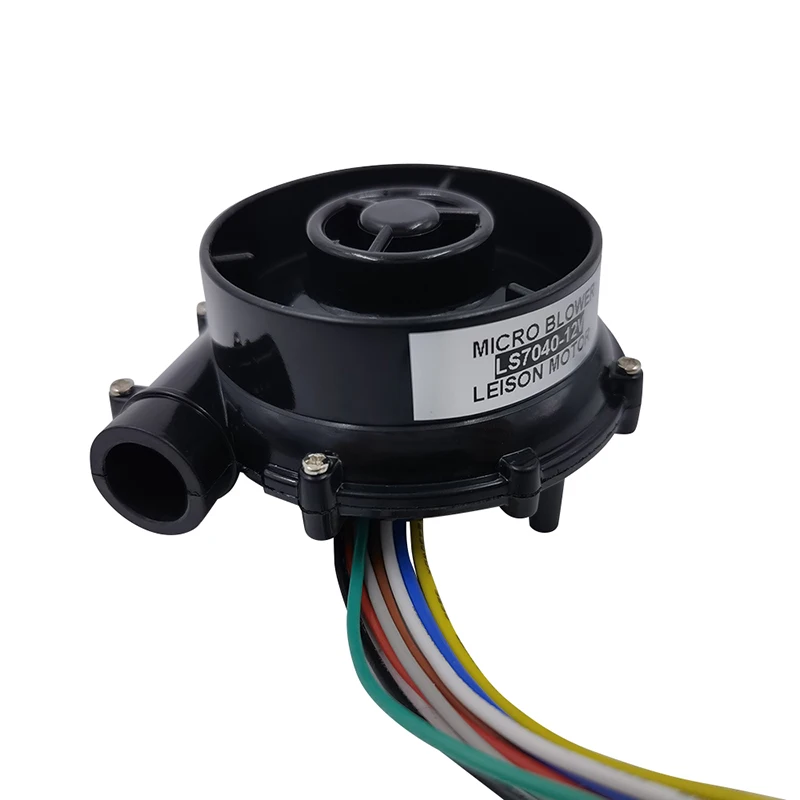

12/24V brushless dc motor blower ,low noise and quiet! | ||||||
Voltage and Current | 12V (4.5A±0.1A) , 24V (2.7A±0.1A) | |||||
Max Air Flow (Air pressure=0) | 240L/min, 14m³/h, 8.5 CFM | Max Pressure (Air flow=0) | 7.5 Kpa, 75 cm H2O | |||
Size | 70mm*36.5mm | Noise | 45dB(1Kpa-1M) 73dB(7Kpa-1M) | |||
Power | 65 W | Warranty | 1 year | |||
Speed | 37500±5% rpm | MOQ | 1 pc | |||
Material | PA66+GF | Price | $14.8-$34 | |||
Certification | CE and ROHS | Port | Ningbo/Shanghai | |||
Dc micro motor
Dc micro gear motor
High torque dc gear motor
Brushless motor
Hybrid stepper motor
AC Gear Motor
Our product ranges include: 1) DC Brush motor: 6-130mm diameter, 0.01-1000W output power
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3) DC Planeary Gear Motor: 10-82mm diameter, 0.1-100W output power
4) Brushless DC Motor: 28-110mm, 5-1500W output power
5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q:What certifications do you have?
A:We currently have CE and ROSH certifications.
Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.
Q:Can I visit your company?
A:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other
meetingsduring the day you visit us.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–299 piece: US $34 / piece
- 300+ piece: US $15.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pressure blower?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this pressure blower carry?
It is supplied with CE and ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the pressure blower be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Leison Motor Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Leison Motor Co., Ltd. range on HVACR Nexus.
