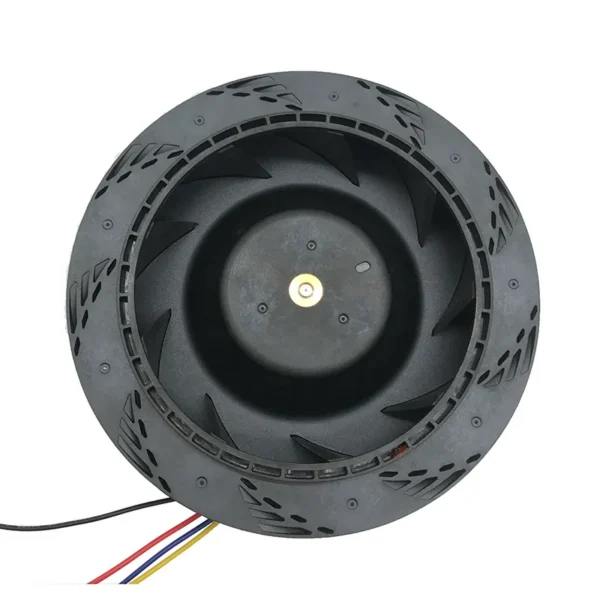

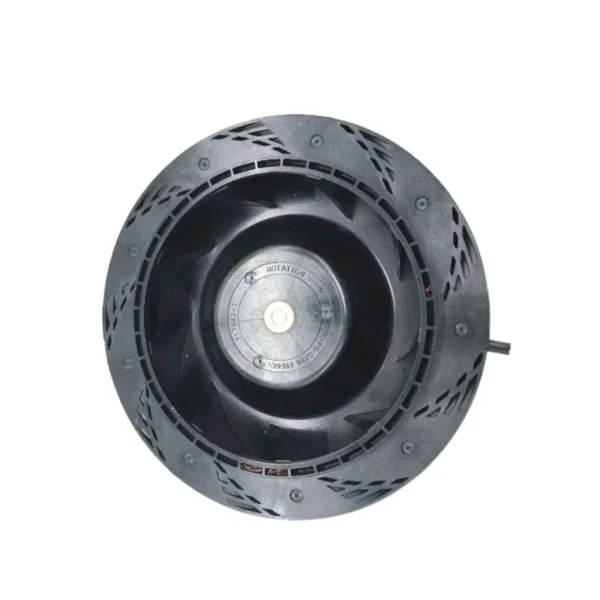

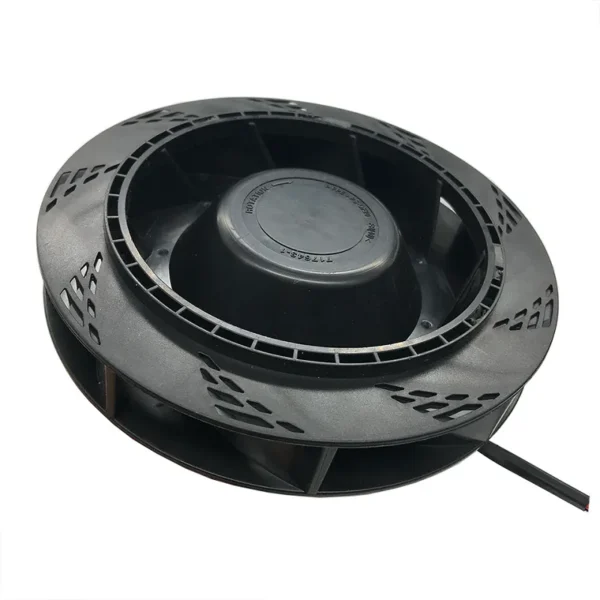

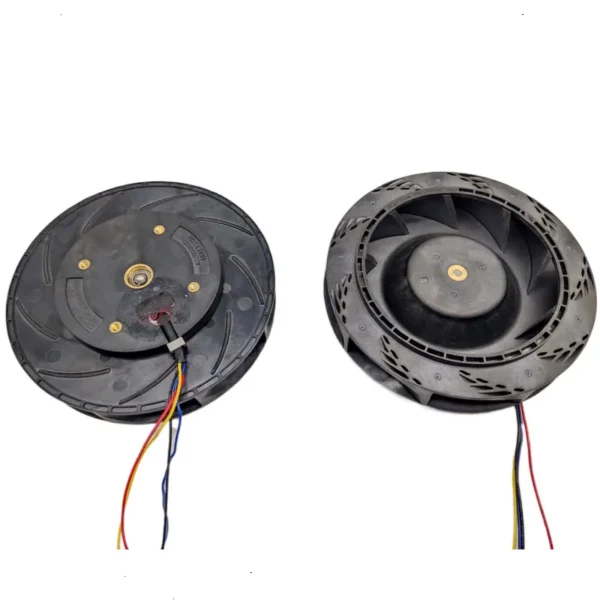

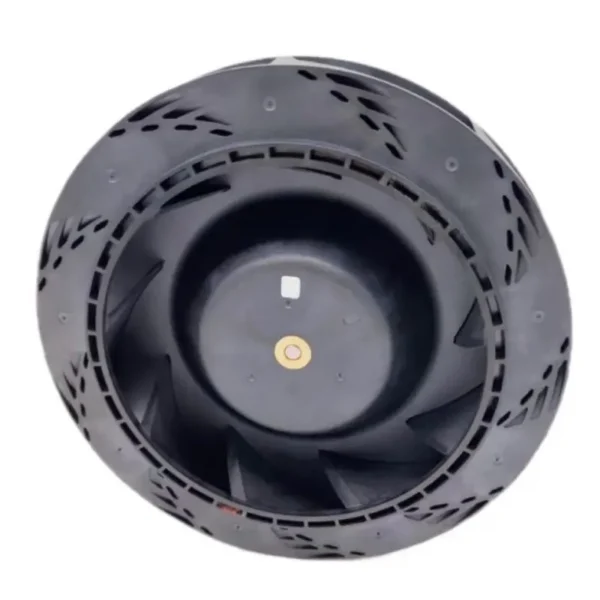

This centrifugal blower is published with the manufacturer’s full specification — 12V/24V/48V, power source type Electric. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: FH15035GBL2
- Power Source Type: Electric
- Voltage: 12V/24V/48V
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 43.5dB
Technical Specifications
| Duct Diameter | 6in |
|---|---|
| Mounting | Free Standing |
| Voltage | 12V/24V/48V |
| Motor Type | DC Motor, Brushless Motor, Brush Motor |
| Speed | 2700RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 43.5dB |
| Place Of Origin | Guangdong, China |
| Brand Name | FH/OEM/ODM |
| Model Number | FH15035GBL2 |
| Color | Black |
| Product Name | DC Centrifugal Fan |
| Size | 150x35mm |
| Bearing Type | Dual Ball Bearing |
| Application | Industrial Equipment,Home Appliance, Exhaust Ventilation |
| Motor | Copper Motor |
| Feature | High Efficiency,Low Noise Power Saving |
| Certification | Ce RoHS |
| Selling Units | Single item |
| Single Package Size | 25X25X20 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Product Name | DC Centrifugal Fan |
Product Dimension | 150x35mm |
Part No. | FH15035GBL2 |
Material | Plastic Blade and Plastic Frame |
Rated Voltage | 24V DC(12V 48V Optional) |
Bearing type | Ball bearing |
Rated Speed: 2700RPM(At rated Voltage,Measured after 3Mins.) Air Flow:116.64CFM (Maximum In Free Air) Air Pressure: 0.683Inch-H2O(Maximum When Air Flow = 0) Noise Level: 43.5dBA (At Rated Speed) | |
Life Expectancy | 50000hours at 40 C° |
Storage temperature range | -40~+80 C° |
Operating temperature range | -30~ +75 C° |
Function (optional) | PWM Control / FG Tacho / RD Alarm |
Wire & Connector & Tube | Wire length & Connector model ( as required ) |
Weight | 330g |
Application | Air purifier, chassis, industrial equipment, server and etc. |
Package | Carton box,we can also according to the requirements of customers. |
Product Specification
Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise |
Part NO. | B.S.Y | VDC | VDC | Amp | Watt | RPM | CFM | Inch-H2O | dB-A |
FH15035GBM1 | B | 12 | 6.8~13.8 | 1.24 | 14.88 | 3800 | 135 | 1.65 | 59 |
FH15035GBM2 | B | 24 | 13.8~26.8 | 0.62 | 14.88 | 3800 | 135 | 1.65 | 59 |

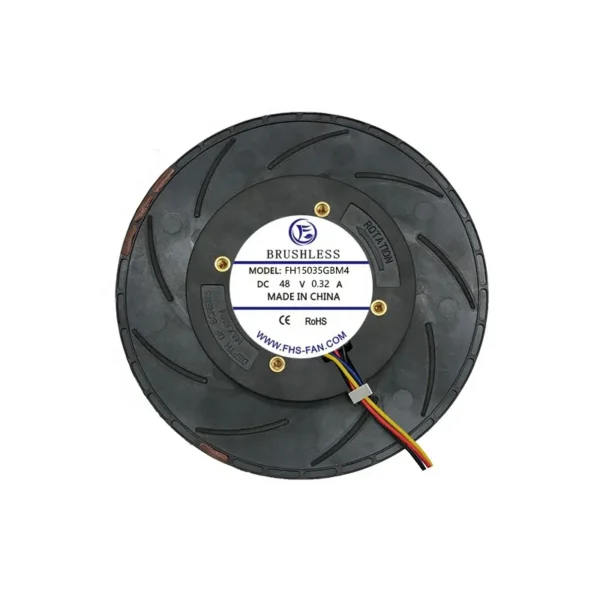

FH15035GBM4 | B | 48 | 36.0~60.5 | 0.32 | 15.36 | 3800 | 135 | 1.65 | 59 |
Additional signal:
Additional protection:
Factory
Sales department
Workshop Quality control
Assembly line 1
Assembly line 2
Wind Tunnel
Salt Spray Machine
Automatic Welding Machine
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we offer an 12 months warranty and on line engineer support.
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Ordering and Pricing
- Minimum order quantity: 40 piece
- Volume pricing:
- 40–499 piece: US $11.5 / piece
- 500–4999 piece: US $11 / piece
- 5000–9999 piece: US $10.5 / piece
- 10000+ piece: US $9.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 40 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with Ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
