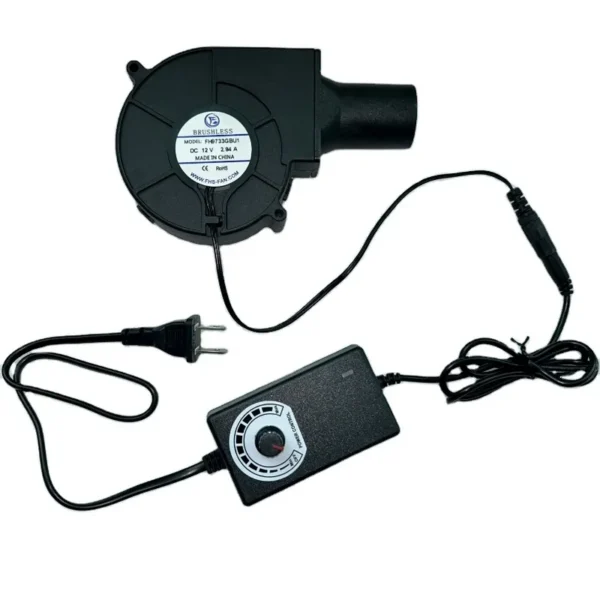

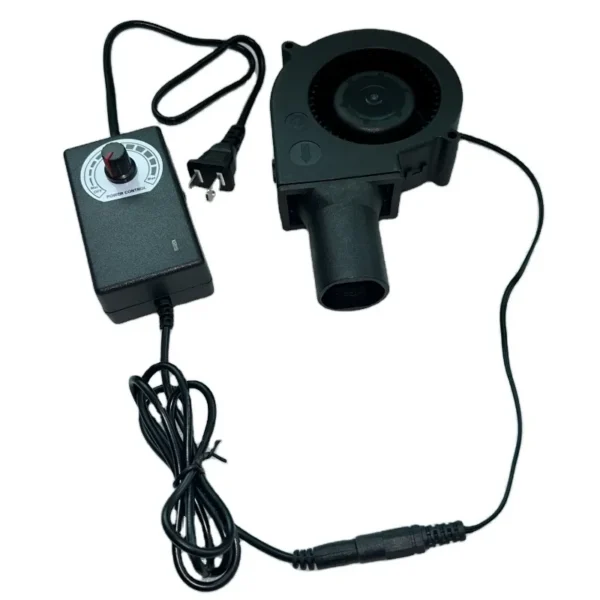

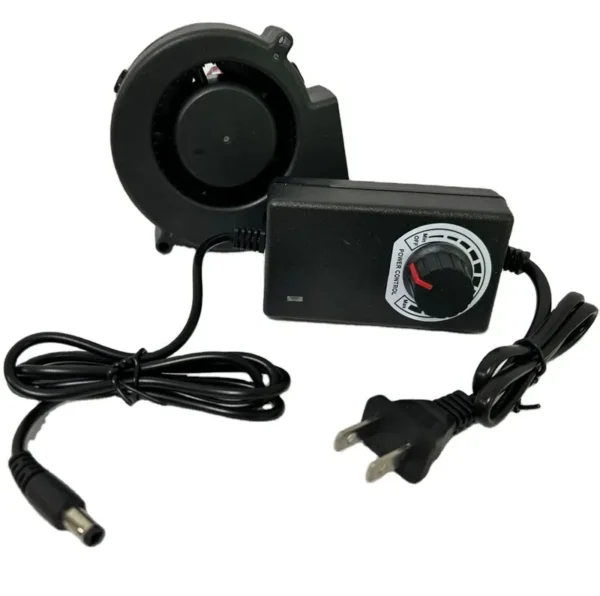

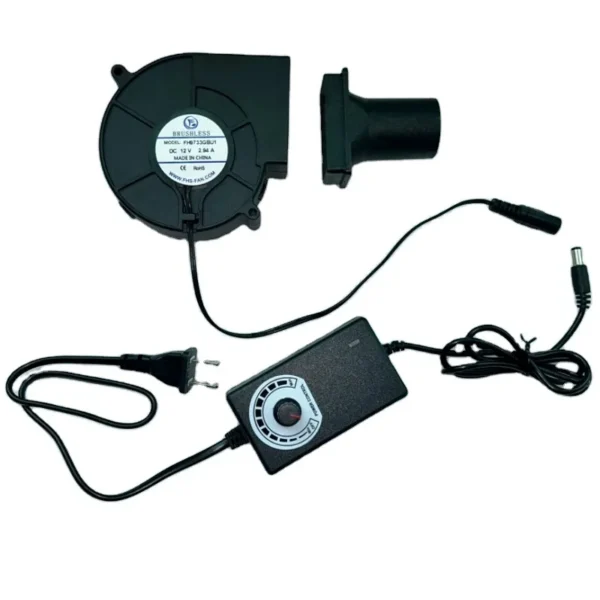

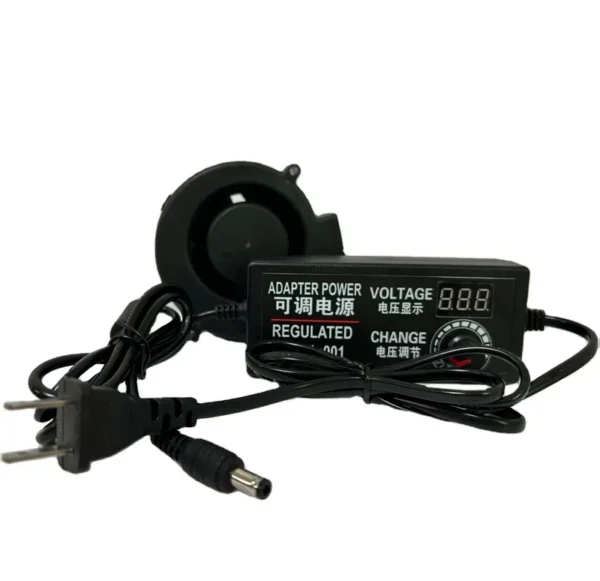

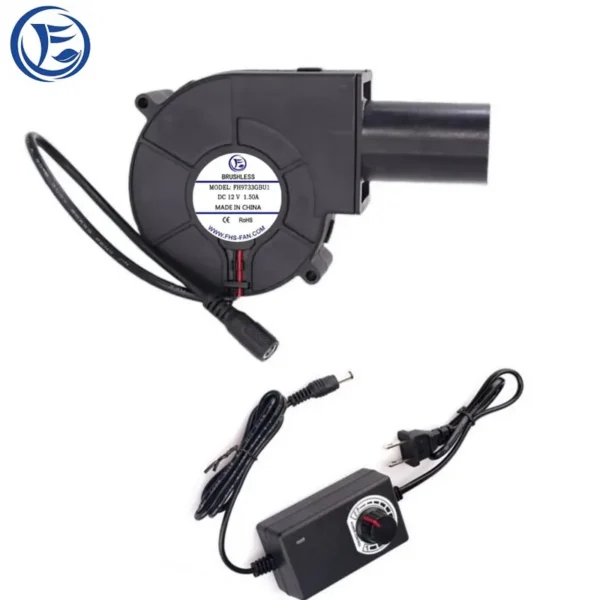

This turbo brushless motor is published with the manufacturer’s full specification — 12V, max air flow 19.71~29.76CFM. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Turbo Brushless Motor
- Model Number: FH9733GBM1
- Power Source: Electric
- Voltage: 12V
- Max Air Flow: 19.71~29.76CFM
- Material: Plastic
- Blade Material: Plastic
Technical Specifications
| Voltage | 12V |
|---|---|
| Speed | 3000~4500RPM |
| Type | blower fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | FH/OEM/ODM |
| Model Number | FH9733GBM1 |
| Product Name | DC Blower Fan |
| Size | 97x94x33mm |
| Max Air Flow | 19.71~29.76CFM |
| Motor | Brushless DC Motor |
| Color | Black |
| Feature | Small size, high CFM, Lower noise, stable performance |
| Application | Aromatherapy Machine Sensor Device Product |
| Selling Units | Single item |
| Single Package Size | 25X25X5 cm |
| Single Gross Weight | 0.454 kg |
Product Details
Product Name | Dc Blower Fan |
Product dimension | 97x 94 x 33 mm |
Material | Plastic Blade and Plastic Frame |
Rated Voltage | 12V DC |
Main Parameter | Rated Speed: 3000~4500RPM(At rated Voltage,Measured after 3Mins.) Air Flow:19.71~29.76CFM (Maximum In Free Air) Air Pressure: 0.53~1.35Inch-H2O(Maximum When Air Flow = 0) Noise Level: 45~57dBA (At Rated Speed) |
Storage temperature range | -40~+80 C° |
Operating temperature range | -10~ +70 C° |
Bearing type | Ball bearing |
Life time | 50000 hours at 40 C° |
Optional functions | tachometer output or locked rotor alarm signal; PWM speed control |
Package | carton box,we can also according to the requirements of customers. |
The specifications of some models are as follows:
Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. All models could be customized on
voltage or any other requirements to fit your needs.
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we offer an 12 months warranty and on line engineer support.
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–2999 piece: US $6.5 / piece
- 3000–9999 piece: US $6 / piece
- 10000+ piece: US $4.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this turbo brushless motor?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the turbo brushless motor be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
