Centrifugal Blower, 380~660 V, Electric

Centrifugal blower — voltage 380~660 V, power source Electric. The complete factory specification follows. Made by Yuncheng Zhongsui Mining Equipment Co., Ltd. (3 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Blower

• Power Source: Electric
• Voltage: 380~660 V
• Material: Carbon Steel/high strength low alloy steel
• Blade Material: Carbon Steel/high strength low alloy steel
• Speed: 960~2900 r/min
• Warranty: 2 Years

Technical Specifications

Product Details

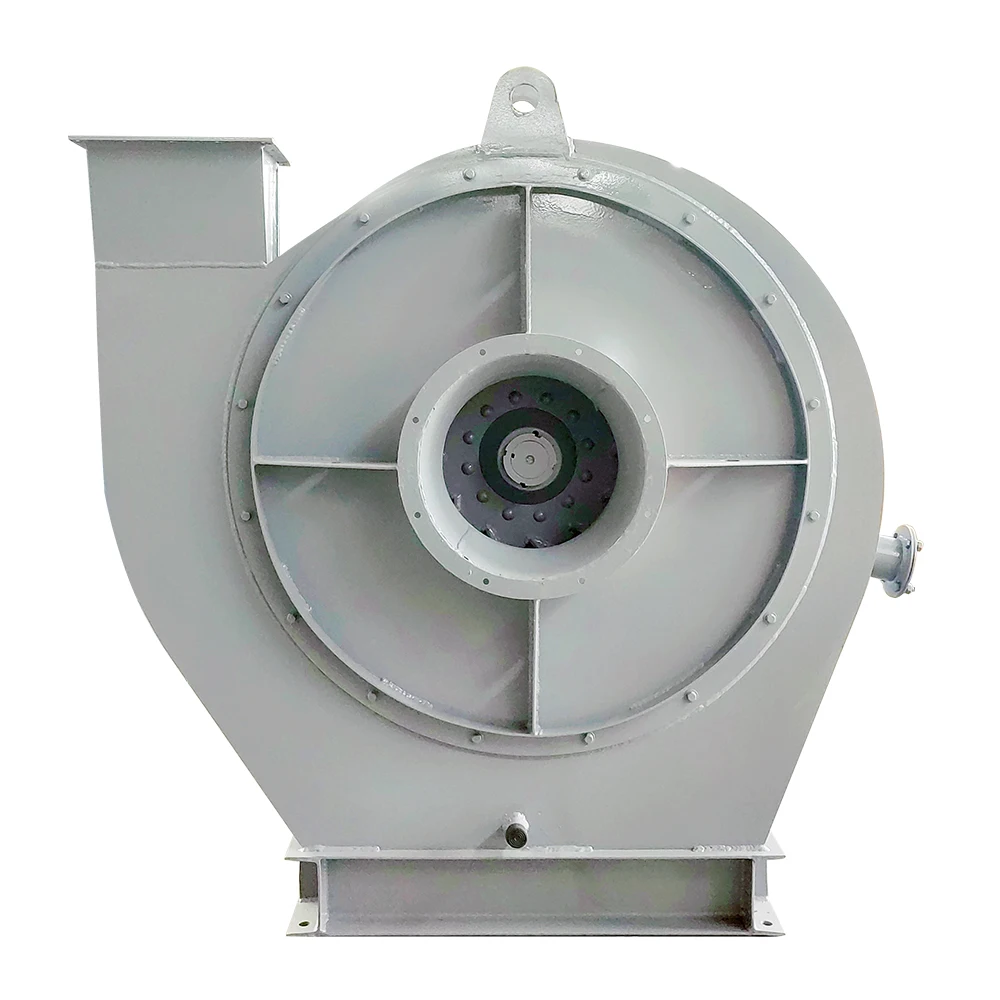

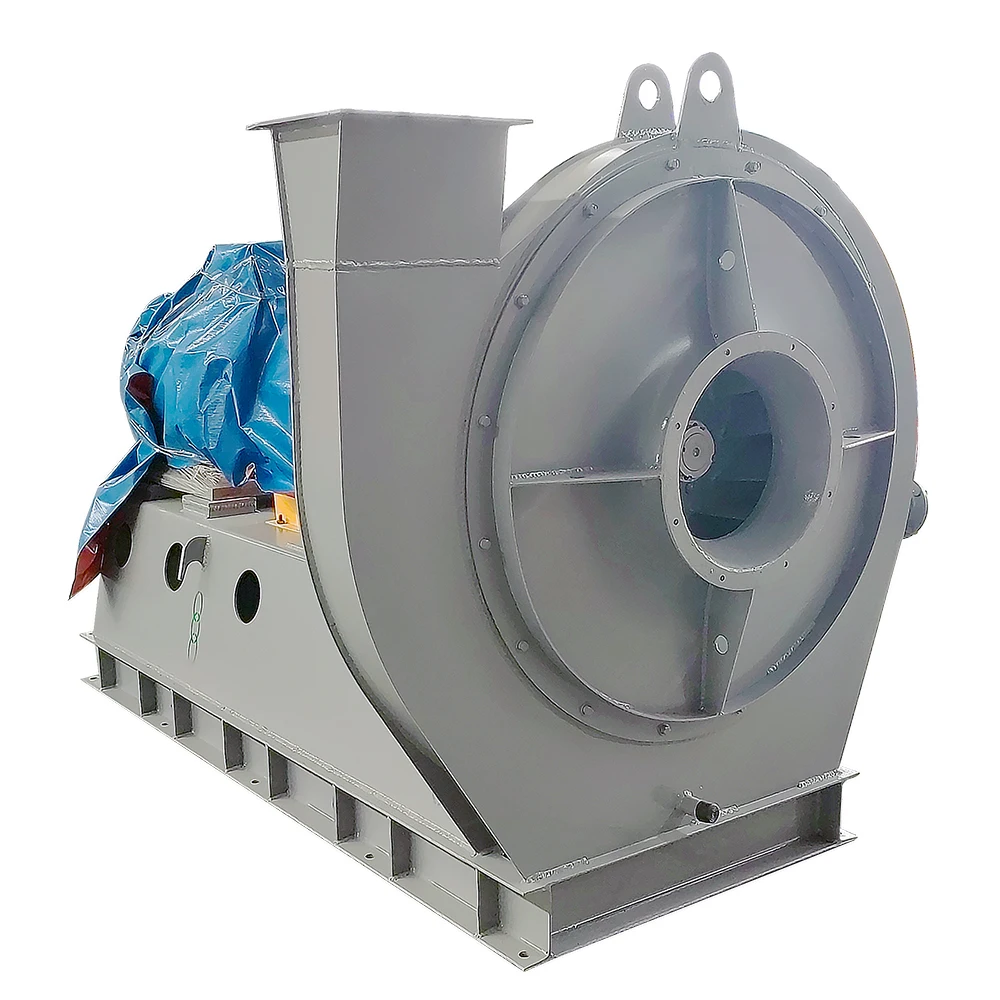

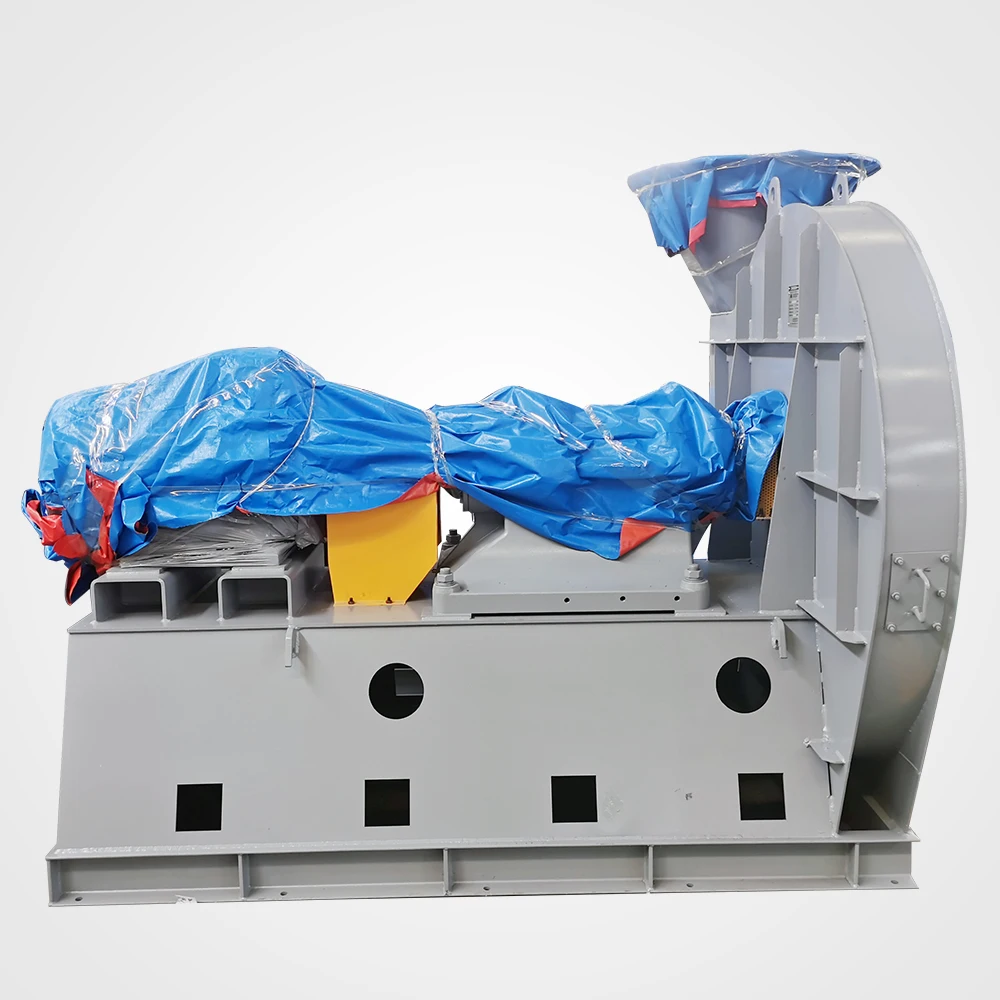

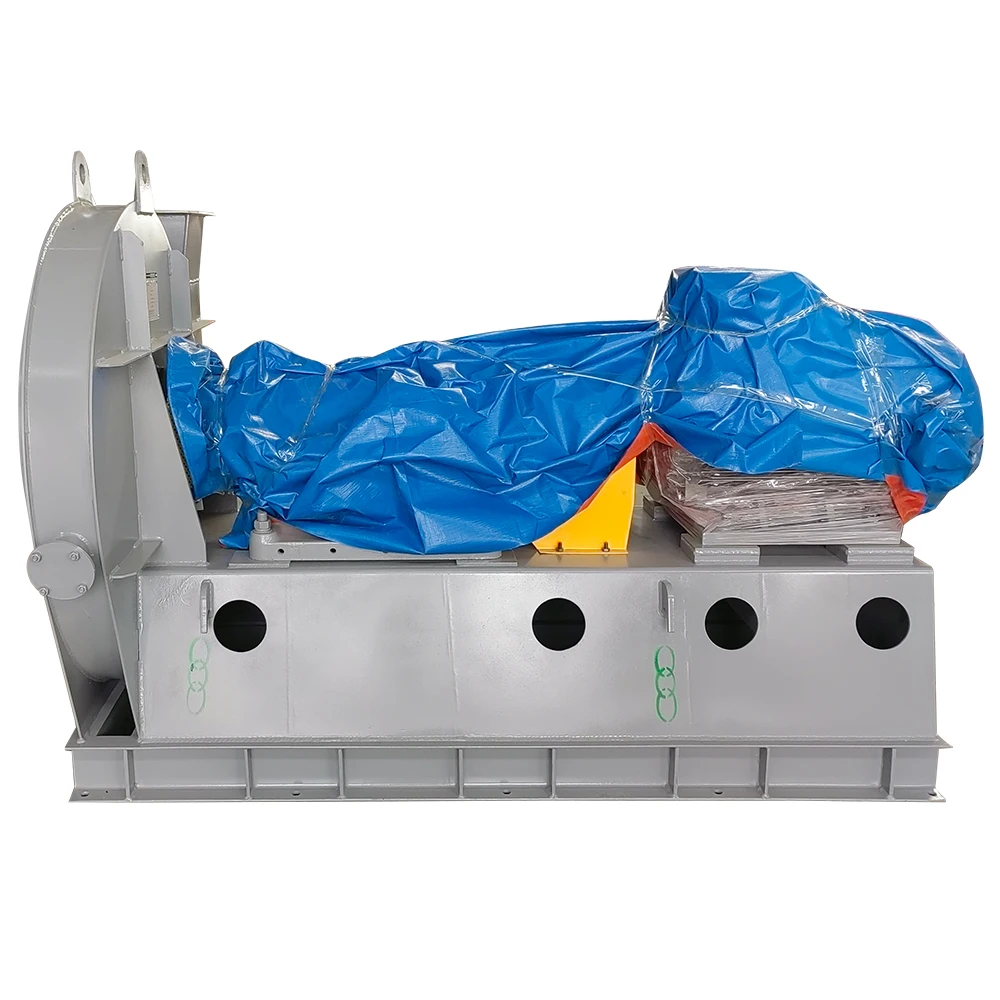

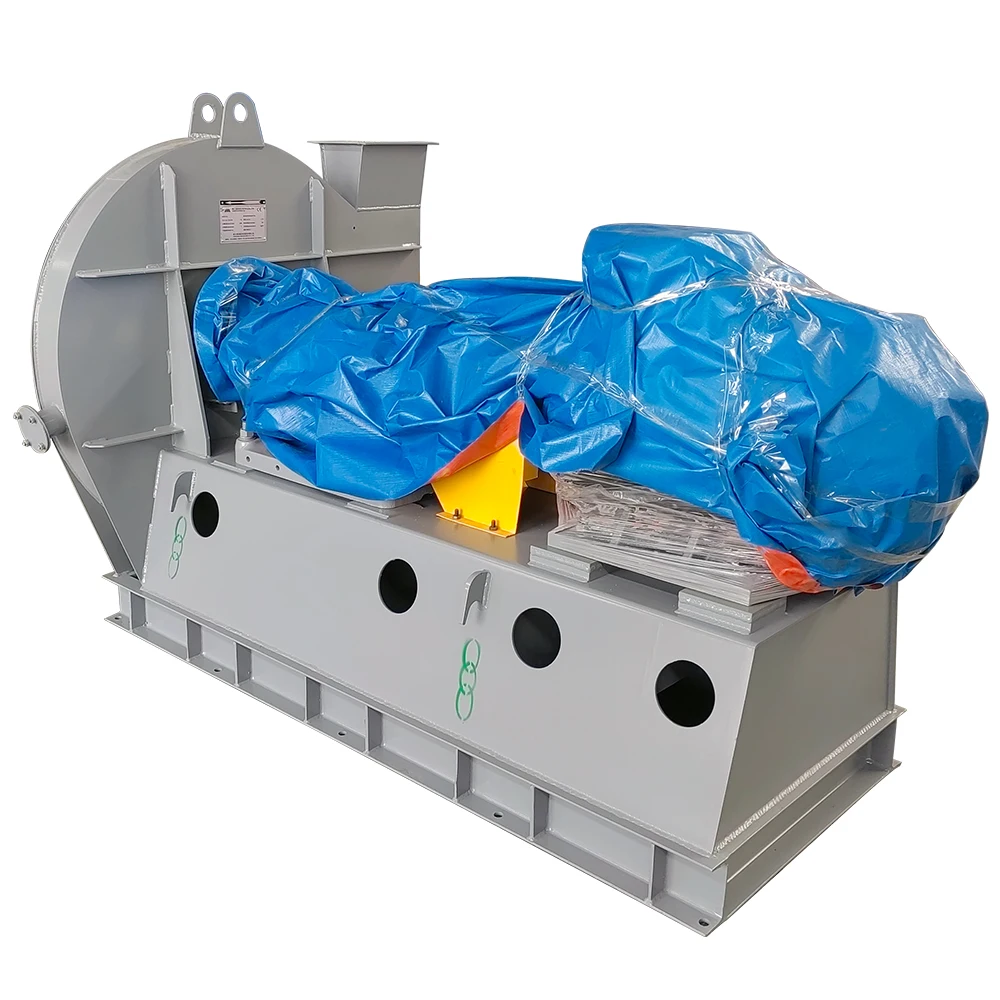

Coupling driving high pressure backward curved cement rotary kiln centrifugal blower fan

pplication	Temperature	Normal temperature Air
				Hot Air
		Air composition	Clean air
				Dusty air
				Corrosive gas
				Combustible gas
				Powder materials
				Light particle materials
Performance	Impeller diameter	710~1600	mm
		Speed of mainshaft	960~2900	rpm
		Pressure range	3031~16250	Pa
		Flow range	8792~123090	m3/h
Structure	Blade	Forward
		Impeller Support	SWSI (Single Width, Single Inlet), Impeller overhung.
		Drivetrain	Coupling drivetrain	Can assign
		Lubrication	Oil bath lubrication	Can assign
		Bearing cooling	Air cooling or Circulating Water cooling
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
		Impeller		Carbon steel
		Impeller cone (Air Inlet)		Carbon steel
		Case		Carbon steel
		Air damper		Carbon steel
		Main shaft		High-strength carbon structural steel
		Bearing		FAG, SKF, ZWZ, C&U…
		Bearing housing	Cast iron
		Drivetrain	Coupling	Can assign
		Foundation bolt
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.

Q1.Do you have MOQ? Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it? For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.

Q3.How about the after sale service? 1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers. 2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery. 3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.

Q4.When can I get a price？ We usually quote within 24 hours after we get your inquiry.

Q5: Are you a trade company or manufacturer? We are a professional manufacturer with our own factory.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–2 set: US $1000 / set
  • 3–4 set: US $800 / set
  • 5+ set: US $500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 380~660 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
