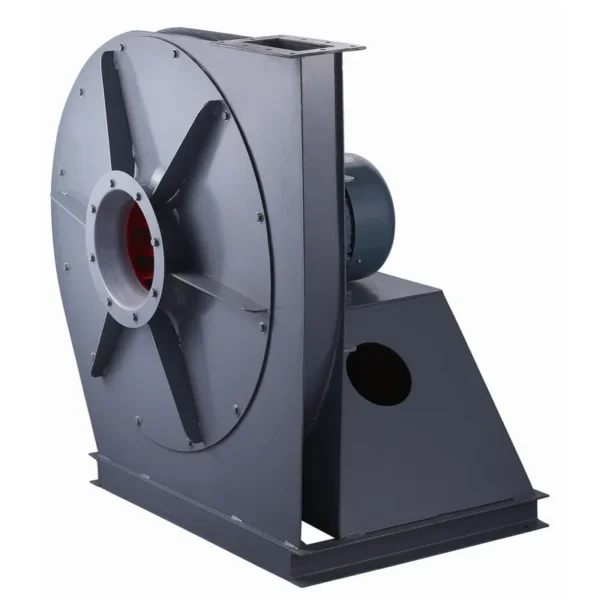

Centrifugal blower — 380V, power source type Corded Electric. The complete factory specification follows. Made by Foshan City Nanhai Popula Fan Co., Ltd. (18 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Model Number: 9-19 4A 380/50 2.2
- Power Source Type: Corded Electric
- Voltage: 380V
- Blade Material: Cast Iron
- Speed: 2800rpm
- Warranty: 1 Year
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 380V |
| Motor Type | AC Motor |
| Speed | 2800rpm |
| Blade Material | Cast Iron |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | popula |
| Model Number | 9-19 4A 380/50 2.2 |
| Color | gray |
| Pressure | 2744-9149 pa |
| Certification | CCC |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 60X50X60 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Vol/Fre: 380v/50hz, special 400v/415v/60hz is negotiable
Material: Q235A carbon steel with powder coating
Impeller: Forward type, cast iron with powder coating
Motor: AC motor,100% copper winding
Insulation grade: B/F/H
Protection grade: IP44/54/55
Warranty: 1 Year
After-sales Service Provided: Free spare parts
Model no. | V/Feq. | Power(kW) | Rotation(r/min) | Air Volume(m³/h) | Total Pressure(Pa) | ||||
Low | Hi | Hi | Low | ||||||
3.5A | 380/50 | 1.5 | 2800 | 552 | 847 | 2745 | 2744 | ||
4A | 380/50 | 2.2 | 2800 | 824 | 1264 | 3584 | 3597 | ||
4A | 380/50 | 3 | 2900 | 1410 | 1704 | 3507 | 3253 | ||
4.5A | 380/50 | 4 | 2900 | 1174 | 2062 | 4603 | 4447 | ||
4.5A | 380/50 | 5.5 | 2900 | 2281 | 2504 | 4297 | 4112 | ||
5A | 380/50 | 7.5 | 2900 | 1610 | 2844 | 5697 | 5517 | ||
5A | 380/50 | 11 | 2930 | 3166 | 3488 | 5323 | 5080 | ||
5.6A | 380/50 | 11 | 2930 | 2622 | 3619 | 7182 | 7109 | ||
5.6A | 380/50 | 18.5 | 2930 | 3996 | 4901 | 6954 | 6400 | ||
6.3A | 380/50 | 18.5 | 2930 | 3220 | 5153 | 9149 | 9055 | ||
6.3A | 380/50 | 30 | 2950 | 5690 | 697 | 8857 | 8148 | ||
Ordering and Pricing
- Minimum order quantity: 50 unit
- Volume pricing:
- 50+ unit: US $222 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 50 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan City Nanhai Popula Fan Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan City Nanhai Popula Fan Co., Ltd. range on HVACR Nexus.
